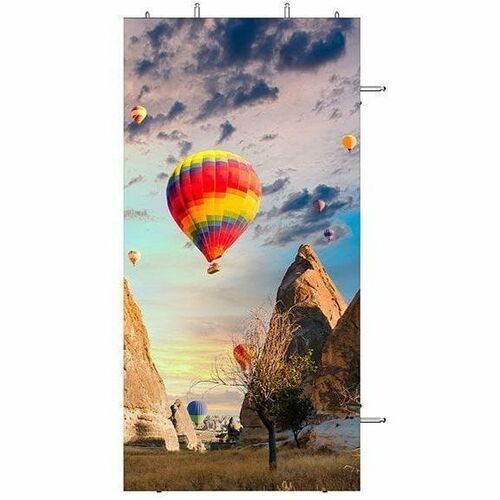

LG 2.6mm LWBC Window Facing DVLED Display with 3,500 nit Brightness

Name: LG 2.6mm LWBC Window Facing DVLED Display with 3,500 nit Brightness
Brand: LG
SKU: NM0164
Price: 2620 USD
Availability: InStock

PCN#

NM0164

MFG#

LWBC026-GD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,620.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

High Dynamic Range (HDR)
192 x 384
3500 Nit

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 64 lbs.

LG 2.6mm LWBC Window Facing DVLED Display with 3,500 nit Brightness

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LWBC026-GD
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LWBC026-GD
Product Name	2.6mm LWBC Window Facing DVLED Display with 3,500 nit Brightness

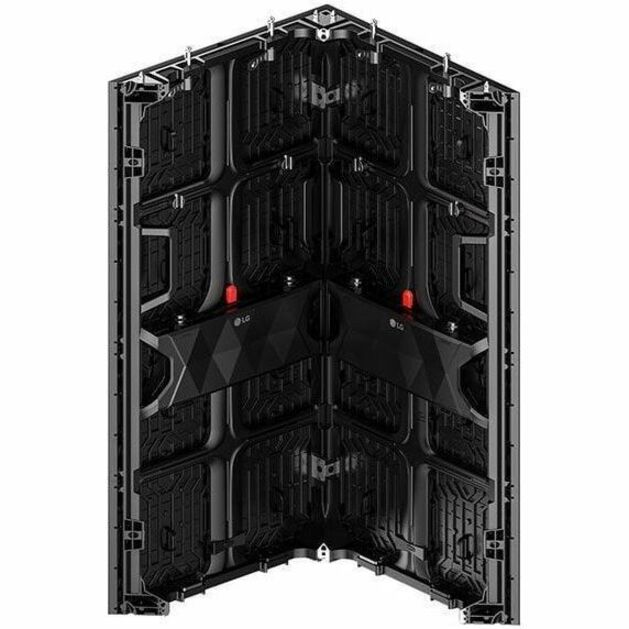

Marketing Information	Window Facing LED Display \| High Visibility Under the Sunlight With a brightness of 3,500 nits, LWBC clearly delivers content and attracts public attention. Turn your window display up a notch with LWBC series Direct View LED! 90° Corner Design Available LWBC has a 90° corner option that can be purchased separately. It allows this LED window display to fit naturally into corners and deliver virtually flawless content to customers. Front or Rear Installation & Maintenance Easy access to front or rear cabinet for maintenance. Quick Lock & Flip Design The LWBC is easy to install with its quick lock system, which also helps maintain an outstanding alignment. Because it does not require screws or a screwdriver, the flip design makes it easy to repair and/or replace the integrated power system and reception card. Compatibility with LG Software Solutions Powered by LG's high performance system controller, the LWBC series is compatible with LG software solutions including SuperSign™ CMS, LED Assistant™ , and ConnectedCare™, which help customers operate their own business.
Product Type	Digital Signage Display

Technical Information

Average Heat Dissipation Per Cabinet	100 W
Ingress Protection (IP) Rating	IP50
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy

Display & Graphics

Display Resolution	192 x 384
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	0.10"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	140°
Cabinet Surface Area	5 Sq. ft.
Number of Modules Per Cabinet	2x4
Module Resolution	96 x 96
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	147456 pixels/m²

Video

Frame Refresh Rate	3.84 kHz
Native Contrast Ratio	5,000:1
Brightness	3500 Nit

Environmental Conditions

Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Height	39.4"
Width	19.7"
Depth	2.7"
Housing Material	Die-cast Aluminum

Miscellaneous

Additional Information	90 Degree Corner Cut : No Curveable : No ETL (Regulatory) : No KC : No EN13501-1 : No Fire Protection : No Safety 60950-1 : No CCC : No BS476 Part7 (UK Fire Rating) : No Eye Comfort : No Controller : CVBA
Certifications & Standards	CE CB FCC cTUVus: Yes
Environmentally Friendly	Yes
Environmental Certification	REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
