2.5MM 800NIT 600X337.5X35 POWER REDUNDANCY

Name: 2.5MM 800NIT 600X337.5X35 POWER REDUNDANCY
Brand: LG
SKU: NT5674
Price: 1093 USD
Availability: InStock

PCN#

NT5674

MFG#

LSCB025-PK

$1,093.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

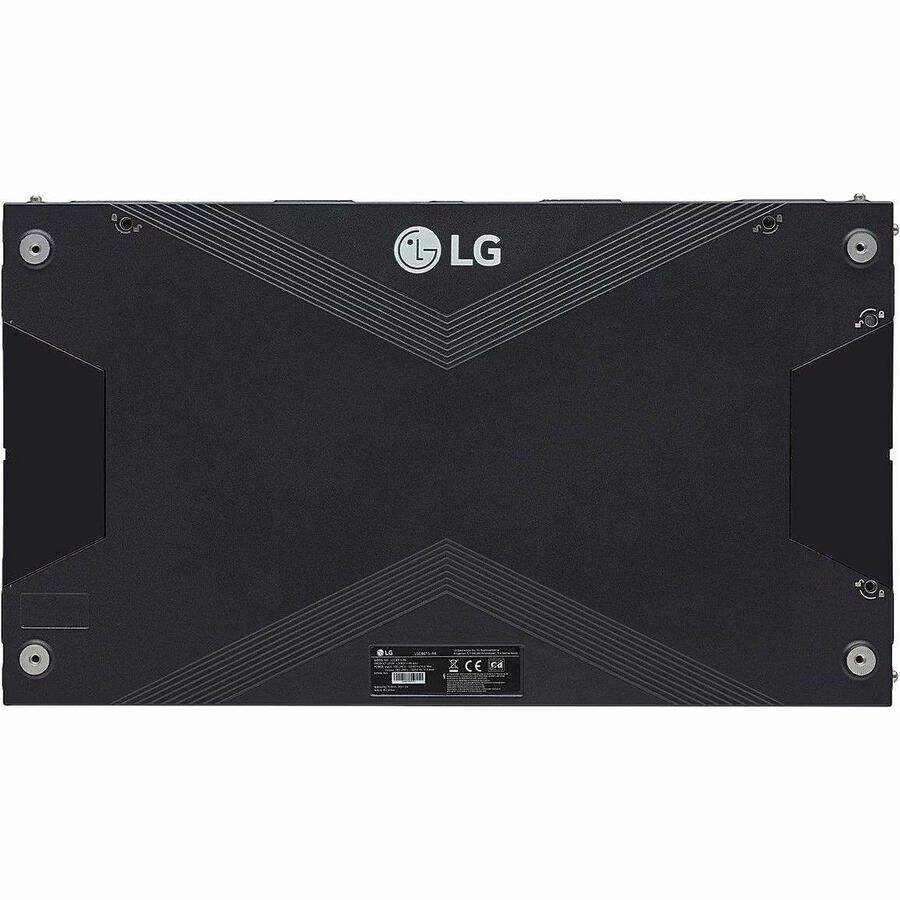

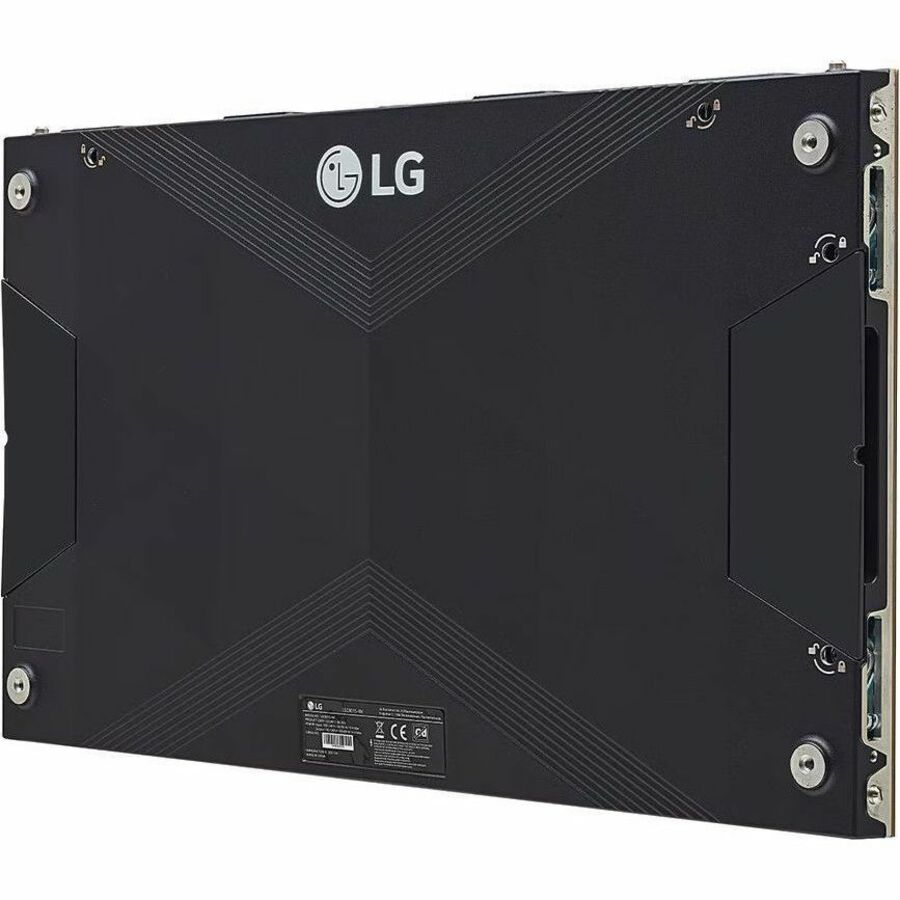

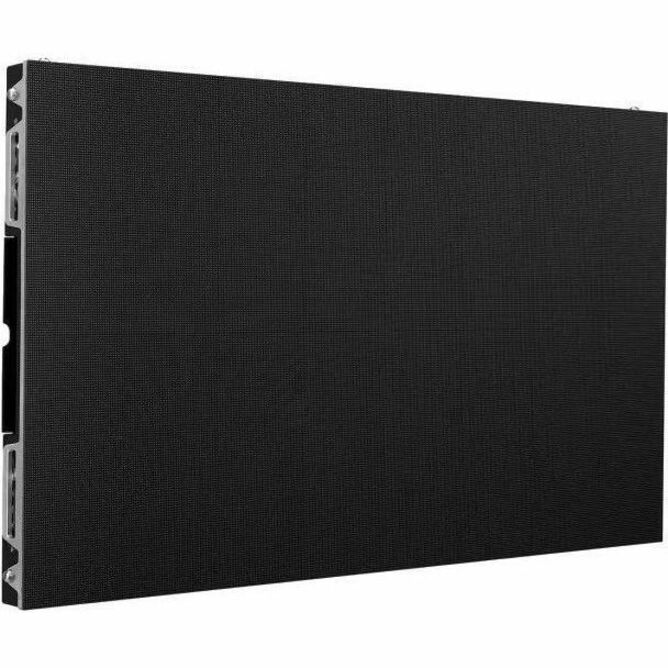

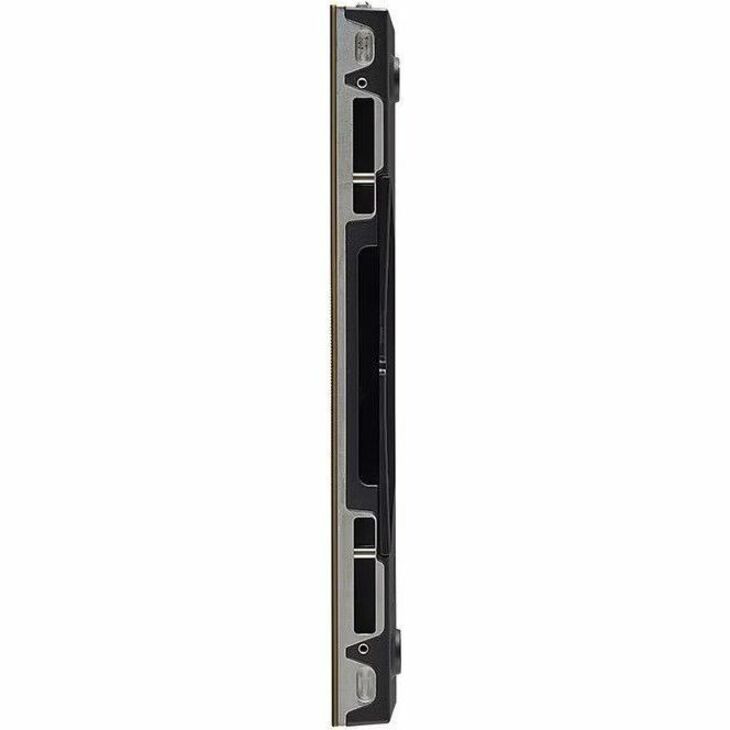

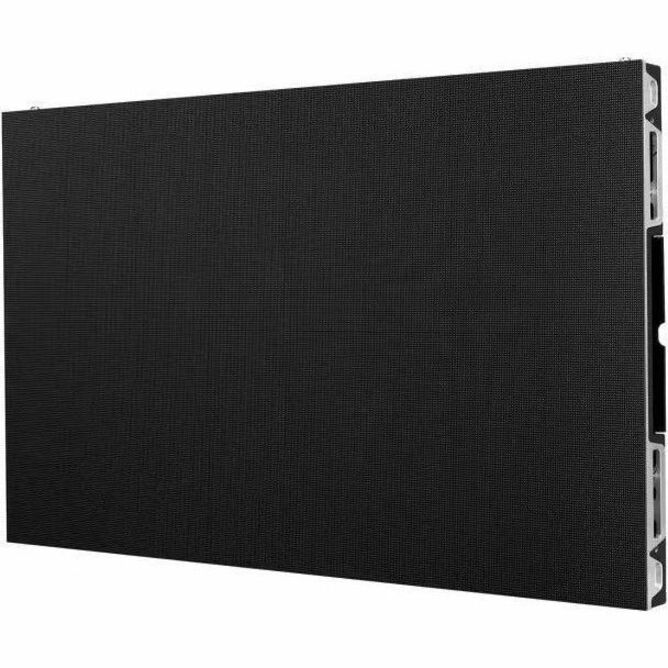

LG 2.5mm LSCB Ultra Slim Indoor LED with Power Redundancy

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LSCB025-PK
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LSCB025-PK
Product Name	2.5mm LSCB Ultra Slim Indoor LED with Power Redundancy
Product Type	Digital Signage Display

Technical Information

Features	Flame Resistant
Heat Dissipation	109.90 W
Average Heat Dissipation Per Cabinet	36.63 W
Ingress Protection (IP) Rating	IP30
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front

Display & Graphics

Display Resolution	240 x 135
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	98.4 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	2 Sq. ft.
Number of Modules Per Cabinet	2x1
Module Resolution	120 x 135
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	160000 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Operating Humidity	0%
Maximum Operating Humidity	80%

Physical Characteristics

Height	13.3"
Width	23.6"

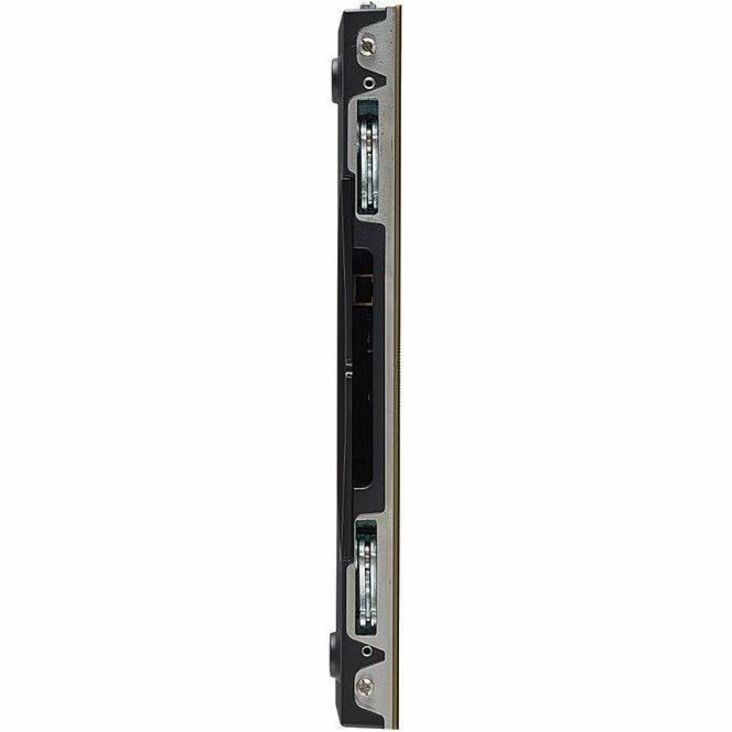

Depth	1.3"
Module Height	13.30"
Module Width	11.80"
Weight per Module (Approximate)	1.40 lb
Weight per Cabinet (Approximate)	12.30 lb
Housing Material	Die-cast Aluminum
Weight per Square Meter (Approximate)	27700 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 110W Power Consumption per Cabinet (Avg.) : 37W 90 Degree Corner Cut : No Total Modules (per cabinet) : 2 Heat Dissipation per Unit Area (Max.) : 1,854 BTU/hr/m² Power Consumption per Unit Area (Max) : 543 W/m² Controller : CVCA Minimum Viewing Distance (5-7 mm per foot) : 13-18 feet
Certifications & Standards	CE FCC: EMC Class A cTUVus : No ETL (Regulatory): Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
