1.56MM 800NIT 600X337.5X35 POWER REDUNDANCY

Name: 1.56MM 800NIT 600X337.5X35 POWER REDUNDANCY
Brand: LG
SKU: NT5647
Price: 2187 USD
Availability: InStock

PCN#

NT5647

MFG#

LSCB015-PK

$2,187.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 18 lbs.

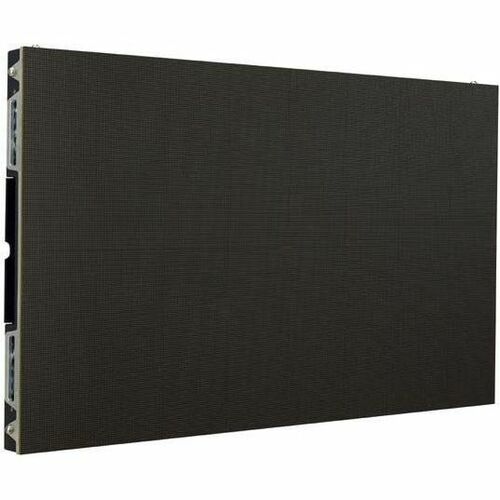

LG 1.56 mm LSC Ultra Slim Indoor LED with Power Redundancy

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LSCB015-PK
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LSCB015-PK
Product Name	1.56 mm LSC Ultra Slim Indoor LED with Power Redundancy
Marketing Information	Ultra Slim Depth With an edge thickness of just 41 mm, the LSCB series ultra slim cabinets can be installed in a wide variety of venues with virtually no restrictions, creating a dynamic display that will immerse and captivate viewers. Front or Rear Installation & Maintenance The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options. 16:9 FHD/UHD Configuration Each cabinet features a 16:9 aspect ratio configuration for a perfect match to existing 16:9 content, but not limited to just 16:9 content. 90° Corner Design Available The LSCB series offers an optional 90° corner configuration which can add dramatic impact to existing environments, delivering smooth, dynamic content to viewers. Power / Signal Redundancy Support ? The LSCB series is designed to support redundancy of signal and power, providing users with ease of mind. With an optional embedded backup power supply unit and signal redundancy, customers may experience the continuous operation of the screen without power failure, while the dual controllers can reduce screen failures with bi-directional signal input.
Product Type	Digital Signage Display

Technical Information

Features	Flame Resistant
Heat Dissipation	160.02 W
Average Heat Dissipation Per Cabinet	53.34 W
Ingress Protection (IP) Rating	IP30
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front

Display & Graphics

Display Resolution	384 x 216
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	61.4 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	2 Sq. ft.
Number of Modules Per Cabinet	2x2
Module Resolution	192 x 108
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	409600 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	14°F (-10°C)
Maximum Operating Temperature	113°F (45°C)
Minimum Operating Humidity	0%
Maximum Operating Humidity	80%

Physical Characteristics

Height	13.3"
Width	23.6"
Depth	1.3"
Module Height	6.60"
Module Width	11.80"
Weight per Module (Approximate)	12 oz
Weight per Cabinet (Approximate)	12.30 lb
Housing Material	Die-cast Aluminum
Weight per Square Meter (Approximate)	27700 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 160W Power Consumption per Cabinet (Avg.) : 53W 90 Degree Corner Cut : No Total Modules (per cabinet) : 4 Heat Dissipation per Unit Area (Max.) : 2,696 BTU/hr/m² Power Consumption per Unit Area (Max) : 790 W/m² Controller : CVCA Minimum Viewing Distance (5-7 mm per foot) : 8-11 feet
Certifications & Standards	CE FCC: EMC Class A cTUVus : No ETL (Regulatory): Yes
Environmentally Friendly	Yes
Environmental Certification	REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
