LSBE DVLED P1.25 TAA 480X270 SMD 600 NIT

Name: LSBE DVLED P1.25 TAA 480X270 SMD 600 NIT
Brand: LG
SKU: NT5598
Price: 1807 USD
Availability: InStock

PCN#

NT5598

MFG#

LSBE012-GD

$1,807.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 33 lbs.

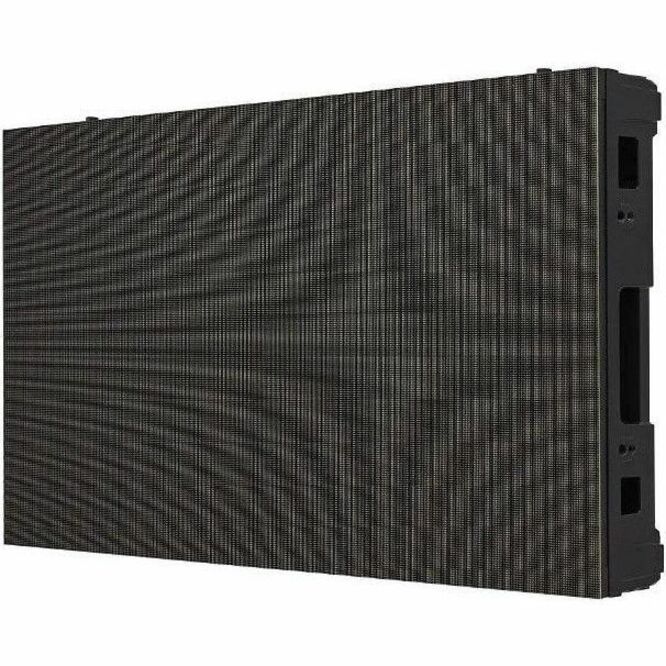

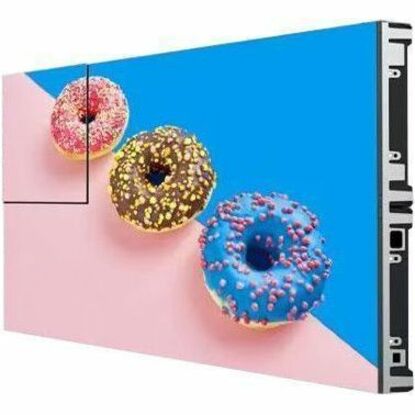

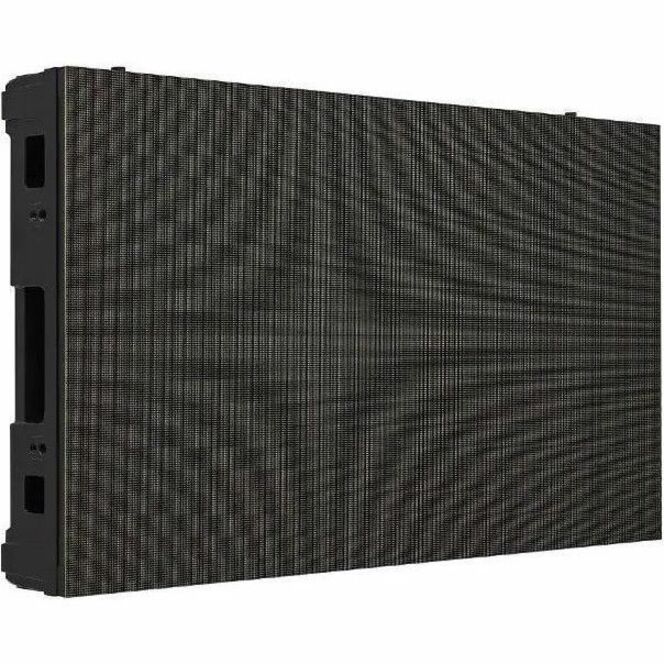

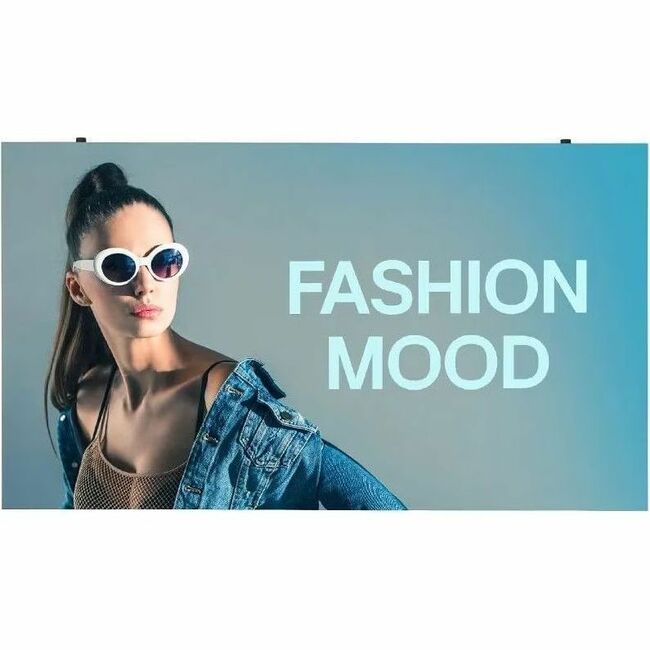

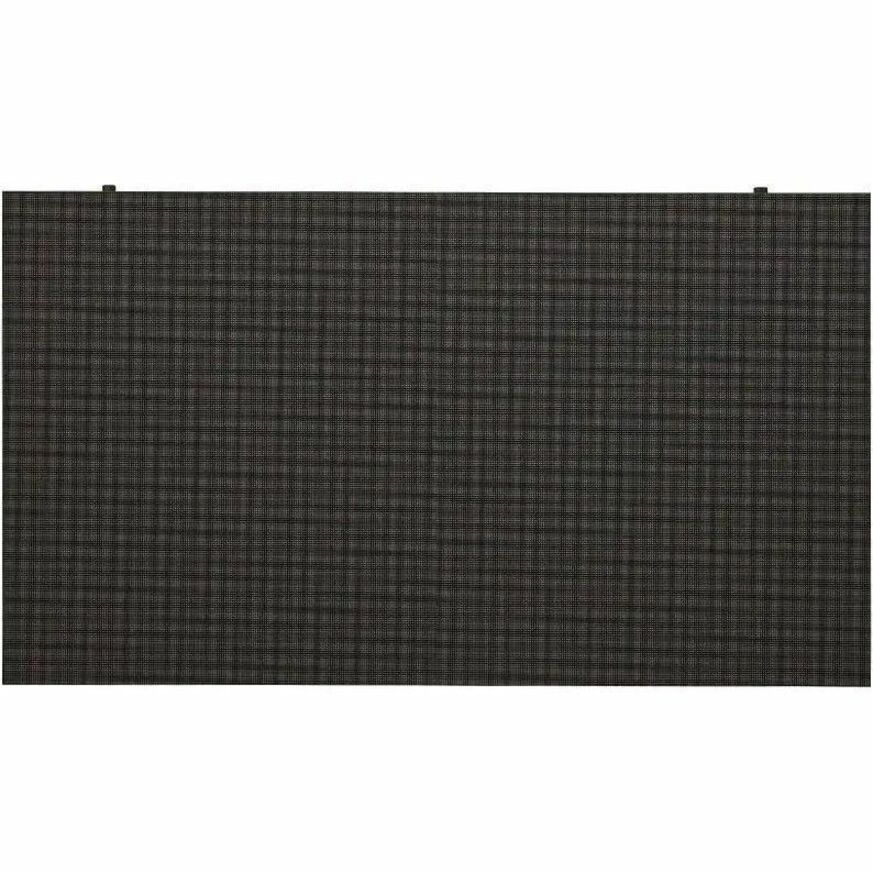

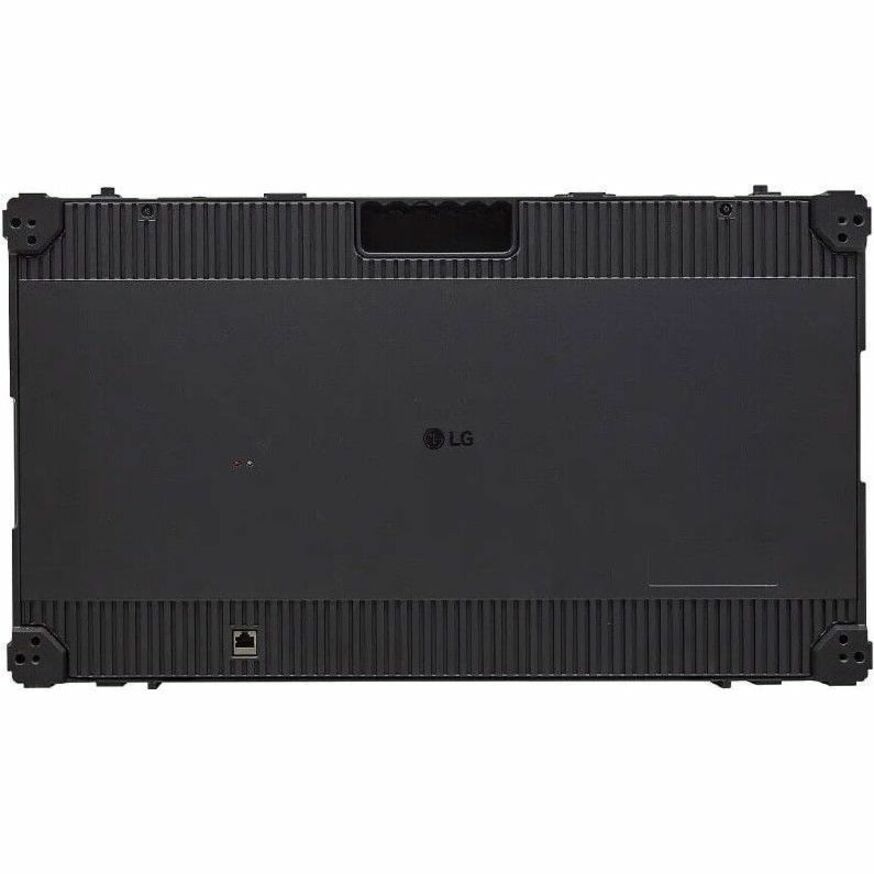

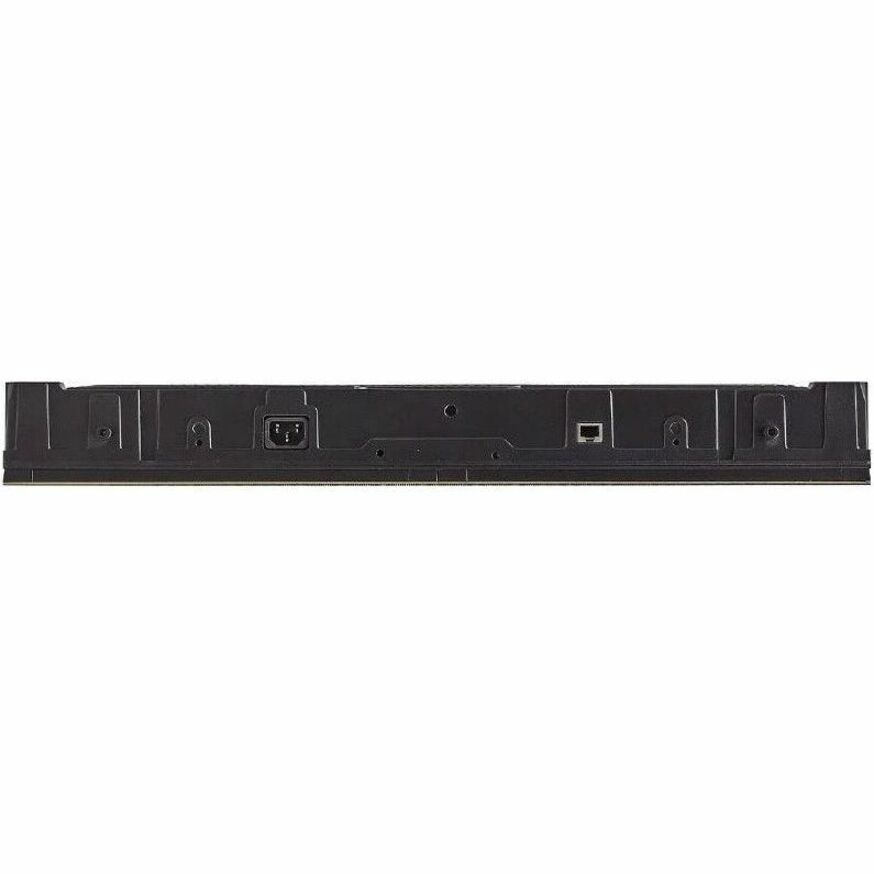

LG LSBE012-GD Digital Signage Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LSBE012-GD
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Series	LSBE
Product Model	LSBE012-GD
Product Name	LSBE012-GD Digital Signage Display
Marketing Information	Improved Design and Easy Maintenance LSBE utilizes two modules to form a single cabinet, which helps minimize the gaps between modules compared to cabinets composed of multiple modules resulting in a smoother screen with fewer visible gaps. This helps with easy maintenance. Durable Frame Design LSBE incorporates an aluminum cabinet that enhances durability, and its high-strength frame allows for stable operation Brightness With a brightness of 600 nits, it clearly delivers content and attracts public attention, making it great for indoor visibility. Compatibility with LG Software Solutions When connected with LG's CVBA system controller, the LSBE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.
Product Type	Digital Signage Display

Technical Information

Heat Dissipation	106.97 W
Average Heat Dissipation Per Cabinet	44.84 W
Ingress Protection (IP) Rating	IP50
Minimum Color Temperature	4940.3°F (2726.8°C)
Maximum Color Temperature	17540.3°F (9726.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front

Display & Graphics

Display Resolution	480 x 270
Pixel Pitch	49.2 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	150°
Cabinet Surface Area	2 Sq. ft.
Number of Modules Per Cabinet	4x1
Module Resolution	120 x 270
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	409600 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Height	13.4"
Width	23.6"
Depth	2.8"
Module Height	13.29"
Module Width	5.91"
Weight per Module (Approximate)	2.10 lb
Weight per Cabinet (Approximate)	14.30 lb
Housing Material	Die-cast Aluminum

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 107W Power Consumption per Cabinet (Avg.) : 45W 90 Degree Corner Cut : No Total Modules (per cabinet) : 2 Heat Dissipation per Unit Area (Max.) : 1,808 BTU/hr/m² Power Consumption per Unit Area (Max) : 530 W/m² Controller : CVBA Minimum Viewing Distance (5-7 mm per foot) : 6-9 feet
Certifications & Standards	CE CB FCC CCC: Yes cTUVus: Yes KC: Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
