3.91MM 5000NIT 3 IN 1 500X1000X66.0

by
LG
PCN#
08VL94
MFG#
LBCK039-GN
$6,155.51
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • LCD
  • 128 x 256
  • LED

Show more

Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.

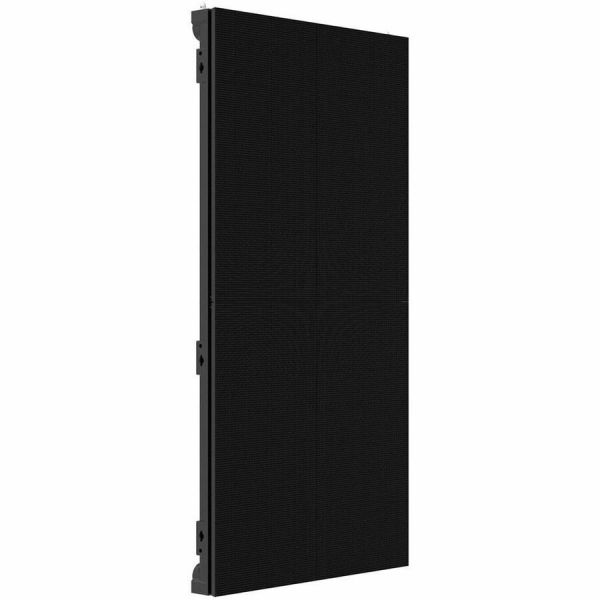

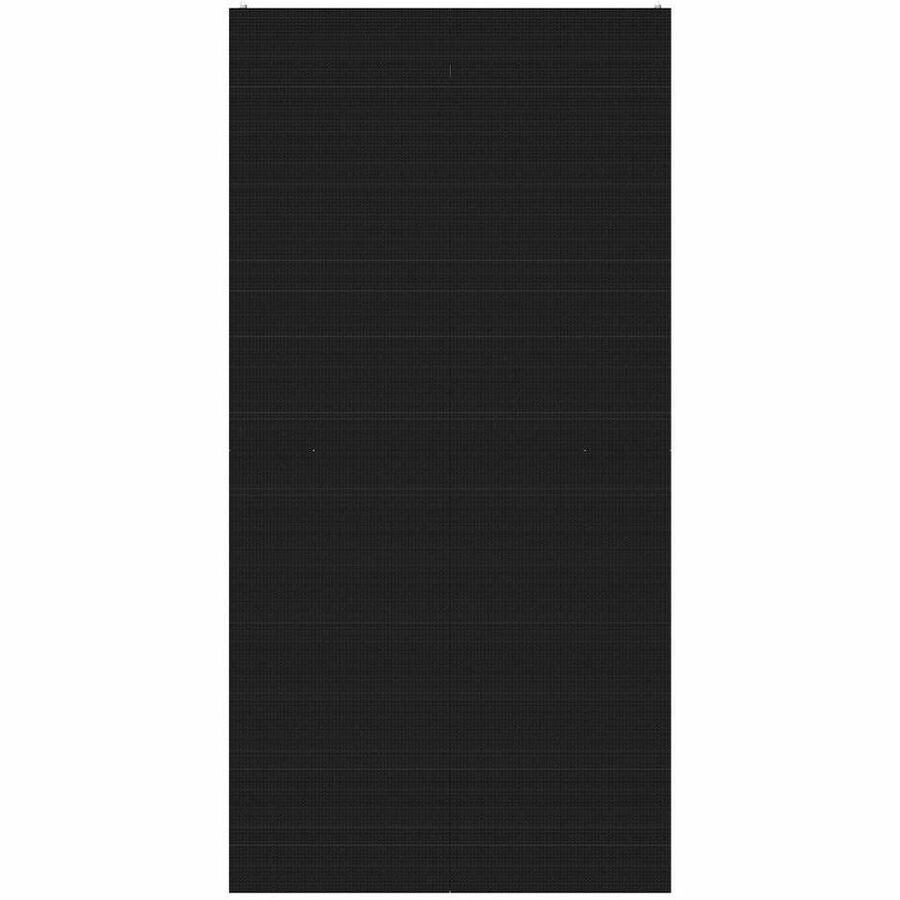

LG LBCK039-GN Ceiling LED Display for Virtual Production
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

LBCK039GNAUSQ

Manufacturer Website Address

http://www.lg.com/us

Brand Name

LG

Product Series

LBCK

Product Model

LBCK039-GN

Product Name

LBCK039-GN Ceiling LED Display for Virtual Production

Marketing Information

Ceiling LED Display for Virtual Production | Easy Installation & Maintenance

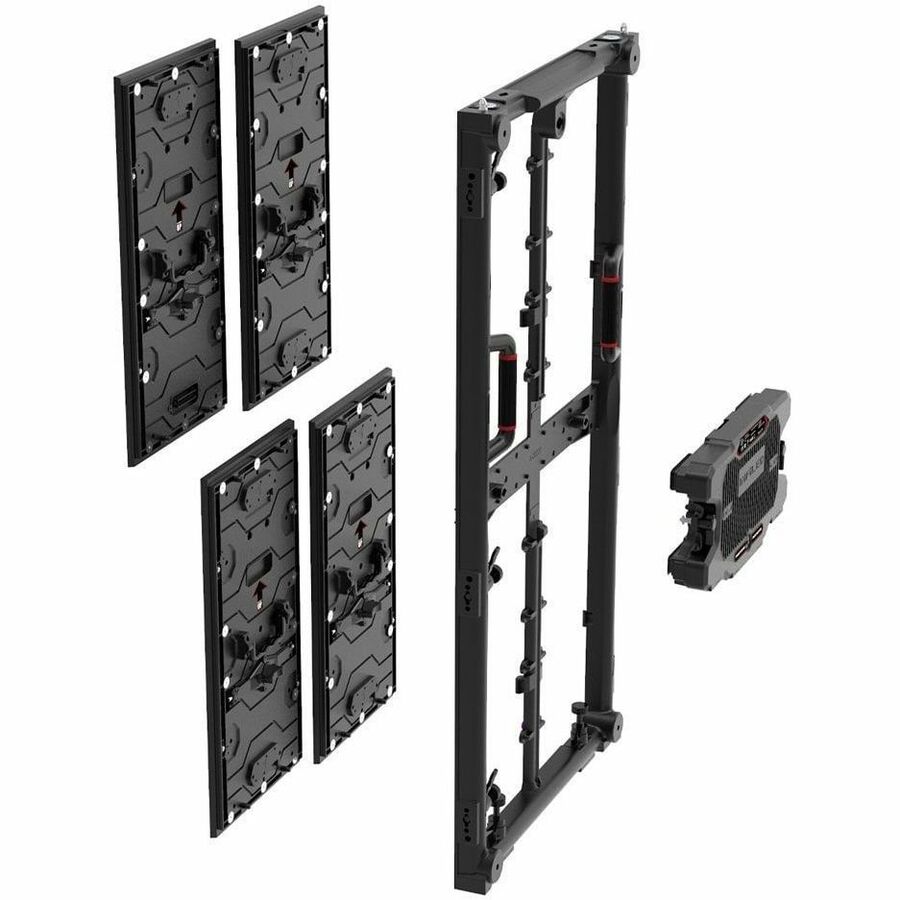

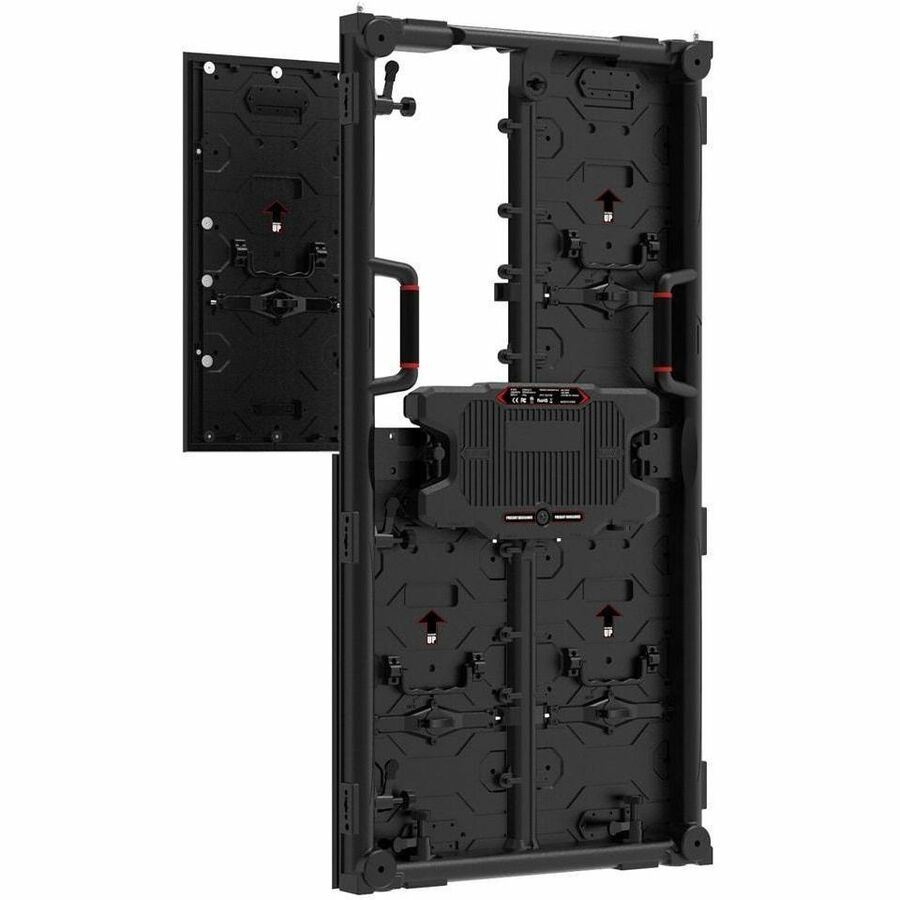

The module can be easily removed using the dedicated tool (with front or rear selective service access). The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

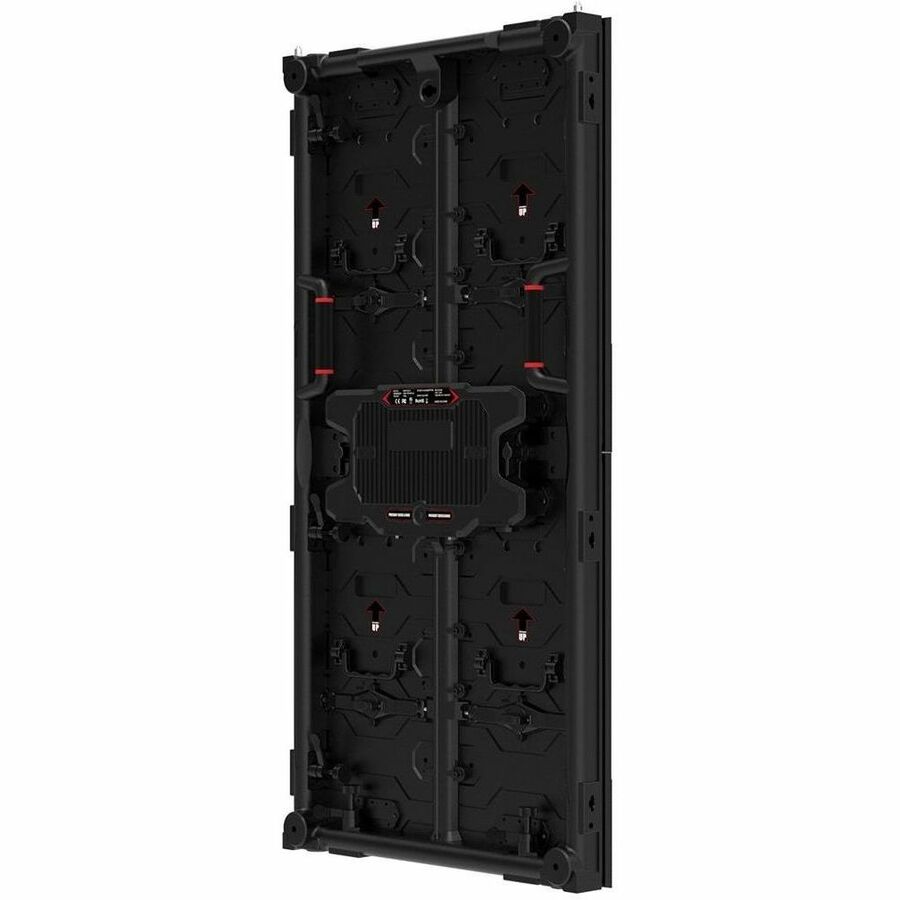

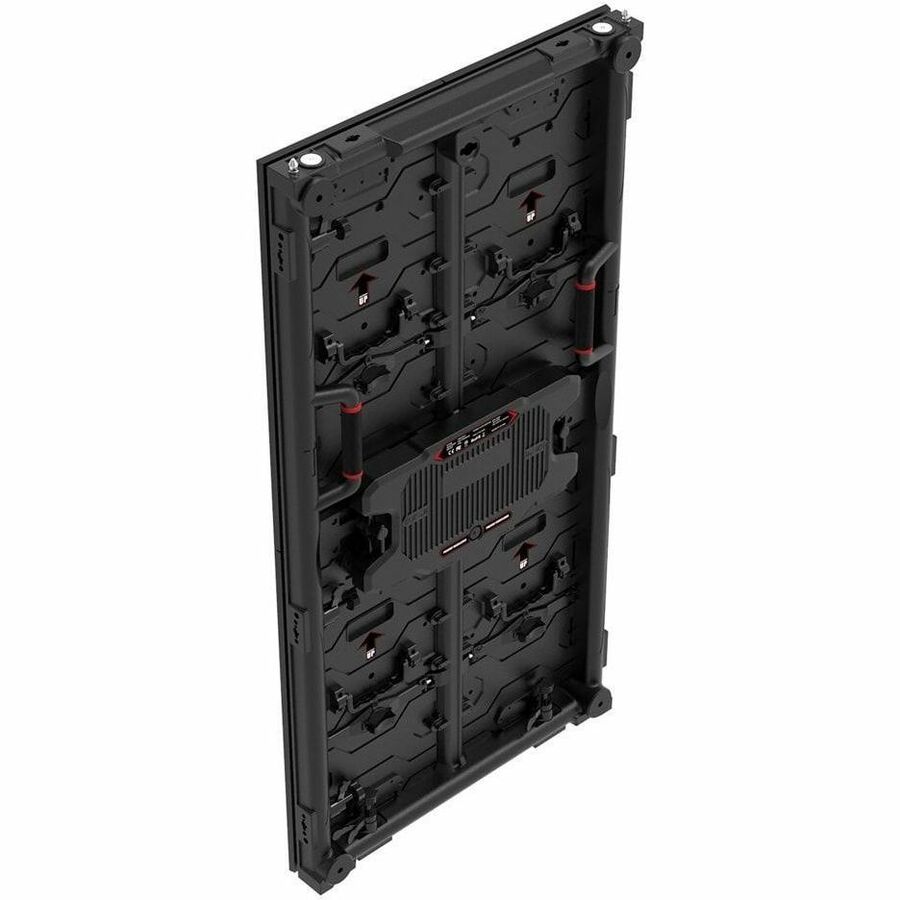

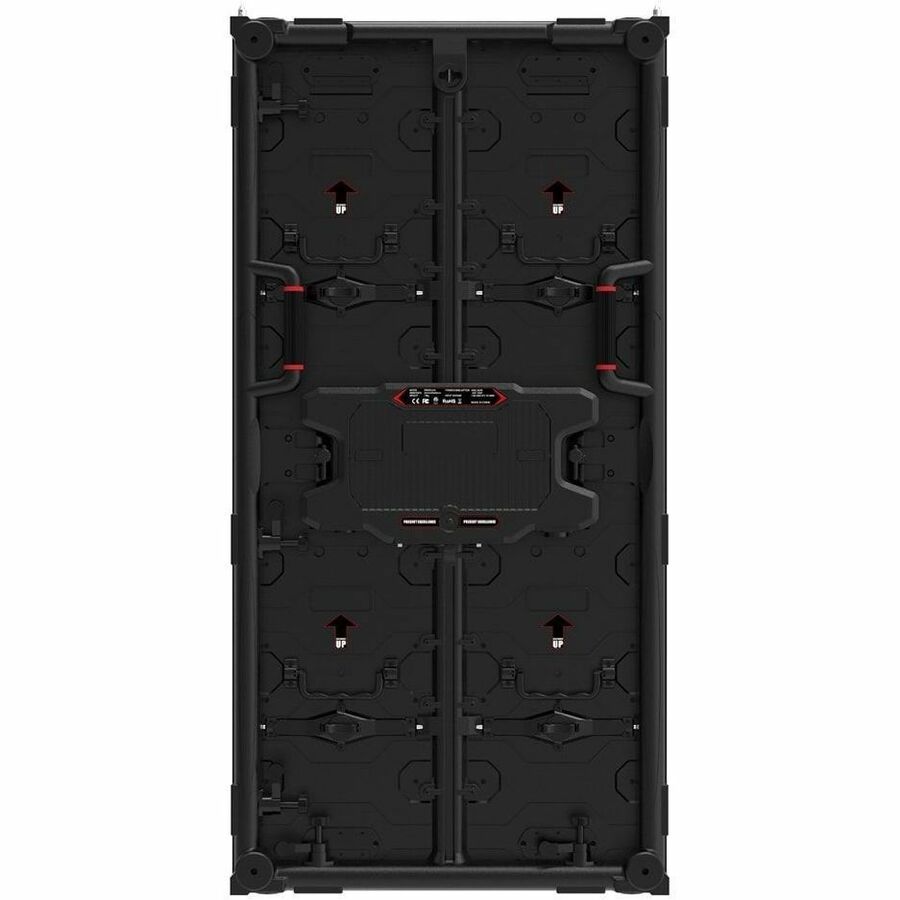

Front or Rear Serviceability

The product offers either front access or rear access, allowing customers to choose installation options according to their need.

Brompton LED Processor & Data Distribution

As Brompton controllers are common in the broadcast and virtual production industry, LBCK series offers support for them.

High Brightness

The ceiling LED with 5,000 nits enables LBCK series to be used for alternative lightings in XR and virtual production.


Product Type

Digital Signage Display
Technical Information

Video Wall Compatible

Yes

Maximum Heat Generation

1080.4 kJ
Display & Graphics

Number of Screens

4

Display Screen Type

LCD

Display Resolution

128 x 256

Pixel Pitch

0.15"

Backlight Technology

LED

Graphics Controller Model

Brompton SX40

Number of Modules Per Cabinet

2x2

Module Resolution

64 × 128

Maximum LED Life

11.4 Year
Video

Dynamic Contrast Ratio

6,000:1

Color Depth

16-bit

Brightness

5000 Nit
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC
Environmental Conditions

Minimum Operating Temperature

14°F (-10°C)

Maximum Operating Temperature

113°F (45°C)

Minimum Operating Humidity

10%

Maximum Operating Humidity

99%
Physical Characteristics

Mount Type

Ceiling Mount

Height

39.4"

Width

19.7"

Depth

2.6"

Weight (Approximate)

27.56 lb
Miscellaneous

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
