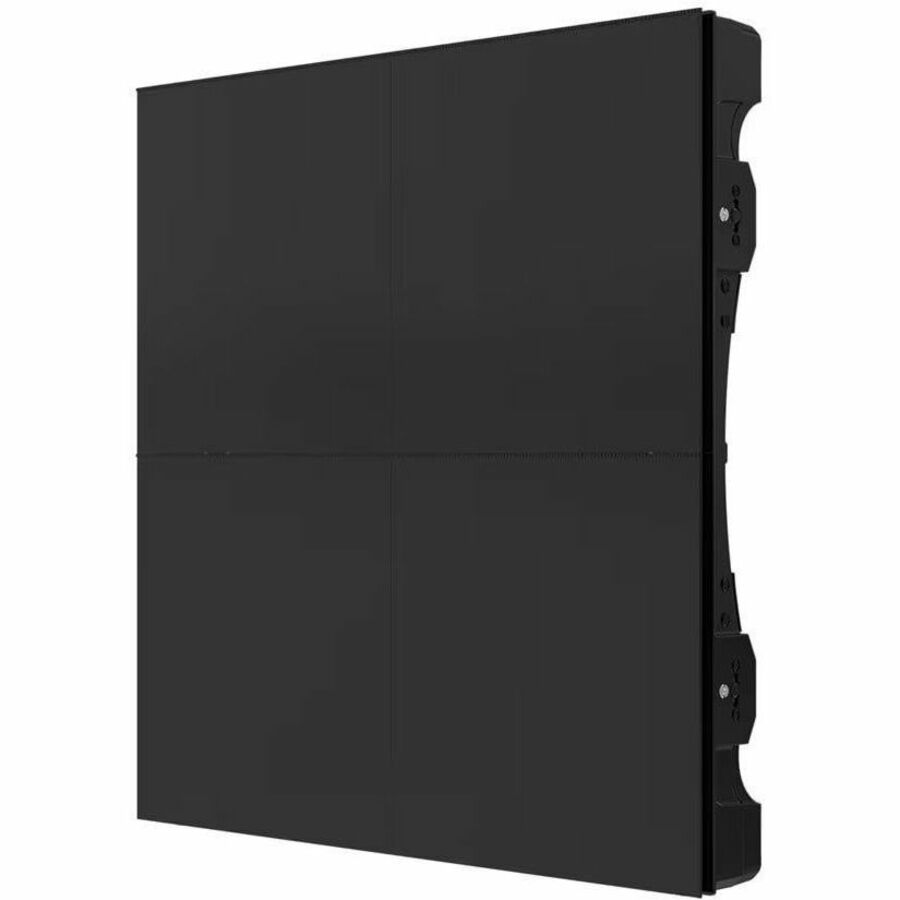

2.6MM 1500NIT 3 IN 1 500X500X75.5

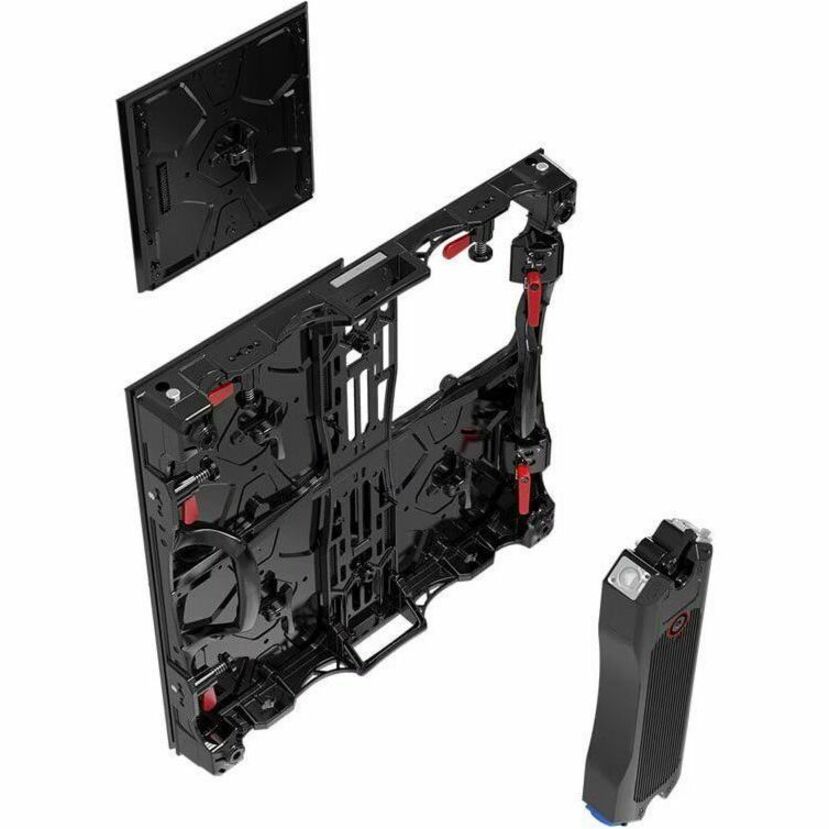

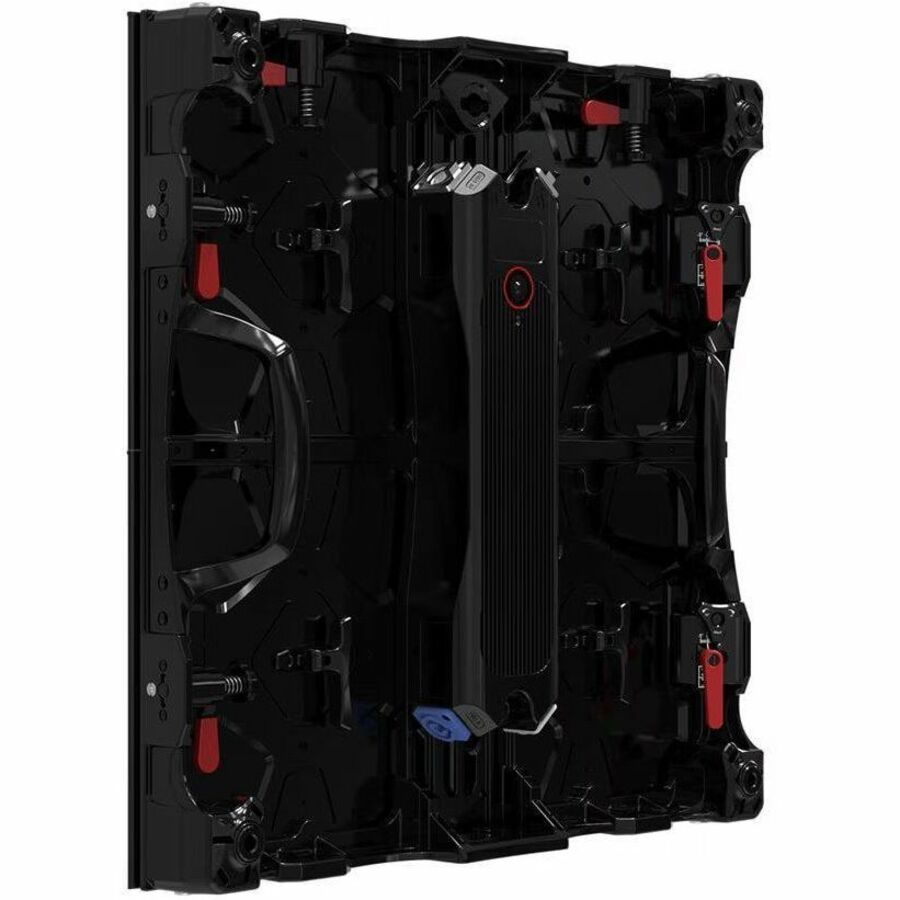

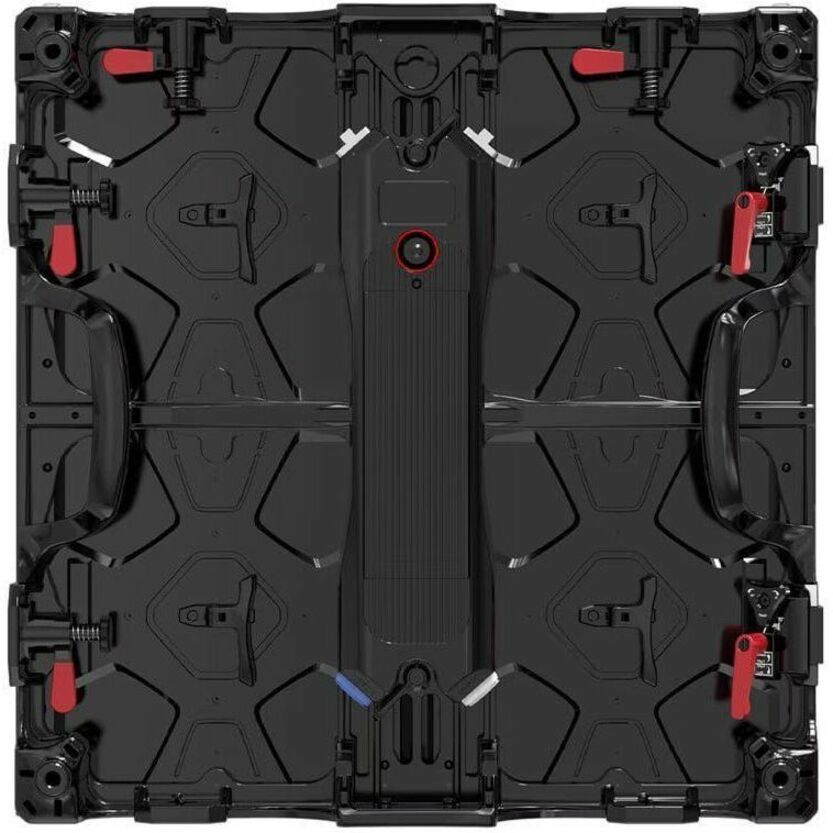

Easy Installation & Maintenance

The module can be easily removed using the dedicated tool with either front or rear (not both) service access. The positioning pins and magnets help perform panel adjustments accurately and quickly, ensuring seamless screen assembly.

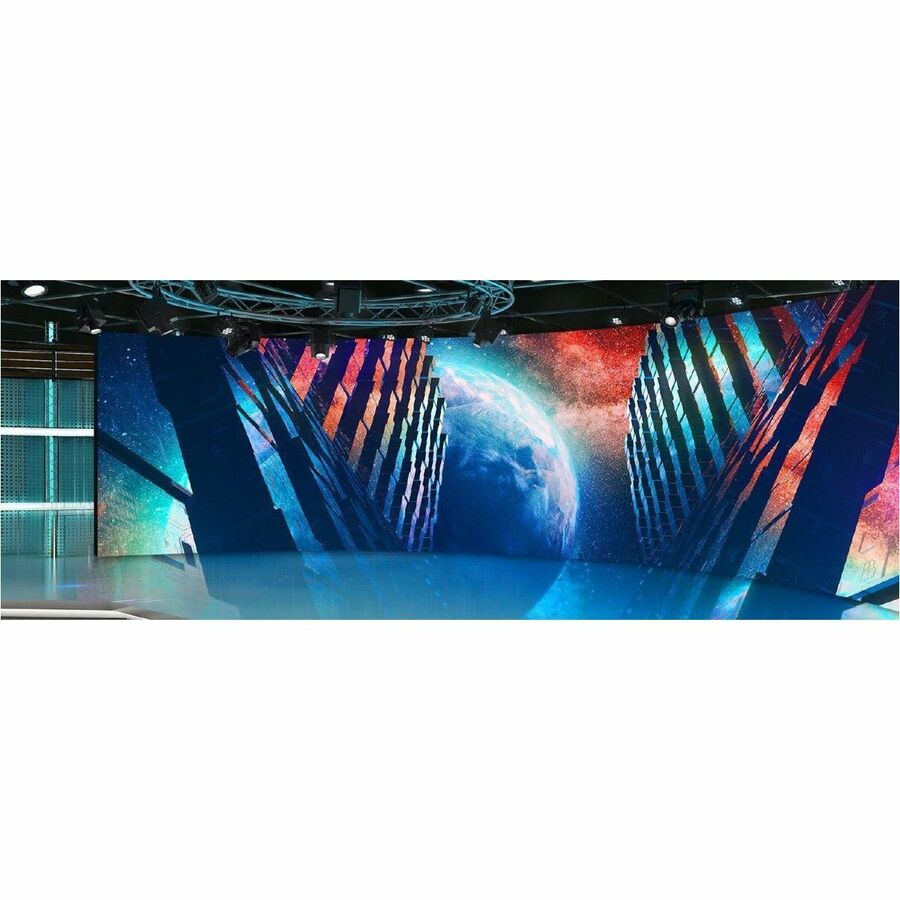

Curve Effect Available

The mechanical connection between the two panels is secured by an angle adapter system and a fast lock, adjustable by 10 degrees in concave areas and 5 degrees in convex areas.

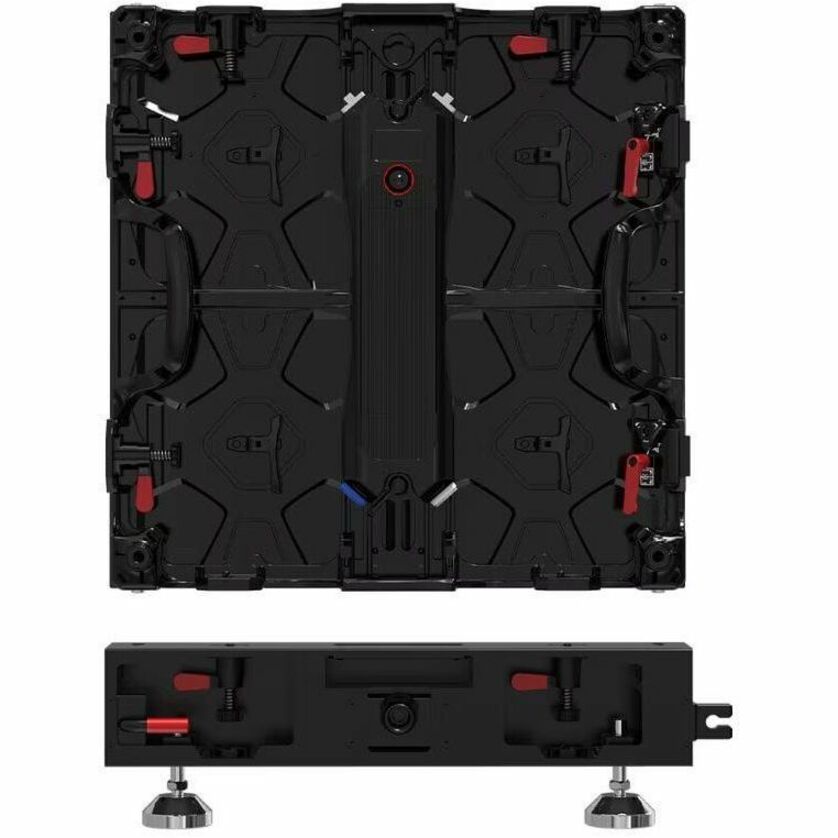

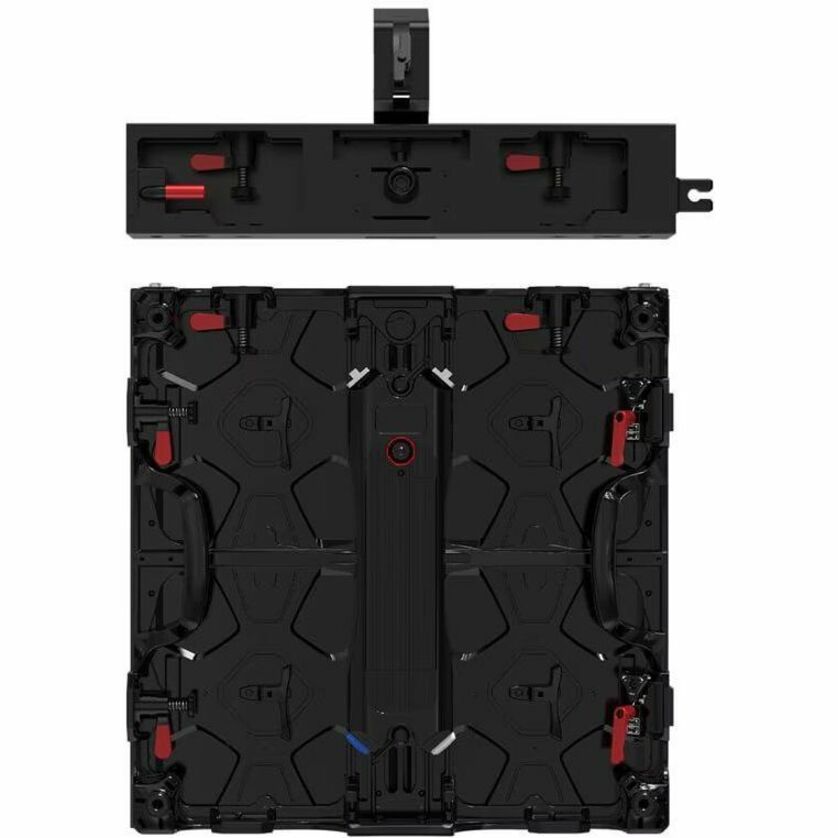

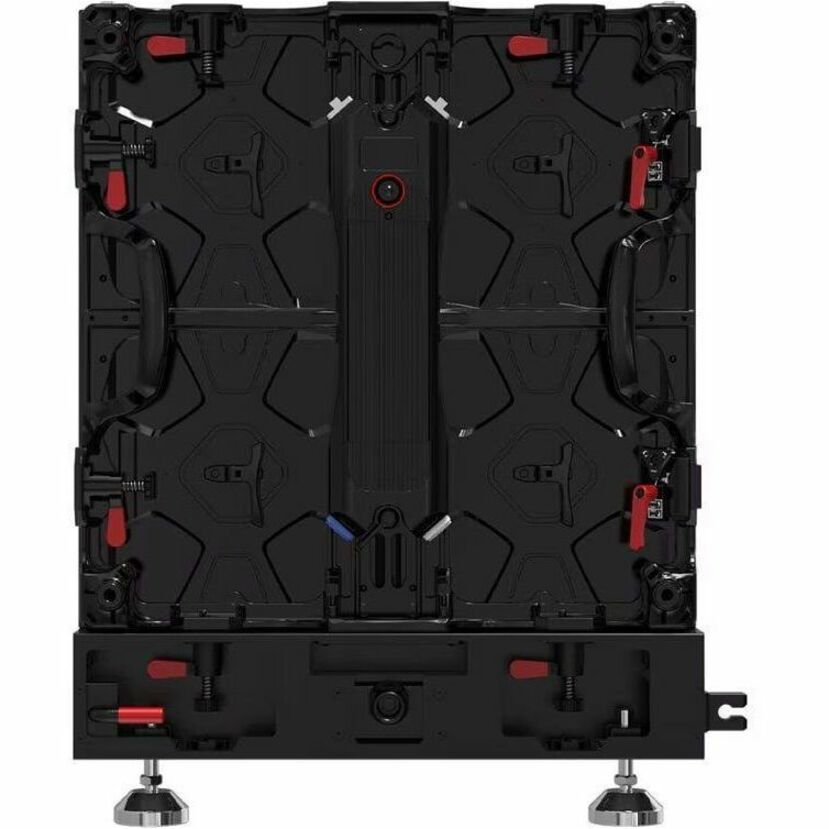

Stacking & Hanging System Available

Installation can be performed by stacking or hanging, using the optional accessories (single, double, triple beams) for customization to the studio environment.

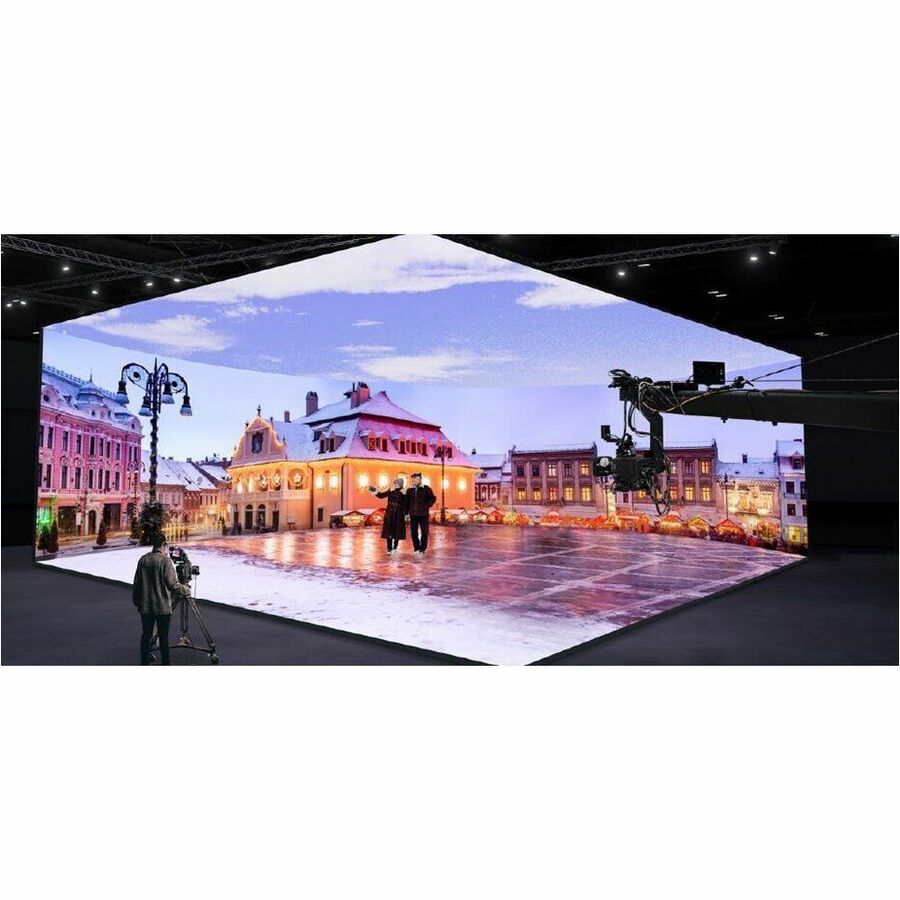

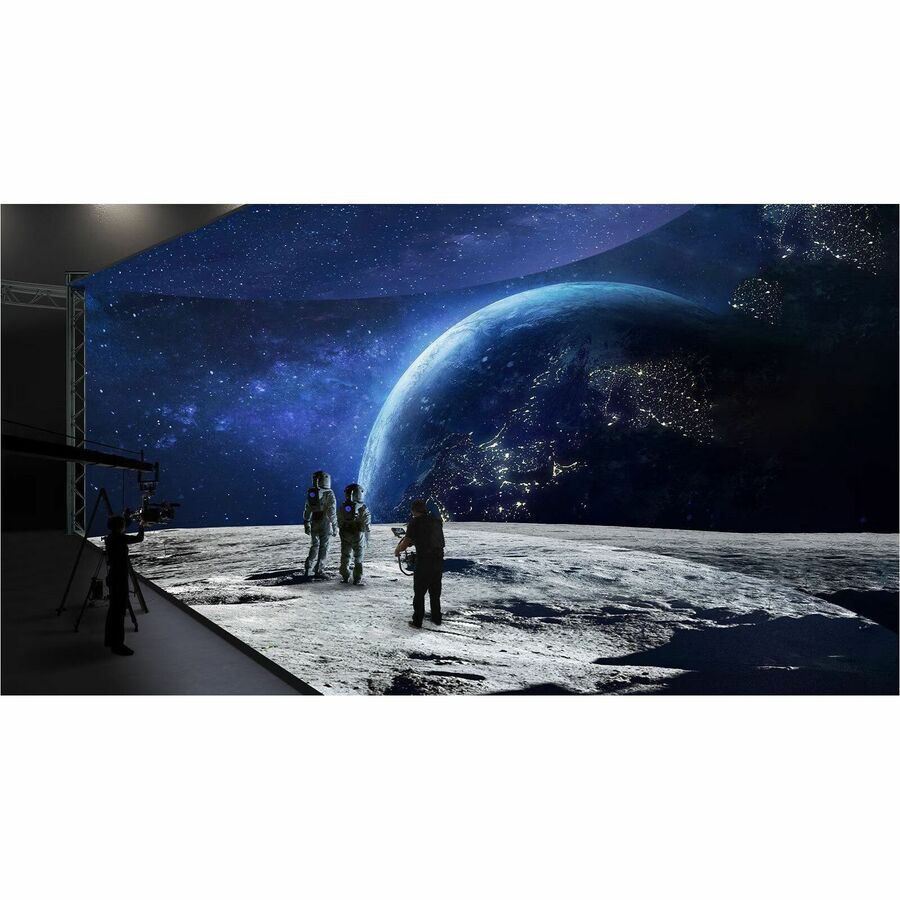

Broadcast Quality Available

Color reproduction as the content creators intended, low latency of video processing, and HDR capability.

CamSync

The presence of distracting black line artifacts can be prevented by adjusting the LED display's V-Sync to match the frequency between the camera and LED. This can reduce a rolling shutter effect while the camera is shooting.

Phase Shift

Phase Shift can make adjustments to the DVLED screen output timing. The DVLED screen can adjust timing manually to remove visual artifacts with Phase Shift if the camera recording results have caused a double image (double frame).

Detailed Analysis of Video Signals

The LBAE series analyzes video input of Y', Y'-Cb, and Y'Cr and shows Waveform and Vector Scope on LED tiles. False Color, Waveform, and Vector Scope can also be read on a display for more video details or adjustments.

Color Gamut Adjustment

The RGB color gamut can be manually adjusted to match colors between LED tiles and camera to achieve desired colors.

Gamma Adjustment

Gamma adjustment can be made manually from 0 to 1023 to calibrate RGB and fix errors.

Custom 3D-LUT

With LED displays supporting customized 3D-LUT, users can achieve their desired colors more accurately.

HDR Manual Adjustment

Although HDR metadata is not transferred from recorded video, tone-mapping can be customized with this HDR manual adjustment feature.

Broadcast and Virtual Production Controller with webOS 4.1

LBAE series is compatible with LG's CBAE controller which has SDI and Genlock (in/out) interfaces support unique features of broadcast and virtual production.

Compatibility with LG Software Solutions

When connected with the CBAE webOS system controller, the LBAE series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business properly.

• Front
• Rear

• HDR10
• HLG
• PQ

• 120 V AC
• 230 V AC

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
