136 AIO DVLED P1.575 1920X1080 MOUNT SPEAKERS SINGLE SMD 500NIT

Name: 136 AIO DVLED P1.575 1920X1080 MOUNT SPEAKERS SINGLE SMD 500NIT
Brand: LG
SKU: HF9322
Price: 37439.34 USD
Availability: InStock

PCN#

HF9322

MFG#

LABA015-GD

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$37,439.34

Free Shipping

Estimated Shipment:

Product Highlights:

11.33 ft
High Dynamic Range (HDR)
1920 x 1080
Full HD
500 Nit
Speakers
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

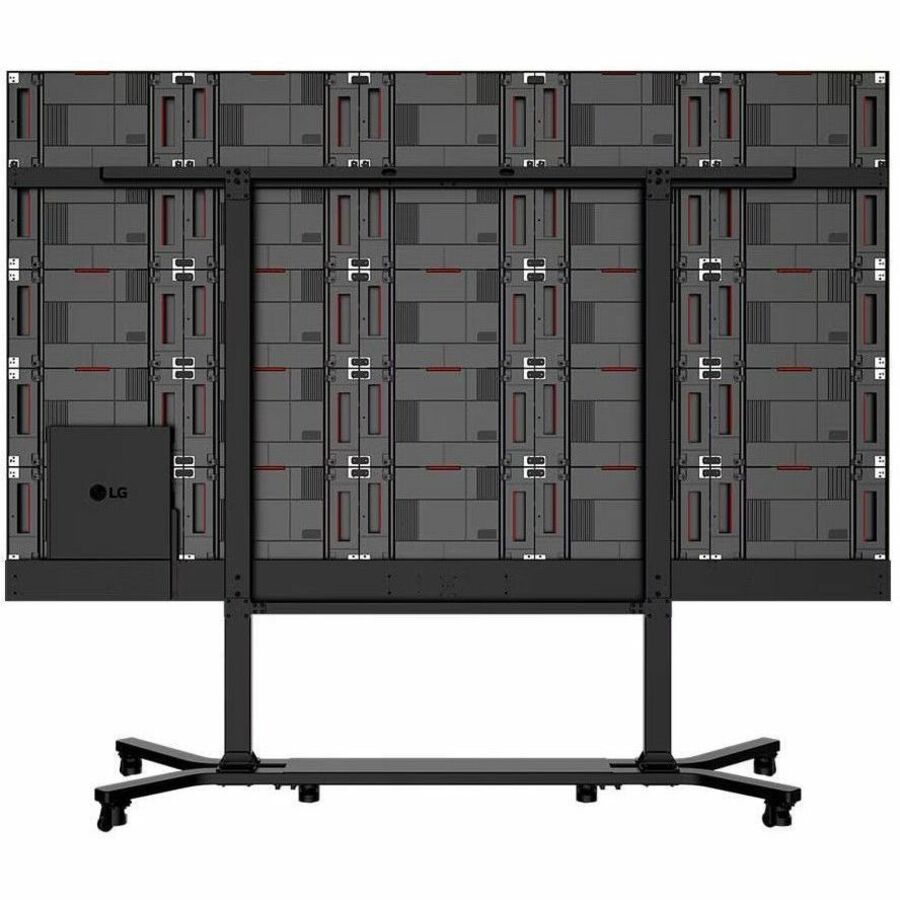

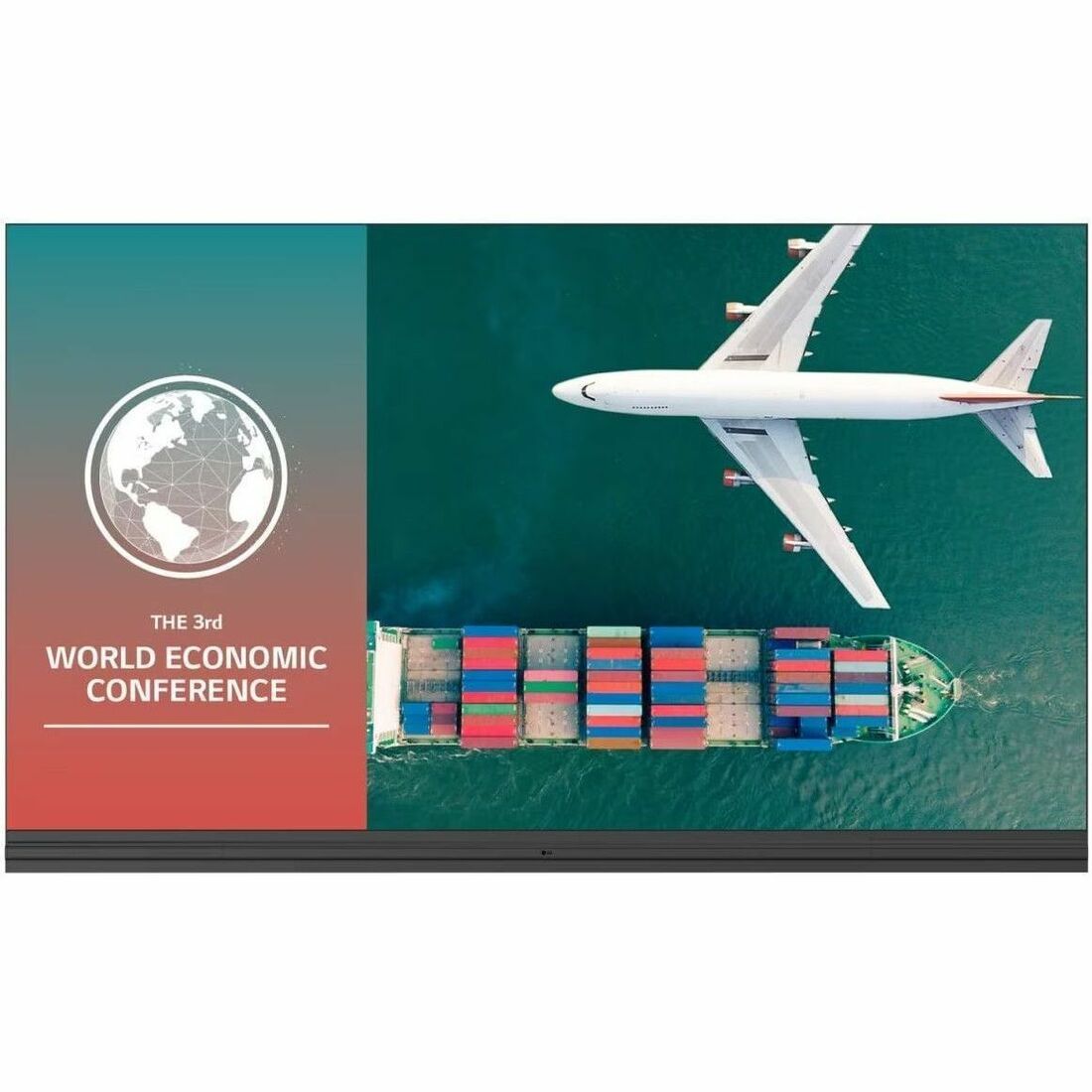

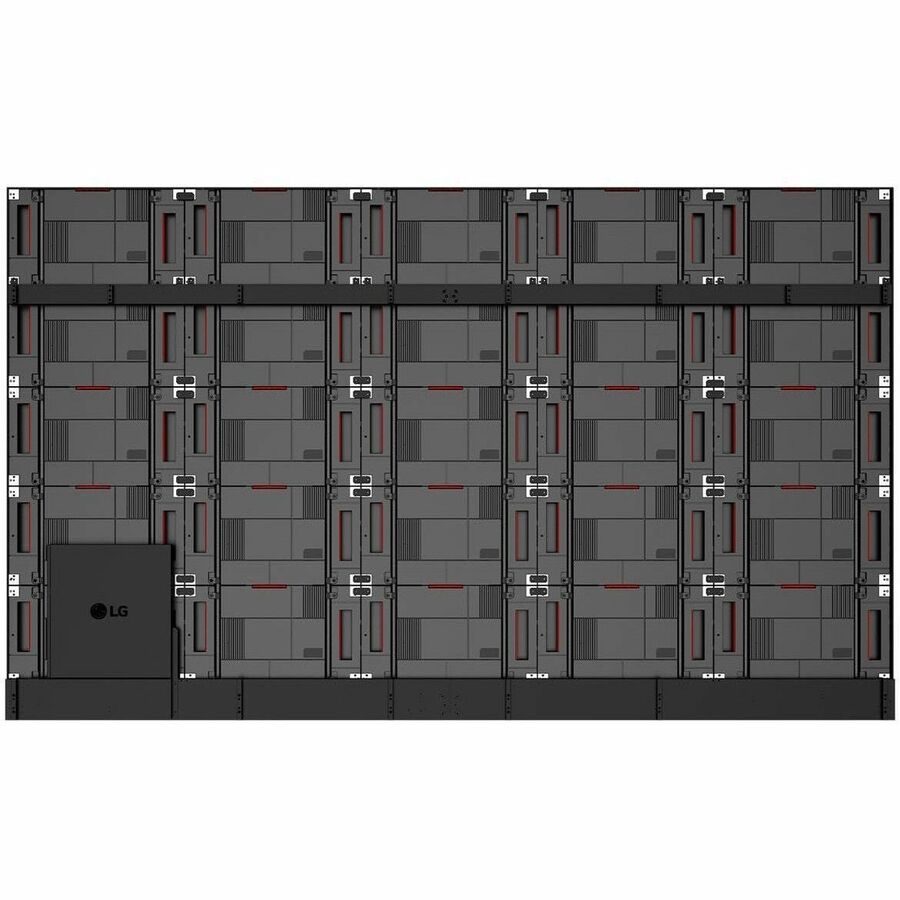

LG LABA015-GD Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	LABA015-GD
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	LABA015-GD
Product Name	LABA015-GD Digital Signage Display
Product Type	Digital Signage Display

Technical Information

Features	Crestron Connected ConnectedCare Magic Remote Compatibility LG One:Quick Share
Heat Dissipation	2002.55 W
Speaker Power	18 W
Ingress Protection (IP) Rating	IP50
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.015 Cx, Cy

Display & Graphics

Viewable Screen Size	11.33 ft
Display Resolution	1920 x 1080
Graphics Modes	Full HD
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	62.2 mil
Horizontal Viewing Angle	160°
Vertical Viewing Angle	160°
Cabinet Surface Area	55 Sq. ft.
Number of Modules Per Cabinet	20x5
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	403124 pixels/m²

Audio

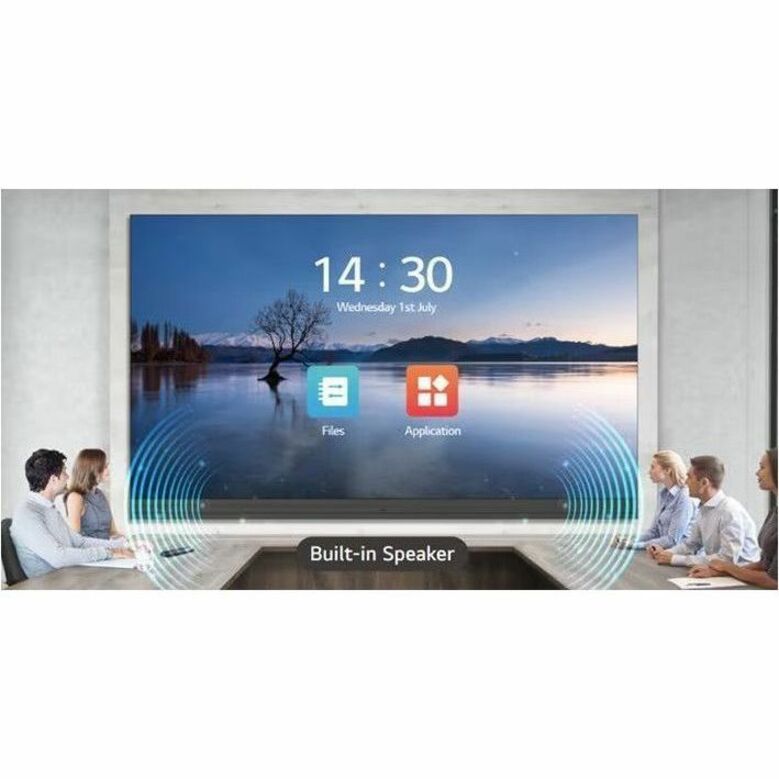

Number of Speakers	2
Speakers	Yes

Video

Standard Refresh Rate	3.84 kHz
Frame Refresh Rate	60 Hz
Native Contrast Ratio	8,000:1
Brightness	500 Nit

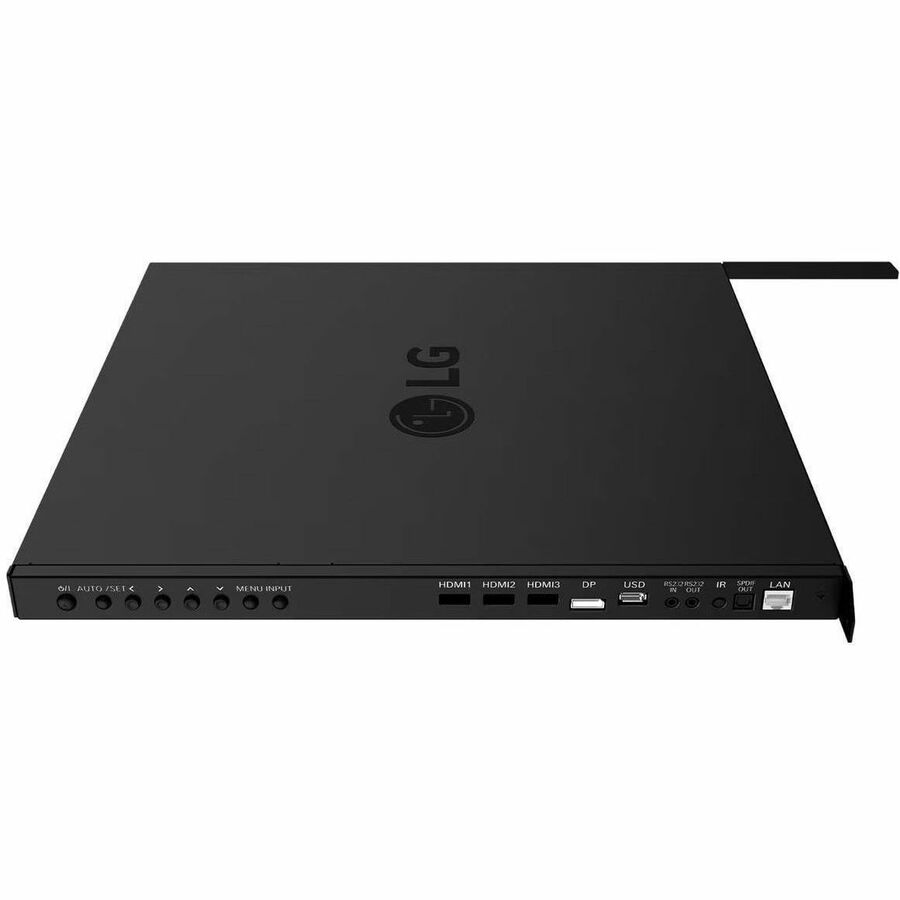

Interfaces/Ports

Network (RJ-45)	Yes
Number of USB 2.0 Ports	1
Number of HDMI Inputs	3
RS-232C Input	Yes
Digital Audio Optical Output	Yes
Number of Network (RJ-45) Ports	1
Number of Infrared Inputs	1
DisplayPort In	Yes

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	2000 W
Average Power Consumption	1050 W

Environmental Conditions

Minimum Operating Temperature	-4°F (-20°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Height	71.7"
Width	119.5"
Depth	1.8"
Weight (Approximate)	339.51 lb
Module Height	13.93"
Module Width	5.94"
Housing Material	Die-cast Aluminum

Miscellaneous

Package Contents	Wall Mount

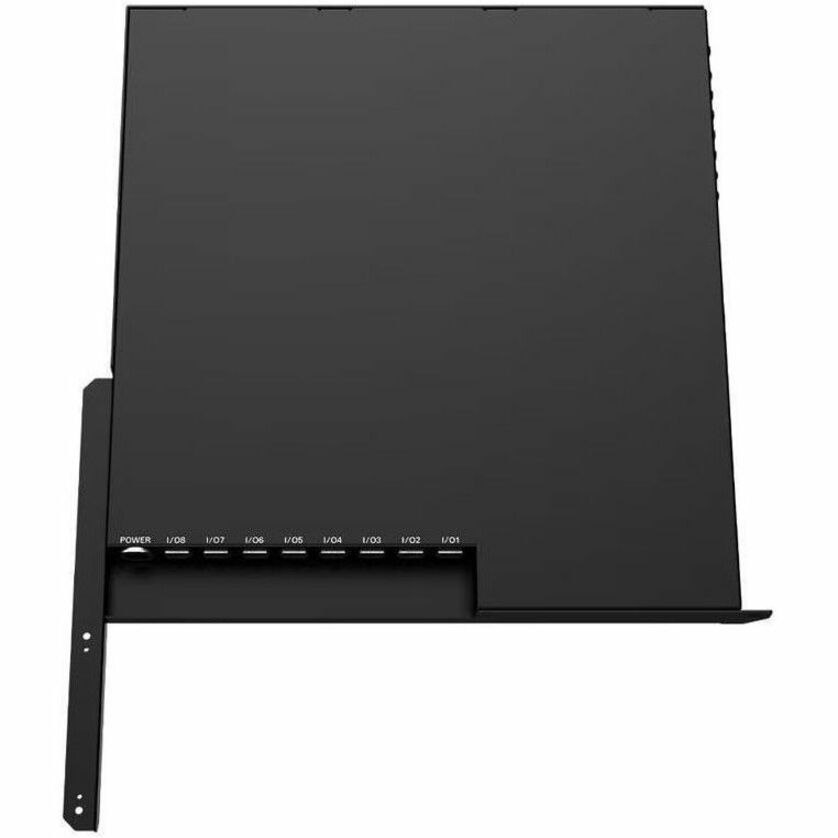

Additional Information	Brightness Uniformity : 97% Controller : Embedded DisplayPort In : Yes (x1) RS-232C In (3.5 mm 4-pin) : Yes (x1) Heat Dissipation (Avg.) : 3,588 BTU Heat Dissipation per Unit Area (Max.) : 1,777 BTU/m² Power Consumption per Unit Area (Max) : 520 W/m² Service Access : Front or Rear (select one only)
Certifications & Standards	CE CB FCC cTUVus: Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
