12.5MM 5000NIT 3 IN 1 500X1000X86.3MM

Name: 12.5MM 5000NIT 3 IN 1 500X1000X86.3MM
Brand: LG
SKU: NT5549
Price: 1161.79 USD
Availability: InStock

PCN#

NT5549

MFG#

GSCD125-GN3

$1,161.79

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

LG GSCD125-GN3 Digital Signage Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	GSCD125-GN3
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	GSCD125-GN3
Product Name	GSCD125-GN3 Digital Signage Display

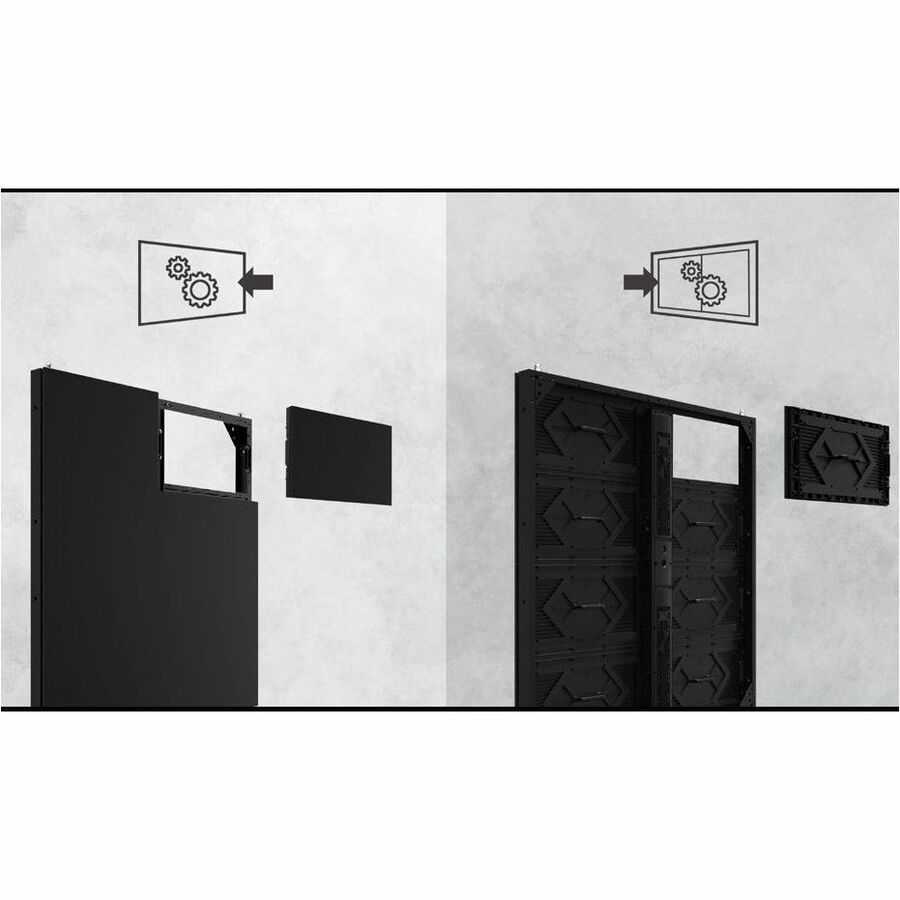

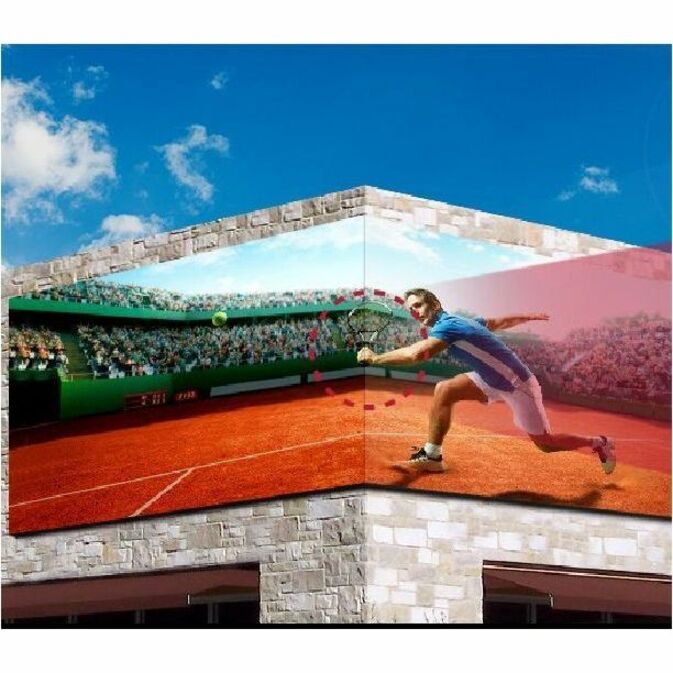

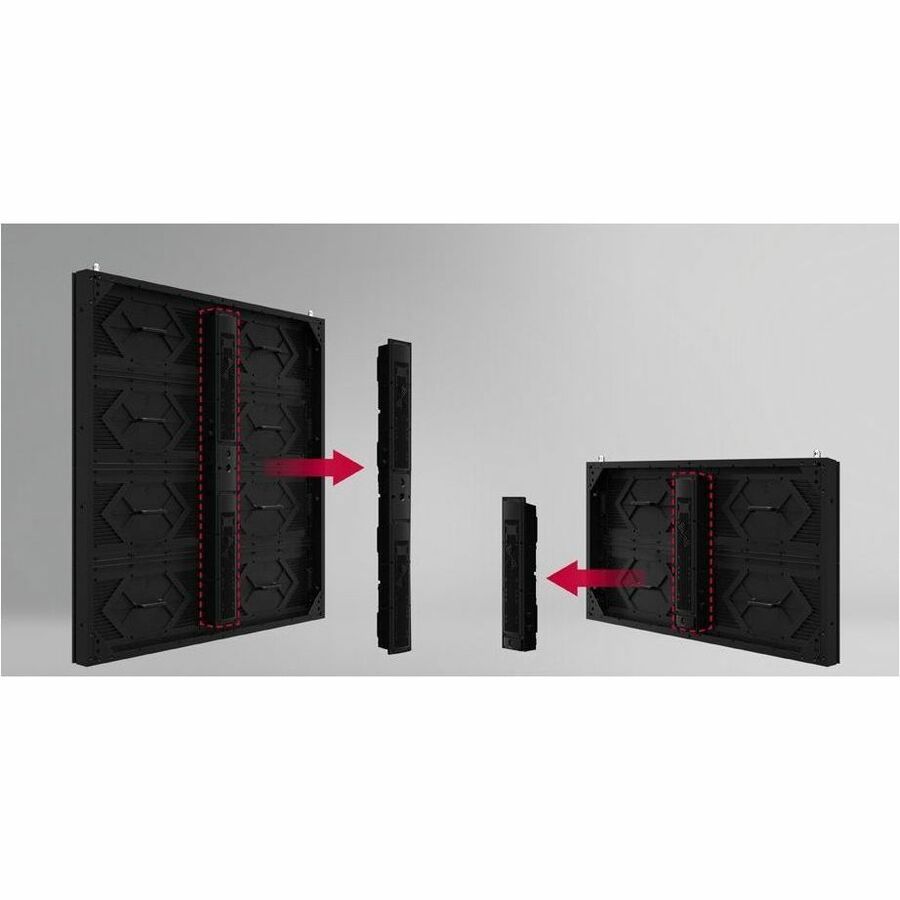

Marketing Information	Lightweight Design The cabinet of the GSCD series is much lighter than that of other outdoor LED displays, significantly reducing the load of the building when a large LED screen is installed on it. Easy Maintenance Power and control units attached to the cabinets can be removed, making it easy to fix problems that may arise. Front or Rear Serviceability The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance. 90° Corner Design Available If you add a 90° corner option, the GSCD series can deliver virtually seamless content even when installed on the corners. IP Rated Weatherproof Design The front and back of the cabinet are IP65 certified, allowing stable operation unaffected by weather and harmful outdoor environments.
Product Type	Digital Signage Display

Technical Information

Heat Dissipation	330 W
Average Heat Dissipation Per Cabinet	109.99 W
Ingress Protection (IP) Rating	IP65
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front Rear

Display & Graphics

Display Resolution	40 x 80
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	0.49"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	113°
Cabinet Surface Area	5 Sq. ft.
Number of Modules Per Cabinet	1×4
Module Resolution	40 x 20
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	6400 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	99%

Physical Characteristics

Height	39.4"
Width	19.7"
Depth	3.4"
Module Height	9.80"
Module Width	19.70"
Weight per Module (Approximate)	3 lb
Weight per Cabinet (Approximate)	23.10 lb
Housing Material	Extruded Aluminum
Weight per Square Meter (Approximate)	21200 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 330W Power Consumption per Unit Area (Max) : 660 W/m² Heat Dissipation per Unit Area (Max.) : 2,251.9 BTU/hr/m² Power Consumption per Cabinet (Avg.) : 110W 90 Degree Corner Cut : No Minimum Viewing Distance (5-7 mm per foot) : 63-88 feet Controller : CVCA Total Modules (per cabinet) : 4
Certifications & Standards	CE FCC ETL (Regulatory) cTUVus : No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
