GSCD DVLED P10.41 96X48

Name: GSCD DVLED P10.41 96X48
Brand: LG
SKU: NT5550
Price: 3347 USD
Availability: InStock

PCN#

NT5550

MFG#

GSCD100-GRR

$3,347.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

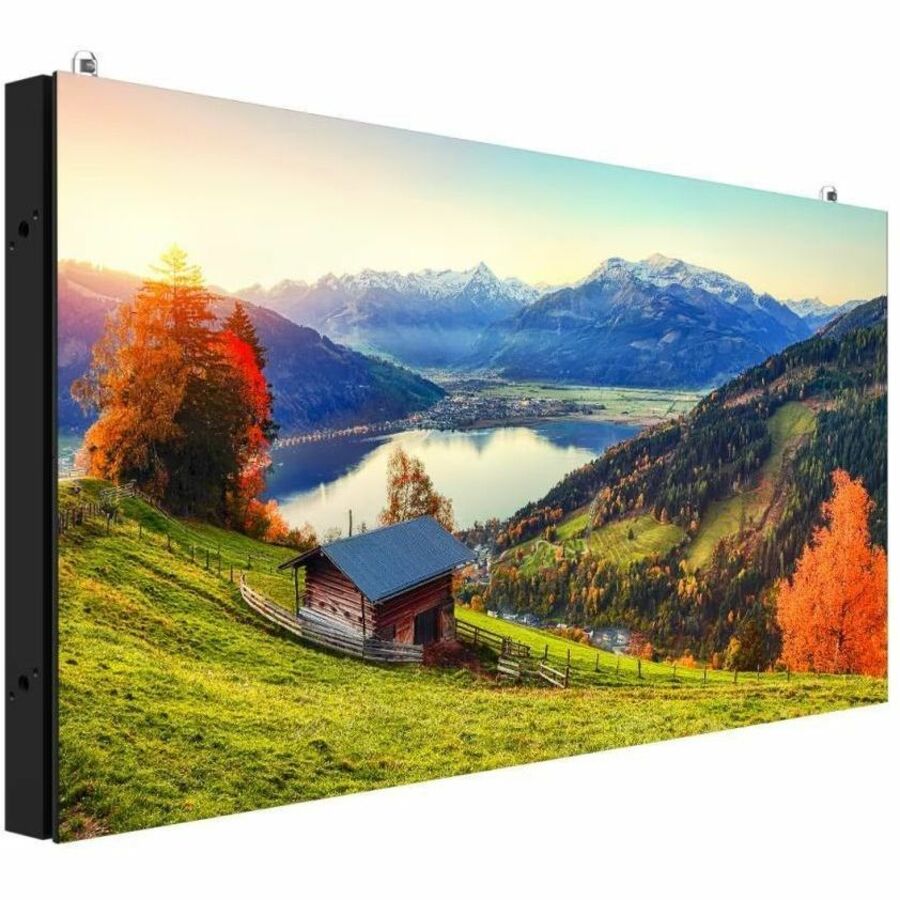

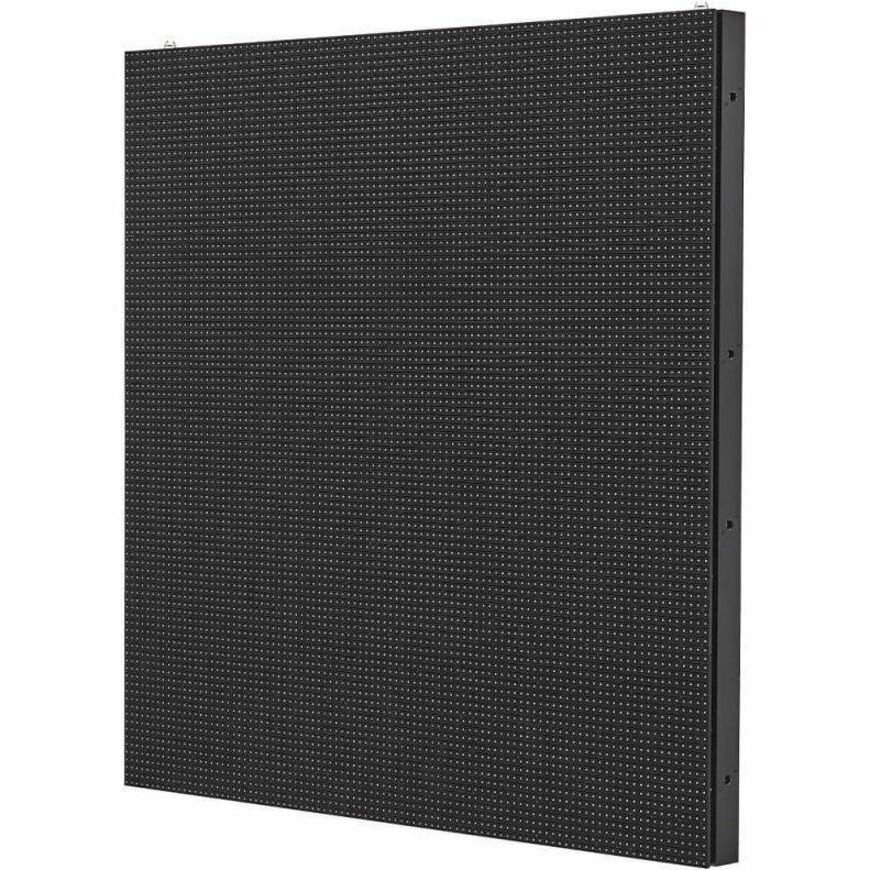

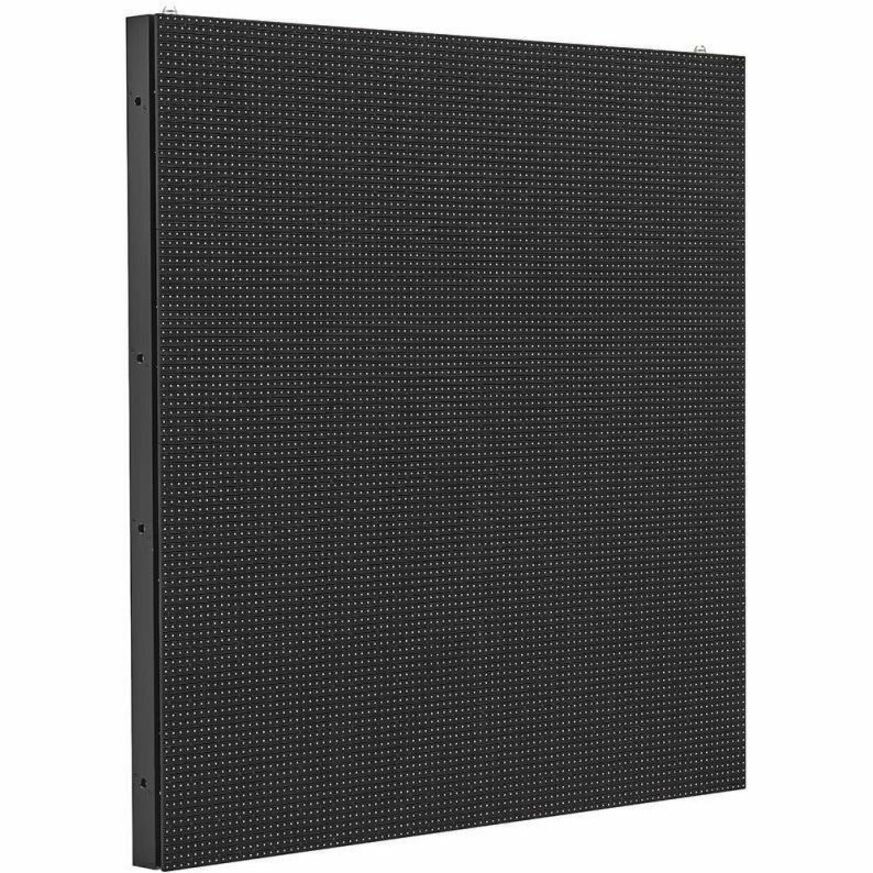

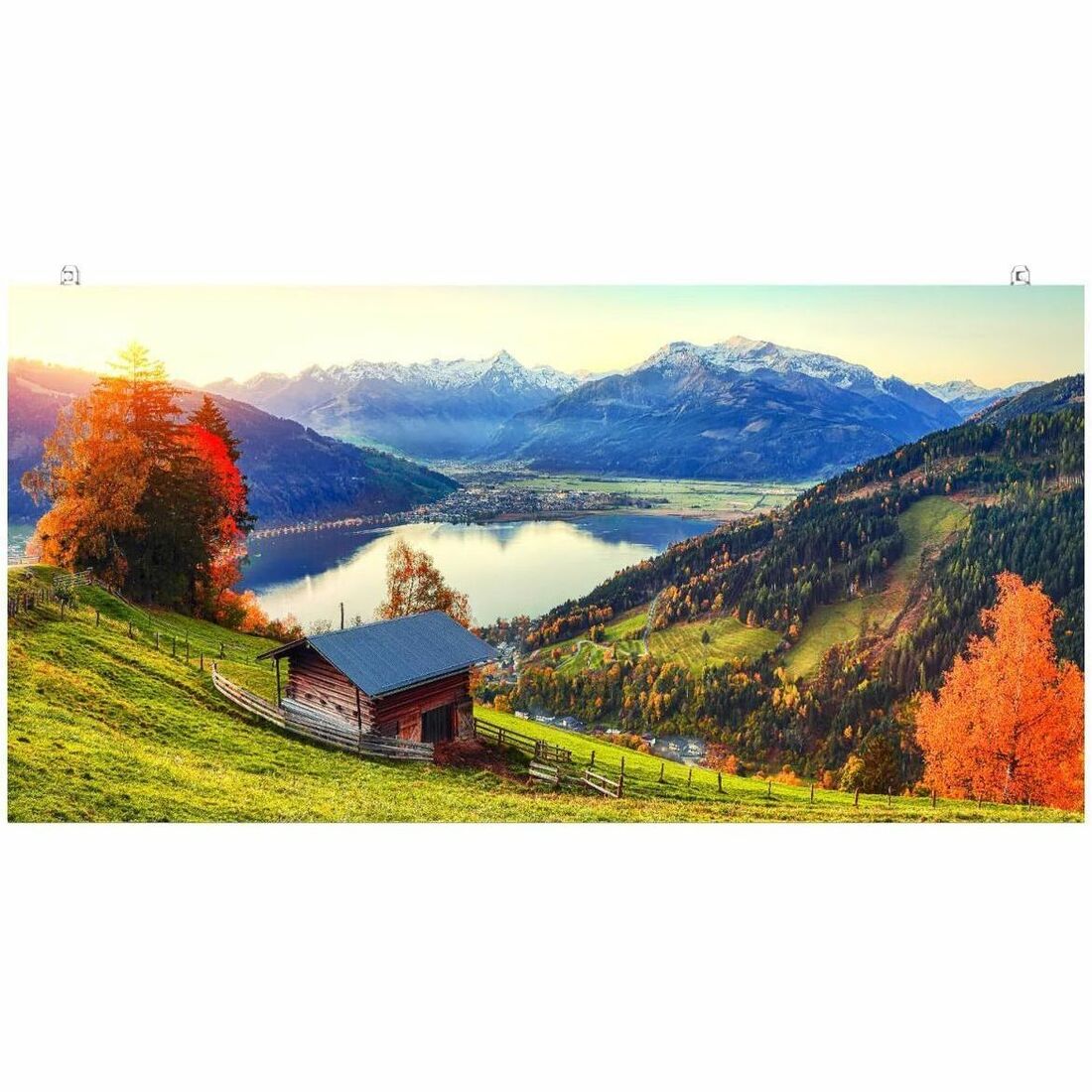

LG GSCD100-GRR Digital Signage Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	GSCD100-GRR
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	GSCD100-GRR
Product Name	GSCD100-GRR Digital Signage Display
Product Type	Digital Signage Display

Technical Information

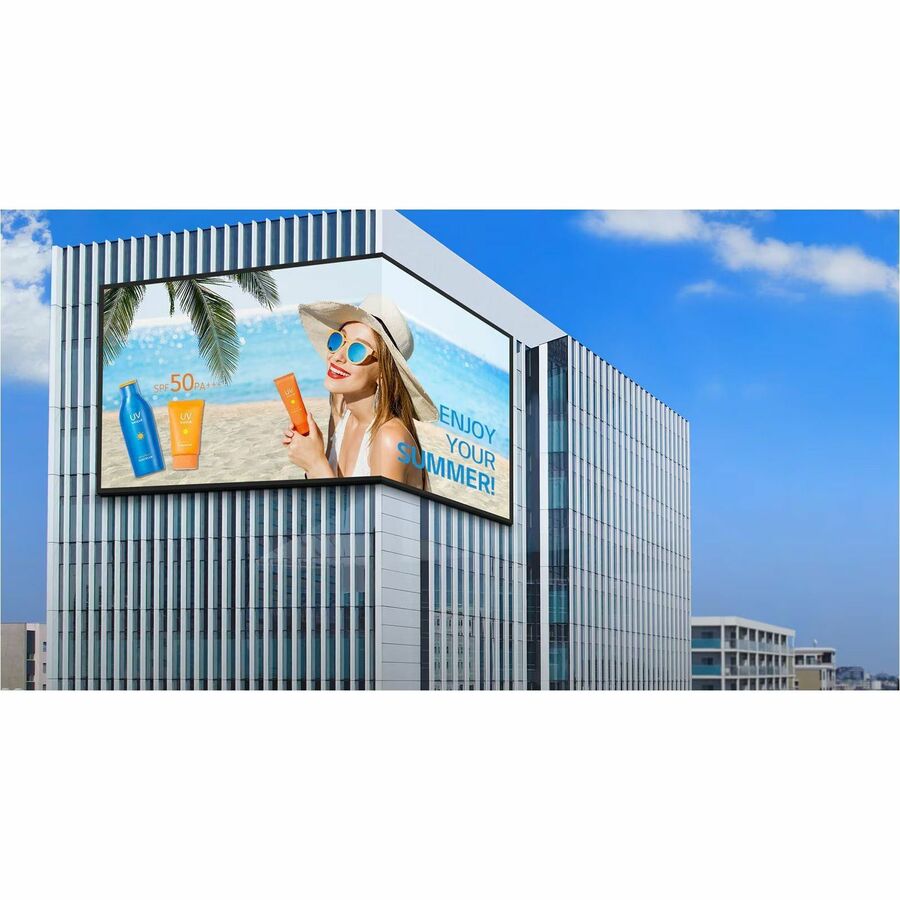

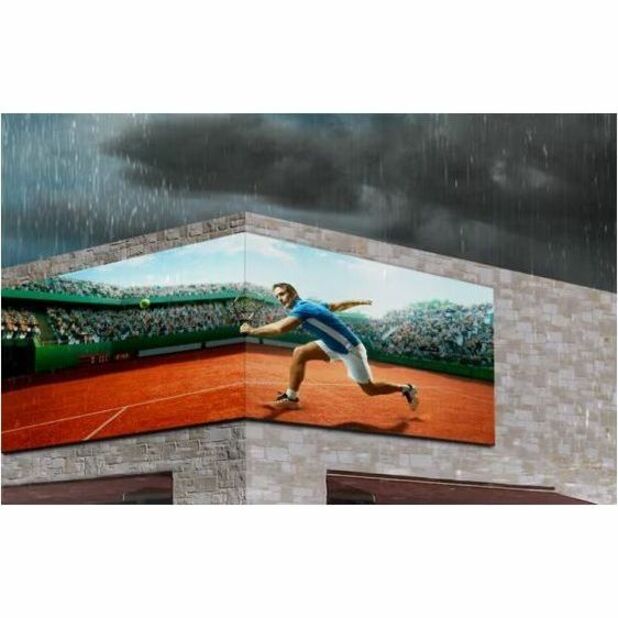

Features	90° Corner Design
Heat Dissipation	649.97 W
Average Heat Dissipation Per Cabinet	215.99 W
Ingress Protection (IP) Rating	IP65
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy
Service Access	Front Rear

Display & Graphics

Display Resolution	96 x 96
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	0.41"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	136°
Cabinet Surface Area	11 Sq. ft.

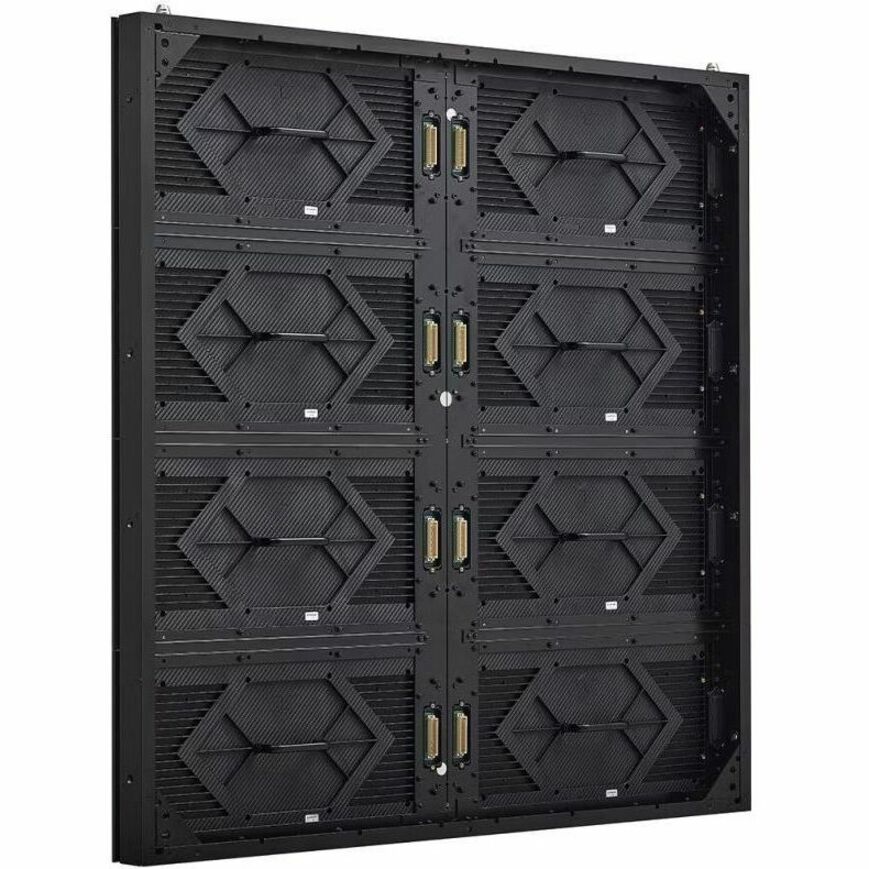

Number of Modules Per Cabinet	2x4

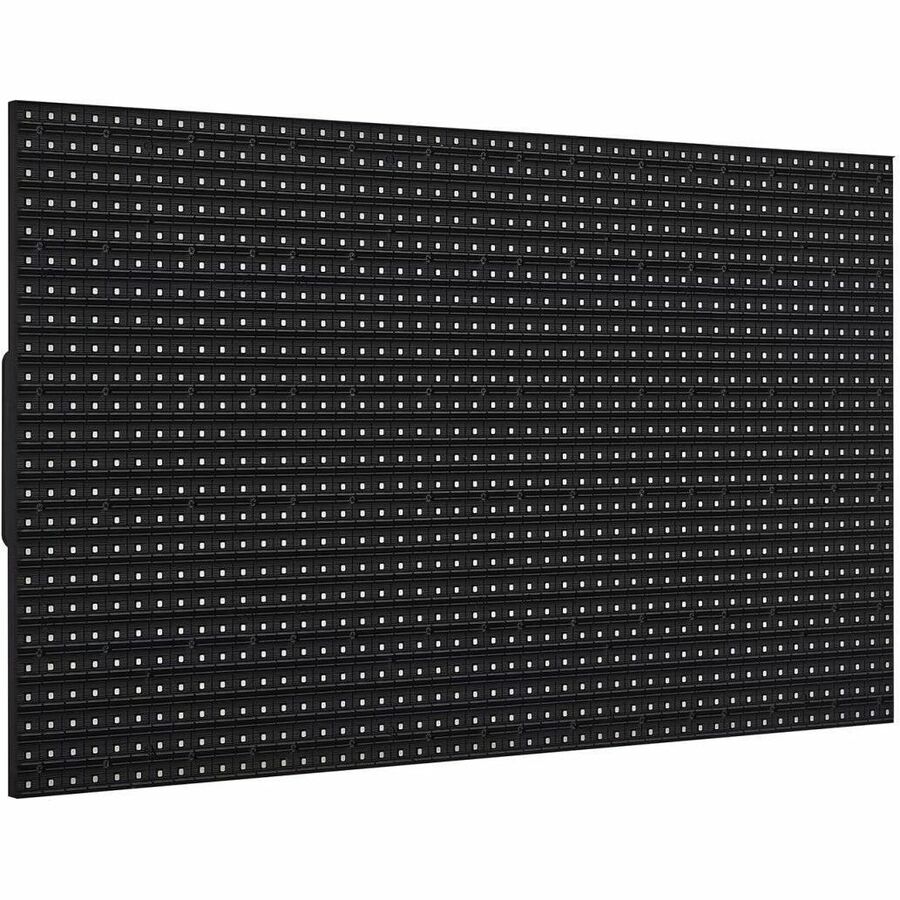

Module Resolution	48 x 24
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	9216 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	99%

Physical Characteristics

Height	39.4"
Width	39.4"
Depth	3.4"

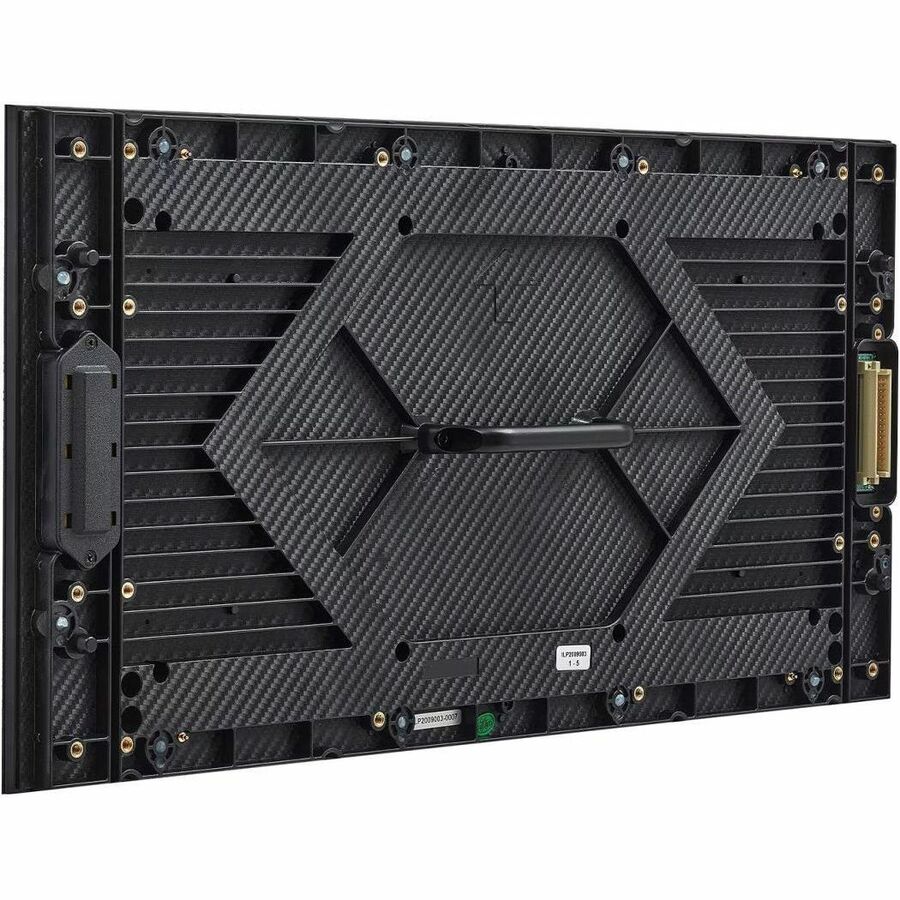

Module Height	9.80"
Module Width	19.70"
Weight per Module (Approximate)	3 lb
Weight per Cabinet (Approximate)	41.90 lb
Housing Material	Extruded Aluminum
Weight per Square Meter (Approximate)	19000 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 650W Power Consumption per Unit Area (Max) : 650 W/m² Heat Dissipation per Unit Area (Max.) : 2,217.8 BTU/hr/m² Power Consumption per Cabinet (Avg.) : 216W Minimum Viewing Distance (5-7 mm per foot) : 52-73 feet Controller : CVCA Total Modules (per cabinet) : 8
Certifications & Standards	CE FCC ETL (Regulatory) cTUVus : No
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
