10.41MM 5000NIT 3IN1 1000X500X86MM

Name: 10.41MM 5000NIT 3IN1 1000X500X86MM
Brand: LG
SKU: NT5515
Price: 1233 USD
Availability: InStock

PCN#

NT5515

MFG#

GSCD100-GN2

$1,233.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

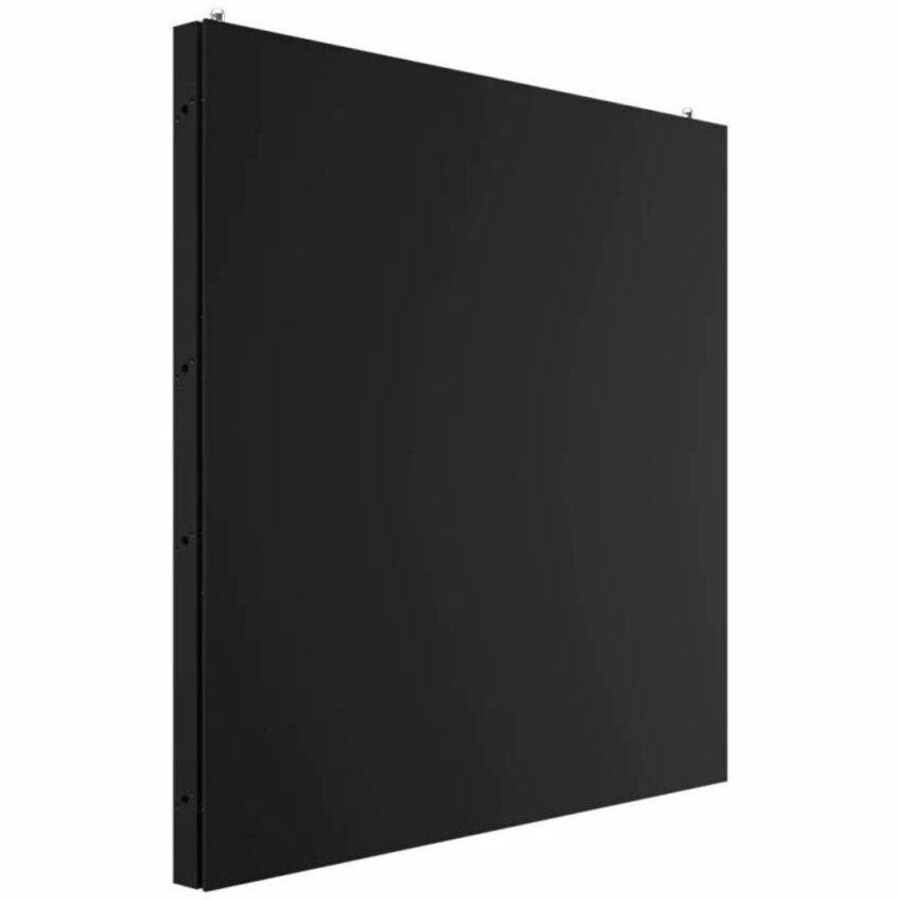

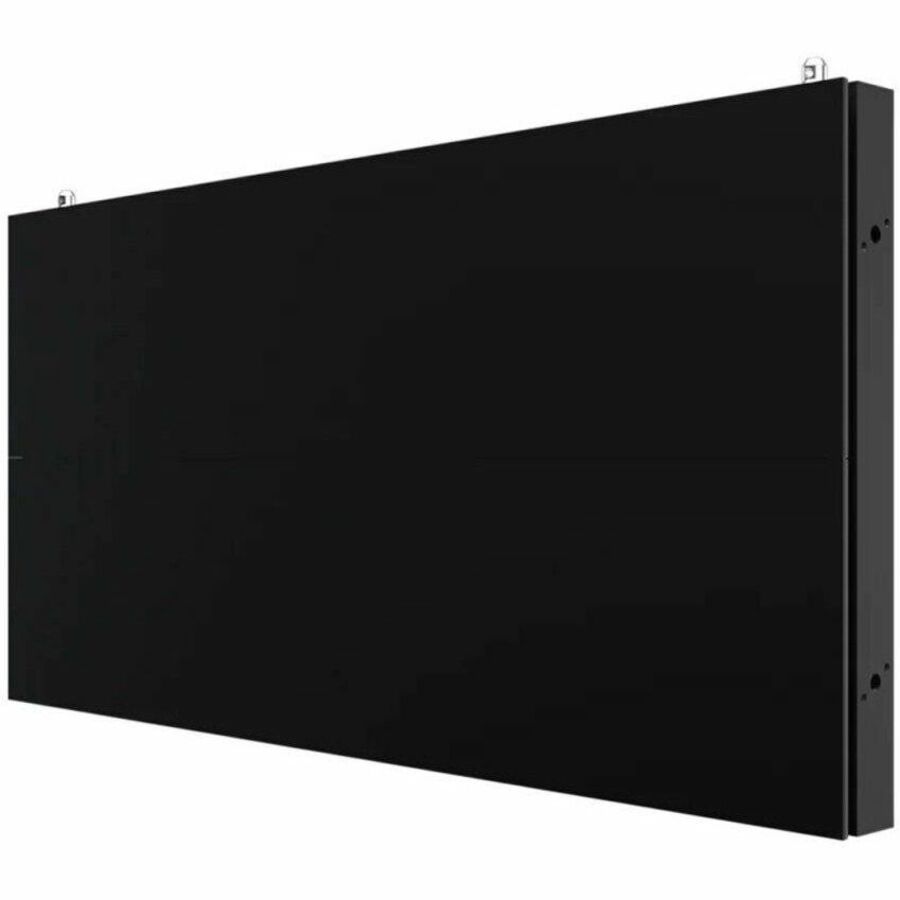

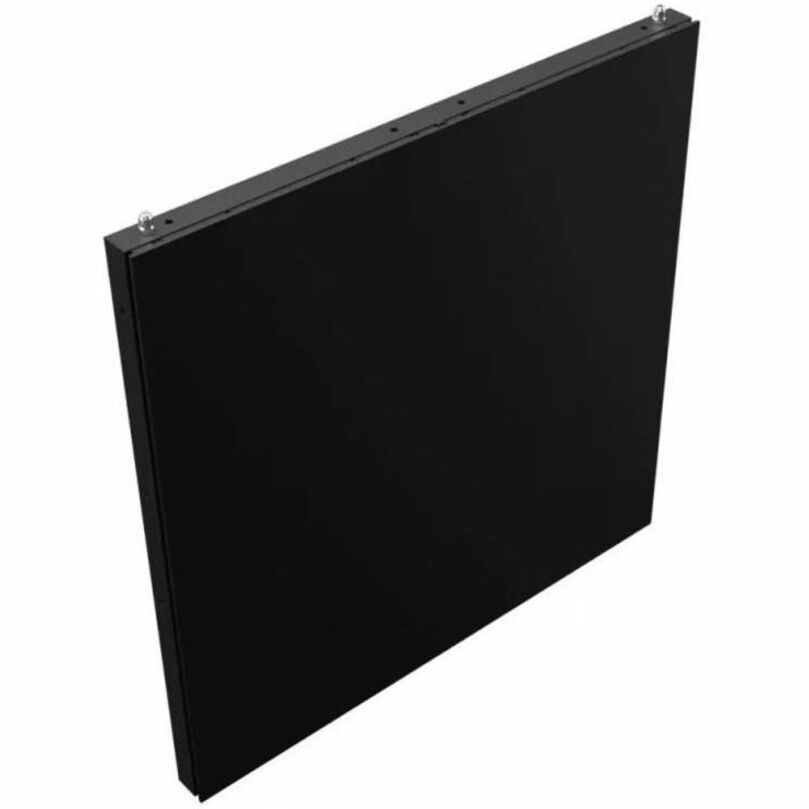

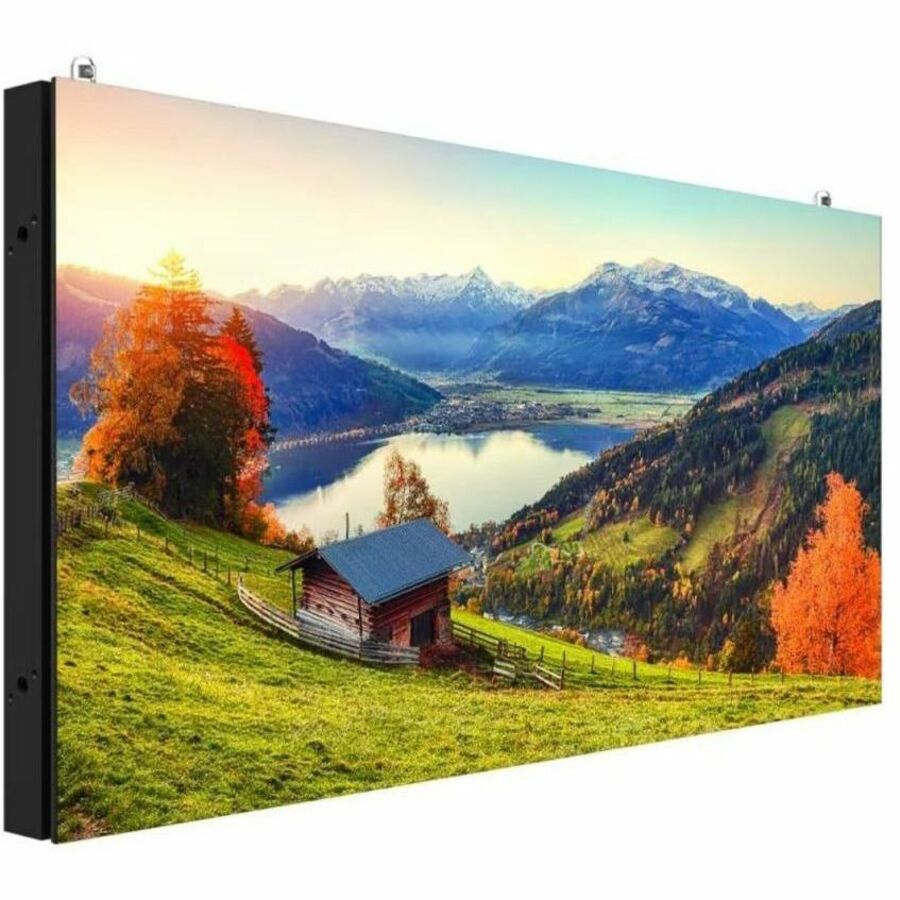

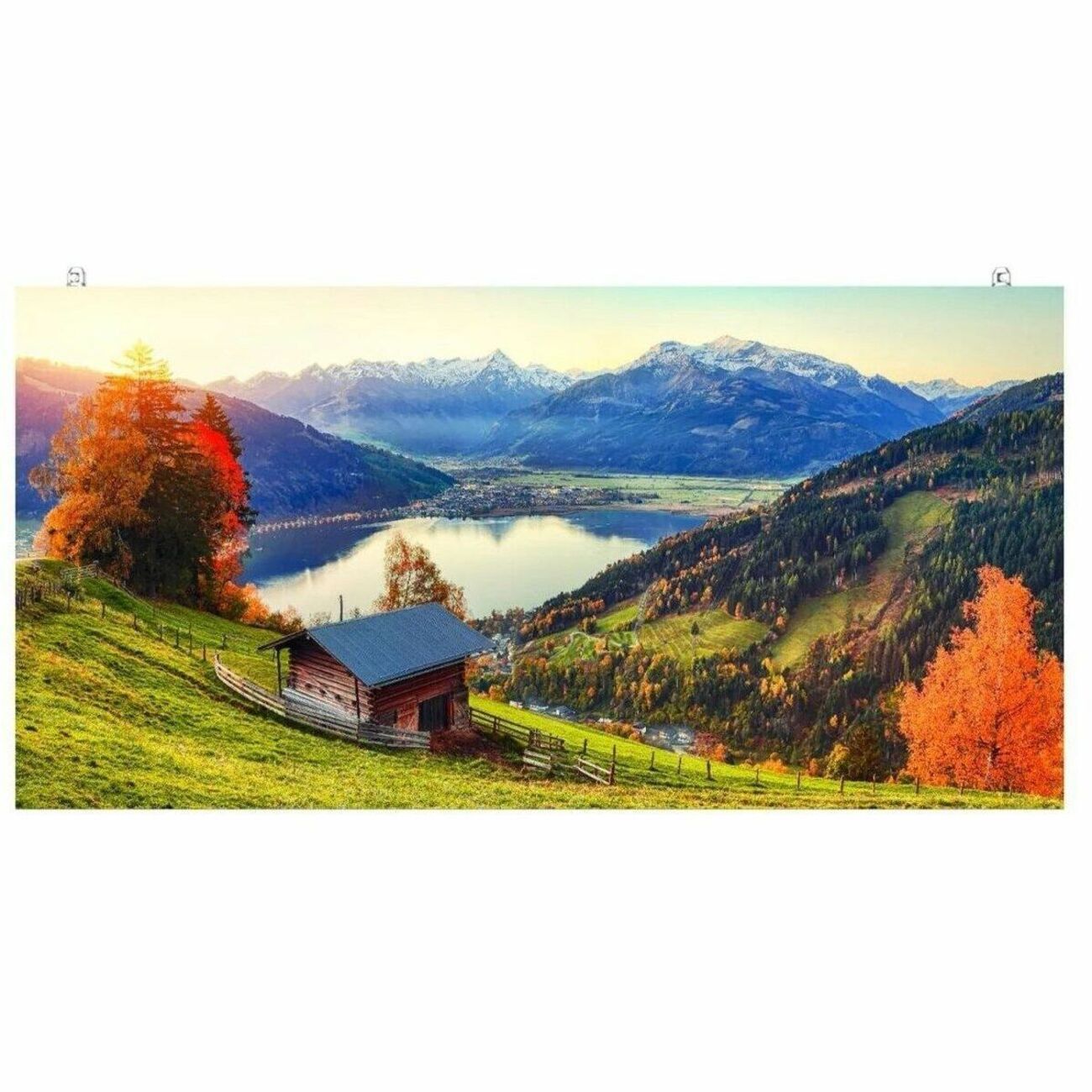

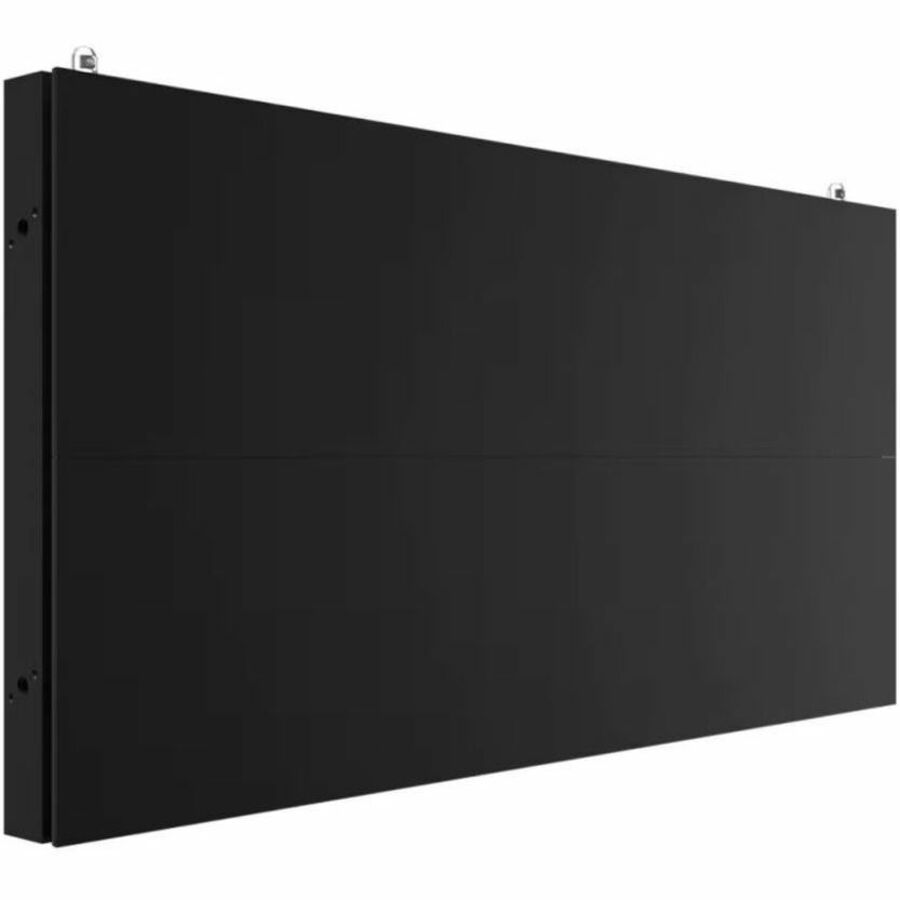

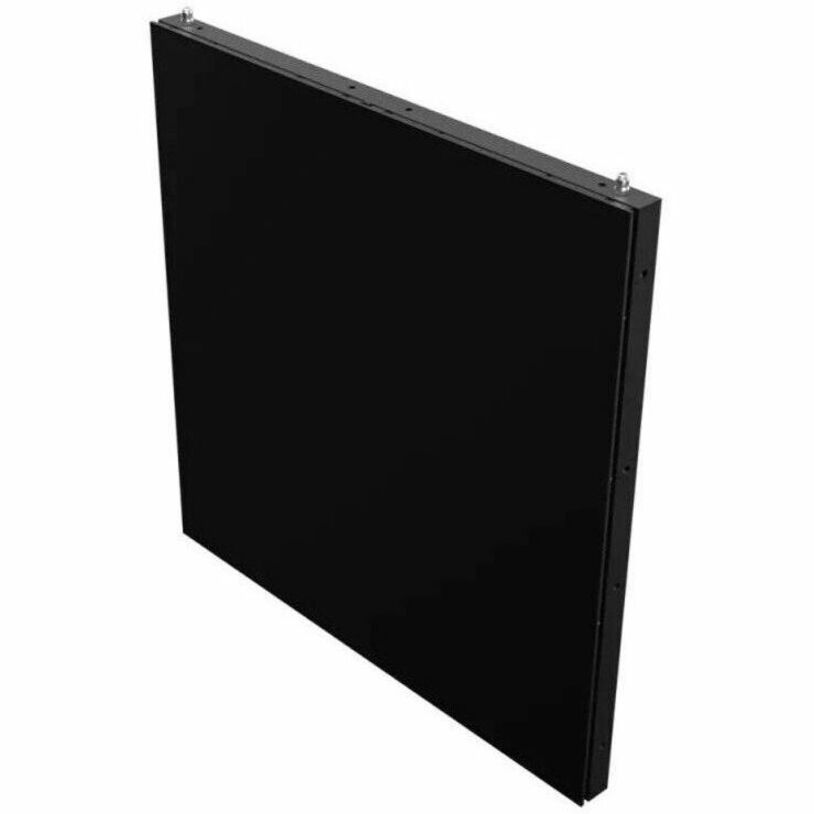

LG GSCD100-GN2 Digital Signage Display

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	GSCD100-GN2
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	GSCD100-GN2
Product Name	GSCD100-GN2 Digital Signage Display

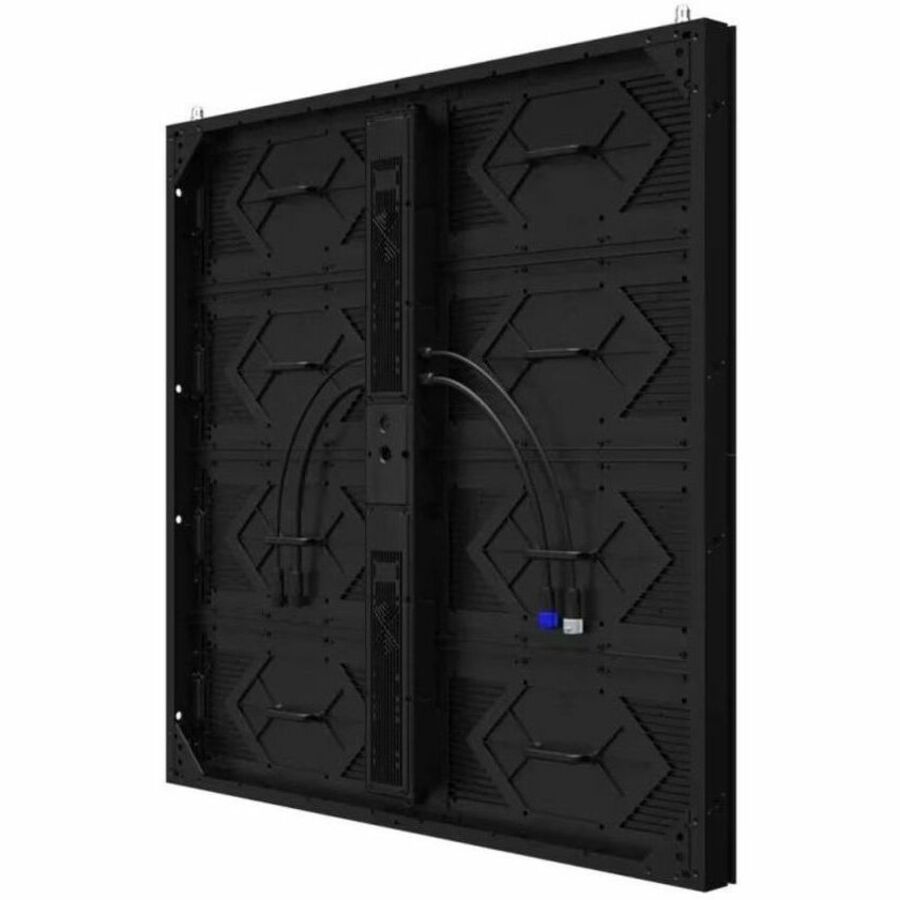

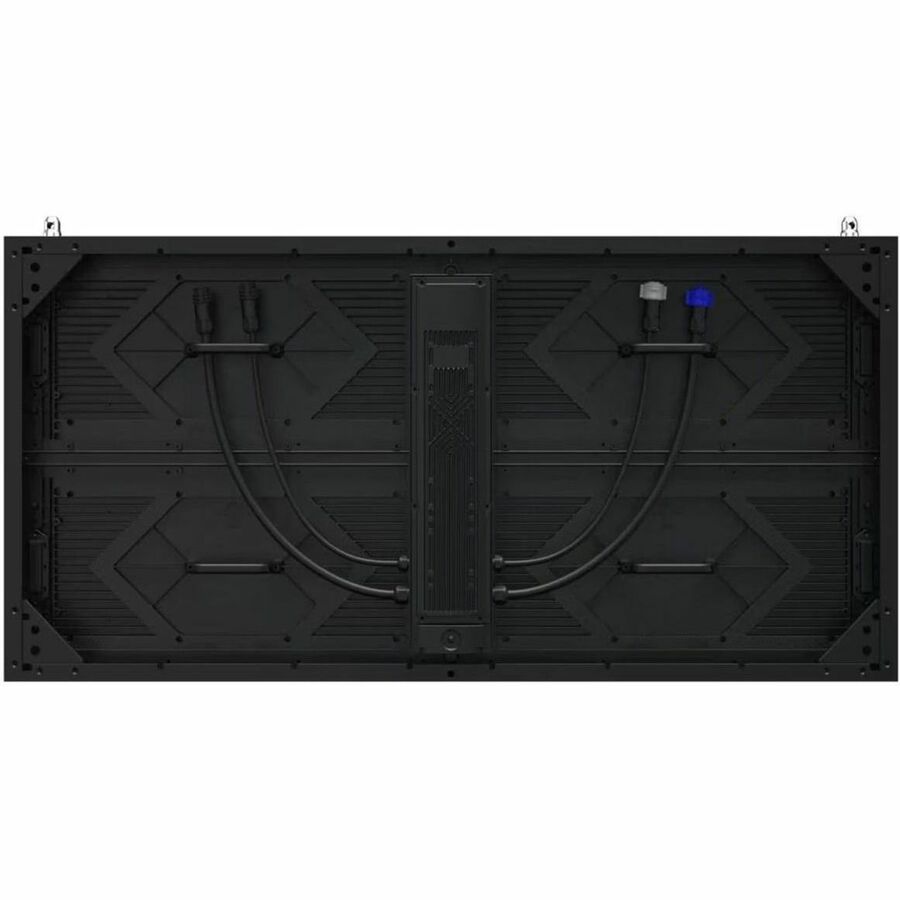

Marketing Information	High Brightness With a great brightness of 7,000 nits, it clearly delivers content and attracts public attention, which is the ultimate display for outdoor visibility. Lightweight Design The weights of the cabinet is very light, so even if a large LED screen is installed on the roof, it puts less pressure on the building's load. Easy Maintenance The control unit (PDU) of the cabinet is a modular type which can be easily attached or detached, supporting easy maintenance. Front or Rear Serviceability The product offers either front access or rear access, allowing customers to choose installation options according to their environment. 90° Corner Design Available If you add a 90° corner option, the GSCD series can deliver content effectively even when installed on the corners. IP Rated Weatherproof Design The front and back of the cabinet are IP65 certified, allowing stable operation less affected by weather. Compatibility with LG Software Solutions Powered by LG's high performance system controller, the GSCD series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business flawlessly
Product Type	Digital Signage Display

Technical Information

Heat Dissipation	330 W
Average Heat Dissipation Per Cabinet	109.99 W
Ingress Protection (IP) Rating	IP65
Minimum Color Temperature	5300.3°F (2926.8°C)
Maximum Color Temperature	16280.3°F (9026.8°C)
Color Uniformity	±0.003 Cx, Cy

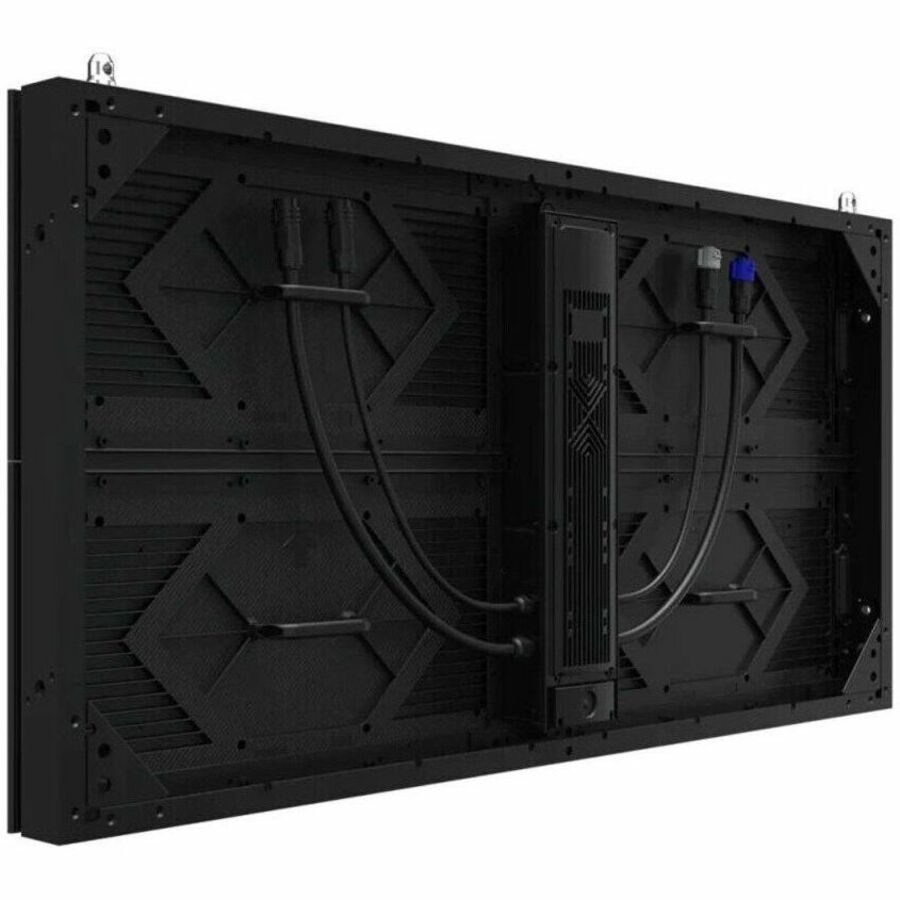

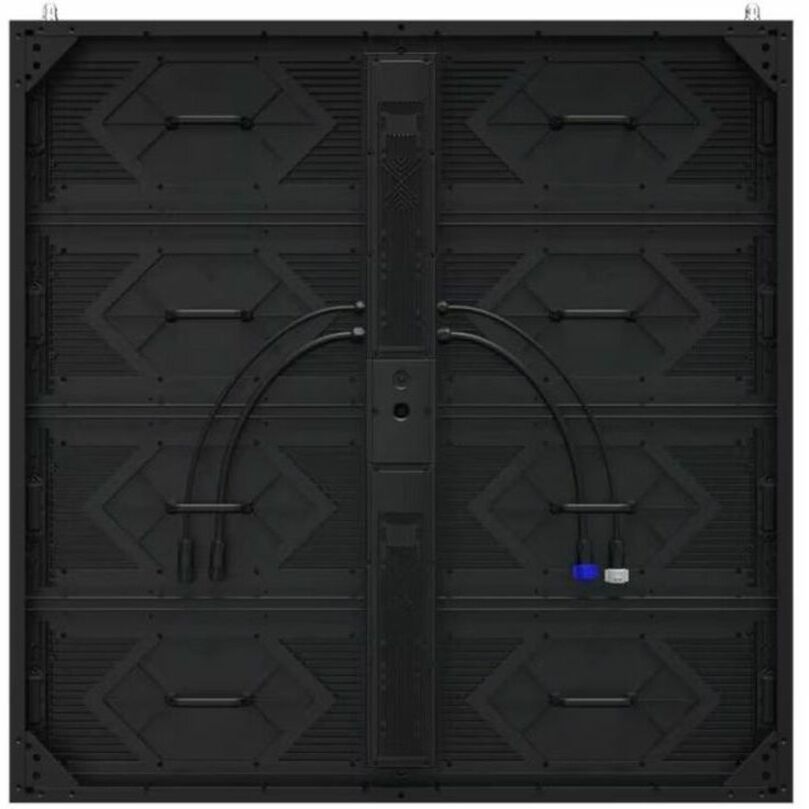

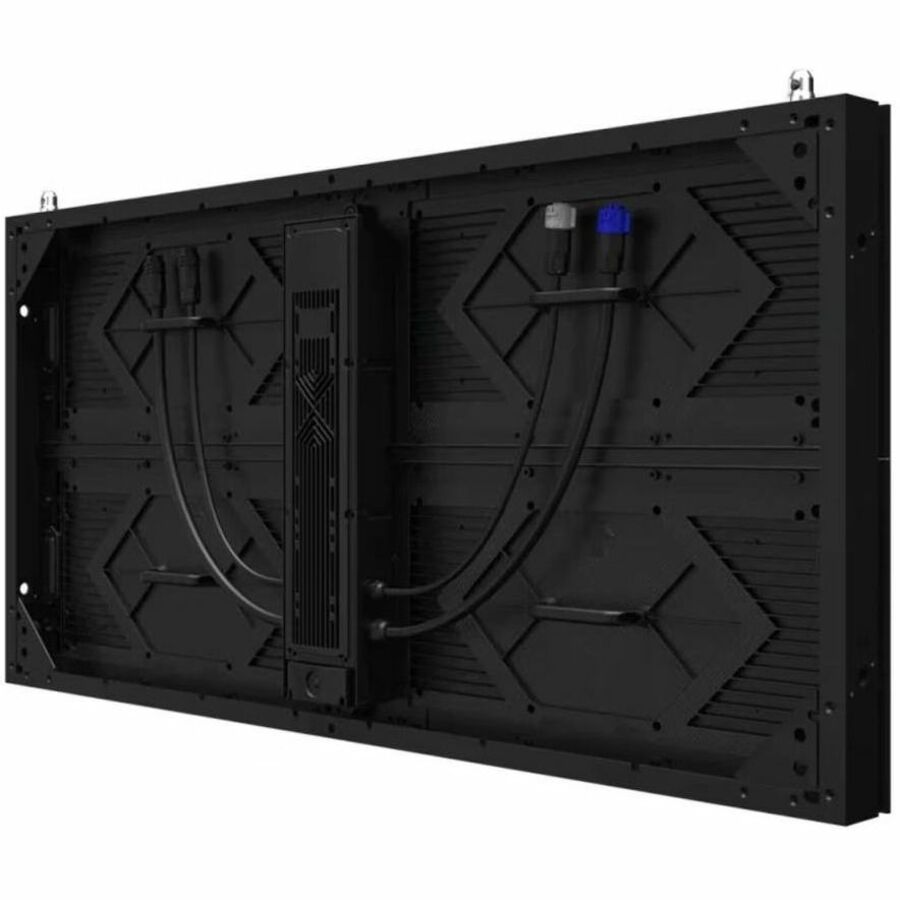

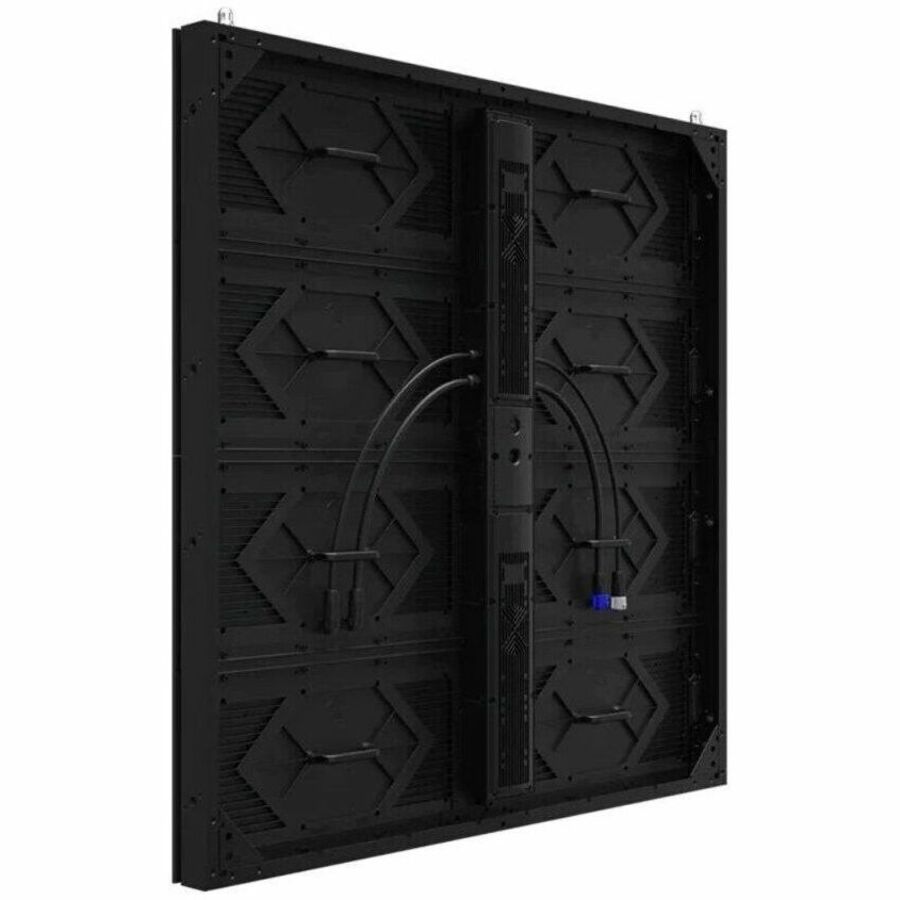

Service Access	Front Rear

Display & Graphics

Display Resolution	96 x 48
High Dynamic Range (HDR)	Yes
High Dynamic Range (HDR) Type	HDR10 HDR10 Pro
Pixel Pitch	0.41"
Horizontal Viewing Angle	160°
Vertical Viewing Angle	136°
Cabinet Surface Area	5 Sq. ft.
Number of Modules Per Cabinet	2x2
Module Resolution	48 x 24
Maximum LED Life	11.4 Year
LED Type	Single SMD
Physical Pixel Density	9216 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-22°F (-30°C)
Maximum Operating Temperature	122°F (50°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	99%

Physical Characteristics

Height	19.7"
Width	39.4"
Depth	3.4"
Module Height	9.80"
Module Width	19.70"
Weight per Module (Approximate)	2.90 lb
Weight per Cabinet (Approximate)	23.10 lb
Housing Material	Extruded Aluminum
Weight per Square Meter (Approximate)	21200 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 97% Power Consumption per Cabinet (Max) : 330W Power Consumption per Cabinet (Avg.) : 110W 90 Degree Corner Cut : No Total Modules (per cabinet) : 4 Heat Dissipation per Unit Area (Max.) : 2,251.9 BTU/hr/m² Power Consumption per Unit Area (Max) : 660 W/m² Controller : CVCA Minimum Viewing Distance (5-7 mm per foot) : 52-73 feet
Certifications & Standards	CE FCC cTUVus : No ETL (Regulatory): Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
