GMBD DVLED P40 STANDARD SINGLE SMD 3000NIT 320X3200X24.5

Name: GMBD DVLED P40 STANDARD SINGLE SMD 3000NIT 320X3200X24.5
Brand: LG
SKU: NT5529
Price: 2567 USD
Availability: InStock

PCN#

NT5529

MFG#

GMBD040-GN2

$2,567.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 180 lbs.

LG 40 mm Flexible Mesh Direct View LED

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	GMBD040-GN2
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	GMBD040-GN2
Product Name	40 mm Flexible Mesh Direct View LED

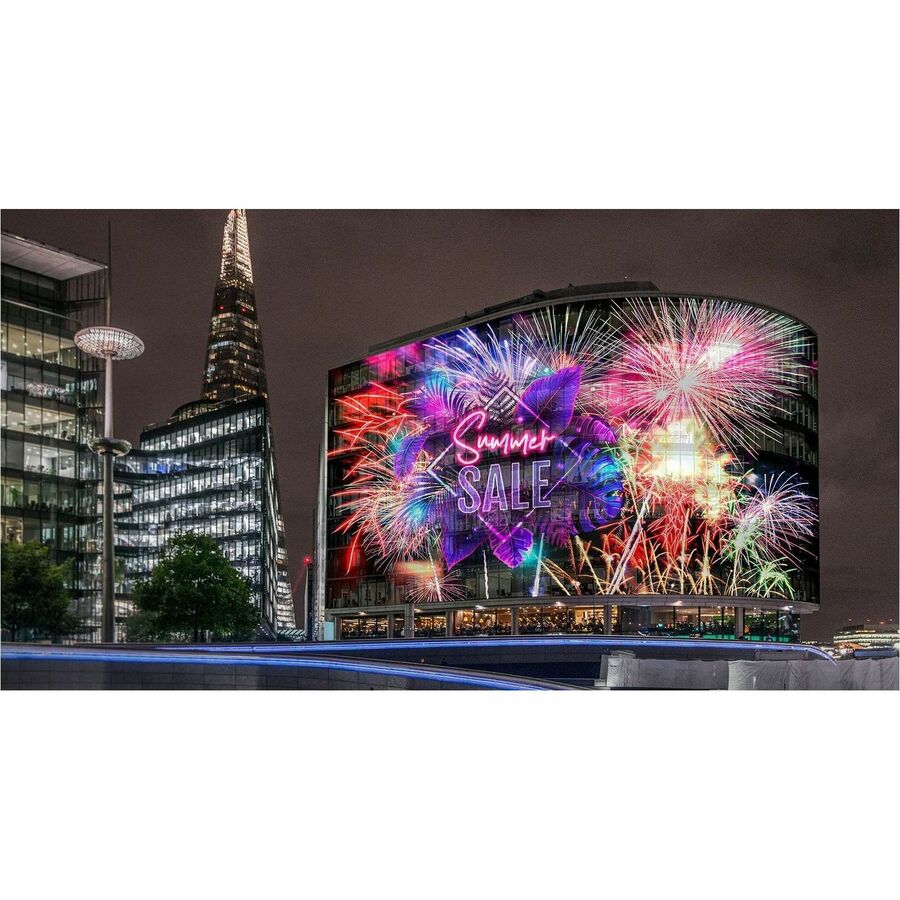

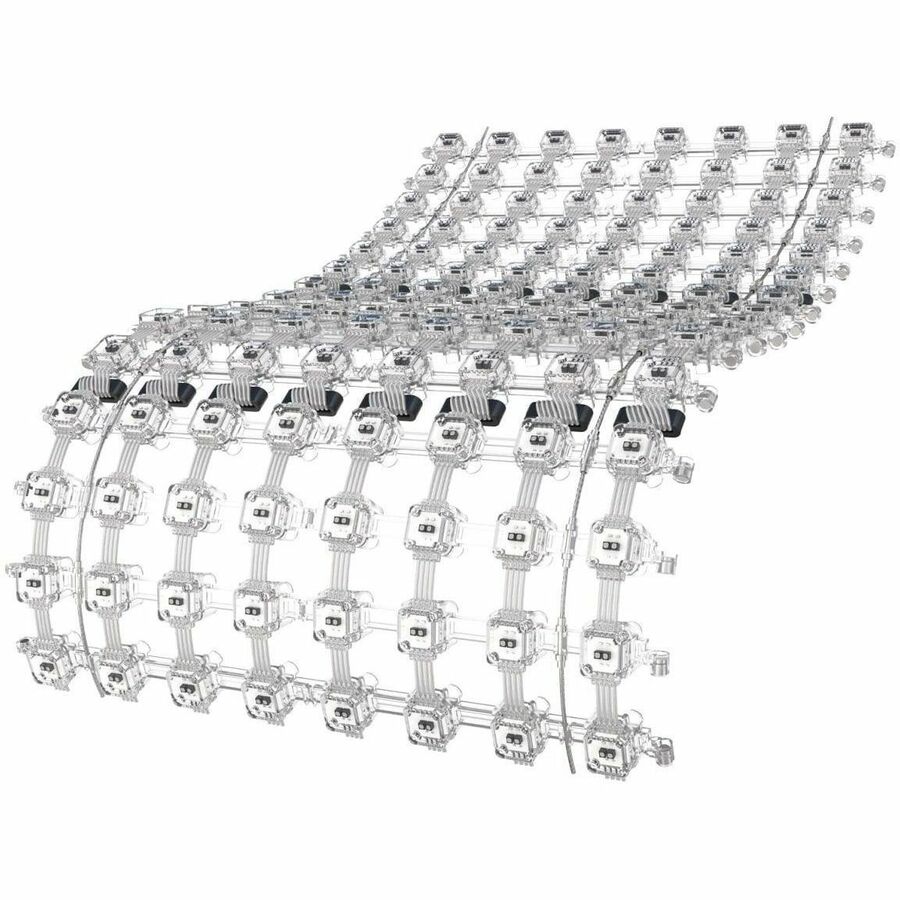

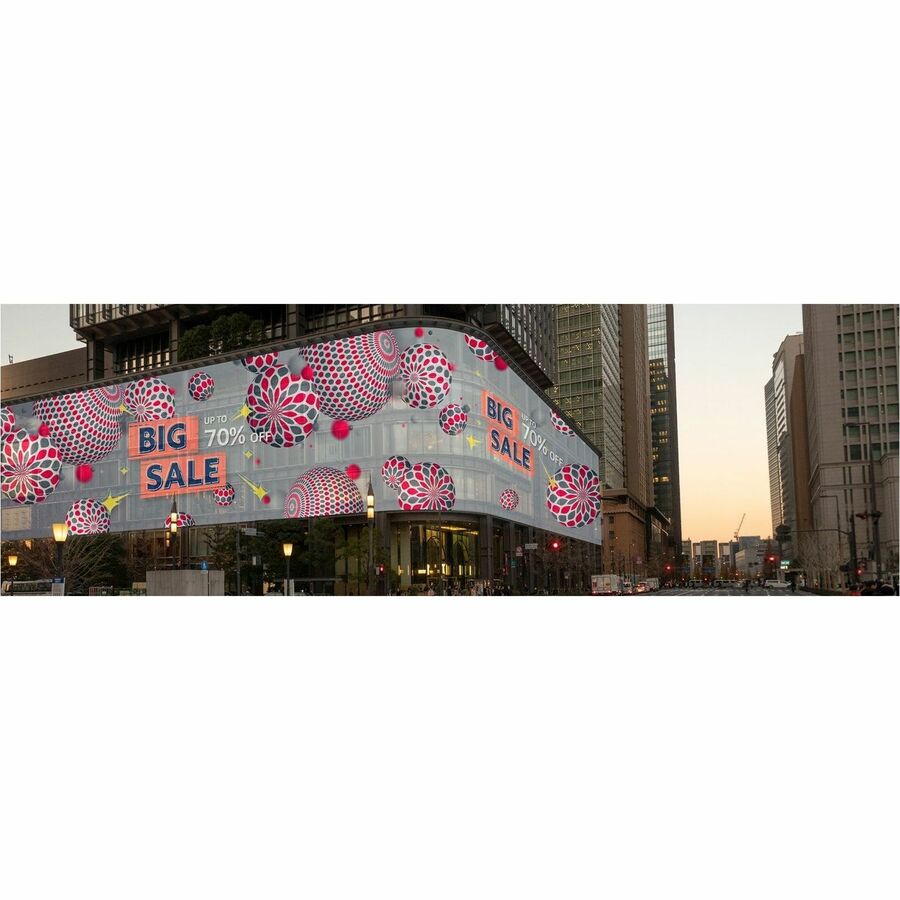

Marketing Information	Flexibility for Various Screen Shapes With its ability to be curved, folded, or rolled, GMBD can be easily formed into a variety of shapes for artistic, ornamental, or creative work. Its features can be widely applied to building facades, outdoor commercial, large events, or other areas to provide daytime or night views. Lightweight Mesh LED Its small, lightweight design reduces weight strain even for large screens, reducing time and cost for installation. Easy Maintenance Its LED Data Line Bypass function keeps LED PKGs working even when a middle LED PKG is broken (or dead). A single dead pixel can be fixed or replaced separately, which allows the LED to be operated with reduced costs and time for maintenance.
Product Type	Digital Signage Display

Technical Information

Features	Curvable
Heat Dissipation	383.92 W
Average Heat Dissipation Per Cabinet	128.07 W
Ingress Protection (IP) Rating	IP66
Minimum Color Temperature	31940.3°F (17726.8°C)
Maximum Color Temperature	44540.3°F (24726.8°C)
Service Access	Front Rear

Display & Graphics

Pixel Pitch	1.57"
Horizontal Viewing Angle	120°
Vertical Viewing Angle	120°
Cabinet Surface Area	11 Sq. ft.
Number of Modules Per Cabinet	1x8
Module Resolution	8 x 80
Maximum LED Life	11.4 Year

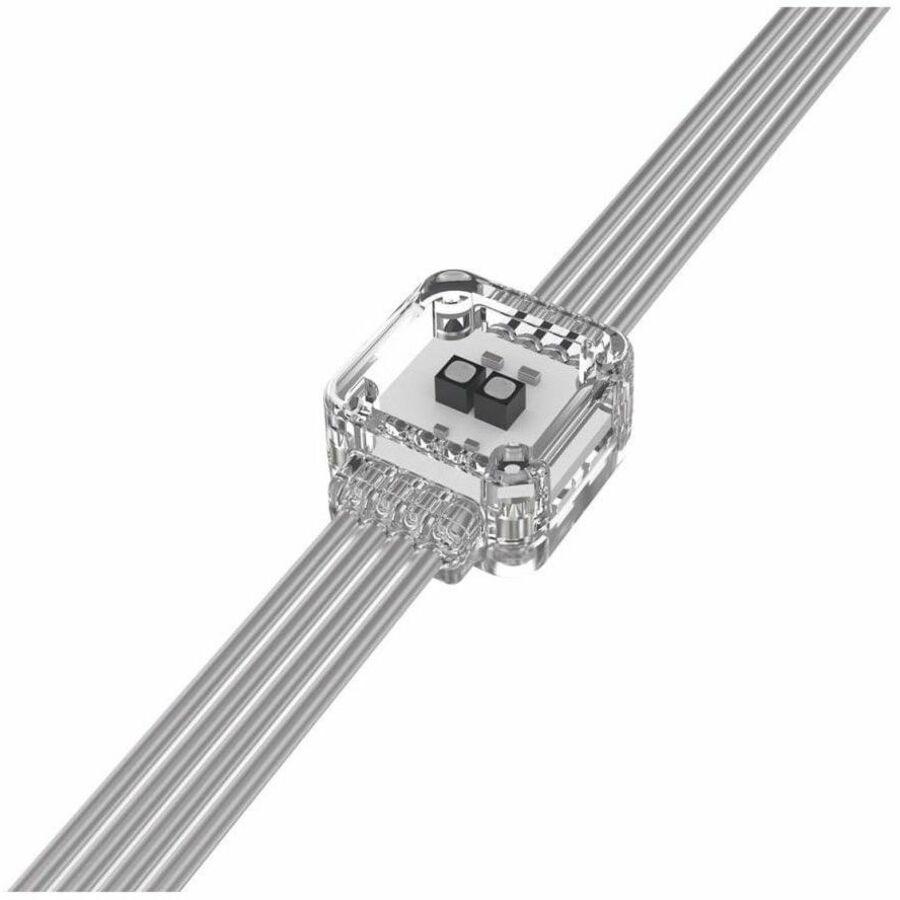

LED Type	SMD 2727 x 2pcs
Physical Pixel Density	625 pixels/m²

Video

Power Description

Input Voltage

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	140°F (60°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	90%

Physical Characteristics

Height	10.5 ft
Width	12.6"
Depth	1"
Module Height	10.50 ft
Module Width	0.71"
Weight per Module (Approximate)	1.20 lb
Weight per Cabinet (Approximate)	14.70 lb
Housing Material	Plastic Silicone
Weight per Square Meter (Approximate)	6500 g/m²

Miscellaneous

Additional Information	Brightness Uniformity : 90% Power Consumption per Cabinet (Max) : 384W Power Consumption per Cabinet (Avg.) : 128W 90 Degree Corner Cut : No Total Modules (per cabinet) : 8 Cabinet Resolution (W x H) : 8 x 640 Heat Dissipation per Unit Area (Max.) : 1,280 BTU/hr/m² Power Consumption per Unit Area (Max) : 375 W/m² Controller : CVBA Minimum Viewing Distance (5-7 mm per foot) : 200-280 feet
Certifications & Standards	CE CB FCC cTUVus: Yes
Environmentally Friendly	Yes
Environmental Certification	REACH
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
TAA Compliant	No

Warranty

Limited Warranty

3 Year
