LG UHD Large Screen Signage Display

Name: LG UHD Large Screen Signage Display
Brand: LG
SKU: HF9317
Price: 8467 USD
Availability: InStock

PCN#

HF9317

MFG#

98UM5K-B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$8,467.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $462.99

3-Year $582.99

Free Shipping

Estimated Shipment:

Product Highlights:

98"
Advanced Super Dimension Switch ( ADS )
16 Hours/ 7 Days Operation
3840 x 2160
16:9
8 ms
500 Nit
HDMI
Wireless LAN
webOS 6.0

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 223 lbs.

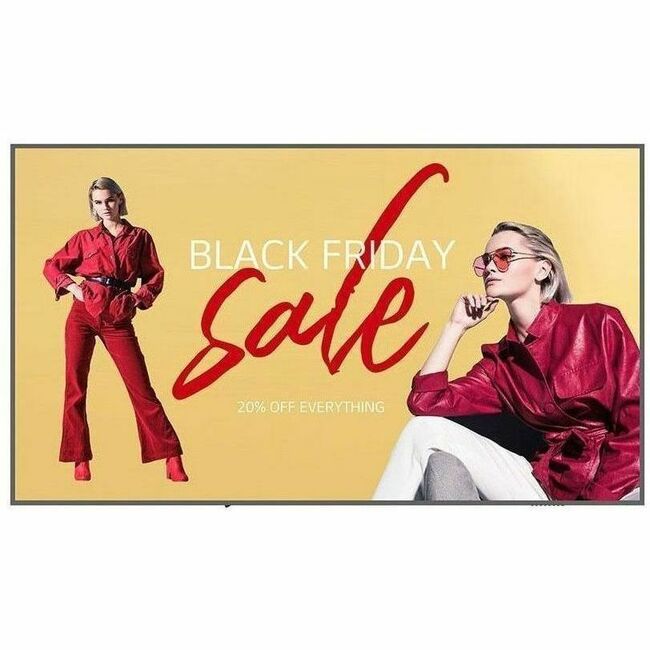

LG 98UM5K-B Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	98UM5K-B
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	98UM5K-B
Product Name	98UM5K-B Digital Signage Display
Marketing Information	UHD Large Screen Signage Display with LG webOS Platform \| Super High Resolution Delivering immersive viewing experience by 4 times higher definition picture quality than FHD. Adequate Brightness Level The UM5K series boasts an adequate brightness level of 500 cd/m² for indoor displays, effectively showcasing content and capturing the public's attention. This makes it an adequate display solution for marketing purposes in various settings, including meeting rooms, airports, retail outlets, and shopping malls. High-Performance with webOS LG webOS platform enhances user convenience with intuitive GUI and simple app development tools. Built-in Speaker Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers. Slim Design Being slim, a closer installation to the wall is advised. Additionally, this increases the screen's immersive experience and provides a sophisticated design, improving the installed-space's décor. Mobile Content Management You can create a store profile and get template recommendations using the Promota* app. Users can customize templates as needed and easily create and manage content not only on PCs but also on mobile devices. Compatible with AV Control System The UM5K series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency. SuperSign Solutions SuperSign is an integrated and intuitive content management solution for creative and organized digital signage content in your space, connecting customers to a range of services with convenient user experiences. There are a variety of versions such as SuperSign Cloud, so discover and enjoy the version that best fits you.
Product Type	Digital Signage Display

Technical Information

Features	Picture by Picture (PbP) Picture in Picture Smart Energy Saving 1% Haze Crestron Connected Cisco Certified FailOver Carrying Handle Control Manager Auto Set ID Group Manager Booting Logo Image Tile Mode Setting (15 × 15) SNMP Manageable HDMI (CEC) ConnectedCare Daisy Chain Connectivity Gyroscopic Sensor Brightness Sensor Power Indicator Temperature Sensor Pro:Idiom Wake on LAN (WOL) External Input Rotation
On Screen Display (OSD) Languages	Arabic Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Polski Brazilian Portuguese Portuguese (Europe) Russian Simplified Chinese Spanish Swedish Turkish
HDCP Version	1.4/2.2
Panel Technology	Advanced Super Dimension Switch ( ADS )
Operation Hours	16 Hours/ 7 Days
Maximum Heat Generation	2016.2 kJ
Content Synchronization	RS-232C
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes

Display & Graphics

Viewable Screen Size	98"
Multi-touch Screen	No
Display Resolution	3840 x 2160
Response Time	8 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Orientation	Landscape/Portrait
Maximum LED Life	5.7 Year

Audio

Speakers

Video

Standard Refresh Rate	60 Hz
Dynamic Contrast Ratio	200,000:1
Native Contrast Ratio	1,200:1
Color Depth	8-bit+FRC
Brightness	500 Nit
Color Gamut	88% DCI-P3

Network & Communication

Wireless LAN	Yes
Bluetooth	No

Interfaces/Ports

HDMI	Yes
Network (RJ-45)	No
Audio Line In	Yes
Audio Line Out	Yes
Number of USB 2.0 Ports	1
Number of HDMI Inputs	3
Number of HDMI Outputs	1
USB Type-C	No
DisplayPort Output	No
RS-232C Input	Yes
RS-232C Output	Yes
Number of Network (RJ-45) Ports	1
Number of Audio Line Out	1
DVI-D In	Yes
DisplayPort In	Yes
Infrared Output	No

Software

Operating System

webOS 6.0

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	560 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	800 x 400
Height	49.3"
Width	86.5"
Depth	3.1"
Weight (Approximate)	172 lb

Miscellaneous

Package Contents	Remote Controller (include battery 2ea) Power Cord QSG IR/Light sensor receiver Regulation Book Phone to RS233C Genderxdcs
Additional Information	Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Color Depth : 1.07 Billion Colors, 8 bit + FRC Anti-Reflective : No Transparency : No Internal Memory : 16 GB (eMMC) BTU Heat Generation (Typ.) : 1,467 BTU Conformal Coating (Power Board) : No Direct Sunlight : No Bezel Width (Off Bezel) : 17 mm External Speaker Out (3.5 mm) : No Power Loop Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No UL Certification : No DisplayPort In : Yes (x1) HDCP 2.2/1.3 IR In (3.5 mm) : Yes RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No RS-232C Out (3.5 mm) : Yes (x1) Touch USB : Yes (x1) USB 2.0, Type A Power Type : Built-in Power Local Key Operation: Yes
Certifications & Standards	FCC: EMC Class A CE Marking (Regulatory): Yes
Environmentally Friendly	Yes
Environmental Certification	ErP
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Country of Assembly	China
TAA Compliant	No
Compatible Software	SuperSign CMS SuperSign Control+ SuperSign SuperSign Cloud Mobile CMS

Warranty

Limited Warranty

3 Year
