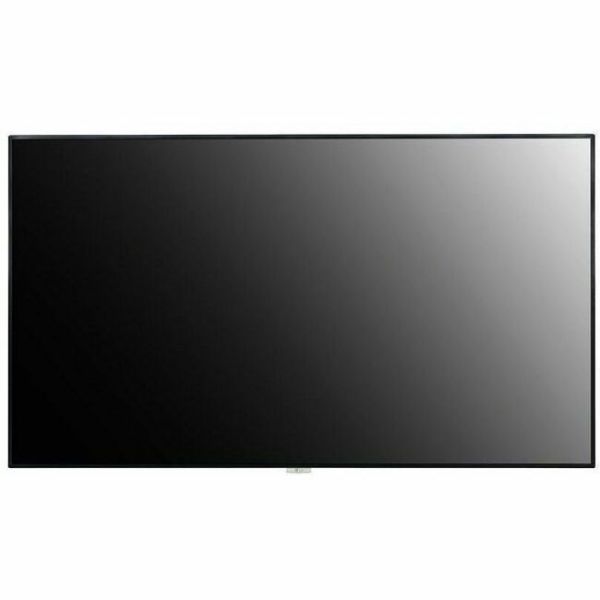

LG 98UH5J-H Digital Signage Display

Name: LG 98UH5J-H Digital Signage Display
Brand: LG
SKU: 08WC92
Price: 9733 USD
Availability: InStock

PCN#

08WC92

MFG#

98UH5J-H

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$9,733.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $507.99

3-Year $627.99

Free Shipping

Estimated Shipment:

Product Highlights:

98"
In
plane Switching (IPS) Technology
24 Hours/7 Days Operation
3840 x 2160
16:9
8 ms
500 Nit
HDMI
Wireless LAN
webOS 6.0
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 343 lbs.

LG 98" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	98UH5J-H
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	98UH5J-H
Product Name	98" UH5J-H Series High Haze LCD UHD Signage with webOS™, IP5X Rating
Marketing Information	New High Haze UHD Standard Signage \| Proper Display Brightness With a recommend brightness of 500 cd/m² for an indoor display, the UH5J-H series clearly deliver content and attract public attention, making it the most suitable display for marketing in meeting rooms, airports, retail, shopping malls etc. High-Performance with webOS LG webOS platform enhances user convenience with intuitive GUI and simple app development tools. Conformal Coating In various places the UH5J-H series is unable to avoid exposure to environments containing dust, humidity, etc. which may hamper performance over time. The conformal coating on power board reduces these risks by protecting UH5J-H series from salt, dust, iron powder, humidity, etc. Mobile Content Management You can create a store profile and get template recommendations using the Promota app. Users can customize templates for all industries and easily create and manage content not only on PCs but also on mobile devices. IP5x Certified Design The IP5x Dust-Proof Certification ensures that the product is protected from dust, reducing the risk of performance degradation. Compatible with AV Control System The UH5J-H series has supported Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.
Product Type	Digital Signage Display

Technical Information

Features	Picture by Picture (PbP) Picture in Picture Smart Energy Saving Crestron Connected FailOver Conformal Coating (Power Board) Carrying Handle Control Manager Auto Set ID Group Manager Booting Logo Image Tile Mode Setting (15 × 15) SNMP Manageable HDMI (CEC) ConnectedCare Daisy Chain Connectivity Gyroscopic Sensor Brightness Sensor Temperature Sensor Pro:Idiom Wake on LAN (WOL) External Input Rotation
On Screen Display (OSD) Languages	Arabic Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Brazilian Portuguese Portuguese (Europe) Russian Simplified Chinese Spanish Swedish Turkish
HDCP Version	1.4/2.2
Panel Technology	In-plane Switching (IPS) Technology
Operation Hours	24 Hours/7 Days
Maximum Heat Generation	2233.6 kJ
Content Synchronization	RS-232C
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes

Display & Graphics

Viewable Screen Size	98"
Multi-touch Screen	No
Display Resolution	3840 x 2160
Response Time	8 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Orientation	Landscape/Portrait
Maximum LED Life	5.7 Year

Audio

Speakers

Video

Standard Refresh Rate	60 Hz
Dynamic Contrast Ratio	100,000,0:1
Native Contrast Ratio	1,200:1
Color Depth	10-bit
Brightness	500 Nit
Color Gamut	95% BT.709

Network & Communication

Wireless LAN	Yes
Bluetooth	No

Interfaces/Ports

HDMI	Yes
Network (RJ-45)	No
Audio Line In	Yes
Audio Line Out	Yes
Number of USB 2.0 Ports	1
Number of HDMI Inputs	3
Number of HDMI Outputs	1
USB Type-C	No
DisplayPort Output	No
RS-232C Input	Yes
RS-232C Output	Yes
Number of Network (RJ-45) Ports	1
Number of Audio Line Out	1
DVI-D In	Yes
DisplayPort In	Yes
Infrared Output	No

Software

Operating System

webOS 6.0

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	620 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	800 x 400
Height	49.1"
Width	86.3"
Depth	3.4"
Weight (Approximate)	145.50 lb

Miscellaneous

Package Contents	Remote Controller (include battery 2ea) Power Cord QSG Regulation Book Phone to RS232C Gender EYE Bolt
Additional Information	Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Transparency : No Internal Memory : 16 GB (eMMC) Cisco Certified Compatibility : No BTU Heat Generation (Typ.) : 1,434 BTU Direct Sunlight : No Bezel Width (Off Bezel) : 14.9 mm External Speaker Out (3.5 mm) : No Power Loop Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No UL Certification : No DisplayPort In : Yes (x1) HDCP 2.2/1.3 IR In (3.5 mm) : Yes RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No RS-232C Out (3.5 mm) : Yes (x1) Power Type : Built-in Power Local Key Operation: Yes
Certifications & Standards	FCC: EMC Class A CE Marking (Regulatory): Yes
Energy Star	No
Environmentally Friendly	Yes
Environmental Certification	ErP
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
TAA Compliant	Yes
Compatible Software	SuperSign CMS SuperSign Control+ SuperSign Mobile CMS

Warranty

Limited Warranty

3 Year
