LG 86BH5F-M Ultra Stretch Signage

Name: LG 86BH5F-M Ultra Stretch Signage
Brand: LG
SKU: 9VA026
Price: 4400 USD
Availability: InStock

PCN#

9VA026

MFG#

86BH5F-M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$4,400.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $331.99

3-Year $446.99

Free Shipping

Estimated Shipment:

Product Highlights:

86"
In
plane Switching (IPS) Technology
24 Hours/7 Days Operation
3840 x 600
58:9
8 ms
500 Nit
Wireless LAN
webOS 4.0
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 85 lbs.

LG 86BH5F-M Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	86BH5F-M
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	86BH5F-M
Product Name	86BH5F-M Digital Signage Display
Marketing Information	Ultra Stretch Signage, 58:9 Space-Fitting Wide Screen The 86BH5F is the most suitable display for delivering new forms of advertising and multiplexed information in a 58:9 widescreen format. It can bring unused & leftover space to life by being installed without restriction. 58:9 Extended Wide Format It is a unique wide screen with 58:9 bar type which provides much more flexibility in playing content than the conventional display of 16:9 ratio. Ultra HD Resolution (3,840 x 600) Ultra HD resolution delivers an immersive viewing experience with vivid colors and clear images. Multi Screen Mode with 4PBP The Picture-by-Picture (PBP) feature allows you to show multi content in one single display by up-to four parts. It is very useful and convenient to deliver various advertisements or pieces of information at the same time without calibration. Tiled Scene with Immersive View The 86BH5F can show a tiled scene by up to 15 × 15 configuration. This will be the best choice if you want to use a large screen, or provide visual impact to your customers in a different way. IP5x Certified Design The IP5x Dust-Proof Certification ensures that the product is completely protected from dust, eliminating the risk of performance degradation. User-Friendly UX The 86BH5F is equipped with a user-friendly UX to simplify approach flows, groups similar functions together, and adopts an intuitive GUI for ease of use. When using the display in portrait mode, OSD can also be adjusted accordingly. LAN Daisy Chain Management By using this daisy-chained network feature, you can execute commands such as controlling, monitoring and even updating firmware. Real-Time Monitoring with ConnectedCare Easier and faster maintenance are available with our optional cloud service solution ConnectedCare. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of clients' businesses.
Product Type	Digital Signage Display

Technical Information

Features	Picture by Picture (PbP) Smart Energy Saving 10% Haze Crestron Connected FailOver Conformal Coating (Power Board) Carrying Handle Control Manager Auto Set ID Group Manager Booting Logo Image Tile Mode Setting (15 × 15) SNMP Manageable HDMI (CEC) ConnectedCare Daisy Chain Connectivity Brightness Sensor Current Sensor Temperature Sensor Wake on LAN (WOL) External Input Rotation
On Screen Display (OSD) Languages	Arabic Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Brazilian Portuguese Portuguese (Europe) Russian Simplified Chinese Spanish Swedish
HDCP Version	1.4/2.2
Ingress Protection (IP) Rating	IP5X
Panel Technology	In-plane Switching (IPS) Technology
Operation Hours	24 Hours/7 Days
Maximum Heat Generation	864.1 kJ
Content Synchronization	RS-232C
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes

Display & Graphics

Viewable Screen Size	86"
Multi-touch Screen	No
Display Resolution	3840 x 600
Response Time	8 ms
Aspect Ratio	58:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Orientation	Landscape/Portrait
Maximum LED Life	5.7 Year

Audio

Speakers

Video

Standard Refresh Rate	60 Hz
Dynamic Contrast Ratio	500,000:1
Native Contrast Ratio	1,100:1
Color Depth	10-bit
Brightness	500 Nit
Color Gamut	72% NTSC

Network & Communication

Wireless LAN	Yes
Bluetooth	No

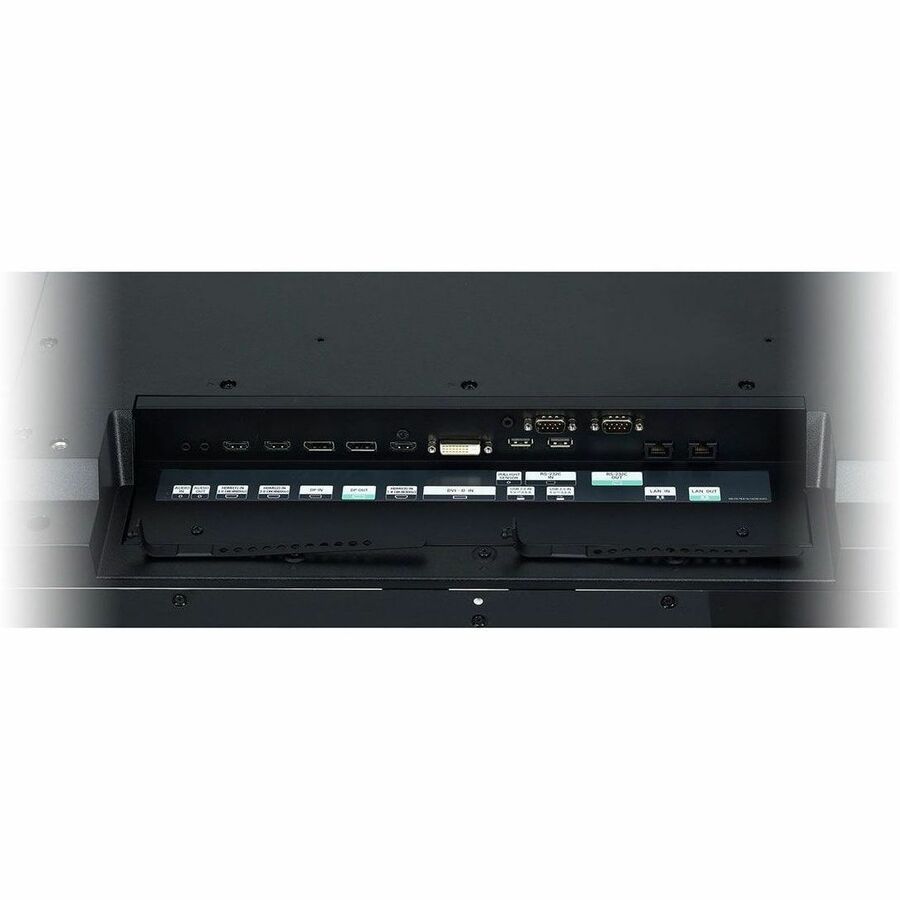

Interfaces/Ports

Audio Line In	Yes
Audio Line Out	Yes
Number of USB 2.0 Ports	2
Number of HDMI Inputs	3
USB Type-C	No
DisplayPort Output	Yes
RS-232C Input	Yes
RS-232C Output	Yes
Number of Network (RJ-45) Ports	1
Number of Audio Line Out	1
Number of DisplayPort Outputs	1
DVI-D In	Yes
DisplayPort In	Yes
Infrared Output	No

Software

Operating System

webOS 4.0

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	240 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	600 x 200
Height	13.7"
Width	85"
Depth	3.2"
Weight (Approximate)	45.20 lb

Miscellaneous

Package Contents	Remote Controller (including battery 2ea) Power Cord DP cable RS-232C Cable IR/Light sensor receiver Manual
Additional Information	Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Transparency : No Internal Memory : 8 GB (eMMC) Cisco Certified Compatibility : No BTU Heat Generation (Typ.) : 751 BTU Direct Sunlight : No Bezel Width (Off Bezel) : T: 5.9 mm, R/L: 4.4 mm, B: 5.9 mm External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No SI Server Setting : No Idiom® : No UL Certification : No DisplayPort In : Yes (x1) HDCP 2.2/1.3 IR In (3.5 mm) : Yes RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No RS-232C Out (3.5 mm) : Yes (x1) Power Type : Built-in Power Local Key Operation: Yes
Certifications & Standards	FCC: EMC Class A CE Marking (Regulatory): Yes
Energy Star	No
Country of Assembly	South Korea
TAA Compliant	Yes
Compatible Software	SuperSign Control+ SuperSign Mobile CMS

Warranty

Limited Warranty

3 Year
