75IN 3840X2160 LG CREATEBAORD TOUCH ANDROID13 HDMI USB-C 3YR WARR

Name: 75IN 3840X2160 LG CREATEBAORD TOUCH ANDROID13 HDMI USB-C 3YR WARR
Brand: LG
SKU: JS6409
Price: 2933 USD
Availability: InStock

PCN#

JS6409

MFG#

75TR3DK-B.MUSQ

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,933.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

75"
16:9 Aspect Ratio
3840 x 2160
Direct LED
350 Nit
1,200:1 Contrast Ratio
USB
HDMI
VGA
Bluetooth
Android 13, Windows 10, Windows 8, Windows 7, Linux, Mac OS X

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 134 lbs.

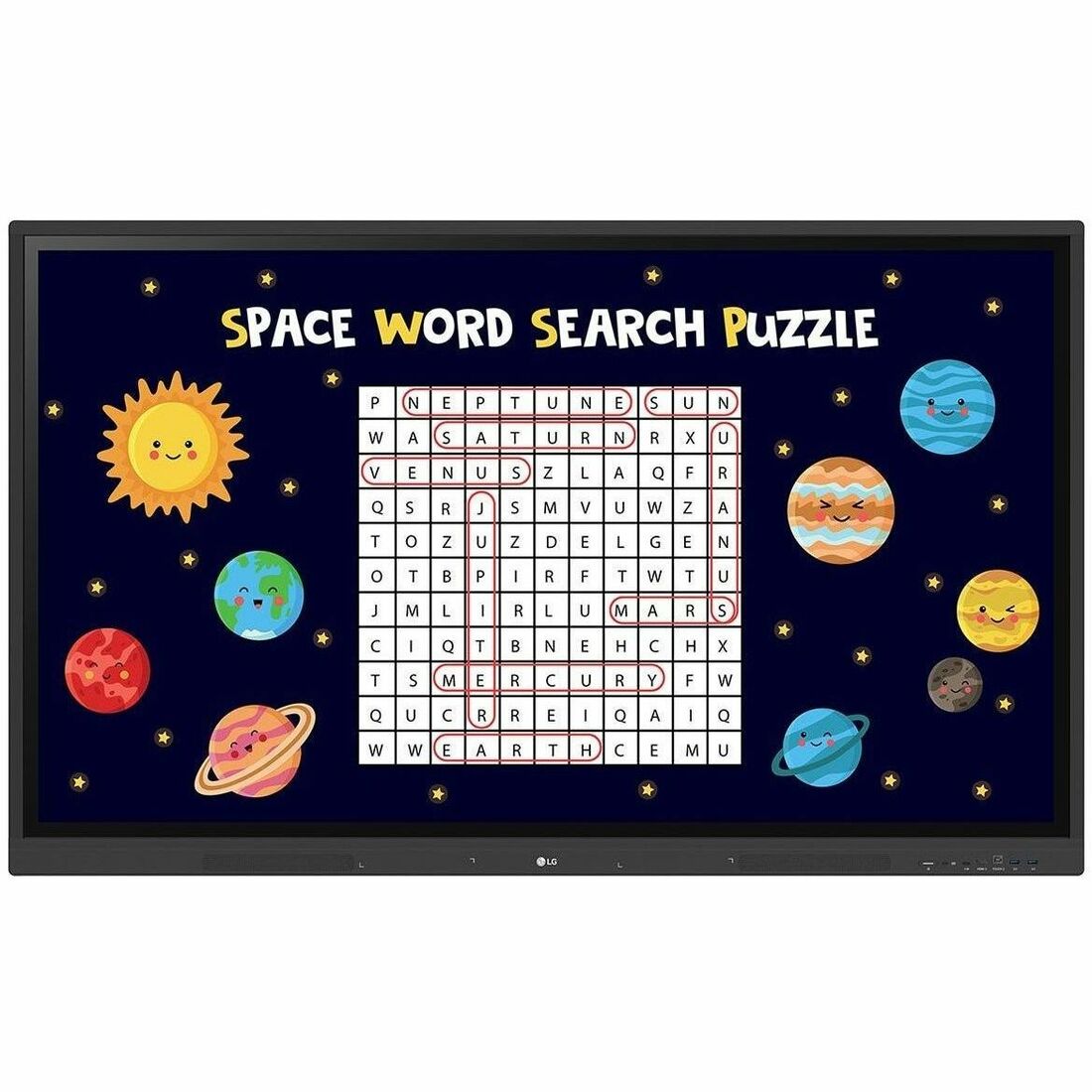

LG CreateBoard 75TR3DK-B Collaboration Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	75TR3DKBMUSQ
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	75TR3DK-B.MUSQ
Product Name	CreateBoard 75TR3DK-B Collaboration Display
Product Type	Collaboration Display

Technical Information

Maximum Heat Generation	1547.8 kJ
Typical Heat Generation	810.3 kJ
Protection Glass Transmission	88%
Features	Brightness Sensor Handle Power Indicator Booting Logo Image Wake on LAN (WOL) Smart Energy Saving OPS Type Compatible Picture in Picture

Display & Graphics

Viewable Screen Size	75"
Screen Size Class	75"
Display Screen Technology	In-plane Switching (IPS) Technology
Backlight Technology	Direct LED
Screen Mode	UHD
Screen Resolution	3840 x 2160
Aspect Ratio	16:9
Response Time	8 ms
Contrast Ratio	1,200:1
Display Orientation	Landscape
Brightness	350 Nit
HDCP Supported	Yes
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Graphics Controller Manufacturer	ARM
Graphics Controller Model	Mali G52MP2
Standard Refresh Rate	60 Hz
Operation Hours	16 Hours/7 Days
Color Gamut	72% NTSC

Touchscreen Information

Multi-touch Screen	Yes
Number of Touch Points	40

Storage

Flash Memory Capacity

8 GB

Audio

Speakers	Yes
Number of Speakers	2
RMS Output Power	15 W

Network & Communication

Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.0

Interfaces/Ports

HDMI	Yes
Number of HDMI Inputs	3
Number of HDMI Outputs	1
Total Number of USB Ports	5
Number of USB 2.0 Ports	1
Number of USB 3.0 Ports	4
Number of USB Type-C (Power Delivery) Ports	1
USB	Yes
Number of Network (RJ-45) Ports	1
Network (RJ-45)	Yes
Number of VGA Ports	1
VGA	Yes
DisplayPort	No
Serial	No
Digital Audio Optical Out	Yes

Software

Operating System Platform	Android Windows Linux Mac OS
Operating System	Android 13 Windows 10 Windows 8 Windows 7 Linux Mac OS X
Software Included	LG ConnectedCare DMS OfficeSuite LG CreateBoard Share LG CreateBoard Lab, Note 2.0

Power Description

Input Voltage	100 V AC 240 V AC
Power Consumption	225 W
Standby Power Consumption	500 mW

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	800 x 400
Bezel Width (Bottom)	1.57"
Bezel Width (Left)	0.59"
Bezel Width (Right)	0.59"
Bezel Width (Top)	0.59"
Height	40.2"
Width	67.3"
Depth	3.5"
Weight (Approximate)	104.30 lb

Miscellaneous

Package Contents	CreateBoard 75TR3DK-B Collaboration Display Power Cord 3 M1 USB Cable (Type A-Type B) 5 M1 HDMI Cable 3 M1 Writing Pen2pcs User Manual QSG Carton Box Remote Controller (include battery 2ea) Wifi module
Additional Information	Power Type:Built-in Power
Certifications & Standards	FCC (Regulatory) EMC Class A ERP (Environmental) CE (Regulatory)
Energy Star	Yes
Country of Origin	China
TAA Compliant	No

Warranty

Limited Warranty

3 Year
