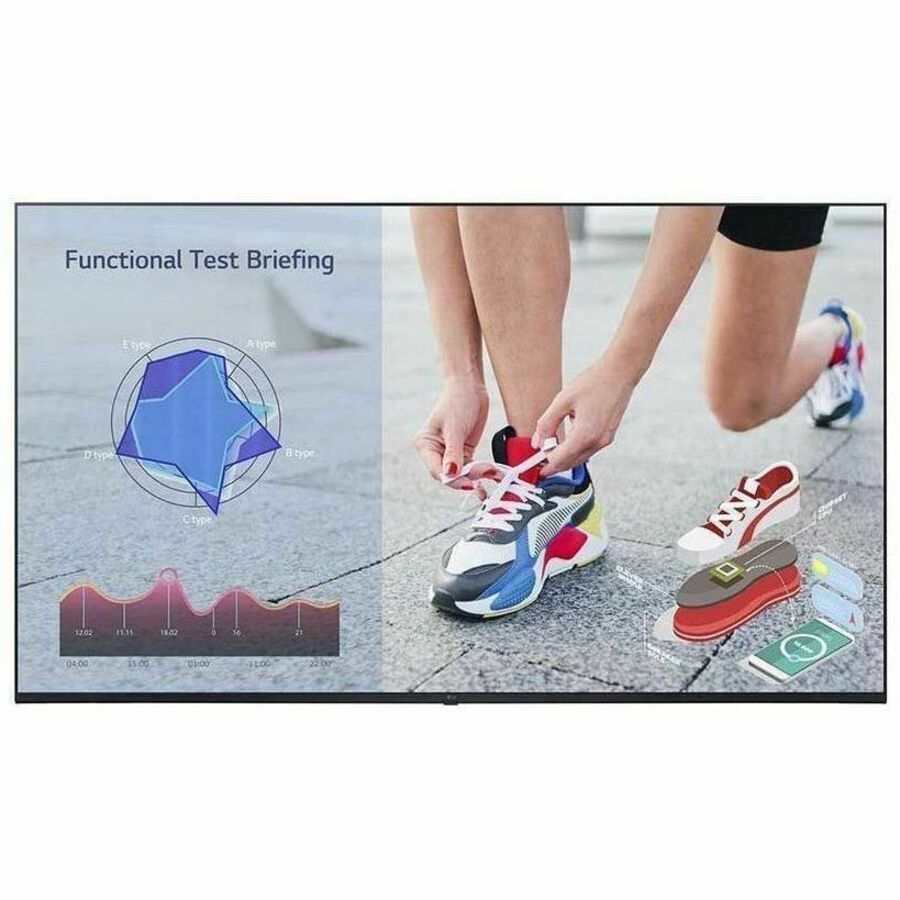

LG 65UL3J-E webOS UHD Signage

by
LG
PCN#
8MG299
MFG#
65UL3J-E
$1,333.00
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 65"
  • In
  • plane Switching (IPS) Technology

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 59 lbs.

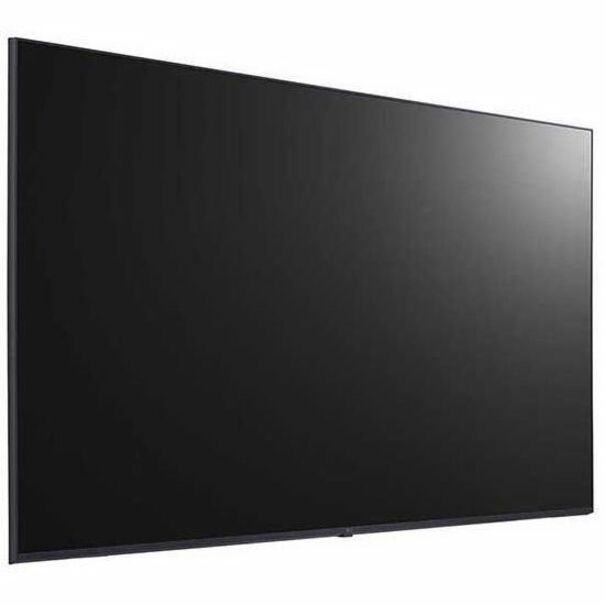

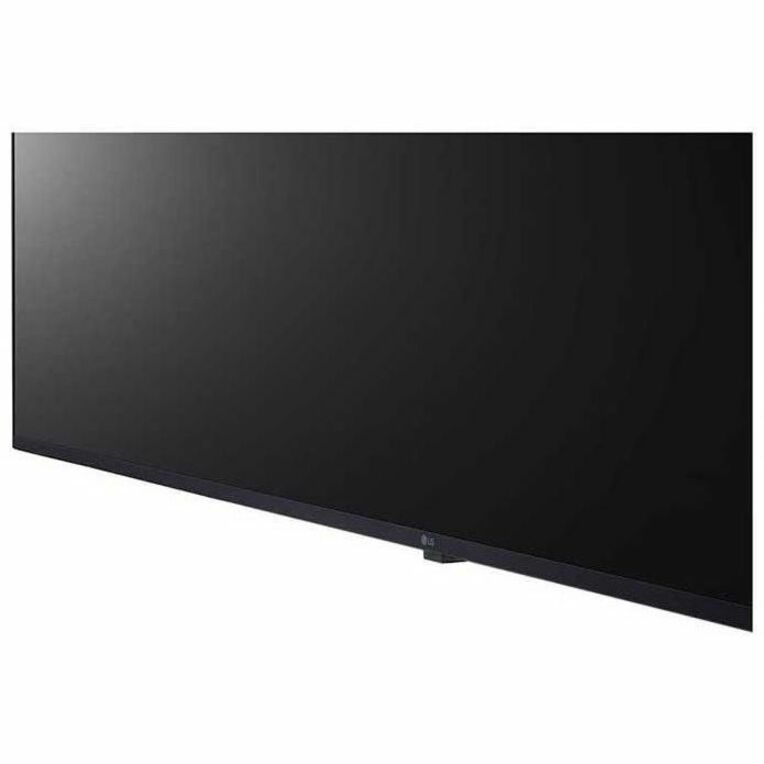

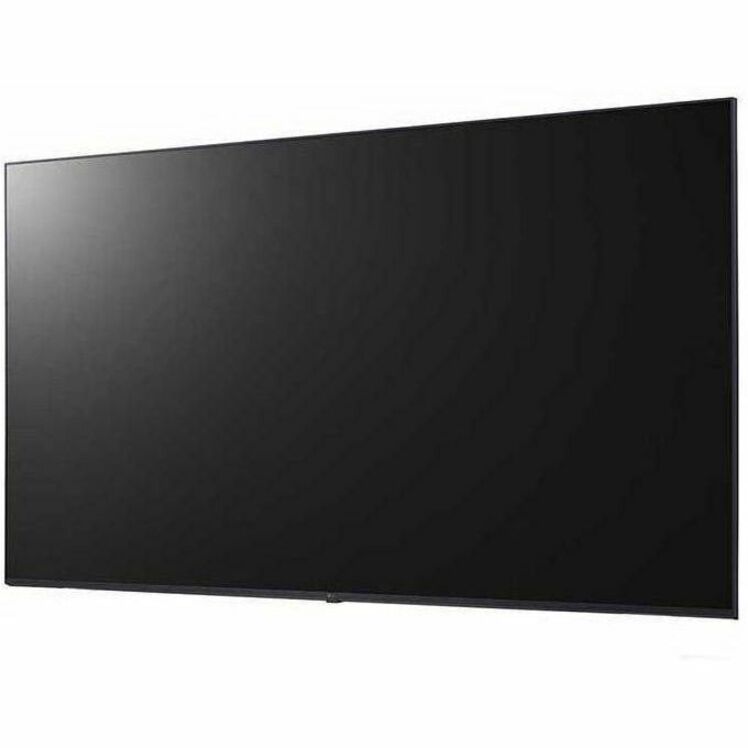

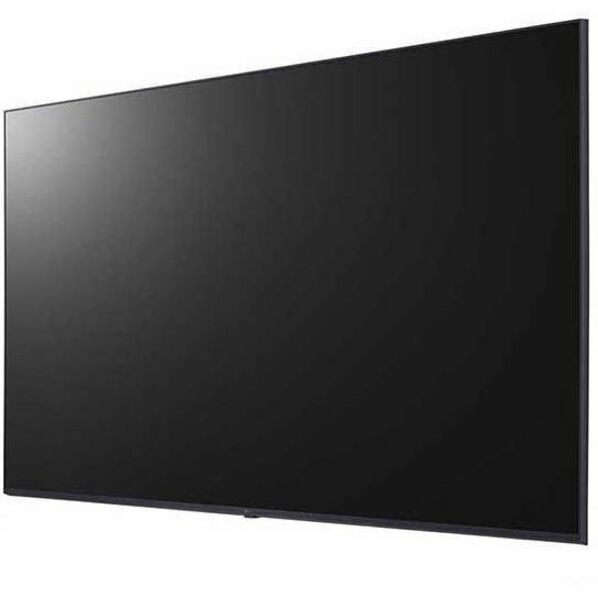

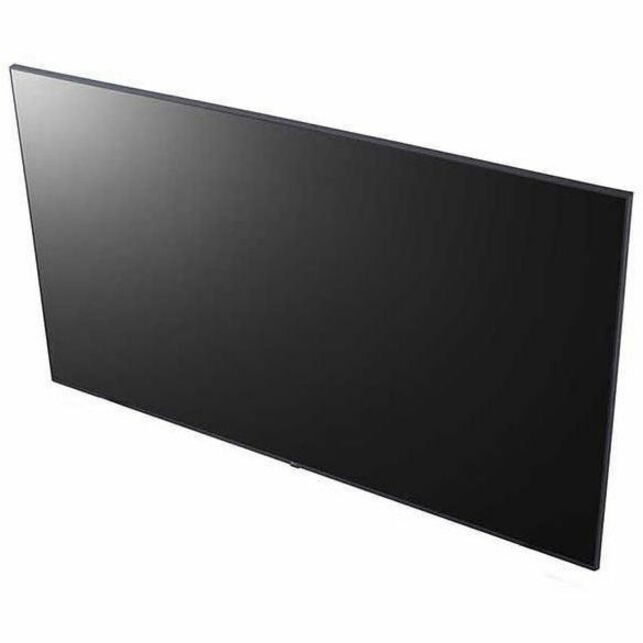

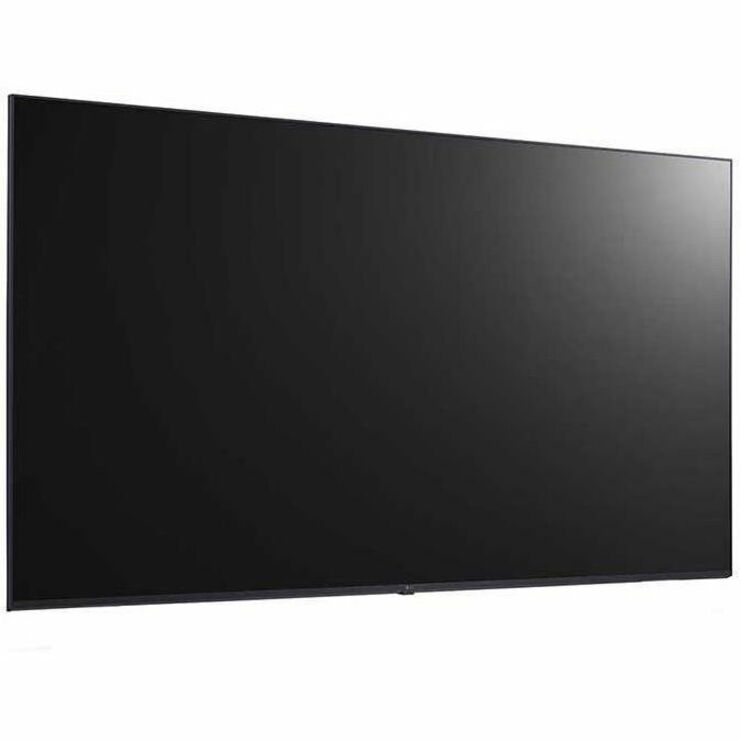

LG 65" UL3J-E UHD Digital Signage with webOS™ 6.0 & Built-in Speakers
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

65UL3J-E

Manufacturer Website Address

https://solutions.lg.com/us

Brand Name

LG

Product Model

65UL3J-E

Product Name

65" UL3J-E UHD Digital Signage with webOS™ 6.0 & Built-in Speakers

Marketing Information

Superb Picture Quality with Ultra HD Resolution

With the resolution of UHD, it makes the colour and details of the contents vivid and realistic. In addition, the wide viewing angle applied with an IPS panel, provides clear contents.

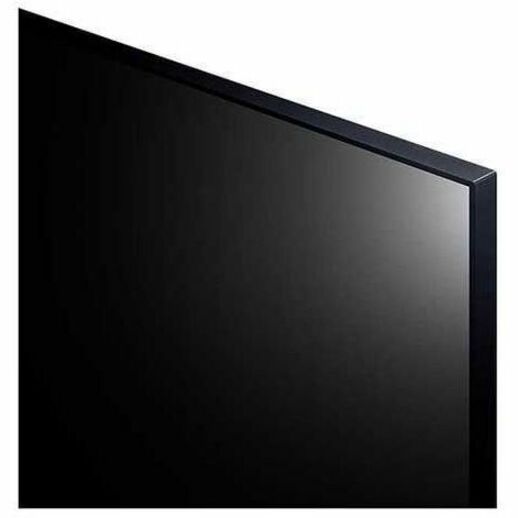

Sophisticated Slim Design

This series is thin in bezel size and thickness, which saves space and enables easy installation. In addition, it increases the immersive experience from the screen and provides a sophisticated design, improving the décor of the space where the product is installed.

High-Performance with LG webOS 6.0

LG webOS 6.0, upgraded in SoC and web engine, is available on UL3J series for a smooth execution of several tasks. LG webOS smart signage platform enhances user convenience with intuitive GUI.

Various Sensor Connection

LG webOS smart signage platform helps to easily provide value-added solutions by supporting simple connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug-in.

LG's Simple Advertisement Helper, Promota

Using LG's Promota application, downloadable on a mobile device, you can easily create your own display contents. With Promota, you can add text and images to create an online profile for your business as well as deliver information such as event news, seasonal menus, promotions, and even more to your customers while recommending easy-to-use templates relevant to your industry.

LG's Wireless Screen Sharing Solution, LG One:Quick Share

LG One:Quick Share is a wireless screen sharing solution available through the UL3J series, USB transmission unit, and its app. You can simply share personal PC screen to the display with it's USB dongle button and embedded Wi-Fi, and can adjust the basic setting values (volume, picture mode, auto bright, etc.) of the connected display without a remote control. Also, the Office Meeting Mode helps you to display the agenda, note before the meeting starts.

Remote Monitoring and Control

This web-based monitoring solution is user-friendly and allows the user to be at ease. It enables the user to have full access anywhere at anytime from their mobile phone & PC under network-accessible environment while having access to both current and past data. It allows the user to monitor the unit, make adjustments and control the unit remotely in real time.

Compatible with AV Control Systems

The UL3J series supports Crestron Connected® for high compatibility with professional AV controls to achieve seamless integration and automated control, boosting business management efficiency.

Compatible with Video Conference System

For effective visual meeting, the UL3J series supports its compatibility with Cisco solutions that offers powerful and integrated control for a smarter video conference.

Easy Menu Setup for Vertical Needs

UL3J series increases users' convenience by organizing frequently used menus by industry.

Built-in Speaker

Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.

Easy Content Distribution & SW Update

UL3J series features embedded Wi-Fi making it easy to distribute content wirelessly and update Firmware under the same network.

Wireless Access Point

UL3J series operates as a virtual router which can be an wireless access point for mobile devices.

Product Type

Digital Signage Display
Technical Information

Features

  • Daisy Chain Connectivity
  • Smart Energy Saving
  • 1% Haze
  • Crestron Connected
  • FailOver
  • Conformal Coating (Power Board)
  • Control Manager
  • Auto Set ID
  • Group Manager
  • Booting Logo Image
  • TileMatrix Support
  • SNMP Manageable
  • HDMI (CEC)
  • ConnectedCare
  • Brightness Sensor
  • Temperature Sensor
  • Pro:Idiom
  • Wake on LAN (WOL)
  • External Input Rotation

On Screen Display (OSD) Languages

  • Arabic
  • Chinese
  • Czech
  • Danish
  • Dutch
  • English
  • Finnish
  • French
  • German
  • Greek
  • Italian
  • Japanese
  • Korean
  • Norwegian
  • Polski
  • Brazilian Portuguese
  • Portuguese (Europe)
  • Russian
  • Simplified Chinese
  • Spanish
  • Swedish
  • Turkish

Bezel Width (Bottom)

0.78"

Bezel Width (Top)

0.50"

Bezel Width (Left)

0.50"

Bezel Width (Right)

0.50"

HDCP Version

1.4/2.2

Panel Technology

In-plane Switching (IPS) Technology

Operation Hours

16 Hours/ 7 Days

Maximum Heat Generation

673.1 kJ

Content Synchronization

RS-232C

Embedded CMS

Local Contents Scheduling

Image Sticking Minimization (ISM) Method

Yes
Display & Graphics

Viewable Screen Size

65"

Multi-touch Screen

No

Display Resolution

3840 x 2160

Response Time

8 ms

Aspect Ratio

16:9

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Orientation

Landscape/Portrait

Maximum LED Life

3.4 Year
Audio

Speakers

No
Video

Standard Refresh Rate

60 Hz

Dynamic Contrast Ratio

100,000,0:1

Native Contrast Ratio

1,200:1

Color Depth

8-bit+FRC

Brightness

400 Nit

Color Gamut

80% DCI
Network & Communication

Wireless LAN

Yes

Bluetooth

No
Interfaces/Ports

HDMI

Yes

Network (RJ-45)

No

Audio Line In

No

Audio Line Out

Yes

Number of USB 2.0 Ports

2

Number of HDMI Inputs

3

Number of HDMI Outputs

1

USB Type-C

No

DisplayPort Output

No

RS-232C Input

Yes

RS-232C Output

Yes

Number of Network (RJ-45) Ports

1

Number of Audio Line Out

1

DVI-D In

No

DisplayPort In

No

Infrared Output

No
Software

Operating System

webOS 6.0
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Power Consumption

187 W

Off-Mode Power Consumption

500 mW

Power Consumption (DPM)

0.5W
Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

95°F (35°C)

Minimum Operating Humidity

10%

Maximum Operating Humidity

80%
Physical Characteristics

Bezel Color

Ashed Blue

VESA Mount Standard

300 x 300

Height

33"

Width

57.2"

Depth

2.3"

Weight (Approximate)

47.40 lb
Miscellaneous

Package Contents

  • Remote Controller (include battery 2ea)
  • Power Cord
  • Regulation Book
  • Phone to D-Sub9 Gender
  • Cable Holder
  • Additional Information

  • Surface Treatment (Hard Coating) : No
  • Surface Treatment (Anti Glare) : No
  • Color Depth : 1.07 Billion Colors, 8 bit + FRC
  • Anti-Reflective : No
  • Picture-by-Picture (PBP) : No
  • Transparency : No
  • Internal Memory : 8 GB (eMMC)
  • Cisco Certified Compatibility : No
  • BTU Heat Generation (Typ.) : 444 BTU
  • Handle : No
  • Direct Sunlight : No
  • Bezel Width (Off Bezel) : T/R/L: 6.8 mm, B: 18.4 mm
  • IR In (3.5 mm) : No
  • External Speaker Out (3.5 mm) : No
  • Power Loop Out : No
  • Power Loop In : No
  • RGB In : No
  • Power In (DC From External PWR Box) : No
  • Anti-Reflective Coating : No
  • Heater : No
  • Anti-Reflective Film : No
  • Heat Dissipation : No
  • Degree of Protection : No
  • OPS Power Built-in : No
  • OPS Compatible : No
  • UL Certification : No
  • RS-232C In (3.5 mm 4-pin) : Yes (x1)
  • RS-232C In (D-sub 9-pin) : No
  • RS-232C Out (3.5 mm) : Yes (x1)
  • Power Type : Built-in Power
  • Local Key Operation : Yes (Power On/Off only)
  • Certifications & Standards

  • FCC: EMC Class A
  • CE Marking (Regulatory): Yes
  • Energy Star

    Yes

    Environmentally Friendly

    Yes

    Environmental Certification

    Electronic Product Environmental Assessment Tool (EPEAT)

    Energy Efficiency Compliance

    Energy-related Products Directive (ErP)

    Country of Assembly

    Mexico

    TAA Compliant

    No

    Compatible Software

    • SuperSign CMS
    • SuperSign Control+
    • SuperSign
    Warranty

    Limited Warranty

    3 Year
