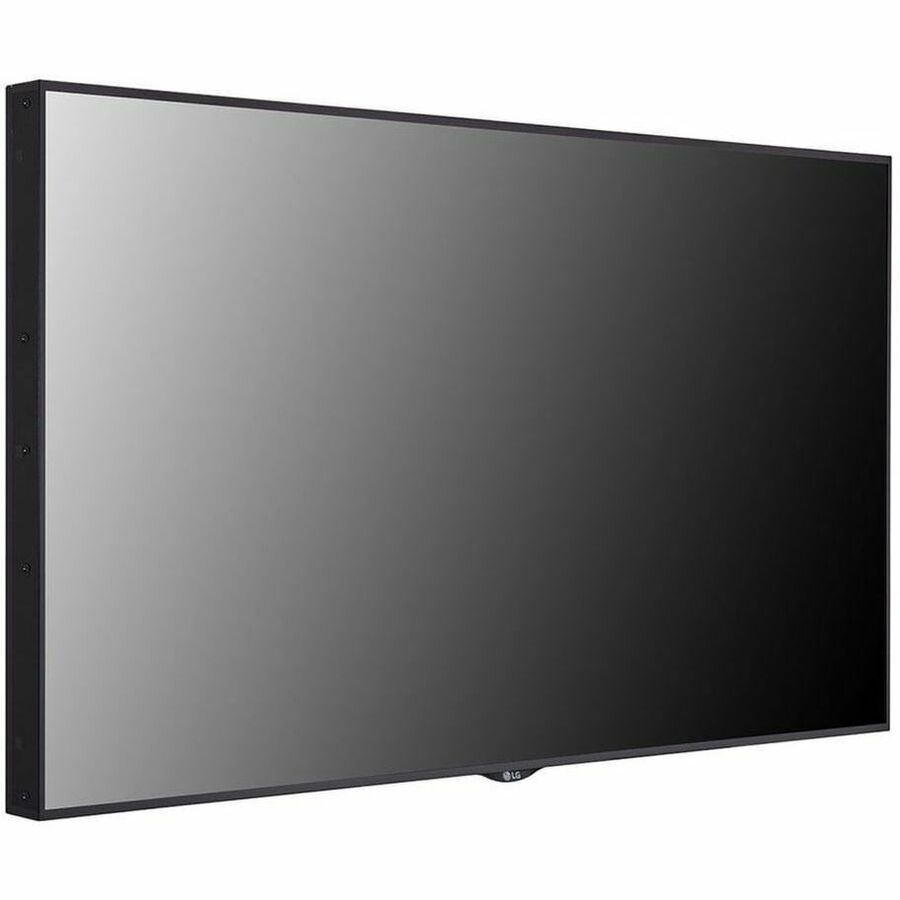

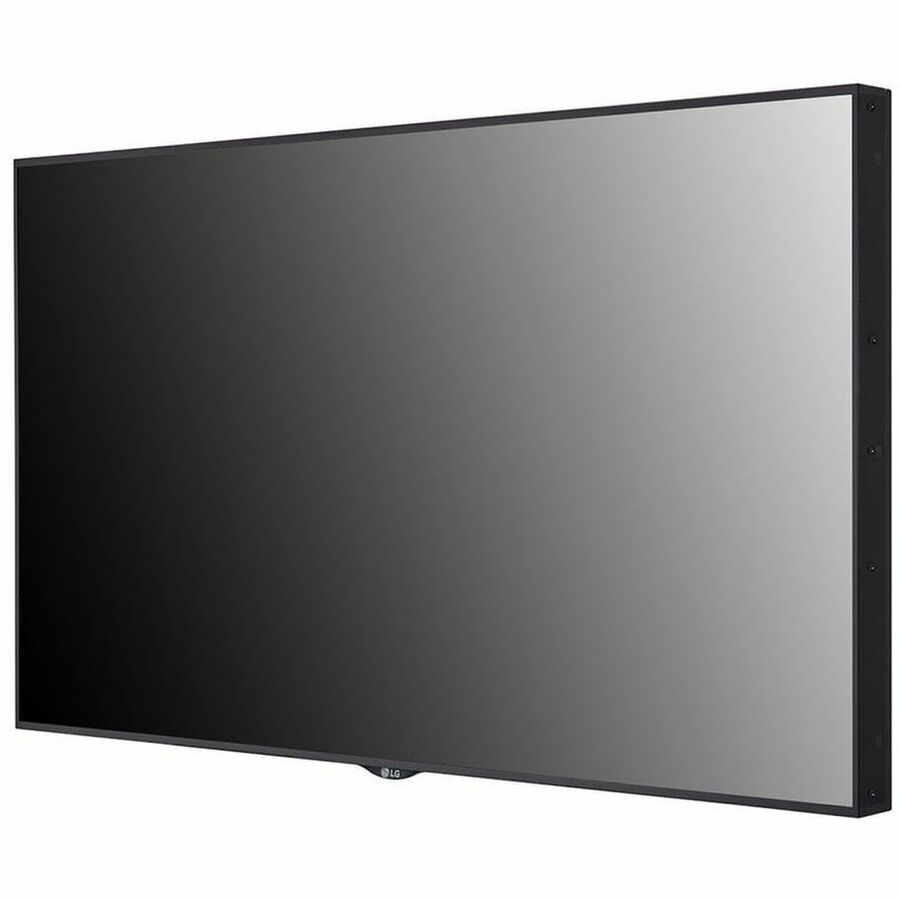

55IN LCD 1920X1080 4000NIT IPS PORTRAIT / LANDSCAPE 24/7 WEBOS

by
LG
PCN#
NS0216
MFG#
55XS4P-B
$3,600.00
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 55"
  • In
  • plane Switching (IPS

Show more

Product Condition: New and Factory Fresh
Limited Warranty3 Year
Shipping Weight: 67 lbs.
LG 55'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
Tech Specs
Specifications

Manufacturer

LG Electronics

Manufacturer Part Number

55XS4P-B

Manufacturer Website Address

https://solutions.lg.com/us

Brand Name

LG

Product Model

55XS4P-B

Product Name

55'' FHD High Bright Window Facing Display with Anti-Discoloration Technology

Marketing Information

World's First UL Verification for Display Anti-Discoloration Characteristics

By focusing on the pain points of our customers, we obtained the world's first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent 'screen-yellowing', while safeguarding display quality and performance stability.

Window-facing Display

LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.

Brightness Beyond the Window

A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.

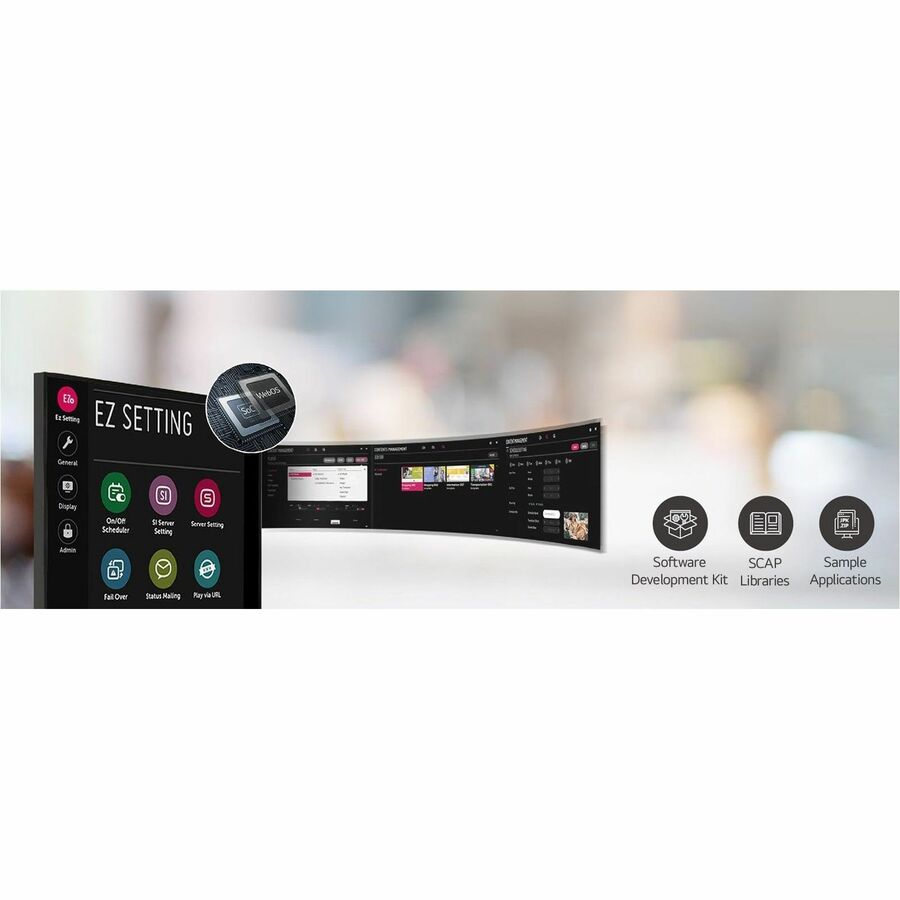

High-performance with

webOS 6.0

Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.

Remotely Managed, Real-time Mastery (Content Manager)

A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG's web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.

Wide Range of Operating Temperature

The XS4P can be used under a wide range of operating temperature from 0? to 40?.

Product Type

Digital Signage Display
Technical Information

Features

  • Picture by Picture (PbP)
  • Picture in Picture
  • Smart Energy Saving
  • 3% Haze
  • Quarter Wave Plate (QWP)
  • FailOver
  • Conformal Coating (Power Board)
  • Carrying Handle
  • Direct Sunlight Visibility
  • Control Manager
  • Auto Set ID
  • Backlight Sync
  • Group Manager
  • Booting Logo Image
  • Tile Mode Setting (15 × 15)
  • SNMP Manageable
  • Brightness Compensation
  • HDMI (CEC)
  • ConnectedCare
  • Daisy Chain Connectivity

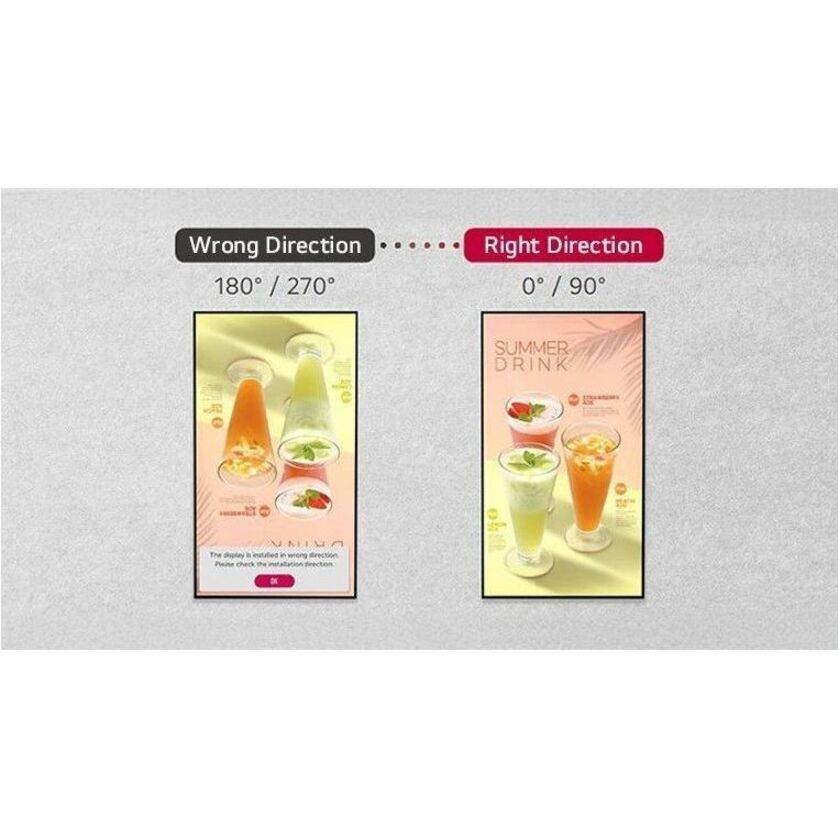

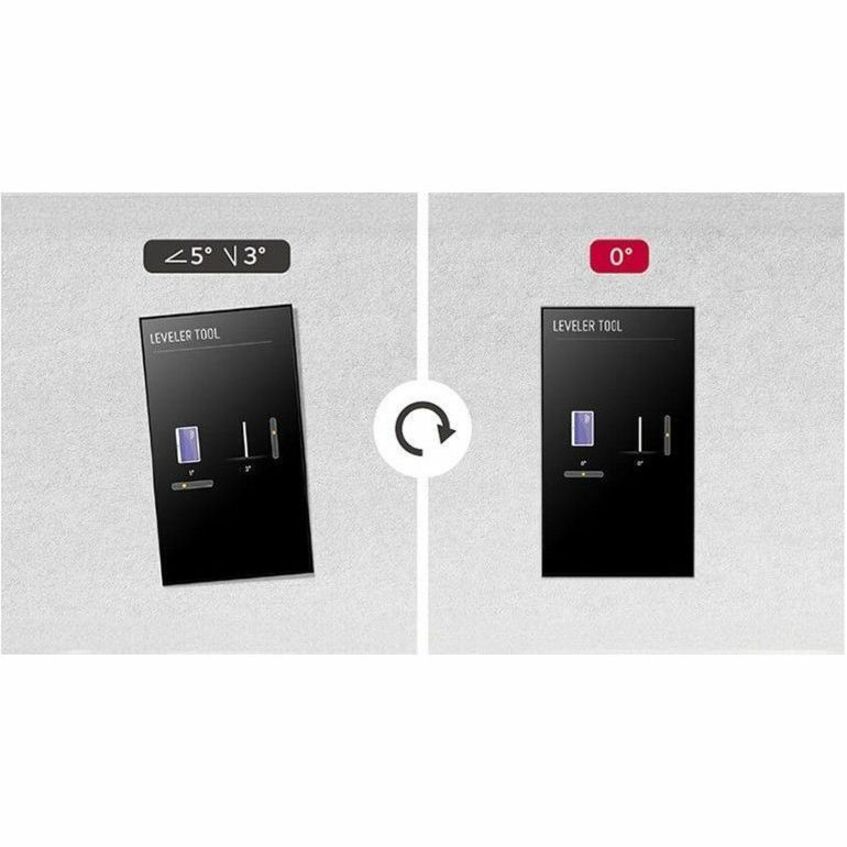

  • Gyroscopic Sensor
  • Brightness Sensor
  • Cooling Fan
  • Temperature Sensor
  • Wake on LAN (WOL)
  • External Input Rotation

On Screen Display (OSD) Languages

  • Arabic
  • Chinese
  • Czech
  • Danish
  • Dutch
  • English
  • Finnish
  • French
  • German
  • Greek
  • Italian
  • Japanese
  • Korean
  • Norwegian
  • Polski
  • Brazilian Portuguese
  • Portuguese (Europe)
  • Russian
  • Simplified Chinese
  • Spanish
  • Swedish
  • Turkish

HDCP Version

1.4

Panel Technology

In-plane Switching (IPS-M+) Technology

Operation Hours

24 Hours/7 Days

Maximum Heat Generation

1440.2 kJ

Content Synchronization

RS-232C

Embedded CMS

Local Contents Scheduling

Image Sticking Minimization (ISM) Method

Yes
Display & Graphics

Viewable Screen Size

55"

Multi-touch Screen

No

Display Resolution

1920 x 1080

Response Time

9 ms

Aspect Ratio

16:9

Horizontal Viewing Angle

178°

Vertical Viewing Angle

178°

Orientation

Landscape/Portrait

Maximum LED Life

5.7 Year
Audio

Speakers

No
Video

Standard Refresh Rate

60 Hz

Dynamic Contrast Ratio

500,000:1

Native Contrast Ratio

1,000:1

Color Depth

8-bit

Brightness

4000 Nit

Color Gamut

72% NTSC
Network & Communication

Wireless LAN

Yes

Bluetooth

Yes

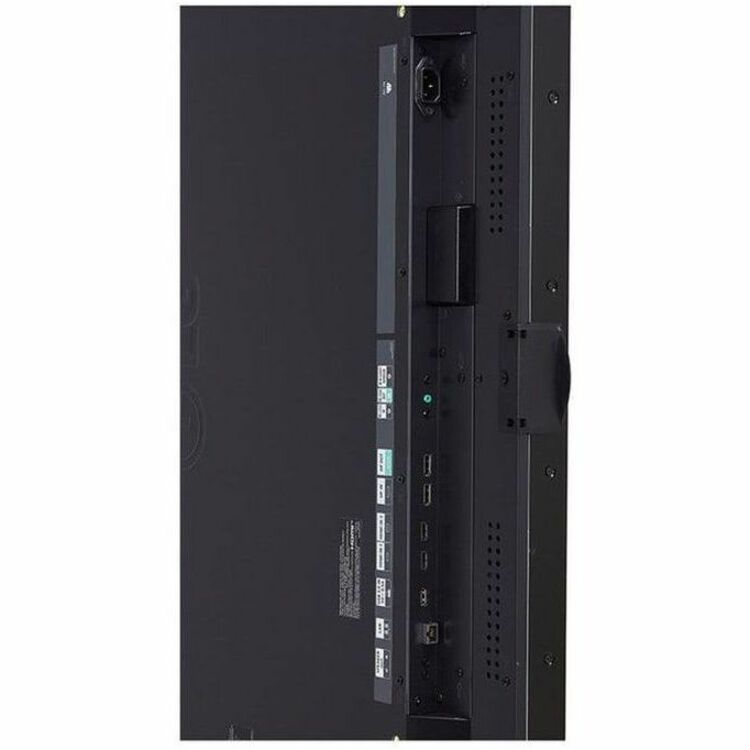

Interfaces/Ports

HDMI

Yes

Network (RJ-45)

No

Audio Line In

No

Audio Line Out

No

Number of USB 2.0 Ports

1

Number of HDMI Inputs

2

USB Type-C

No

DisplayPort Output

Yes

RS-232C Input

Yes

RS-232C Output

Yes

Number of Network (RJ-45) Ports

1

Number of Infrared Inputs

1

Number of DisplayPort Outputs

1

DVI-D In

No

DisplayPort In

Yes

Infrared Output

Yes
Software

Operating System

webOS 6.0
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Power Consumption

400 W

Off-Mode Power Consumption

500 mW

Power Consumption (DPM)

Less Than 0.5W
Environmental Conditions

Minimum Operating Humidity

10%

Maximum Operating Humidity

80%
Physical Characteristics

Bezel Color

Black

VESA Mount Standard

600 x 400

Height

27.9"

Width

48.6"

Depth

3.7"

Weight (Approximate)

57.30 lb
Miscellaneous

Package Contents

  • Remote Controller
  • Power Cord
  • HDMI Cable
  • Manual (EIG, IG)
  • IR Receiver (w/ Ambient Light Sensor)
  • RS-232C Adapter
  • IR Sheet
  • Additional Information

  • Surface Treatment (Hard Coating) : No
  • Color Depth : 8 bit, 16.7 Million Colors
  • Anti-Reflective : No
  • Transparency : No
  • Storage : 16 GB (eMMC)
  • Internal Memory : 16 GB (eMMC)
  • Crestron Certified Compatibility : No
  • Cisco Certified Compatibility : No
  • PoE Type : No
  • BTU Heat Generation (Typ.) : 1,280 BTU
  • Power Loop Out : No
  • Power Loop In : No
  • RGB In : No
  • Power In (DC From External PWR Box) : No
  • Anti-Reflective Coating : No
  • Heater : No
  • Anti-Reflective Film : No
  • Heat Dissipation : No
  • Degree of Protection : No
  • OPS Power Built-in : No
  • OPS Compatible : No
  • Idiom® : No
  • UL Certification : No
  • DisplayPort In : Yes (x1) HDCP 1.3
  • External Speaker Out (3.5 mm) : Yes (x1)
  • External Control : Sharing RS-232C Out
  • RS-232C In (3.5 mm 4-pin) : Yes (x1)
  • RS-232C In (D-sub 9-pin) : No
  • RS-232C Out (3.5 mm) : Yes (x1)
  • Electrical:Power Consumption (Typ.):375 W (Full White), 147 W (IEC 62087)
  • Power Type : Built-in Power
  • Operation Temperature : 32°F to 104°F / 0°C to 40°C (w/o Direct Sunlight), 32°F to 86°F / 0°C to 30°C (Direct Sunlight)
  • Local Key Operation: Yes
  • Certifications & Standards

  • FCC: EMC Class B
  • CE Marking (Regulatory): Yes
  • Energy Star

    No

    Environmentally Friendly

    Yes

    Environmental Certification

    ErP

    Energy Efficiency Compliance

    Energy-related Products Directive (ErP)

    TAA Compliant

    Yes

    Compatible Software

    • SuperSign CMS
    • SuperSign Control+
    • SuperSign Cloud
    Warranty

    Limited Warranty

    3 Year
