LG 55'' 500 Nits FHD Slim Bezel Video Wall

Name: LG 55'' 500 Nits FHD Slim Bezel Video Wall
Brand: LG
SKU: 01GY36
Price: 2667 USD
Availability: InStock

PCN#

01GY36

MFG#

55VM5J-H

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,667.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $197.99

3-Year $263.99

Free Shipping

Estimated Shipment:

Product Highlights:

55"
In
plane Switching (IPS) Technology
24 Hours/7 Days Operation
1920 x 1080
16:9
8 ms
500 Nit
webOS 4.1
Energy Star

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 64 lbs.

LG 55'' 500 nits FHD Slim Bezel Video Wall

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	55VM5J-H
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	55VM5J-H
Product Name	55'' 500 nits FHD Slim Bezel Video Wall

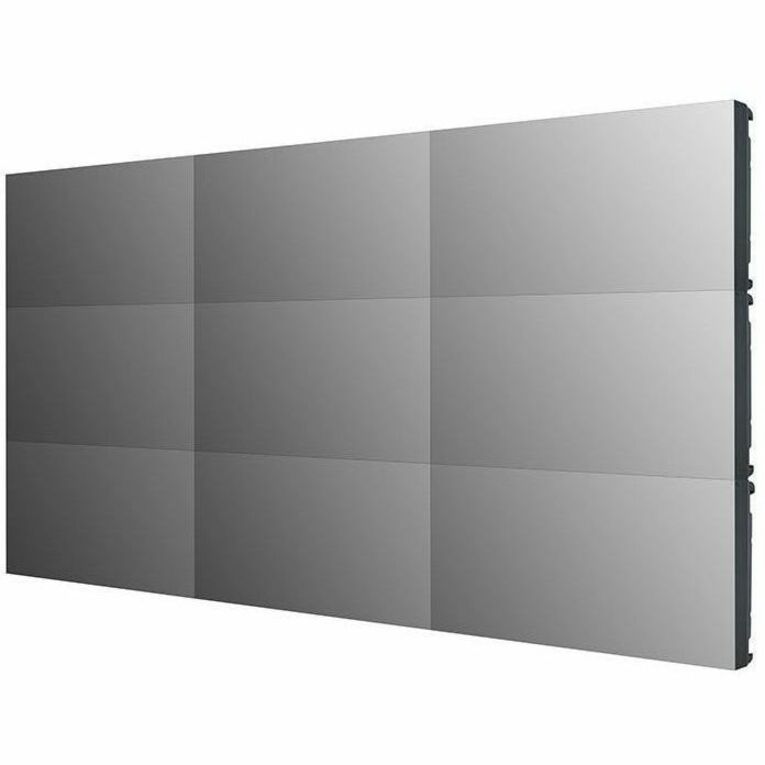

Marketing Information	Artistic Immersion, Overwhelming Captivation \| Seamless Large Screens with Extreme-Narrow Bezel The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens. Image Gap Reduction The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience. Higher Viewing Angle Large screens are usually positioned higher than human-eye level. Wide half luminance angle (40°) enables effective picture quality for video walls. The viewing angle of the VM5J-H is high enough to display vivid colors throughout the screen without any color distortion. Wider Viewing Angle LG IPS panel technology enables stable and smooth control of liquid crystals, and allows the screen to be viewed from virtually any angle. Therefore, the VM5J-H captivates the attention of more viewers with lifelike colors, regardless of their viewing position. Easy Color Adjustment Depending on the content, the color temperature of the display can be easily adjusted in increments of 100K using a remote control. Simple White Balance Adjustment In conventional video walls, white balance was adjustable only in "full-white" mode, but the VM5J-H allows you to modify each value of grey scale to achieve more detailed and precise white balance adjustment. High Performance and Great Scalability Thanks to its built-in SoC and webOS smart signage platform, the VM5J-H can execute several tasks at once while providing smooth content playback without the need for a media player. As webOS supports HTML5 as a web-based platform and offers SDK (Software Development Kit), it is even easier for SIs to build and optimize their web apps.
Product Type	Digital Signage Display

Technical Information

Features	Smart Energy Saving Crestron Connected FailOver Conformal Coating (Power Board) Carrying Handle Control Manager Auto Set ID Scan Inversion Group Manager Tile Mode Setting (15 × 15) SNMP Manageable HDMI (CEC) ConnectedCare Daisy Chain Connectivity Gyroscopic Sensor Brightness Compensation Temperature Sensor Pro:Idiom Wake on LAN (WOL) External Input Rotation
On Screen Display (OSD) Languages	Arabic Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Brazilian Portuguese Portuguese (Europe) Russian Simplified Chinese Spanish Swedish Turkish
Bezel Width (Bottom)	17.3 mil
Bezel Width (Top)	51.2 mil
Bezel Width (Left)	51.2 mil
Bezel Width (Right)	17.3 mil
HDCP Version	1.4
Ingress Protection (IP) Rating	IP5X
Panel Technology	In-plane Switching (IPS) Technology
Operation Hours	24 Hours/7 Days
Maximum Heat Generation	683.7 kJ
Content Synchronization	RS-232C
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes

Display & Graphics

Viewable Screen Size	55"
Multi-touch Screen	No
Display Resolution	1920 x 1080
Response Time	8 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Orientation	Landscape/Portrait
Maximum LED Life	6.8 Year

Audio

Speakers

Video

Standard Refresh Rate	60 Hz
Dynamic Contrast Ratio	500,000:1
Native Contrast Ratio	1,000:1
Color Depth	10-bit
Brightness	500 Nit
Color Gamut	72% NTSC

Network & Communication

Wireless LAN	No
Bluetooth	No

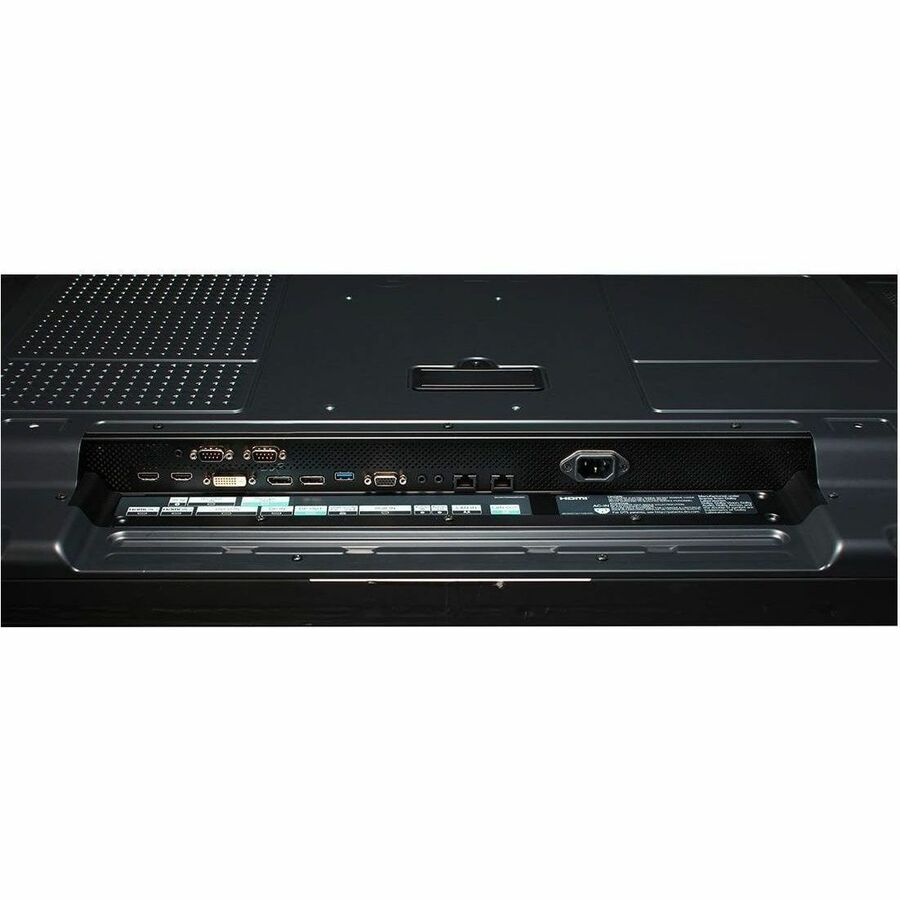

Interfaces/Ports

Network (RJ-45)	No
Audio Line In	Yes
Audio Line Out	Yes
Number of USB 2.0 Ports	1
Number of HDMI Inputs	2
USB Type-C	No
DisplayPort Output	Yes
RS-232C Output	Yes
Number of Network (RJ-45) Ports	1
Number of Audio Line Out	1
Number of DisplayPort Outputs	1
DVI-D In	Yes
DisplayPort In	Yes
Infrared Output	No

Software

Operating System

webOS 4.1

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	190 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	600 x 400
Height	26.9"
Width	47.7"
Depth	3.4"
Weight (Approximate)	41.40 lb

Miscellaneous

Package Contents	Remote Controller (include battery 2ea) Power Cord RS232C cable Lan cable DP cable IR Receiver Guide Bracket Screws Manual
Additional Information	Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Anti-Reflective : No Picture-by-Picture (PBP) : No Transparency : No Internal Memory : 8 GB (eMMC) Cisco Certified Compatibility : No BTU Heat Generation (Typ.) : 546 BTU Direct Sunlight : No Bezel Width (Off Bezel) : T: 1.75 mm, R: 0.74 mm, L: 1.75 mm, B: 0.74 mm External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No UL Certification : No DisplayPort In : Yes (x1) HDCP 2.2 Displayport Out : Yes (x1), input : HDMI / DVI / DP IR In (3.5 mm) : Yes RS-232C In (D-sub 9-pin) : Yes (x1) RS-232C Out (D-sub 9-pin) : Yes (x1) Power Type : Built-in Power Local Key Operation: Yes
Certifications & Standards	FCC: EMC Class B CE Marking (Regulatory): Yes
Energy Star	Yes
Environmentally Friendly	Yes
Environmental Certification	ENERGY STAR 8.0 ErP
Energy Efficiency Certification	ENERGY STAR 8.0
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
Country of Assembly	Mexico
TAA Compliant	No
Compatible Software	SuperSign CMS SuperSign Control+ SuperSign

Warranty

Limited Warranty

3 Year
