55IN OLED 1920X1080 TRANSPARENT HDMI DP RS232C AUDIO 16GB WEBOS

Name: 55IN OLED 1920X1080 TRANSPARENT HDMI DP RS232C AUDIO 16GB WEBOS
Brand: LG
SKU: NJ1929
Price: 17333 USD
Availability: InStock

PCN#

NJ1929

MFG#

55EW5P-M

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$17,333.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $1,449.99

3-Year $2,118.99

Free Shipping

Estimated Shipment:

Product Highlights:

55"
OLED
18 Hours/7 Days Operation
1920 x 1080
16:9
100 µs
200 Nit
webOS 7.5

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

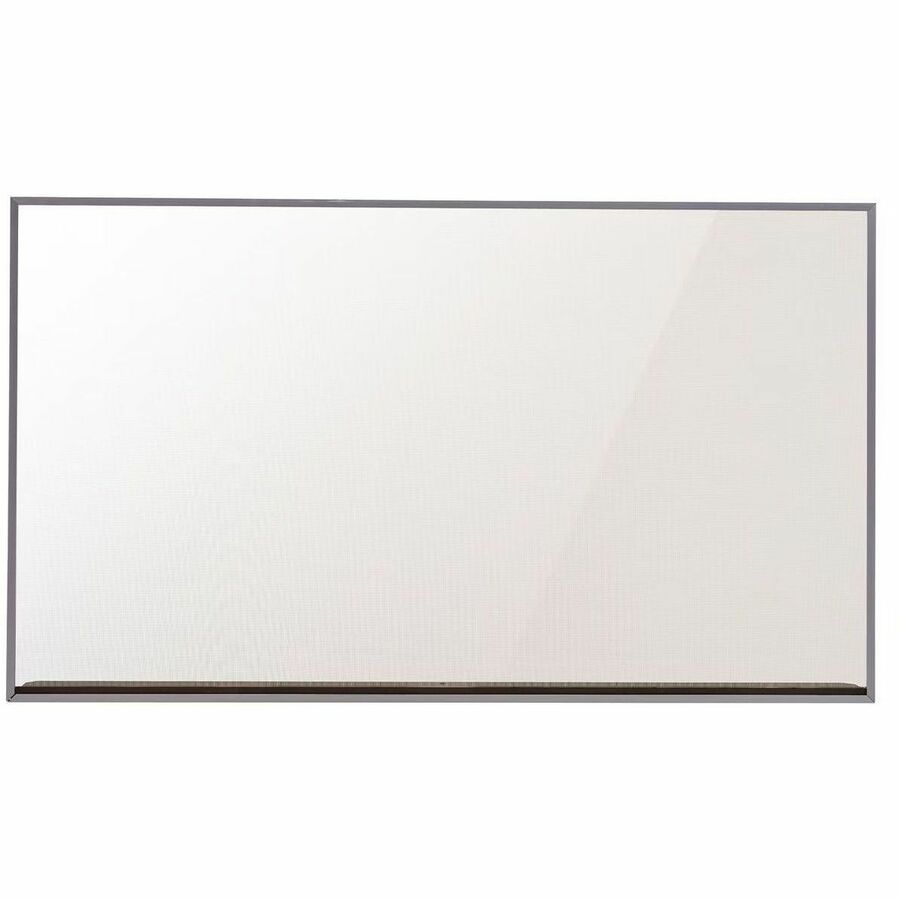

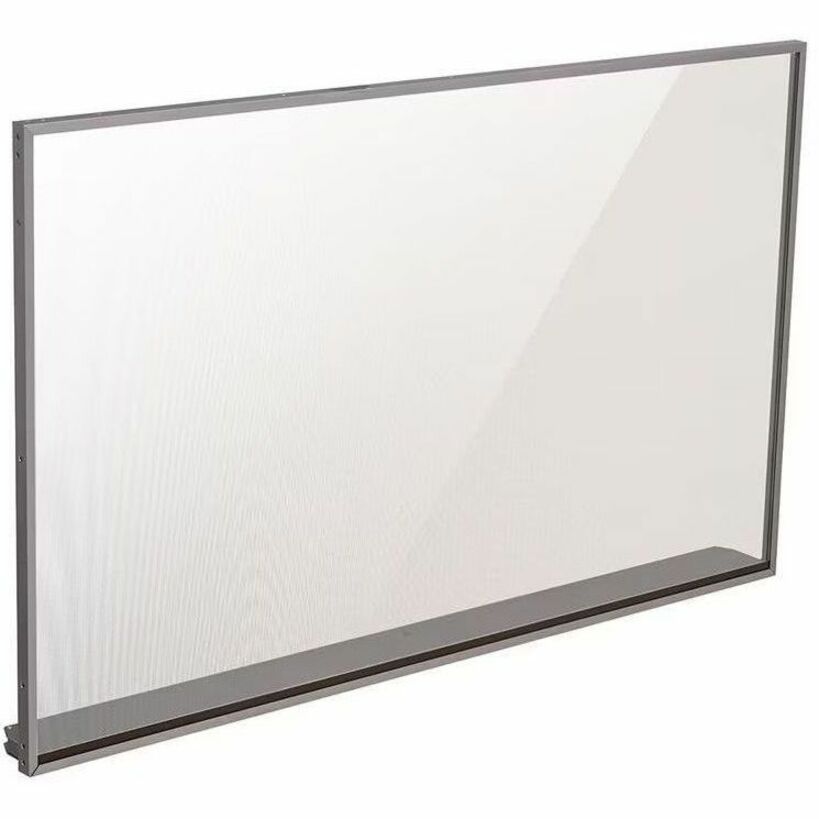

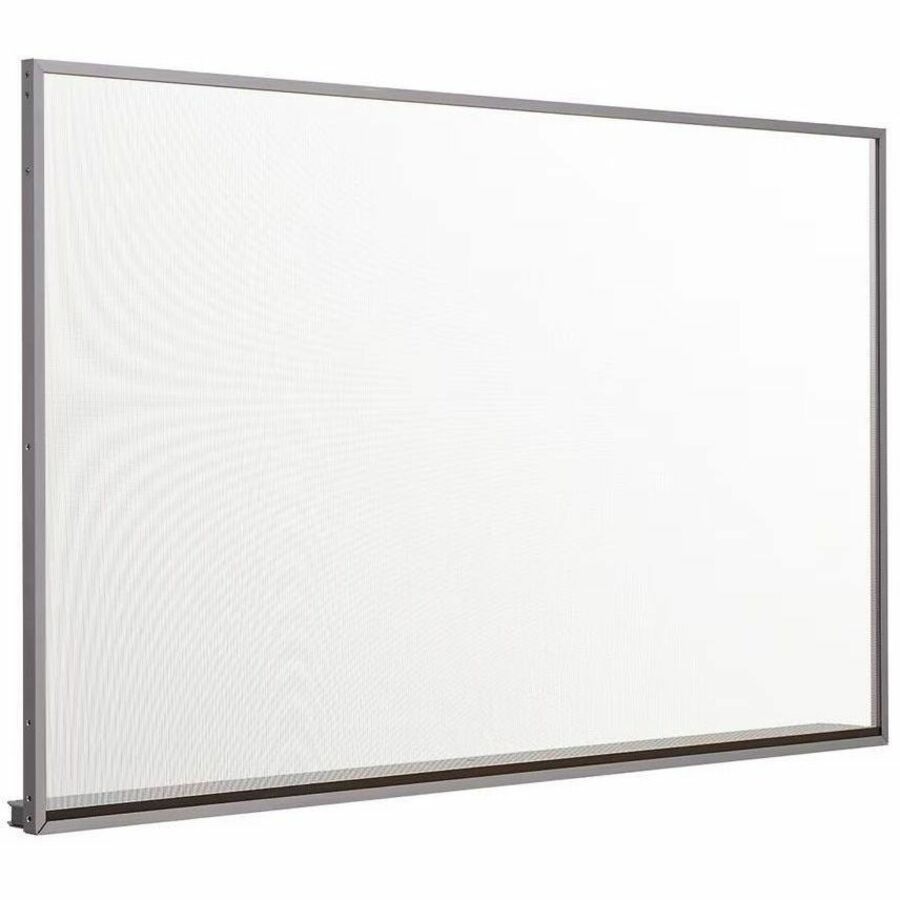

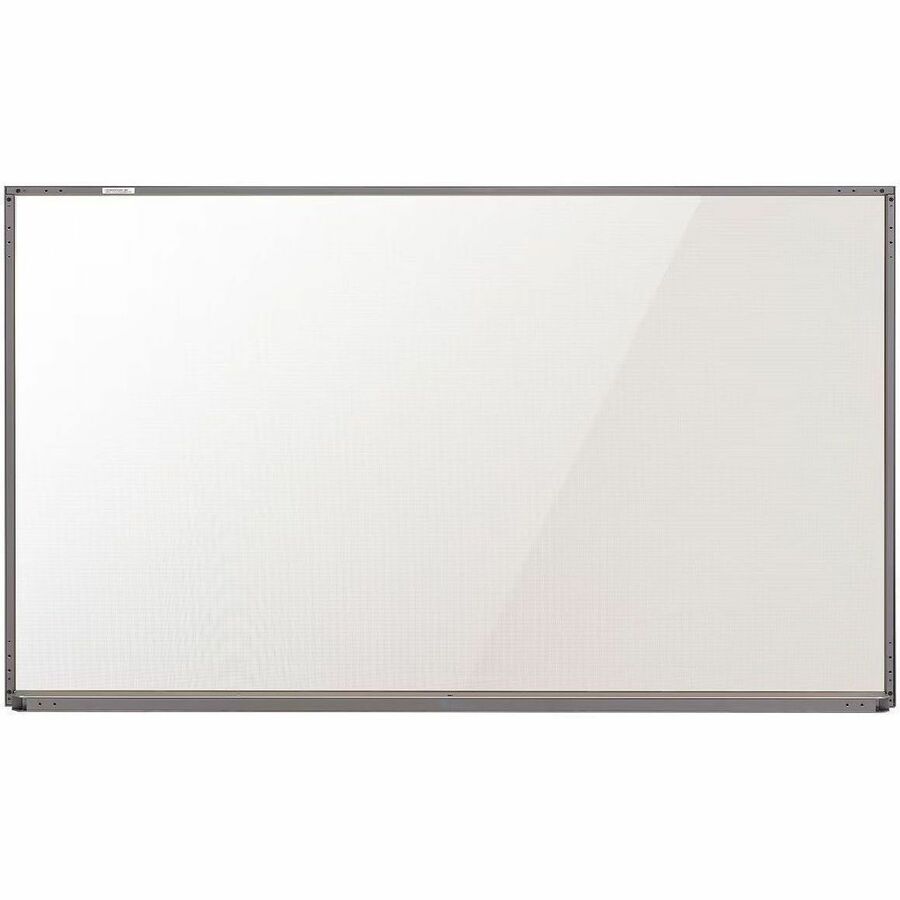

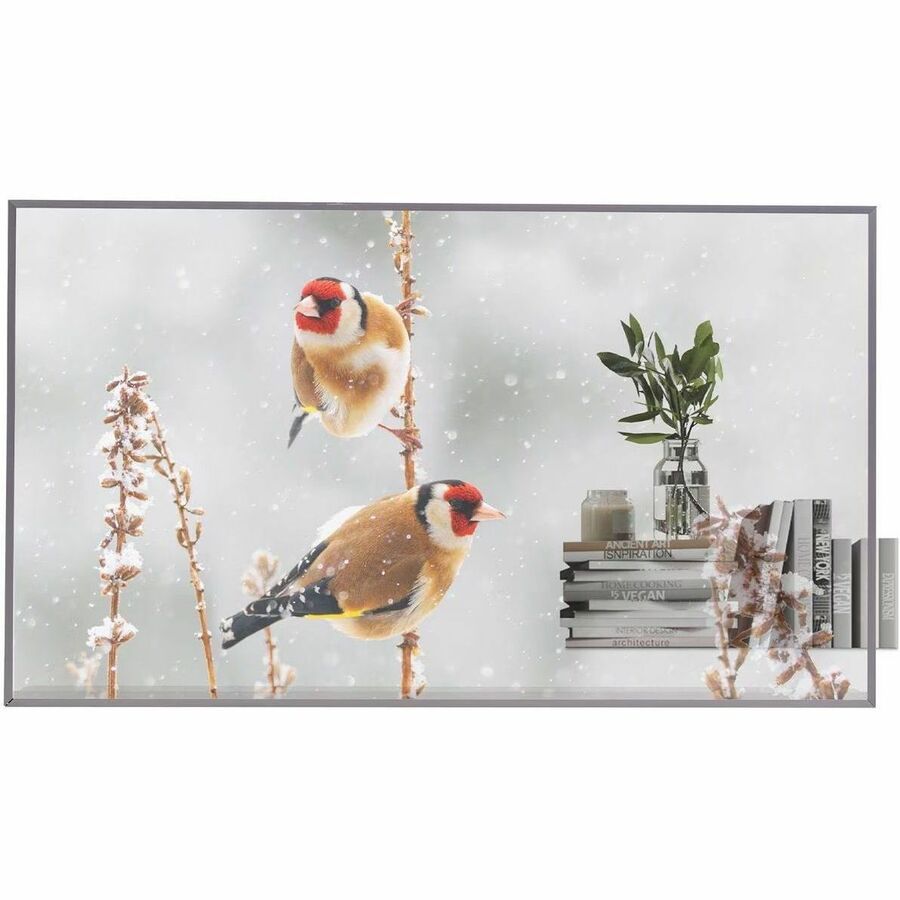

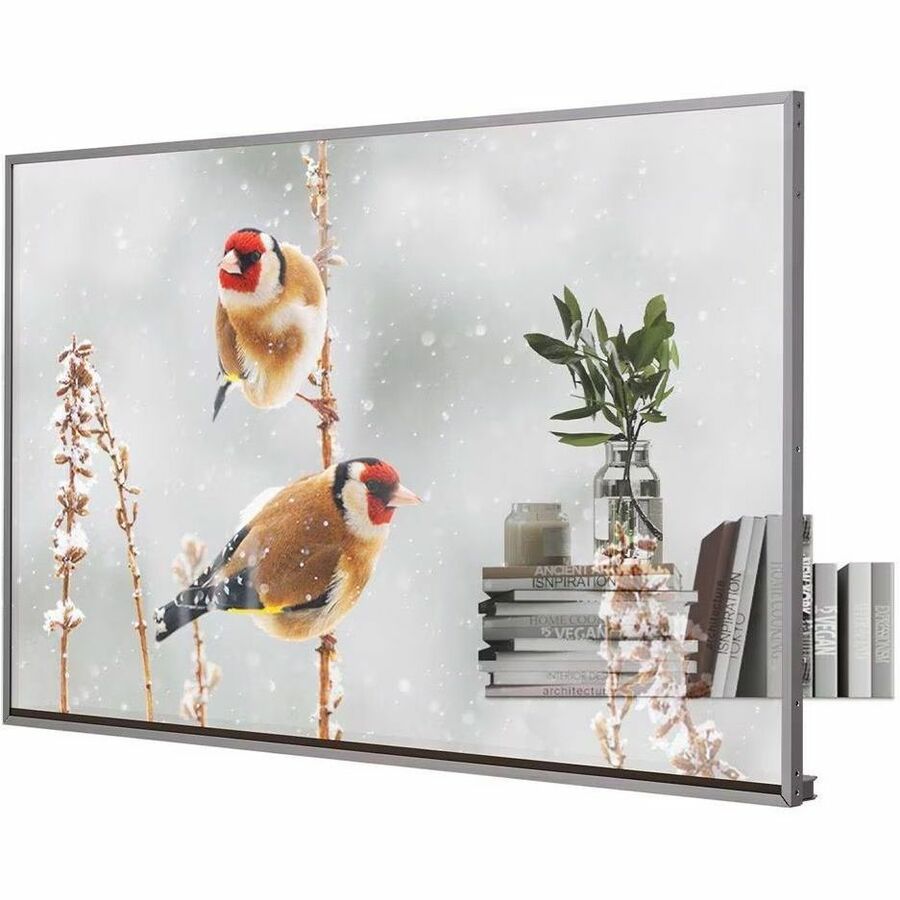

LG 55'' Transparent OLED with Expandable Design

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	55EW5PM
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	55EW5P-M
Product Name	55'' Transparent OLED with Expandable Design

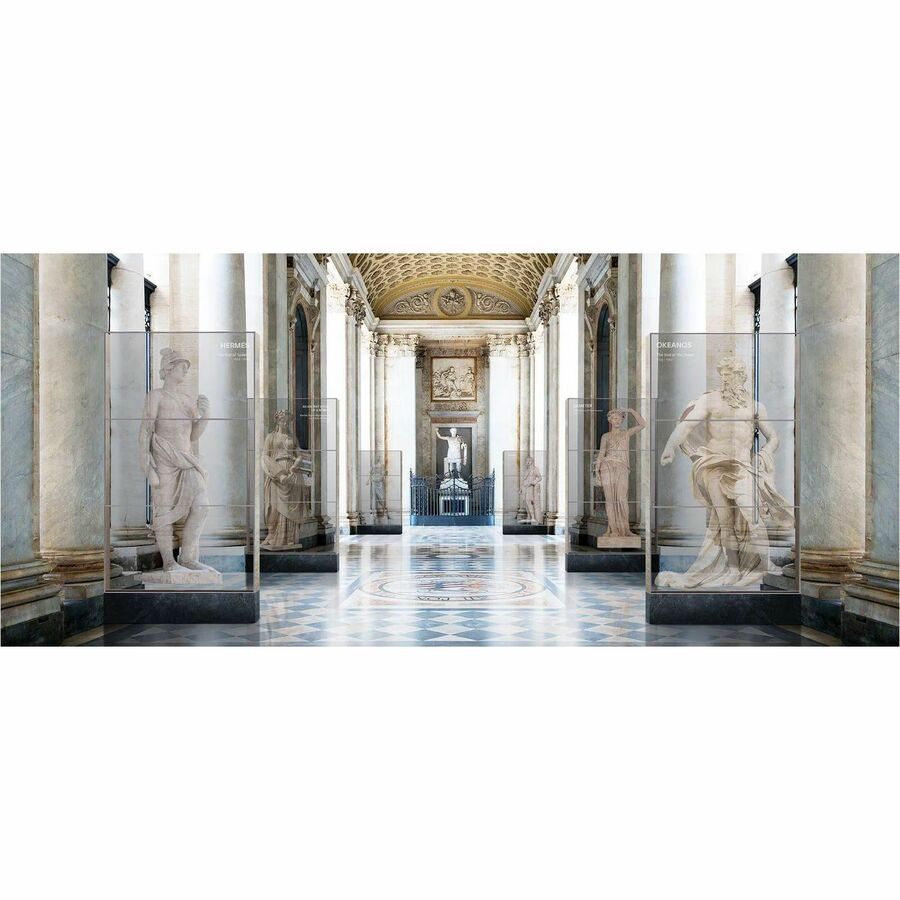

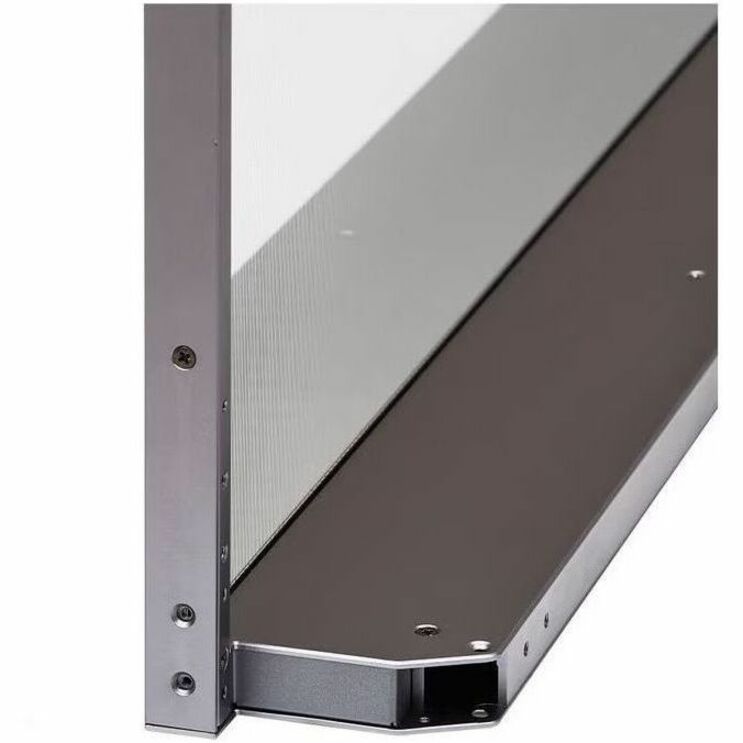

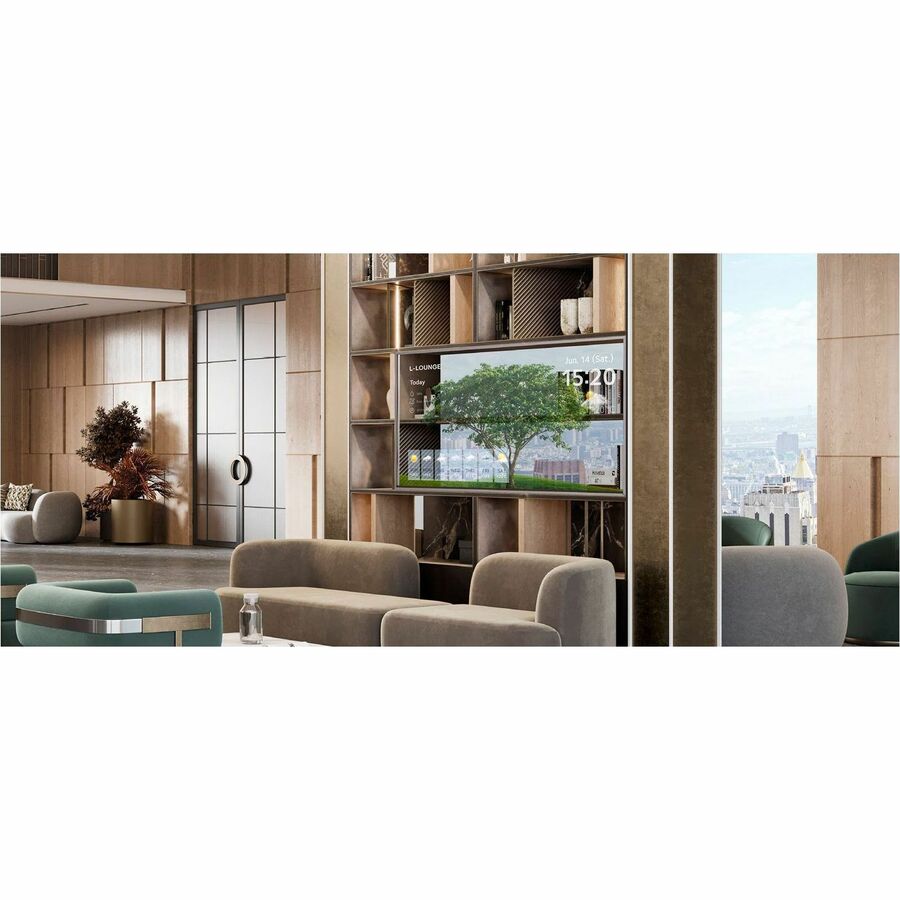

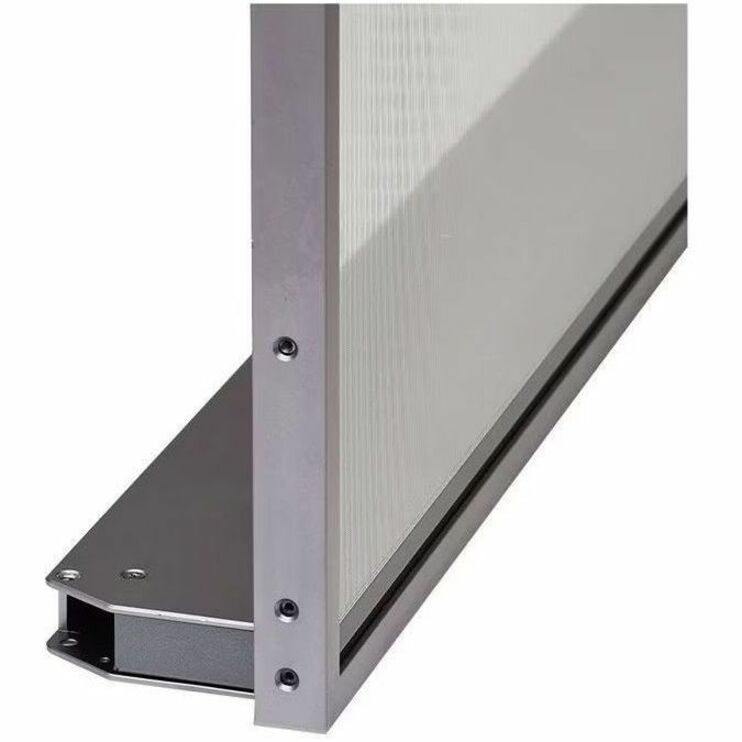

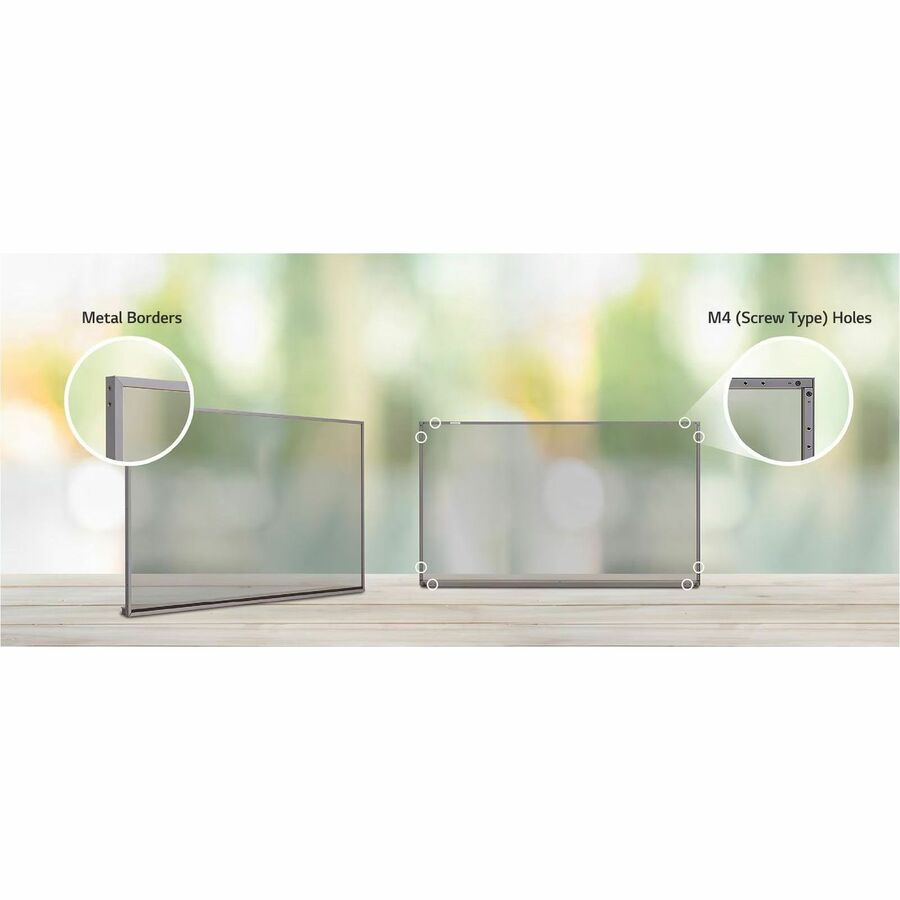

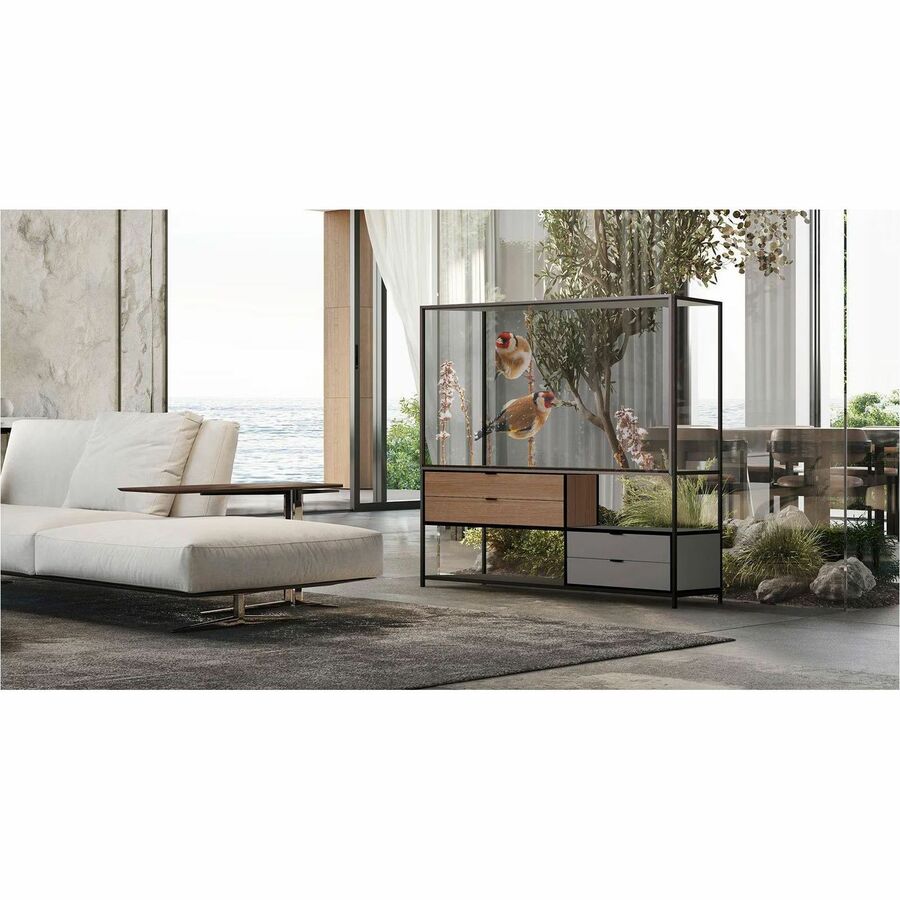

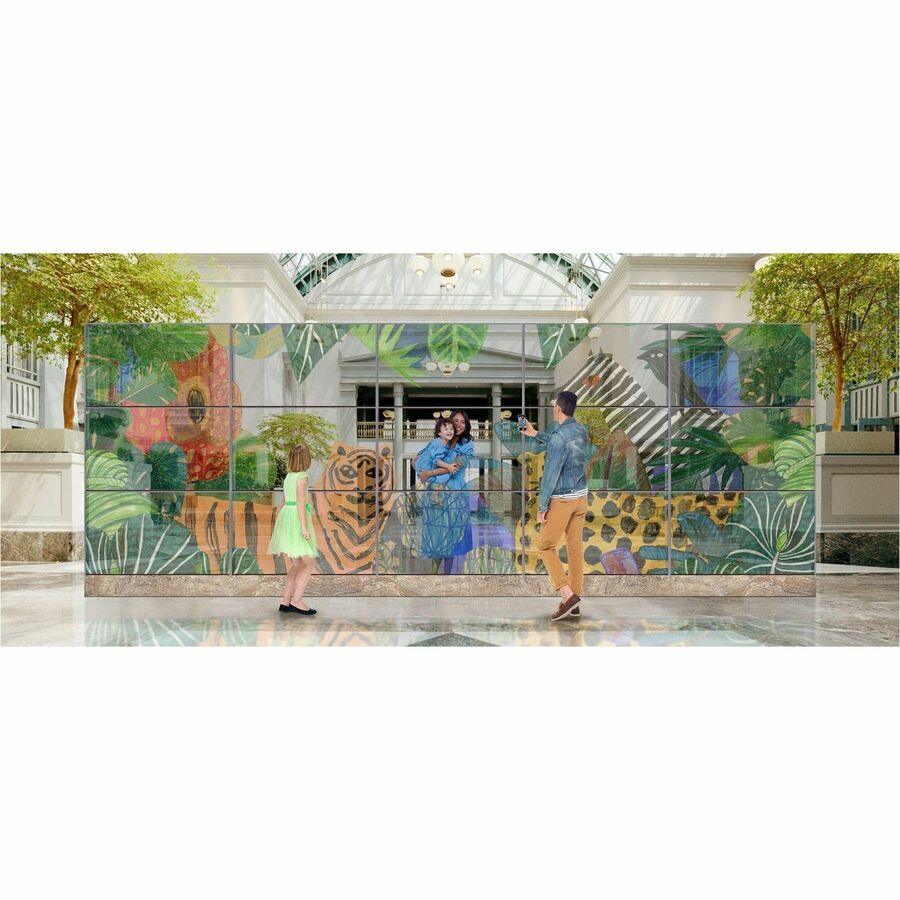

Marketing Information	High Transparency LG's OLED technology enables the Transparent OLED Signage to have a sleek design without the need for a backlight unit or liquid crystal layer, achieving an impressive 43% transparency. It clearly displays objects behind the screen while overlaying relevant information right in front of them. Sleek Elegance in Transparency Connecting spaces and adding a sense of openness, this transparent display boasts a beautiful design that complements high-end furniture and luxurious interiors. Its clean metal finish allows for easy installation on furniture, walls, or practically any desired location. Expandable Design Thanks to the improved mechanical design, it can be installed in various ways, whether as a single unit or as a truly transparent wall, to fit existing structures and spaces. Place this product in your dream space to enhance openness and aesthetics. Convenience of Installation & Stability This product offers ease and stability during installation thanks to its metal borders and structure. In other words, the metal border applied to the bezel areas enhances the product's rigidity. Additionally, M4 (screw type) holes, which are widely used globally, are incorporated into all rear corners to facilitate installation. Usage Scenes Experience the marvel of LG's state-of-the-art Transparent OLED Signage, designed for use in various spaces. This product breaks down the barriers between the screen and reality, seamlessly connecting different spaces, objects, and people.
Product Type	Digital Signage Display

Technical Information

Features	Anti-reflective 3% Haze FailOver Conformal Coating (Power Board) Shatter Proof Chemical Strengthening Control Manager Auto Set ID Scan Inversion Group Manager TileMatrix Support HDMI (CEC) Daisy Chain Connectivity Temperature Sensor Wake on LAN (WOL) External Input Rotation
On Screen Display (OSD) Languages	Arabic Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Brazilian Portuguese Portuguese (Europe) Russian Simplified Chinese Spanish Swedish Turkish
Bezel Width	0.48"
HDCP Version	1.4/2.2
Surface Hardness	5H
Panel Technology	OLED
Operation Hours	18 Hours/7 Days
Maximum Heat Generation	828.2 kJ
Content Synchronization	RS-232C
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes
Protection Glass Transmission	43%

Display & Graphics

Viewable Screen Size	55"
Display Resolution	1920 x 1080
Response Time	100 µs
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Orientation	Landscape/Portrait
Maximum LED Life	3.4 Year

Audio

Speakers

Video

Standard Refresh Rate	120 Hz
Dynamic Contrast Ratio	200,000:1
Color Depth	10-bit
Brightness	200 Nit
Color Gamut	90% DCI 110% BT.709

Network & Communication

Wireless LAN	No
Bluetooth	No

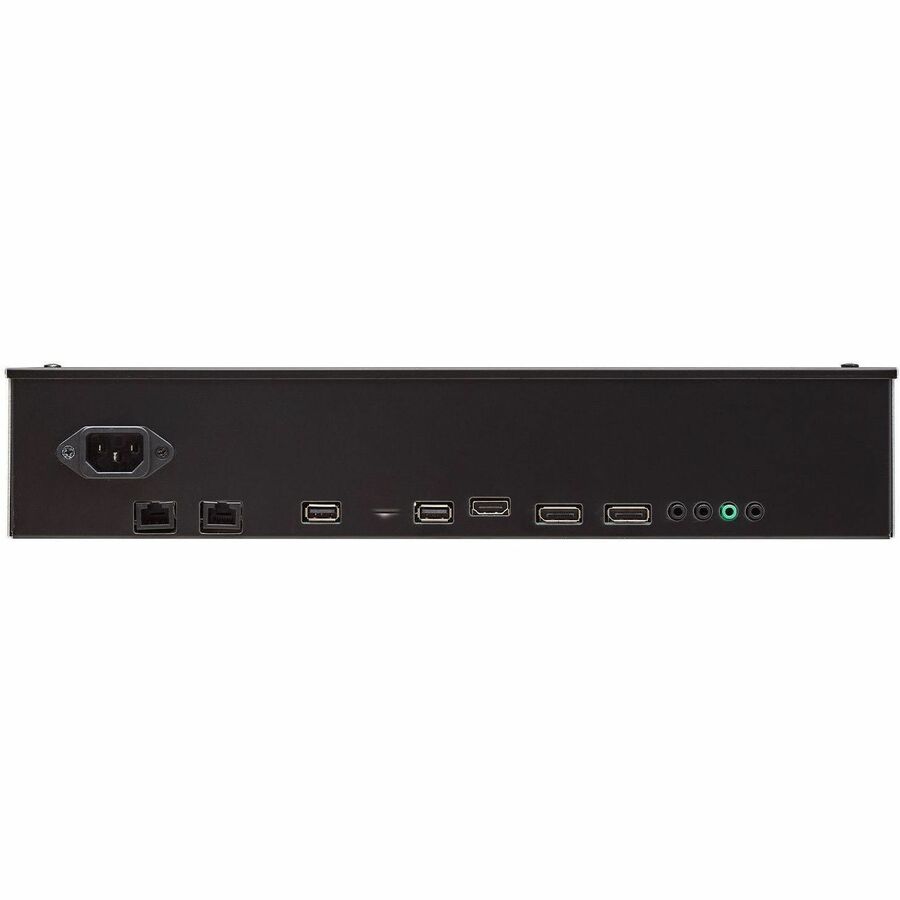

Interfaces/Ports

Audio Line In	No
Number of USB 2.0 Ports	1
Number of HDMI Inputs	1
USB Type-C	No
DisplayPort Output	Yes
RS-232C Input	Yes
RS-232C Output	Yes
Number of Network (RJ-45) Ports	1
Number of Infrared Inputs	1
Number of DisplayPort Outputs	1
DVI-D In	No
DisplayPort In	Yes
Infrared Output	Yes
Headphone	Yes

Software

Operating System

webOS 7.5

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	230 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Transparent
VESA Mount Compatible	No
Height	28.3"
Width	48.7"
Depth	3.4"
Weight (Approximate)	31.10 lb
Front Glass Thickness	0.12"

Miscellaneous

Package Contents	Remote Control, Power Cord, QSG, IR Receiver, Regulation Book, 3.5mm to RS-232C Adapter, MCX / Harness Cables (x4, 3m / x2, 3m for Connection between Panel and Signage Box), DP Cable (2m), LAN Cable (1.5m), RS-232 Cable (4P-4P, 1.5m), LC Cable (VLC, 3m), Screws (x24, M3 x L5.5 Black / x8, M3 x L5.5 Silver / x14, M3 x L6 Black), Cover Shield Assembly, Cable Accessory (x2), Cable Cap Assembly (x2), Tiling Bracket (x2), Signage Box Wing Bracket (x2)

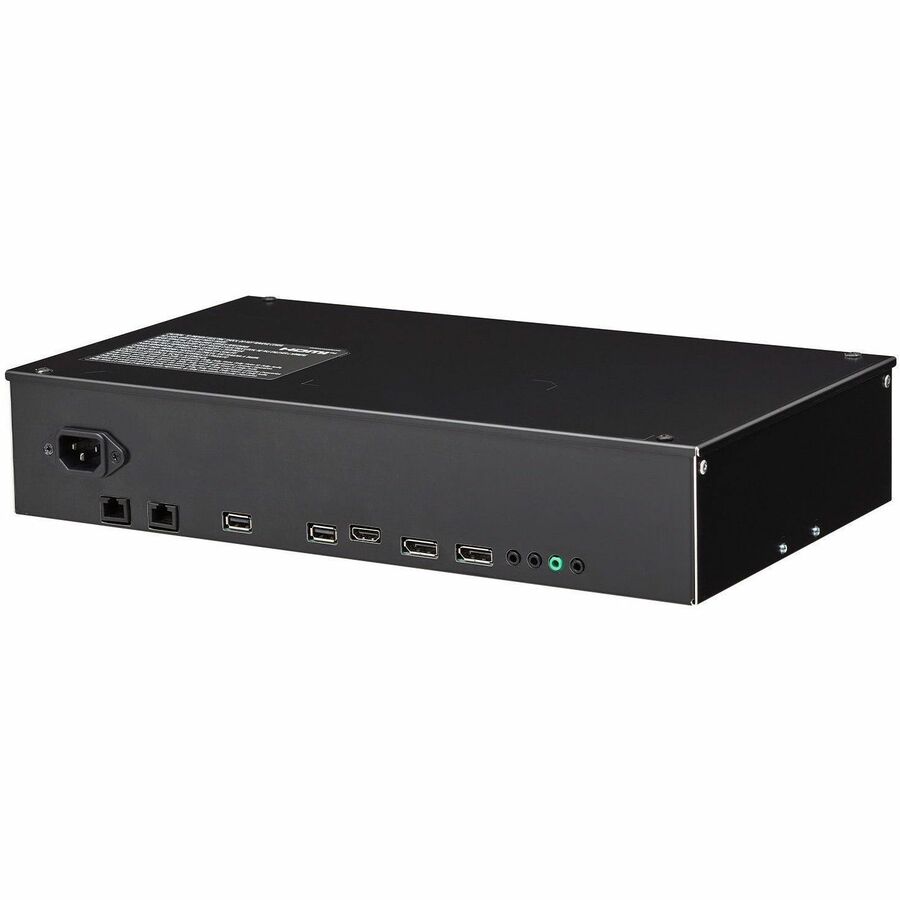

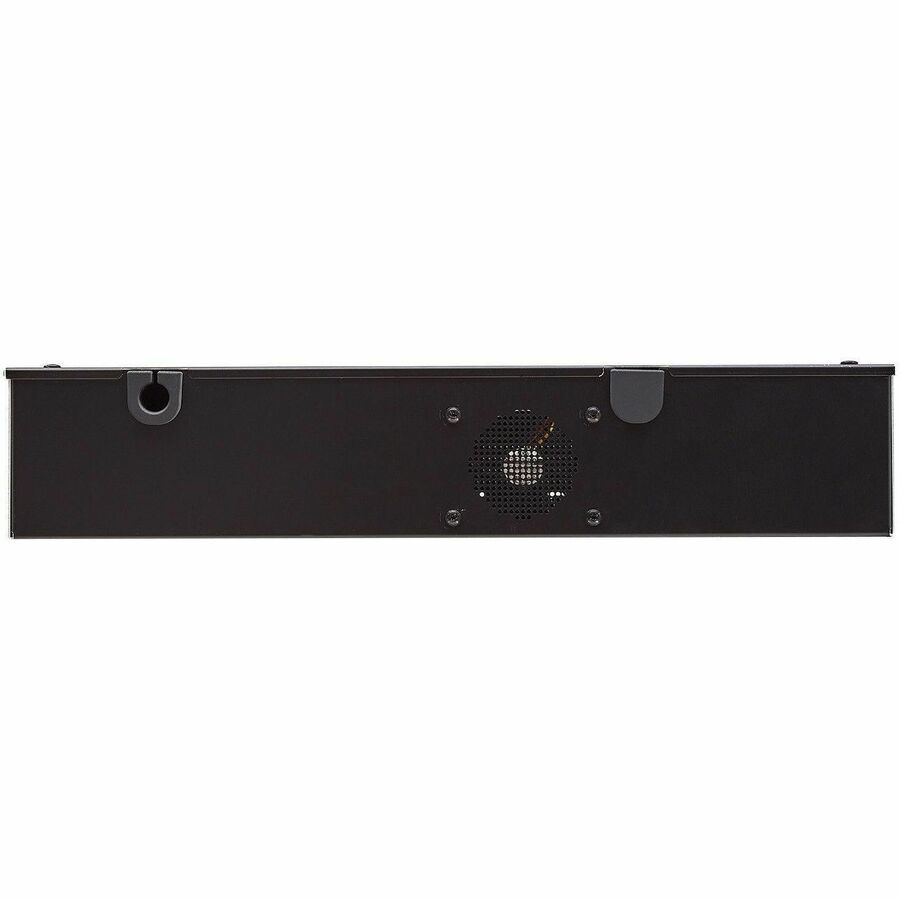

Additional Information	Surface Treatment (Anti Glare) : No Picture-by-Picture (PBP) : No Smart Energy Saving : No Moving Picture Response Time : 8 ms Internal Memory : 16 GB (eMMC) Crestron Certified Compatibility : No Cisco Certified Compatibility : No PoE Type : No BTU Heat Generation (Typ.) : 239 BTU Handle : No Direct Sunlight : No Dimensions Signage Box (W x H x D) : 15 x 8.6 x 2.9 in / 381.6 x 217.6 x 73.6 mm External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Heat Dissipation : No OPS Power Built-in : No OPS Compatible : No Idiom® : No UL Certification : No DisplayPort In : Yes (x1) HDCP 1.3 IR In (3.5 mm) : External IR Receiver External Control : Sharing RS-232C Out RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No RS-232C Out (3.5 mm) : Yes (x1) Power Type : Built-in Power Local Key Operation: No
Certifications & Standards	FCC: EMC Class A CE Marking (Regulatory): Yes
Energy Star	No
Environmentally Friendly	Yes
Environmental Certification	ErP
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
TAA Compliant	No
Compatible Software	SuperSign CMS SuperSign Control+ SuperSign Cloud Mobile CMS

Warranty

Limited Warranty

3 Year
