32IN TOUCH LCD 1920X1080 MNTR WEBOS HDMI RS232 RJ45 24/7 LANDPORT

Name: 32IN TOUCH LCD 1920X1080 MNTR WEBOS HDMI RS232 RJ45 24/7 LANDPORT
Brand: LG
SKU: JT9885
Price: 1200 USD
Availability: InStock

PCN#

JT9885

MFG#

32TNF5P-B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,200.00

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

32"
In
plane Switching (IPS) Technology
Touchscreen
24 Hours/7 Days Operation
1920 x 1080
16:9
9 ms
Edge LED
500 Nit
webOS 6.0

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 22 lbs.

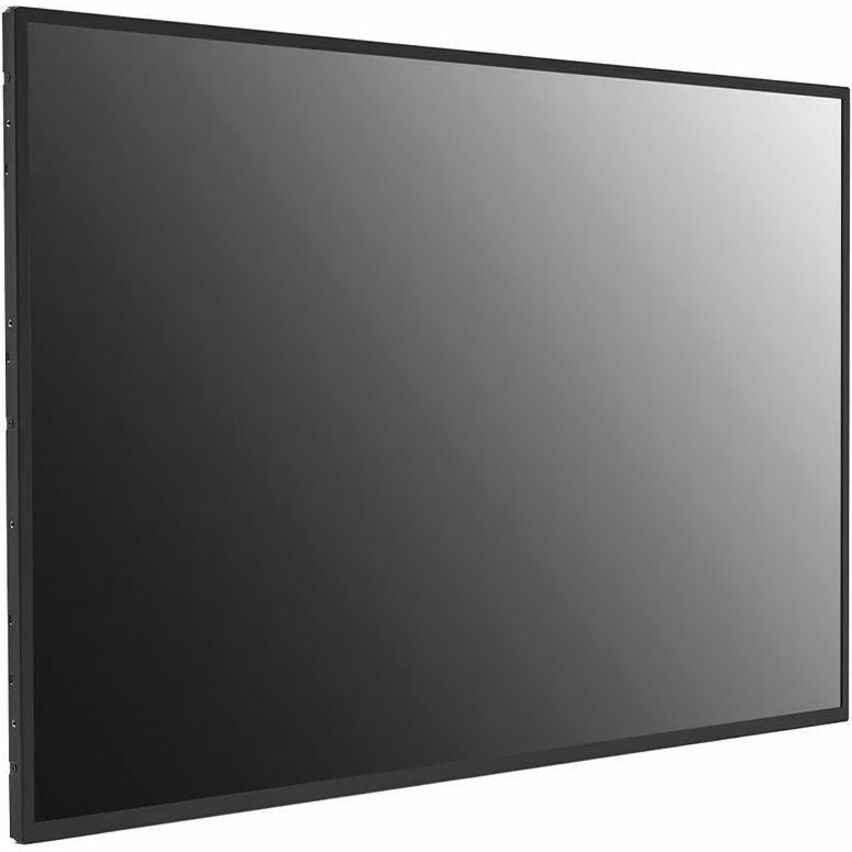

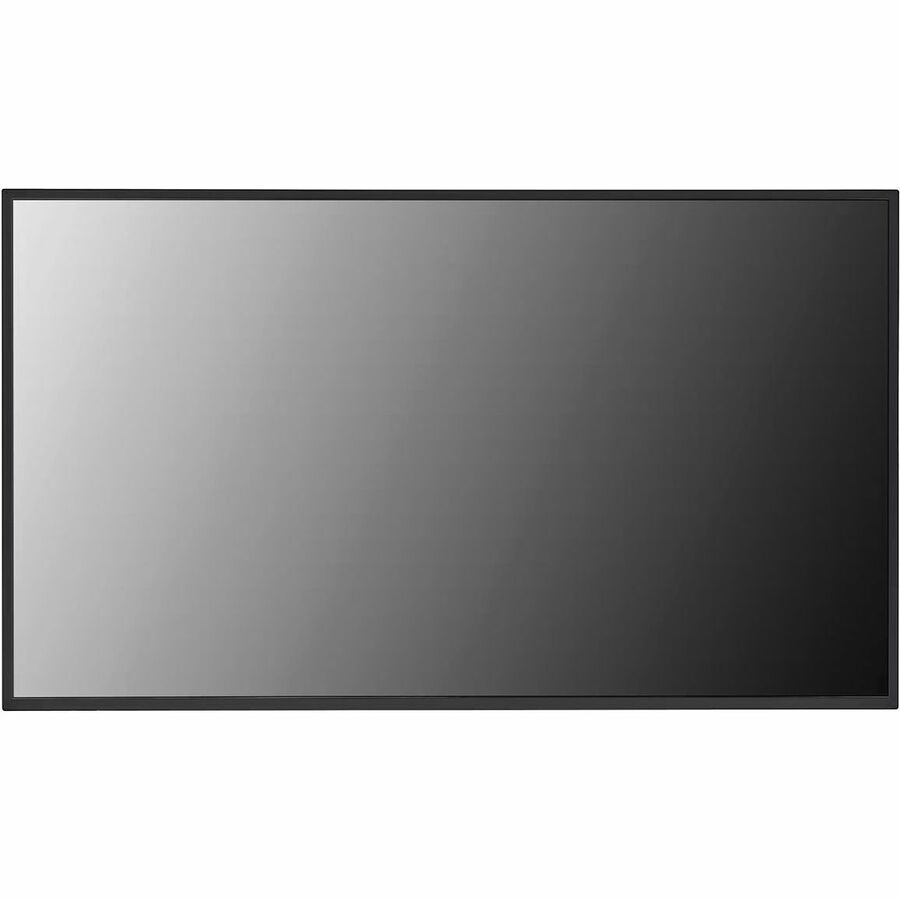

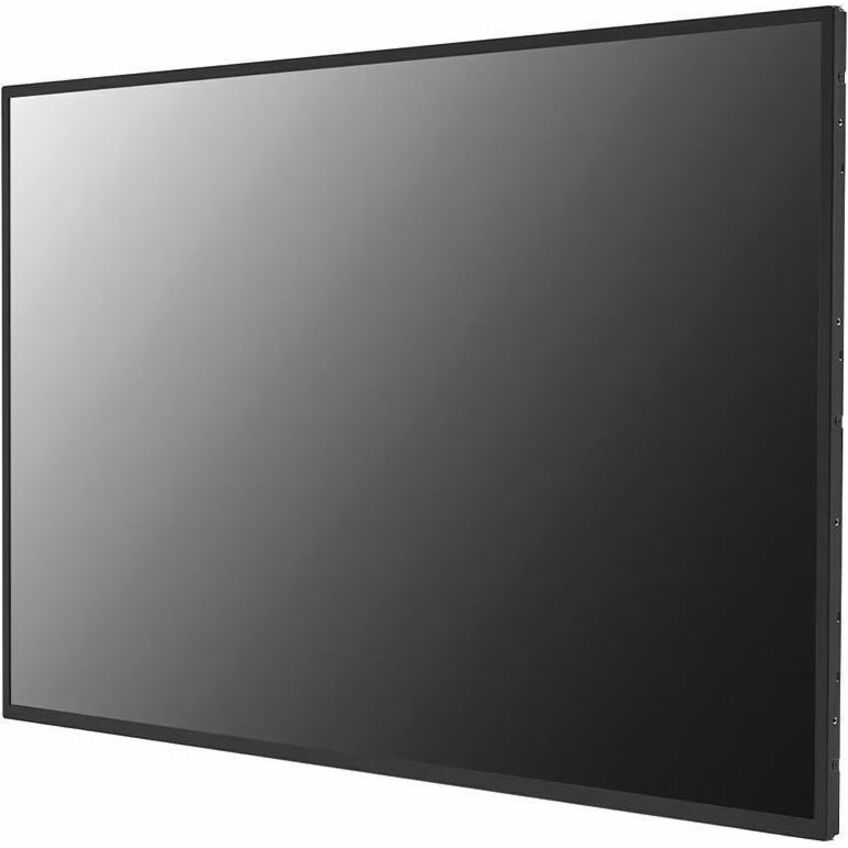

LG 32TNF5P-B Open-frame Digital Signage Display

Overview

Tech Specs

Specifications

Manufacturer	LG Electronics
Manufacturer Part Number	32TNF5P-B
Manufacturer Website Address	https://solutions.lg.com/us
Brand Name	LG
Product Model	32TNF5P-B
Product Name	32TNF5P-B Open-frame Digital Signage Display
Product Type	Open-frame Digital Signage Display

Technical Information

Features	Daisy Chain Connectivity Smart Energy Saving 3% Haze Crestron Connected Cisco Certified FailOver Tiltable Conformal Coating (Power Board) Control Manager Group Manager Booting Logo Image SNMP Manageable HDMI (CEC) ConnectedCare Gyroscopic Sensor Temperature Sensor Pro:Idiom Wake on LAN (WOL)
On Screen Display (OSD) Languages	Arabic Simplified Chinese Traditional Chinese Czech Danish Dutch English Finnish French German Greek Italian Japanese Korean Norwegian Polski Brazilian Portuguese Portuguese (Europe) Russian Spanish Swedish Turkish
Bezel Width (Bottom)	0.48"
Bezel Width (Top)	0.44"
Bezel Width (Left)	0.44"
Bezel Width (Right)	0.44"
Heat Dissipation	55.10 W
HDCP Version	1.4
Panel Technology	In-plane Switching (IPS) Technology
Operation Hours	24 Hours/7 Days
Touch Object Size Diameter	23.6 mil
Embedded CMS	Local Contents Scheduling
Image Sticking Minimization (ISM) Method	Yes

Display & Graphics

Viewable Screen Size	32"
Touchscreen	Yes
Touchscreen Technology	In-cell Touch
Multi-touch Screen	Yes
Number of Simultaneous Touchpoints	10
Display Resolution	1920 x 1080
Response Time	9 ms
Aspect Ratio	16:9
Horizontal Viewing Angle	178°
Vertical Viewing Angle	178°
Backlight Technology	Edge LED
Orientation	Landscape/Portrait
Accuracy Touch	0.14"
Maximum LED Life	5.7 Year

Audio

Speakers

Video

Standard Refresh Rate	60 Hz
Native Contrast Ratio	1,000:1
Color Depth	8-bit
Brightness	500 Nit
Color Gamut	72% NTSC

Network & Communication

Wireless LAN	No
Bluetooth	No

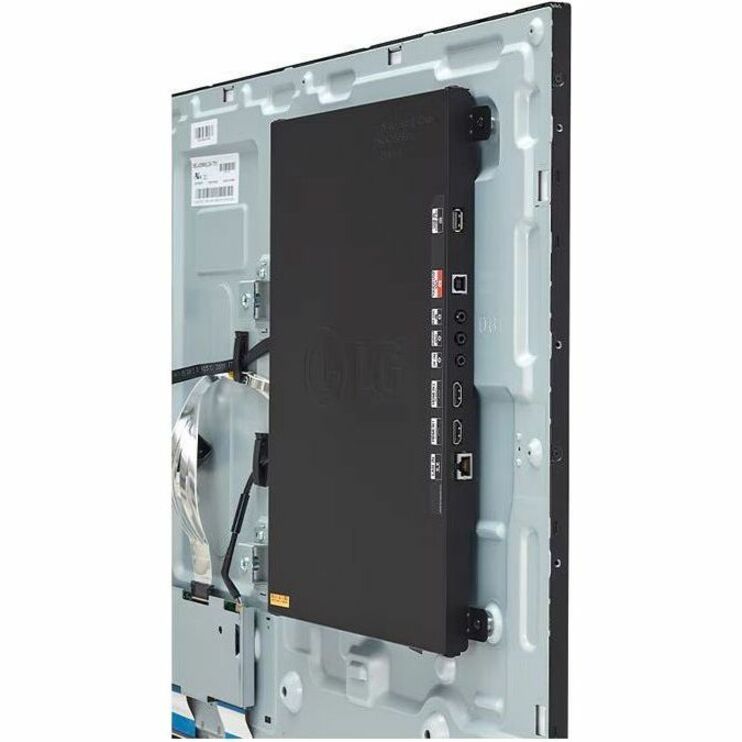

Interfaces/Ports

Network (RJ-45)	No
Audio Line In	No
Audio Line Out	Yes
Number of USB 2.0 Ports	1
Number of HDMI Inputs	2
USB Type-C	No
DisplayPort Output	No
RS-232C Input	Yes
Number of Network (RJ-45) Ports	1
Number of Infrared Inputs	1
DVI-D In	No
DisplayPort In	No
Infrared Output	No

Software

Operating System

webOS 6.0

Power Description

Input Voltage	120 V AC 230 V AC
Power Consumption	65 W
Off-Mode Power Consumption	500 mW
Power Consumption (DPM)	Less Than 0.5W

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Humidity	10%
Maximum Operating Humidity	80%

Physical Characteristics

Bezel Color	Black
VESA Mount Standard	200 x 200
Height	16.5"
Width	28.5"
Depth	1.5"
Weight (Approximate)	12.30 lb

Miscellaneous

Package Contents	1.5m Power Cord 1.8m USB Cable (Type A-Type B) User Manual QSG Remote Control (includes 2 batteries) RS232C Adapter IR Receiver
Additional Information	Surface Treatment (Hard Coating) : No Surface Treatment (Anti Glare) : No Color Depth : 8 bit, 16.7 Million Colors Anti-Reflective : No Picture-by-Picture (PBP) : No Transparency : No Internal Memory : 8 GB (System 5 GB + Available 2.48 GB) (eMMC) PoE Type : No Handle : No Direct Sunlight : No Response Time (PC Win10, Education Mode) : < 90 ms Operating System Support : Windows 10 External Speaker Out (3.5 mm) : No Power Loop Out : No HDMI Out : No Power Loop In : No RGB In : No Power In (DC From External PWR Box) : No Anti-Reflective Coating : No Heater : No Anti-Reflective Film : No Heat Dissipation : No Degree of Protection : No OPS Power Built-in : No OPS Compatible : No RS-232C Sync : No Tile Mode Setting : No UL Certification : No RS-232C In (3.5 mm 4-pin) : Yes (x1) RS-232C In (D-sub 9-pin) : No Touch USB : Yes (x1) USB 2.0 Type B Power Type : Built-in Power Local Key Operation: No Touch Interface : USB 2.0
Certifications & Standards	FCC: EMC Class A CE Marking (Regulatory): Yes
Energy Star	No
Environmentally Friendly	Yes
Environmental Certification	ErP
Energy Efficiency Compliance	Energy-related Products Directive (ErP)
TAA Compliant	No
Compatible Software	SuperSign CMS SuperSign Control+ SuperSign Cloud Mobile CMS

Warranty

Limited Warranty

3 Year
