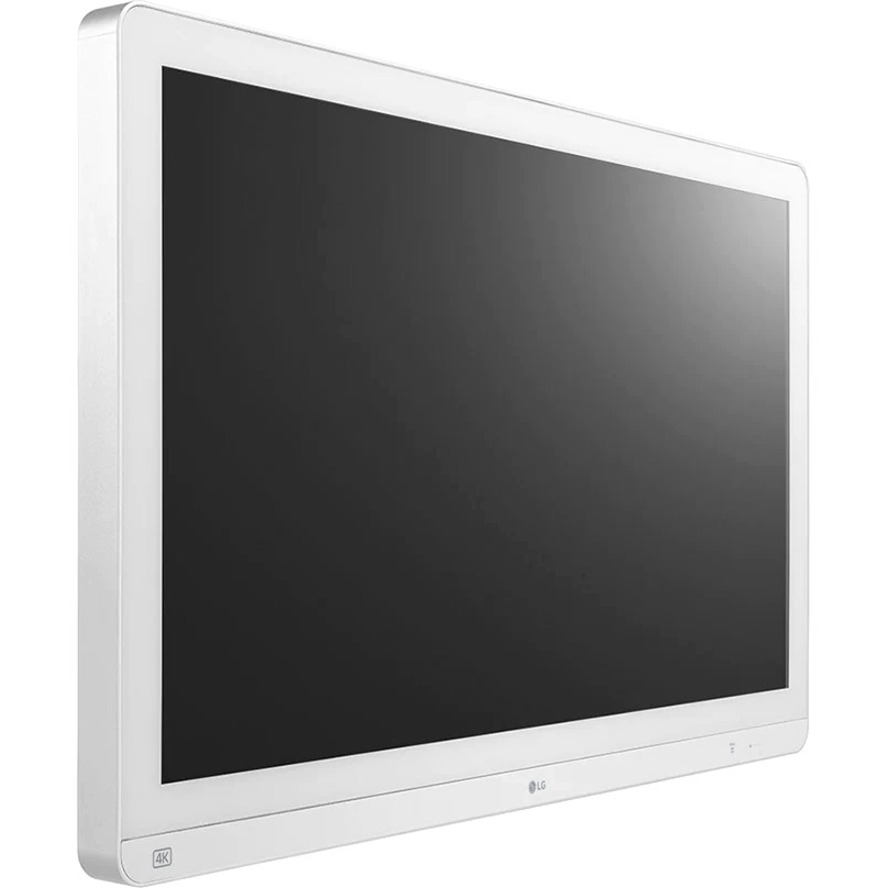

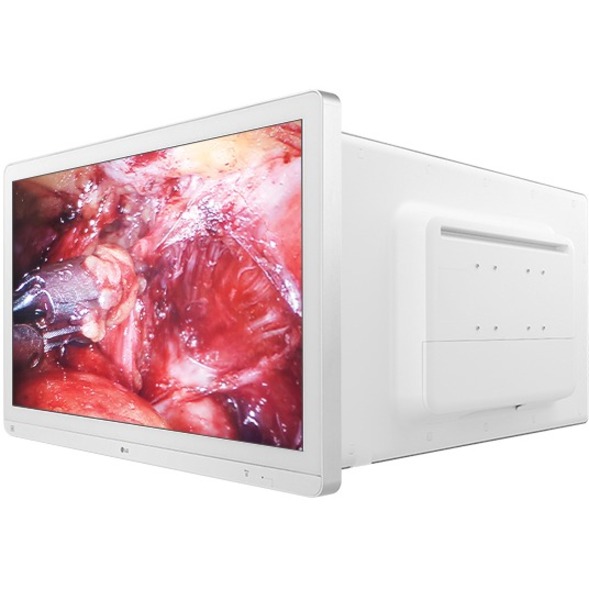

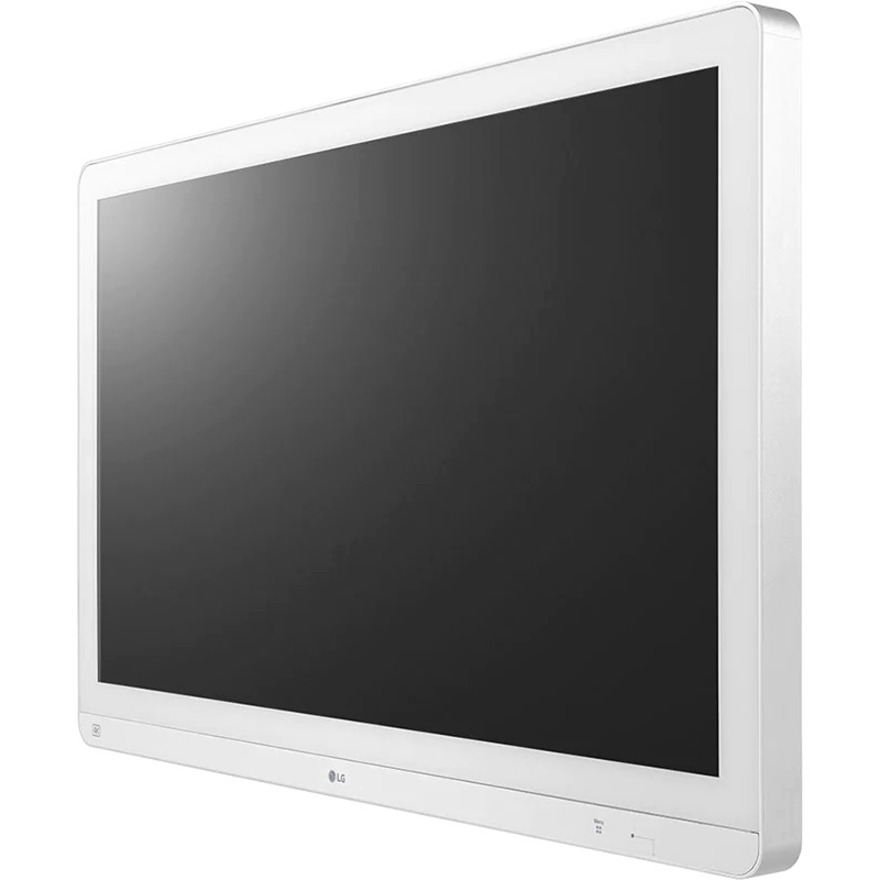

LG 32HL714S-W 32" Class 4K LCD Monitor - 16:9 - White

4K Surgical Display

Large Display for Surgical Precision

LG 4K surgical high-resolution monitor with LG's innovative technology provides accuracy, user convenience and reliability for precise surgery.

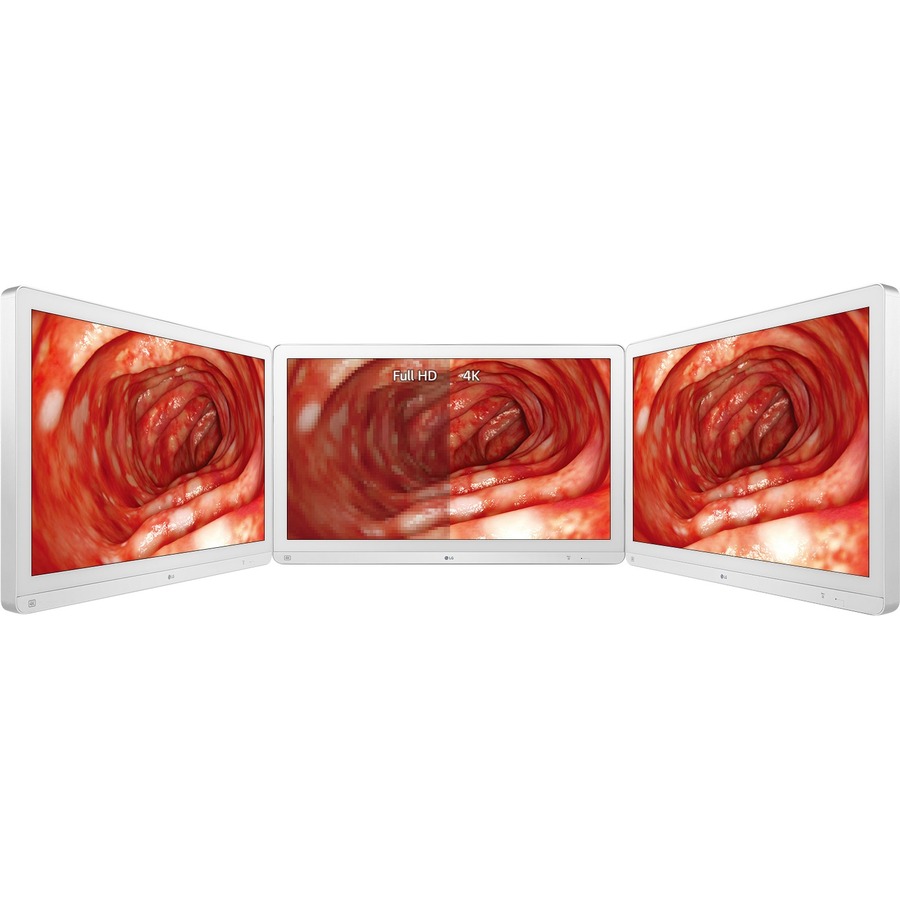

31.5-inch 4K IPS

Enhanced Accuracy with Wide View

With 31.5-inch 4K IPS display, the LG surgical monitor provides visual comfort for viewing accurate images with others from any angle. So it reduces the risk of misperception and helps to produce better outcomes.

sRGB 115% (Area), Over 99% (Coverage)

Supporting sRGB 115% (Area), Over 99% (Coverage) and the standard DICOM Part 14, the 32HL714S surgical monitor is designed for accurate color recognition and depth perception during invasive surgery. It enables surgeons to view accurate, realistic images and allow precise surgery.

Brightness Stabilization

LG surgical monitor with Brightness Stabilization can maintain constant brightness. Its sensor carefully measures the backlight and local lighting conditions. Then it optimizes the correct brightness for the surgical procedure.

Support HDR10

LG 4K surgical monitor is compatible with HDR-supported medical devices such as endoscope cameras. It can deliver images from devices vividly without crushing blacks in dark areas.

PBP, PIP & 12G-SDI Support

Multiple Signals on One Screen

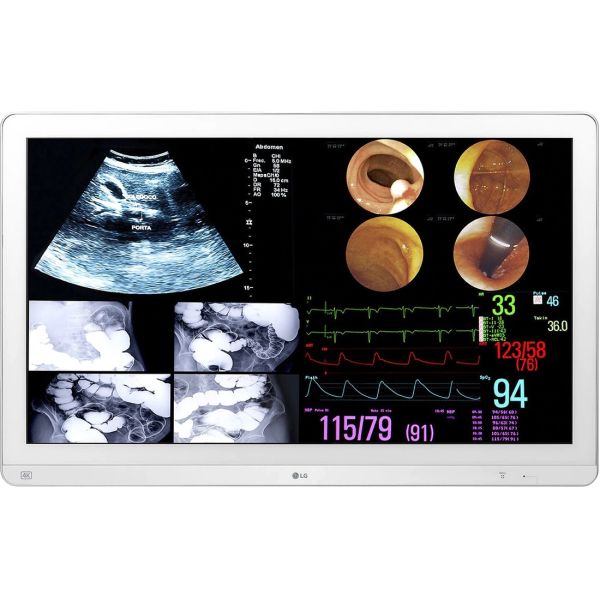

The 32HL714S supports up to 4PBP, PIP and extended ports, allowing you to see multiple signals from several devices on one screen. You can set a combination screen of the endoscopic video from endoscopic camera, the vital sign imagery and the fluoroscopic imagery.

12G-SDI Support

The 32HL714S features a 31.5-inch 4K (3840x2160) IPS display with 12G-SDI Support, which enables long-distance transmission of 4K signals over a single coaxial cable without latency for stable surgery.(12G-SDI input transmission maximum distance may vary by manufacturers: Up to 50M using BELDEN 1694A cable / Up to 70M using CANARE UHD 5.5C cable)

Failover Input Switch

When the main source is missing, the display will automatically switch to a failover (backup) source and restore the main source once the signal is back. You can set the main input and failover input in the setting menu of monitor.

Mirror & Rotation

Find the Perfect Operating View

The 32HL714S with Mirror & Rotation functions, helps you to set the perfectly optimized operating view for improving your convenience in the operating room. You can select the 180 degrees rotated image or the mirror image you want to see.

Dustproof & Water Resistant

o ensure protection against contact with objects such as blood or bodily fluids, LG surgical monitors are cleanable and durable, with ratings of IP35 on the front and IP32 on the body except for front, securing them from any direction.

• 5 ms Fast
• 14 ms GTG Off Mode

• HDR10
• Screen Mirroring
• True Color Pro
• Failover Input Switch
• Hardware Calibration
• DICOM Compliant
• Anti-reflective
• Picture by Picture
• Picture in Picture
• Rotation Mode

• 30 kHz to 135 kHz - DisplayPort
• 30 kHz to 135 kHz - HDMI
• 30 kHz to 83 kHz - DVI

• 56 Hz to 61 Hz - DisplayPort
• 56 Hz to 61 Hz - DVI
• 56 Hz to 61 Hz - HDMI

• IP45
• IP32

• 115% sRGB
• 99% sRGB

• 50 Hz
• 60 Hz

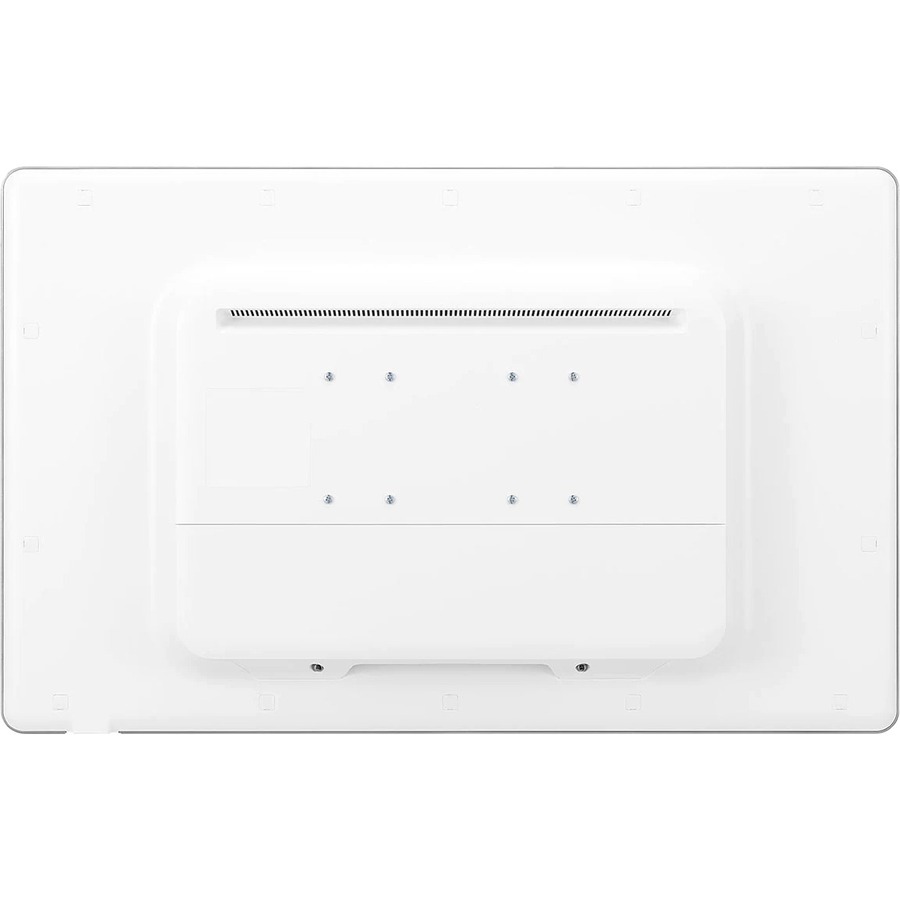

• 100 x 100
• 200 x 100

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
