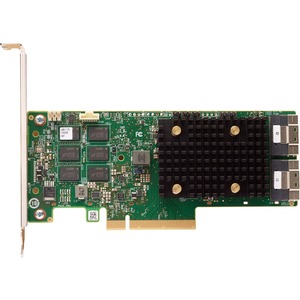

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter

Name: Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter
Brand: LENOVO
SKU: 9CA526
Price: 1950.73 USD
Availability: InStock

LENOVO

PCN#

9CA526

MFG#

4Y37A09730

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,950.73

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

12Gb/s SAS
PCI Express 4.0 x8
Plug
in Card
RAID Supported
0, 1, 5, 6, 10, 50, 60, JBOD RAID Level
Two x8 SFF
8654
16 Total SAS Port(s)
16 SAS Port(s) Internal
PC
8 GB Flash Backed Cache

Product Condition: New and Factory Fresh

Limited Warranty1 YearAdditional Warranty InformationThe adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades.

Shipping Weight: 1 lbs.

Lenovo ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter

Overview

Tech Specs

Specifications

Manufacturer	Lenovo Group Limited
Manufacturer Part Number	4Y37A09730
Manufacturer Website Address	http://www.lenovo.com/us/en/
Brand Name	Lenovo
Product Model	RAID 940-16i
Product Name	ThinkSystem RAID 940-16i 8GB Flash PCIe Gen4 12Gb Adapter
Marketing Information	The ThinkSystem RAID 940 family of PCIe 4.0 12 Gbps SAS RAID controllers are high-performance RAID-on-chip (ROC) server adapters for connectivity to drives internal to the server. These adapters support RAID levels 0, 1, 10, 5, 50, 6 and 60, and include an extensive list of RAS and management features.
Product Type	SAS Controller

Technical Information

Host Interface	PCI Express 4.0 x8
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0 1 5 6 10 50 60 JBOD
Data Backup Type	Flash Backed Cache
Device Supported	Server
Operating System Supported	Windows Server 2016 Windows Server 2019 Windows Server 2022 Red Hat Enterprise Linux 7.8 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.1 Red Hat Enterprise Linux 8.2 Red Hat Enterprise Linux 8.3 Red Hat Enterprise Linux 8.4 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 SP3 Ubuntu 18.04 LTS Ubuntu 20.04 LTS Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 7.7 Red Hat Enterprise Linux 8.5 SuSE Linux Enterprise Server 15 SUSE Linux Enterprise Server 12 SP3 SUSE Linux Enterprise Server 12 SP4 VMware ESXi 7.0 U3 VMware ESXi 7.0 U2 VMware ESXi 7.0 U1 VMware ESXi 6.7 U3 VMware ESXi 6.7 U2 VMware ESXi 6.7 U1 VMware ESXi 6.7 Red Hat Enterprise Linux 8

Memory

Cache Memory

8 GB

Interfaces/Ports

Total Number of SAS Ports	16
Number of SAS Ports (Internal)	16
SAS Connector Details	Two x8 SFF-8654

Physical Characteristics

Form Factor

Plug-in Card

Miscellaneous

Platform Supported	PC
Environmentally Friendly	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty	1 Year
Additional Warranty Information	The adapters carry a 1-year limited warranty. When installed in a supported ThinkSystem server, the adapter assumes the server's base warranty and any warranty upgrades.
