Lantronix EMG 7500 - Edge Management Gateway

Name: Lantronix EMG 7500 - Edge Management Gateway
Brand: LANTRONIX
SKU: 8YH251
Price: 1277.48 USD
Availability: InStock

LANTRONIX

PCN#

8YH251

MFG#

EMG751201S

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,277.48

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

Remote Management

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

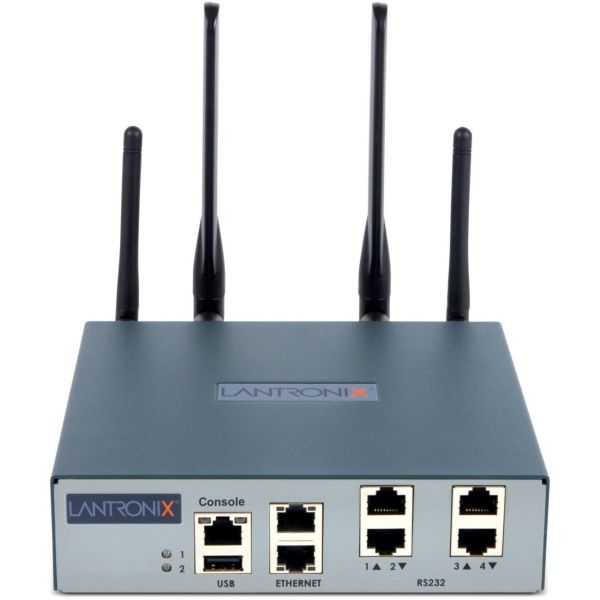

Lantronix EMG 7500 - Edge Management Gateway

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	EMG751201S
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Line	EMG
Product Model	7500
Product Name	EMG 7500 - Edge Management Gateway
Marketing Information	The Lantronix® EMG™ 7500 - Edge Management Gateway is the newest addition to the EMG family of edge solutions for branch offices, remote locations, retail stores where small port count, fixed configurations and integrated cellular connectivity is needed at a cost-effective price. Easy Centralized Management - ConsoleFlow™ ConsoleFlow™ is Lantronix's Software as a Service, cloud, or on-premise management platform for all deployed Lantronix edge management gateways and connected IT equipment. It offers a single pane of glass for centralized management and automated monitoring with real-time notifications. Mobile access from any iOS or Android platform provides secure access to your IT equipment. ConsoleFlow™ Cost-Effective Secure Connectivity - Anytime, Anywhere The EMG7500 boasts a smaller size than its EMG8500 sibling, while still offering up to 8 management ports. The EMG7500 is great for customers where space and cost are of primary concern. This edge management gateway is perfectly suited for branch offices and unmanned locations, such as ATM's, cell towers, etc. This cost-effective member of the EMG family has fixed FRU's, integrated cellular connectivity and internal flash memory. Connectivity Services Quick Recovery from Downtimes An integrated automatic fail-over/fail-back mechanism allows users to connect to their network equipment even when the primary network connection is congested or unresponsive. The EMG7500 can failover to a cellular 4G/LTE connection where all global carriers are supported with services such as Private APN, VPN access, public, and private IP addressing. Network Performance Monitoring with support of IPSLA simulation traffic can ensure continuous and reliable network communication and help mitigate Lights Out scenarios.
Product Condition	New
Product Type	Infrastructure Management Equipment

Physical Characteristics

Height	1.7"
Width	5.7"
Depth	6.4"

Miscellaneous

Package Contents	EMG 7500 - Edge Management Gateway Desktop Power Supply
Additional Information	RS232 Serial 4-Port, USB 4-Port, LTE Cellular Security and Authentication: Enterprise-grade security Secure Sockets Layer (TLS v1, v1.1, v1.2, v1.3) Packet filtering (firewall) Per port user permissions Configurable user/group rights Remote authentication: LDAP/AD,RADIUS, Kerberos, TACACS+, NIS Local username/password NIST-certified implementation of AES (Advanced Encryption Standards) as specified by FIPS-197 FIPS 140-2 compliant cryptography (Certificate #1878) Serial Device Port Access: Software programmable reversible pinouts on device ports Serial RS232 Telnet/SSH to EMG command line interface Telnet/SSH/RAW-TCP direct to an IP address HTML5 support for Java-free web terminal SSH access to console ports Multiple Telnet/SSH sessions Simultaneous user access to the same console port Data Capture and Notification: Port buffering-256 KB per port Port logging to local files, syslog, USB thumb drive, SD card, and NFS share System, audit and port logging Event notification via email, SNMP or Syslog entry Character string recognition Management: Quick setup and configuration web interface (TLS) CLI setup script CLI (Telnet, SSH, WebTerminal or direct console port access) SNMP (MIB II) -v1, v2, v3 compatible, custom MIBs RPM (remote power management) feature to control and monitor industry leading PDU & UPS devices Active user list display, port monitoring and timeout Diagnostics and port status counters Performance monitoring utility Packet generation utility Network trace utility Optional digital I/O and special integration with Sensorsoft environmental sensors Local subnet search for other Lantronix console manager solutions Maximum 15 users per device port Additional Protocols Supported: DHCP and BOOTP for dynamic IP address assignment NTP for time synchronization FTP, TFTP, SFTP, SCP client for file transfers DNS IP address name resolution SSH, TLS, SSL, Telnet and TCP for connections in/out of every device port, UDP, PPP with PAP/CHAP, NFS and CIFS for data storage StrongSwan IPsec VPN client RIP and RIPv2 IPv6 Addressing supported Interfaces: Front Panel, Console and Logging: 1 RJ45 Port Serial RS232, 1 USB Port Host type A Front Panel, Connectivity: 2 RJ45 Ports Ethernet (10/100/1000Mbps) Back Panel Logging: 1 microSD Slot Back Panel Connectivity: LTE/4G Cellular Radio with antennas and microSIM slot, optional Wi-Fi and antennas Environmental Sensors Support: Plug and go connectivity support for sensors and accessories used to measure/ detect temperature, humidity, power availability and dry-contact closures Memory: 1/2 GB Internal NAND Flash 1/2 GB Internal DRAM External Storage: microSD slot for up to 128 GB Flash Power: Power Usage: 20W Central Management: Compatible with the Lantronix ConsoleFlow™ central management software Environmental: Temperature: Operating: 0 to 50° C (32 to 122° F), 30 to 90%RH, non-condensing Storage: -20 to 80° C (-4 to 176° F), 10 to 90% relative humidity, non-condensing
Application/Usage	Remote Management

Warranty

Limited Warranty

3 Year
