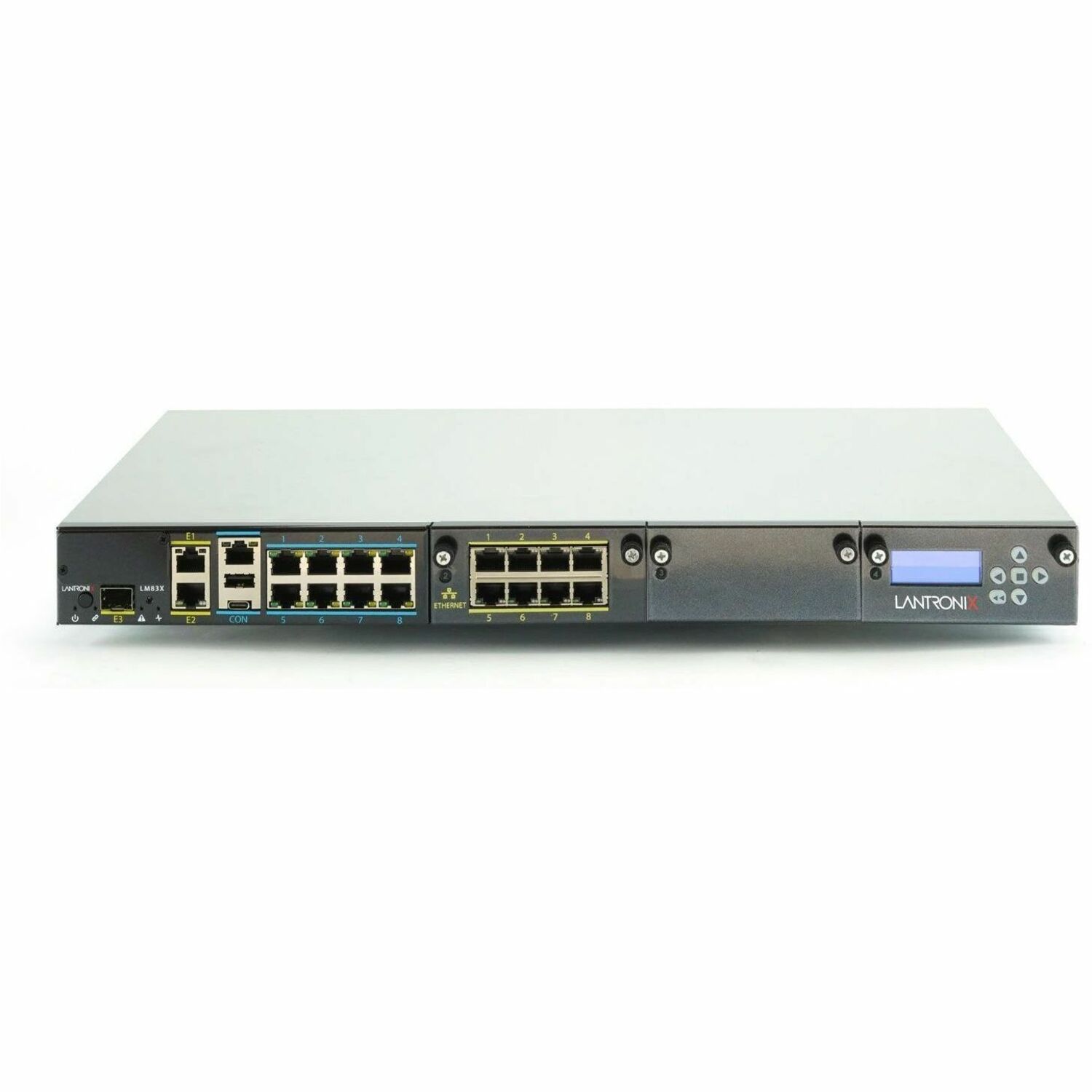

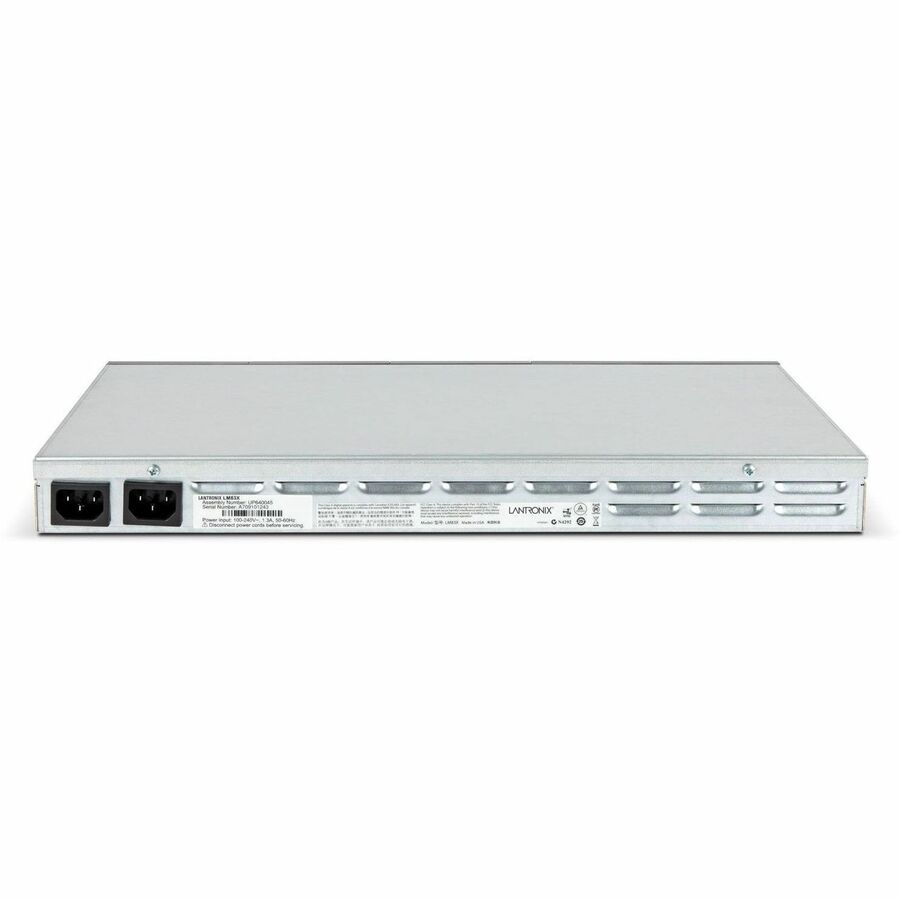

Lantronix 8-Port LM83X - FIPS Certified

Name: Lantronix 8-Port LM83X - FIPS Certified
Brand: LANTRONIX
SKU: HB3256
Price: 5085.82 USD
Availability: InStock

LANTRONIX

PCN#

HB3256

MFG#

83X-8S-E04-YAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$5,085.82

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Free Shipping

Estimated Shipment:

Product Highlights:

250 GB
Twisted Pair
3.0 Total Expansion Slot(s)
11 x Network (RJ
45)
2 x USB
8 x Serial Port
10/100/1000Base
T
Gigabit Ethernet
Management Port
Rack
mountable
TAA Compliant

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 9 lbs.

Lantronix 8-Port LM83X - FIPS Certified

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	83X8SE04YAA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	LM
Product Model	LM83X
Product Name	8-Port LM83X - FIPS Certified
Marketing Information	The Most Advanced Console Server Designed from the ground up as a modular platform able to act independently from the network to remotely monitor, manage and control up to 104 devices over a serial console connection, the LM83X is the fifth generation Local Manager. Configurable to manage 8-104 devices directly over RS-232 connections, the LM-Series is also capable of managing virtual environments and SD-WAN deployments to increase resiliency. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure, automation of day-to-day management and the go-to source of information and response during network emergencies.
Product Type	Device Server

Memory

Standard Memory

250 GB

Media & Performance

Media Type Supported

Twisted Pair

I/O Expansions

Total Number of Expansion Slots

3.0

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Serial Port	Yes
Management Port	Yes
Number of Network (RJ-45) Ports	11
Number of USB Ports	2
Number of Serial Ports	8

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 - 240 VAC
Power Consumption	60 W
Input Current	1.30 A
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7"
Width	17.5"
Depth	10.4"
Weight (Approximate)	8.20 lb

Miscellaneous

Package Contents	8-Port LM83X- FIPS Certified 2 x Power Cords 2 x Rack Mount Ears 4 x Mounting Screws 1 x USB-A to USB-C cable 1 x Connection Instruction Sheet 1 x Warranty Booklet LMS
Additional Information	8 Serial Ports, 8 Dedicated Ethernet Ports, LCD Module, 3 Ethernet Ports, includes LMS
Environmentally Friendly	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
