FIPS LM83X LOCAL MANAGER 8 SERIAL PORTS 3 ETHERNET PORTS INC

Name: FIPS LM83X LOCAL MANAGER 8 SERIAL PORTS 3 ETHERNET PORTS INC
Brand: LANTRONIX - IOT
SKU: HC7239
Price: 3197.26 USD
Availability: InStock

LANTRONIX - IOT

PCN#

HC7239

MFG#

83X-8S-000-YAA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$3,197.26

Extended & Accidental Damage Protection Plans Available Details

3-Year $332.99

2-Year $265.99

Free Shipping

Estimated Shipment:

Product Highlights:

Console Server, 8 total serial ports, 1 USB
C, 1 USB 2.0, 2 GbE RJ45 Ethernet, 1 GbE SFP, FIPS 140
2 Level 2, Dual AC power, TAA

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 15 lbs.

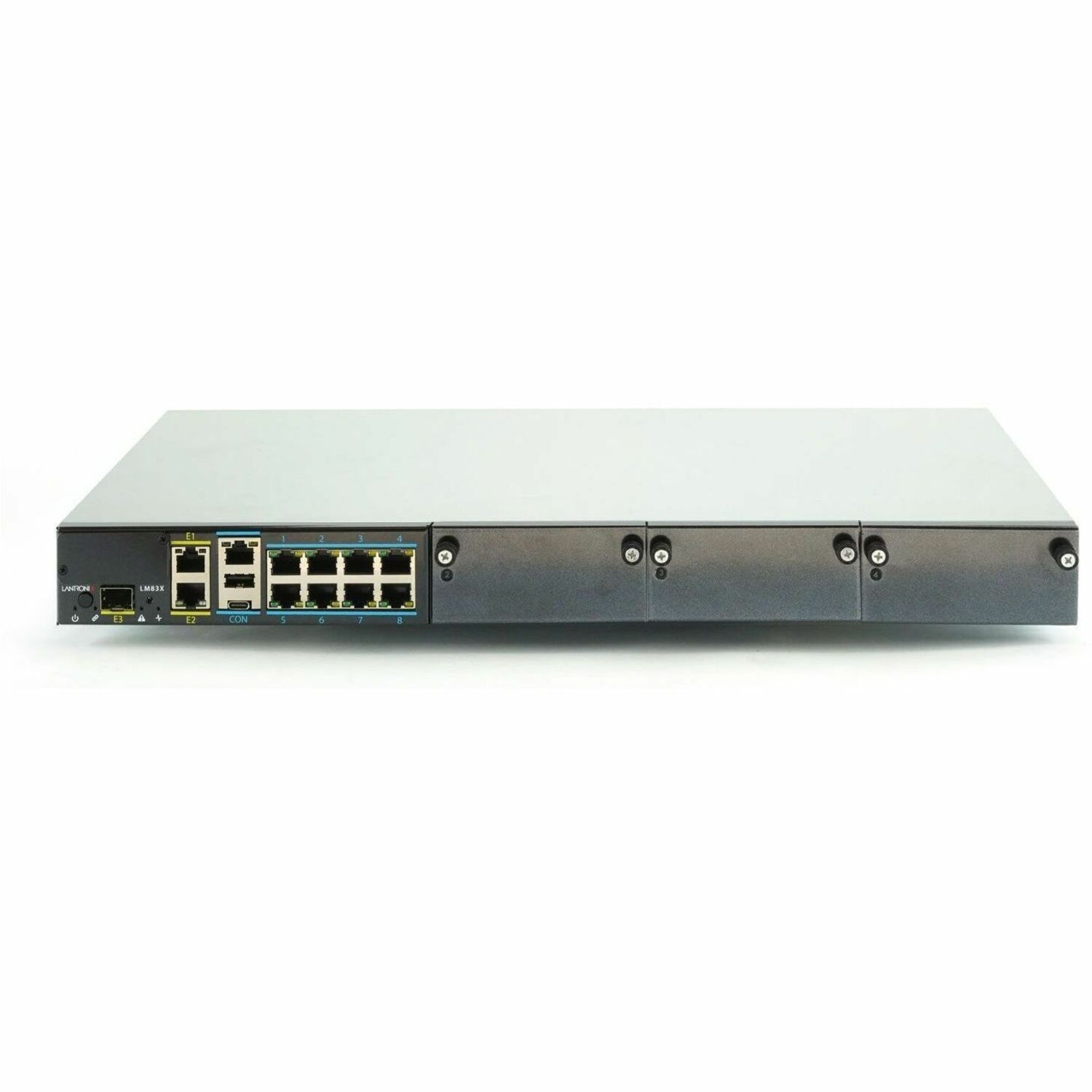

Lantronix LM-Series LM83X FIPS Certified 8-Port Console Server

Overview

Tech Specs

Specifications

Manufacturer	Lantronix, Inc
Manufacturer Part Number	83X-8S-000-YAA
Manufacturer Website Address	http://www.lantronix.com
Brand Name	Lantronix
Product Series	LM
Product Model	LM83X
Product Name	Lantronix 8-Port LM83X - FIPS Certified
Marketing Information	The Lantronix LM-Series are console servers that also serve as a platform for network management automation. Managed devices are monitored over the console port at a default of every 30 seconds, providing data for rules-based decision-making and device remediation. Modular design to deploy what you need at each location, up to 104 ports in one rack unit: RJ-45 serial or Ethernet. Modem options include cellular, POTS line, fiber, even satellite links for out-of-band access anywhere on the planet. Virtual ports and port forwarding let you use the out-of-band platform as a resilient toolbox for secure access to all your network infrastructure. FIPS 142-2 Level 2 certification available.
Product Type	Device Server

Memory

Standard Memory

250 GB

Media & Performance

Media Type Supported

Twisted Pair

I/O Expansions

Total Number of Expansion Slots

Network & Communication

Ethernet Technology	Gigabit Ethernet
Network Standard	10/100/1000Base-T

Interfaces/Ports

Network (RJ-45)	Yes
USB	Yes
Serial Port	Yes
Management Port	Yes
Number of Network (RJ-45) Ports	3
Number of USB Ports	2
Number of Serial Ports	8

Environmental Conditions

Minimum Operating Temperature	32°F (0°C)
Maximum Operating Temperature	113°F (45°C)

Power Description

Input Voltage	120 V AC 230 V AC
Input Voltage Range	100 - 240 VAC
Power Consumption	60 W
Input Current	1.30 A
Frequency	50 Hz 60 Hz

Physical Characteristics

Form Factor	Rack-mountable
Height	1.7"
Width	17.5"
Depth	10.4"
Weight (Approximate)	8.20 lb

Miscellaneous

Package Contents	8-Port LM83X - FIPS Certified 2 x Power Cords 2 x Rack Mount Ears 4 x Mounting Screws 1 x USB-A to USB-C cable 1 x Connection Instruction Sheet 1 x Warranty Booklet LMS
Additional Information	8 Serial ports, 3 Ethernet ports, includes LMS
Environmentally Friendly	Yes
Environmental Compliance	China Restriction of Hazardous Substances (China RoHS) Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	United States
TAA Compliant	Yes

Warranty

Limited Warranty

1 Year
