Kramer TP-125XL Video Extender Transmitter

by
KRAMER ELECTRONICS
PCN#
1500AQ
MFG#
TP-125XL

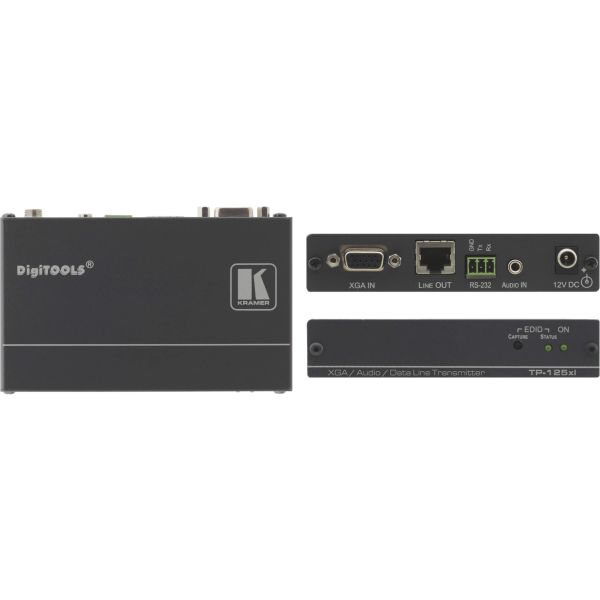

main product photo
fotorama-image
$268.51
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 1 Input Device
  • 820.21 ft Range
  • 1 x Network (RJ

Show more

Product Condition: New and Factory Fresh
Limited Warranty7 Year
Shipping Weight: 2 lbs.
Kramer TP-125XL Video Extender Transmitter
Overview
Tech Specs
Specifications

Manufacturer

Kramer Electronics LTD

Manufacturer Part Number

TP-125XL

Manufacturer Website Address

http://www.kramerelectronics.com

Brand Name

Kramer

Product Model

TP-125XL

Product Name

TP-125XL Video Extender Transmitter

Marketing Information

The TP-125xl is an extended range twisted pair transmitter for computer graphics video, unbalanced stereo audio and bidirectional RS-232 control command signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.

  • Max. Resolution - WUXGA & 1080p.
  • HDTV Compatible.
  • System Range - More than 820ft (more than 250m).
  • EDID Capture - Copies and stores the EDID from a display device.
  • Cable - We recommend the use of Kramer's BC-XTP high quality skew-free, unshielded twisted pair (UTP) cable. When using UTP cable, it is advisable to ensure that the cable is installed far away from electric cables, motors and so on, which are prone to create electrical interference.
  • Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS-232 interface, allowing status requests and control of the destination unit.

Product Type

Video Extender Transmitter
Technical Information

Connectivity Technology

Wired

Number of Input Devices Supported

1

Maximum Operating Distance

820.21 ft
Video

Graphics Modes

WUXGA

Maximum Video Resolution

1920 x 1200
Interfaces/Ports

Network (RJ-45)

Yes

VGA In

Yes

Serial Port

Yes

Number of Network (RJ-45) Ports

1

Number of VGA Inputs

1
Media & Performance

Media Type Supported

Twisted Pair
Physical Characteristics

Transmitter Height

0.96"

Transmitter Width

4.72"

Transmitter Depth

2.81"

Form Factor

Rack-mountable

Transmitter Weight (Approximate)

7.05 oz
Miscellaneous

Package Contents

  • TP-125XL Video Extender Transmitter
  • Power Supply
Warranty

Limited Warranty

7 Year
