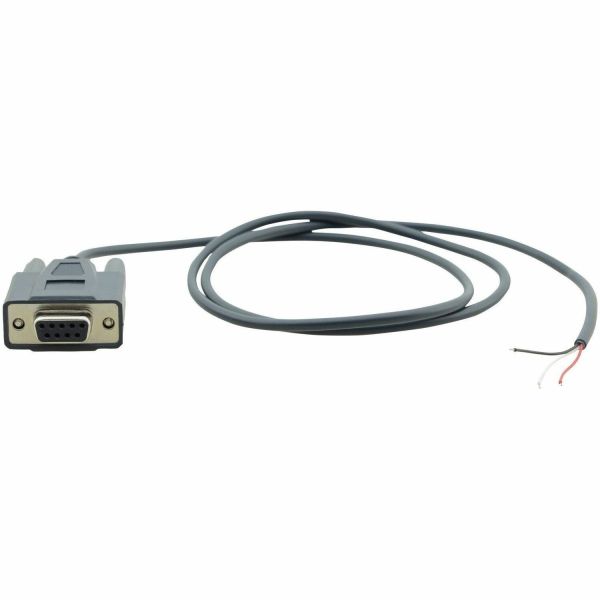

Kramer RS-232, D9(F) to Bare End Cable

Kramer's C-D9F/OPEN control cables are for RS-232 applications to control devices within a professional AV system. Many Kramer products are RS-232 controllable and equipped with terminal block connector. This RS-232 cable helps to connect them safely to transmit the RS-232 serial commands to a touch-screen system, PC, or other serial controller equipped with D9 connector.

• Quality Construction - Constructed using three 28AWG isolated conductors, terminated with a molded female 9-pin D-sub connector, nickel plated on one side and open end, non-terminated, on the second side.
• Pinout - Wired pin to pin on pins 2, 3 & 5.
• Molded Strain Relief.
• Stripped & Tinned Wires - At open end.
• RoHS Compliant.
• Varied Selection of Lengths - 3 to 50ft (1 to 15m).

• Touchscreen Monitor
• PC
• Serial Controller
• Audio/Video Device

• Molded
• Strain Relief

• Red
• White
• Black

Pinouts:

• Red
• White
• Black

Tinned Copper - Conductors
