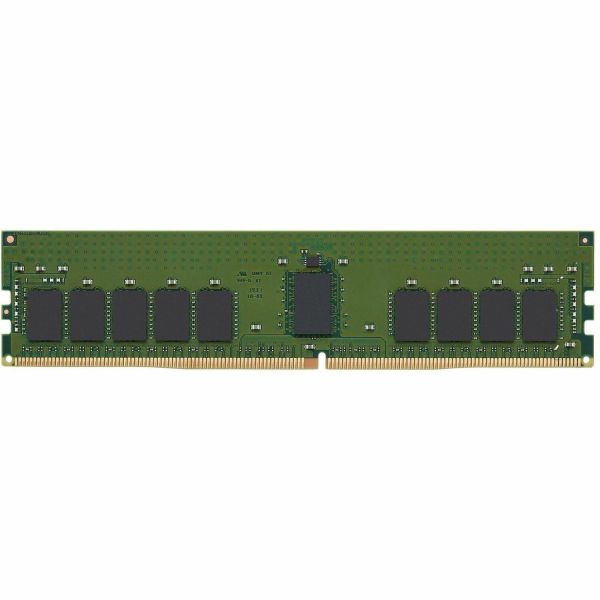

Kingston Server Premier 32GB DDR4 SDRAM Memory Module

Name: Kingston Server Premier 32GB DDR4 SDRAM Memory Module
Brand: KINGSTON
SKU: NT1540
Price: 370.14 USD
Availability: InStock

KINGSTON

PCN#

NT1540

MFG#

KSM26RD8/32MFR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$370.14

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

For Server
32 GB (1 x 32GB)
DDR4
2666/PC4
21300 DDR4 SDRAM
2666 MHz Dual
rank Memory
CL19
1.20 V
ECC
Registered
288
pin
DIMM
Lifetime Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 1 lbs.

Kingston 32GB 2Rx8 4G x 72-Bit PC4-2666 CL19 Registered w/Parity 288-Pin DIMM

Overview

Tech Specs

Specifications

Manufacturer	Kingston Technology Company
Manufacturer Part Number	KSM26RD8/32MFR
Manufacturer Website Address	http://www.kingston.com
Brand Name	Kingston
Product Line	Server Premier
Product Name	32GB 2Rx8 4G x 72-Bit PC4-2666 CL19 Registered w/Parity 288-Pin DIMM
Marketing Information	Kingston's KSM26RD8/32MFR is a 4G x 72-bit (32GB) DDR4-2666 CL19 SDRAM (Synchronous DRAM) registered w/ parity, 2Rx8, ECC, memory module, based on eighteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-2666 timing of 19-19-19 at 1.2V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows: FEATURES Power Supply: VDD = 1.2V VDDQ = 1.2V VPP = 2.5V VDDSPD = 2.41V to 2.75V Functionality and operations comply with the DDR4 SDRAM datasheet 16 internal banks Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600 Bi-Directional Differential Data Strobe 8 bit pre-fetch Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop) Supports ECC error correction and detection On-Die Termination (ODT) Temperature sensor with integrated SPD This product is in compliance with the RoHS directive. Per DRAM Addressability is supported Internal Vref DQ level generation is available Write CRC is supported at all speed grades CA parity (Command/Address Parity) mode is supported
Product Type	RAM Module

Technical Information

Memory Size	32 GB
Memory Technology	DDR4 SDRAM
Memory Voltage	1.20 V
Number of Modules	1 x 32GB
Memory Speed	2666 MHz
Memory Data Transfer Rate	2.67 GT/s
Memory Standard	DDR4-2666/PC4-21300
Memory Rank	Dual-rank
Error Checking	ECC
Signal Processing	Registered
CAS Latency	CL19
Device Supported	Server

Physical Characteristics

Number of Pins	288-pin
Form Factor	DIMM
Width	1.2"
Length	5.3"

Miscellaneous

Country of Origin	Taiwan
Environmentally Friendly	Yes
Environmental Certification	Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmental Compliance	Restriction of Hazardous Substances (RoHS) Waste Electrical and Electronic Equipment Directive (WEEE) Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Warranty

Limited Warranty

Lifetime
