IOGEAR Dock Pro USB4 8K Triple View

Name: IOGEAR Dock Pro USB4 8K Triple View
Brand: IOGEAR
SKU: 12MT86
Price: 266.72 USD
Availability: InStock

IOGEAR

PCN#

12MT86

MFG#

GUD4C8K3

$266.72

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Free Shipping

Estimated Shipment:

Product Highlights:

Product Condition: New and Factory Fresh

Limited Warranty1 Year

Shipping Weight: 3 lbs.

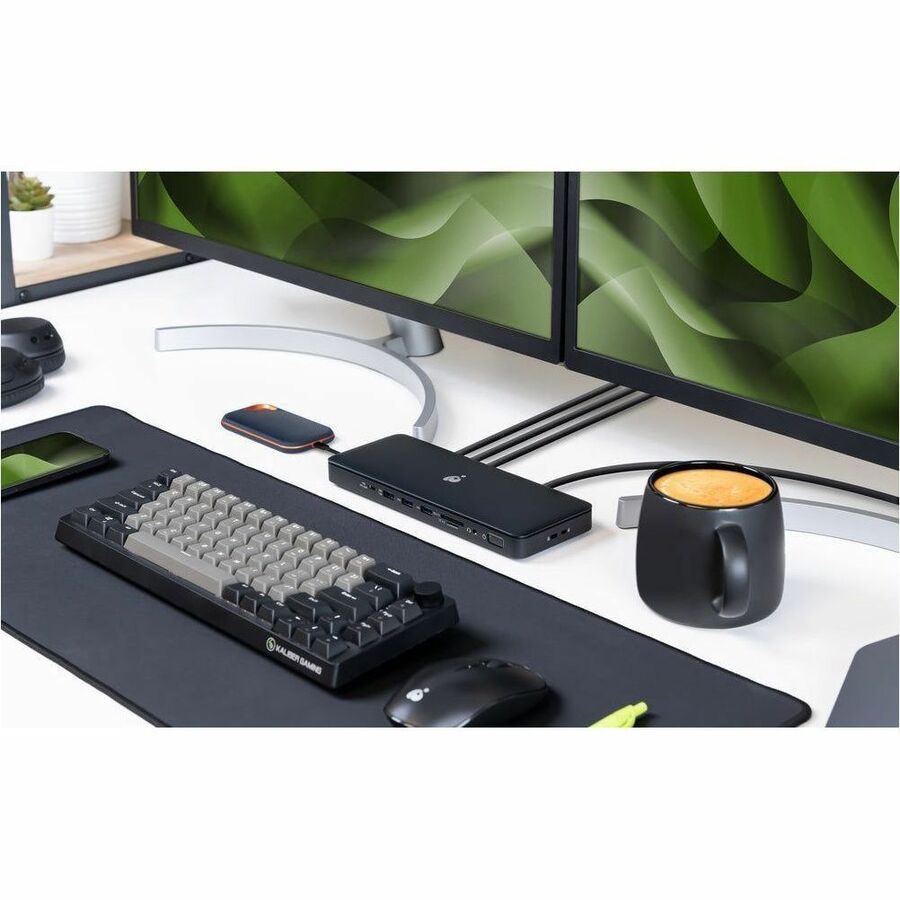

IOGEAR Dock Pro USB4 8K Triple View Docking Station

Tech Specs

Specifications

Manufacturer	IOGEAR, Inc
Manufacturer Part Number	GUD4C8K3
Manufacturer Website Address	http://www.iogear.com
Brand Name	IOGEAR
Product Line	Dock Pro
Product Name	Dock Pro USB4 8K Triple View Docking Station
Packaged Quantity	1
Product Type	Docking Station

Technical Information

Connectivity Technology	Wired
Device Supported	Notebook Smartphone
Memory Card Reader	Yes
Memory Card Supported	microSD (TransFlash) SD

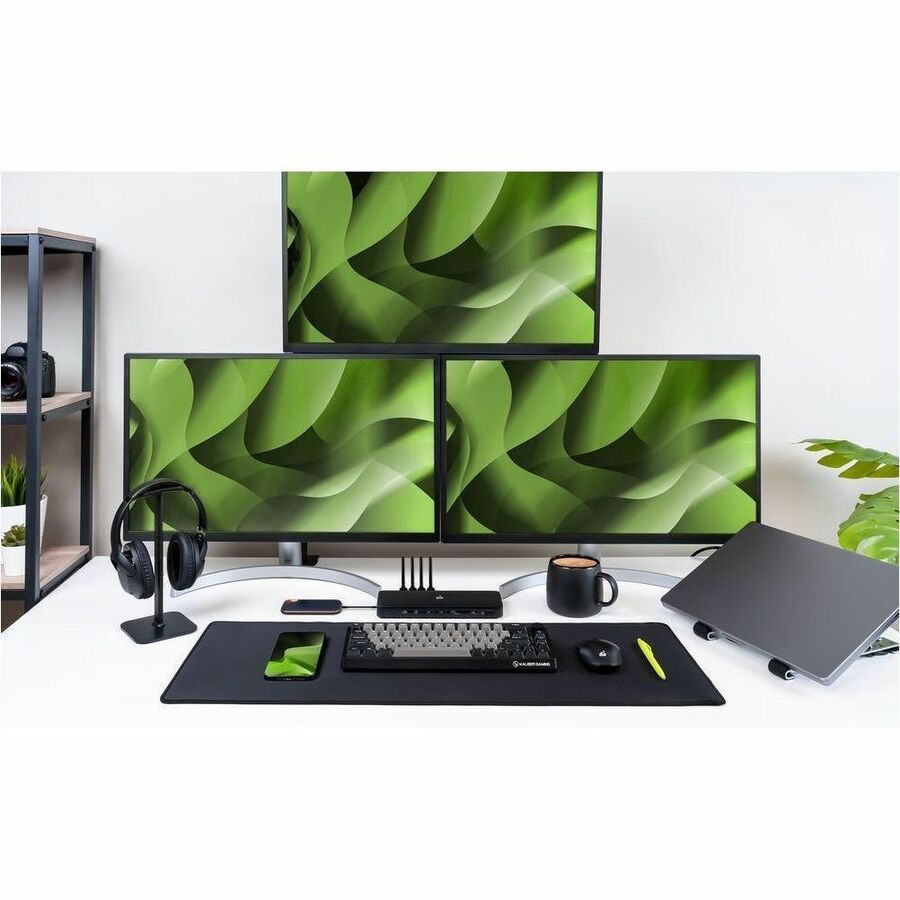

Number of Displays Supported	3
Screen Mode Supported	8K @ 30Hz
Supported Resolutions	7680 x 4320
Maximum Data Transfer Rate	5 GB/s

Network & Communication

Ethernet Technology

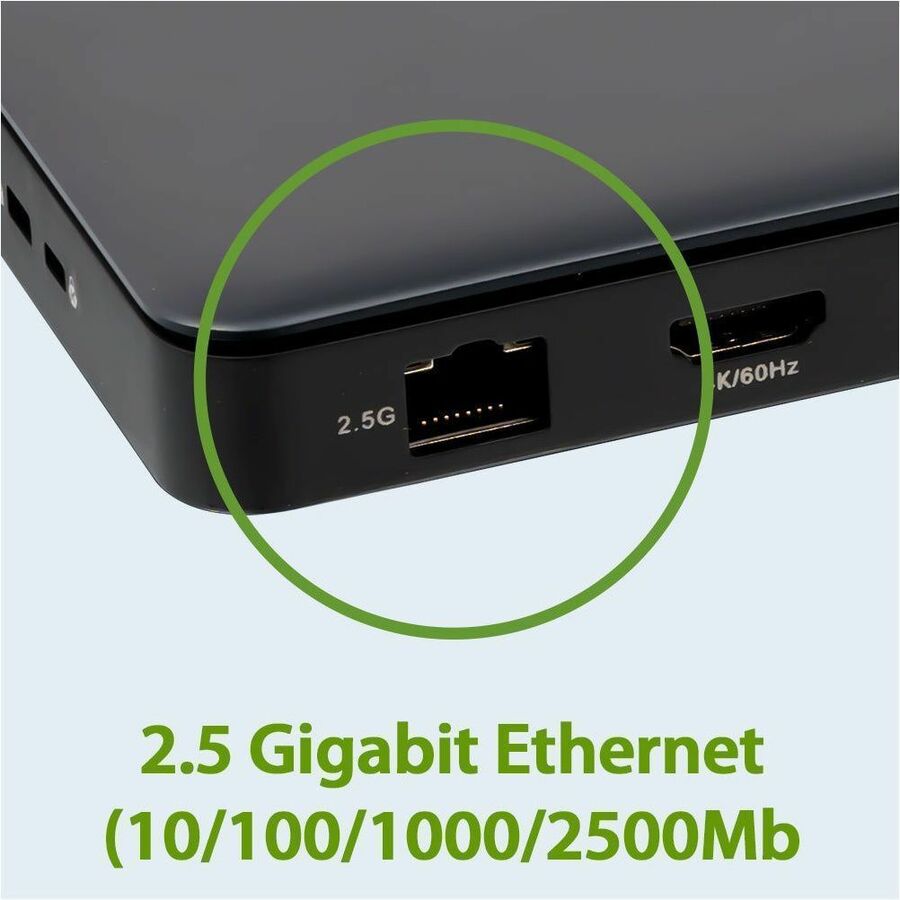

2.5 Gigabit Ethernet

Interfaces/Ports

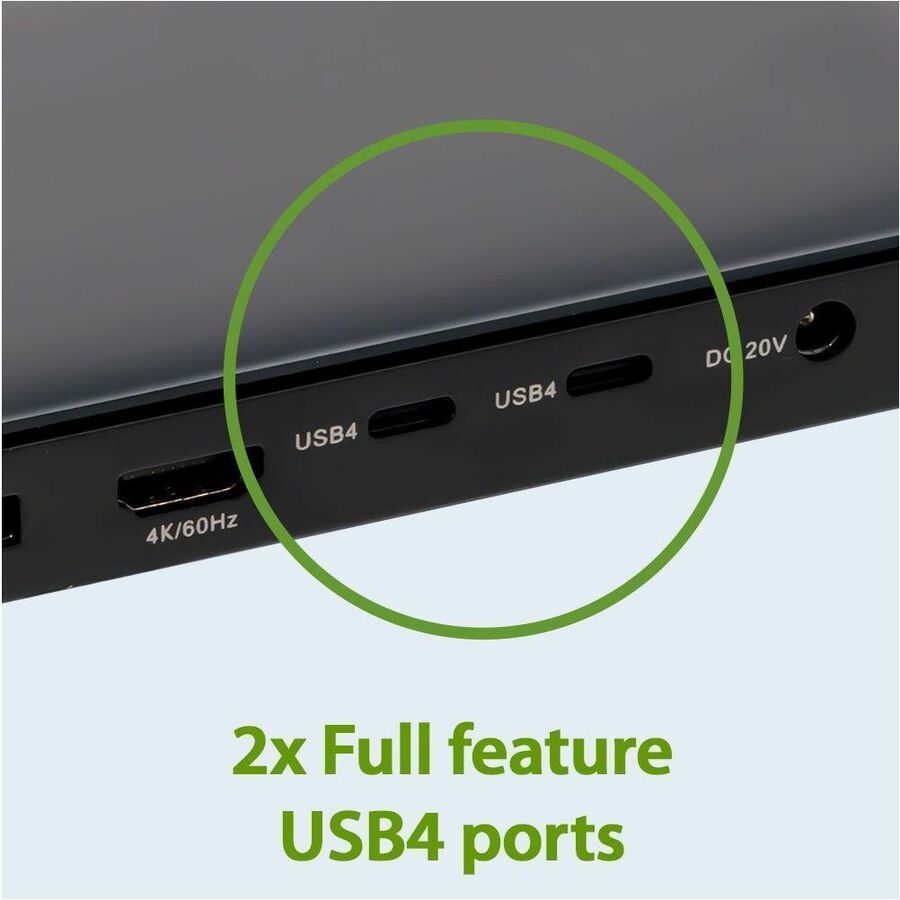

Host Interface	USB4
Total Number of USB Ports	6
USB Type-A	Yes
Number of USB 3.2 Gen 1 Type-A Ports	1
Number of USB 3.2 Gen 2 Type-A Ports	2
Number of USB Type-A Ports	3
USB Type-C	Yes
USB Type-C Detail	1 x USB 3.2 Gen 2 (10Gbps)
Number of USB Type-C Ports	3
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
Number of Network (RJ-45) Ports	1

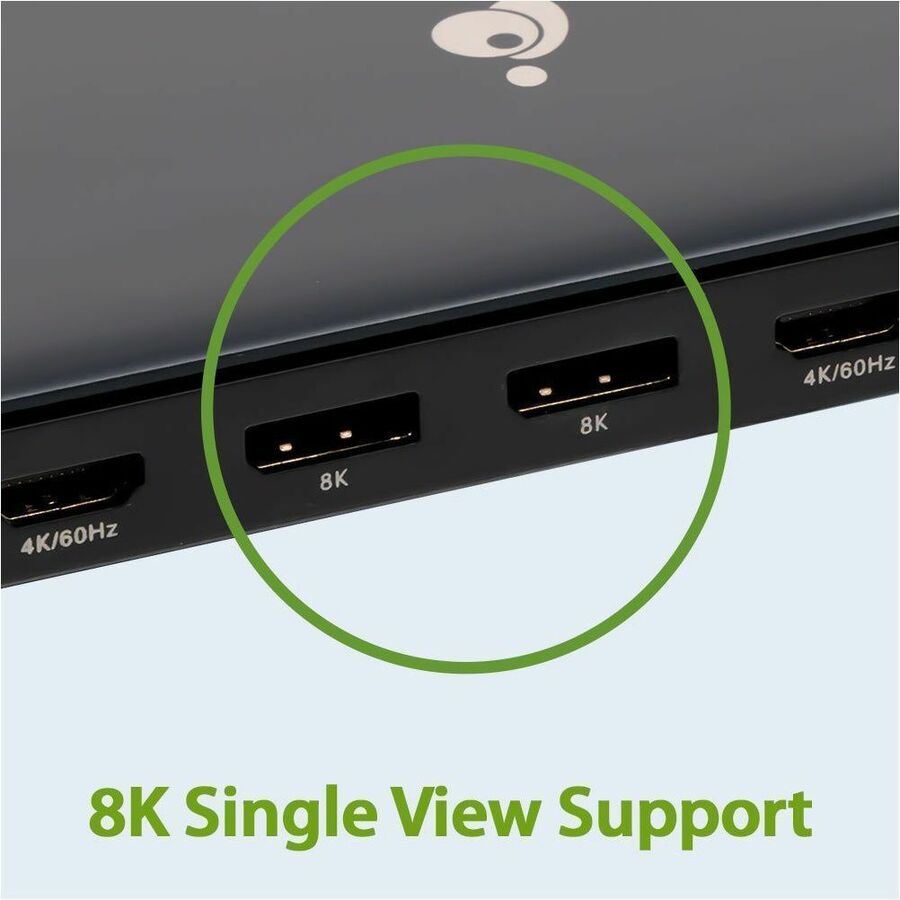

DisplayPort	Yes
Number of DisplayPorts	2
Headphone/Microphone Combo Port	Yes
HDMI	Yes
Number of HDMI Ports	2
USB Power Delivery	96W

Software

Operating System Supported

Power Description

Maximum Power Supply Wattage	150 W
Power Source Type	Power Adapter

Physical Characteristics

Miscellaneous

Package Contents	Dock Pro USB4 8K Triple View 1 x USB4 C to C Cable (.08m) 1 x Power Adapter 1 x QSG 1 x Warranty Card
System Requirements	Host device requirements USB4 or Thunderbolt 4 host required for max bandwidth (40Gbps) USB-C (DP alt mode) and Thunderbolt 3 hosts are compatible at lower bandwidth OS requirements Windows 10, 11 Mac OS X 10.13+

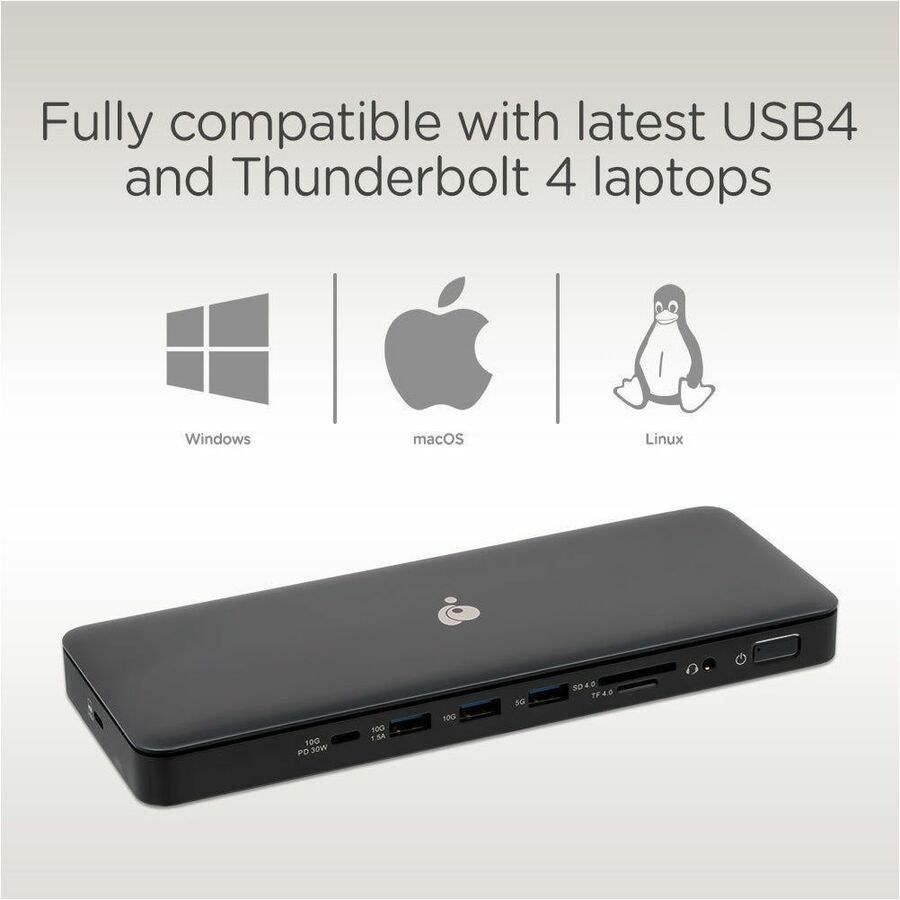

Compatibility	Fully Compatible with latest USB4 and Thunderbolt 4 laptops

Warranty

Limited Warranty

1 Year
