IDEAL FOR 19 RACKMOUNT APPLICATIONS, BLACK, 23.62 DEPTH

Name: IDEAL FOR 19 RACKMOUNT APPLICATIONS, BLACK, 23.62 DEPTH
Brand: INTELLINET
SKU: 8439AD
Price: 319.35 USD
Availability: InStock

INTELLINET

PCN#

8439AD

MFG#

713863

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$319.35

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Estimated Shipment:

Product Highlights:

? Flat Pack Design ? Ideal for 19" rackmount applications ? Maximum static load of 30 kg ? Usable depth: 279 mm (10.98 in.) to 359 mm (14.13 in.) ? Cable entry via rear or top panel ? 4MM toughened glass door ? Rear door for easy access to back of cabinet ? Reversible Front door ? Cold
rolled, galvanized SPCC steel with up to 1.5 mm thickness ? Ships Flatpacked ? Three
Year Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 52 lbs.

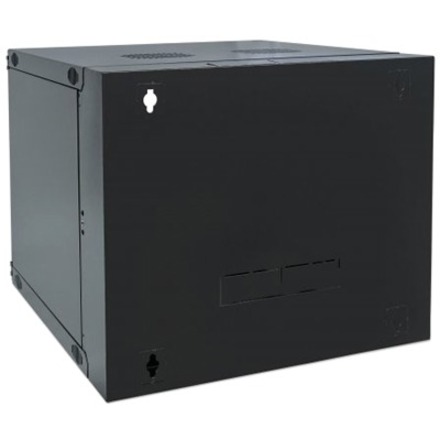

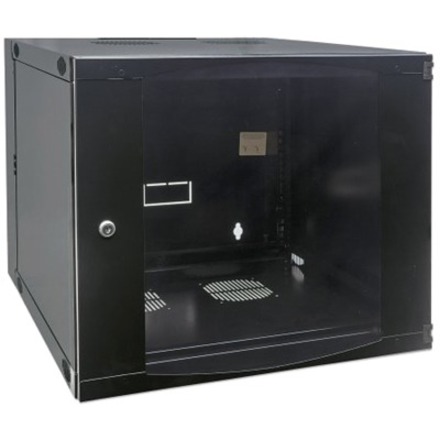

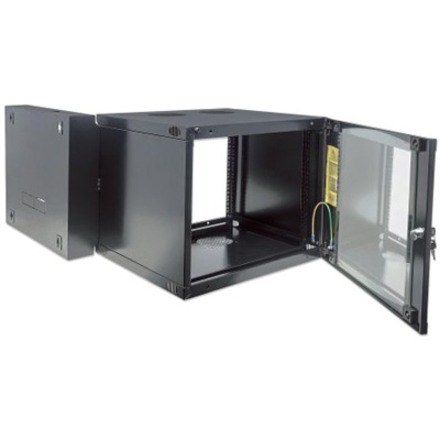

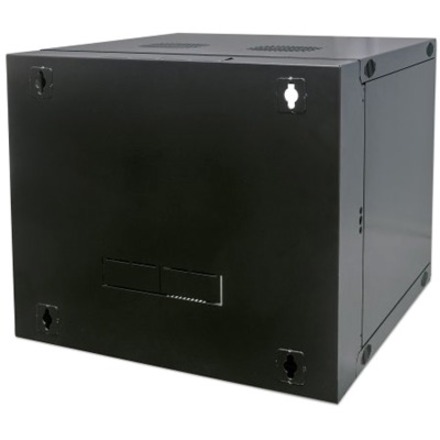

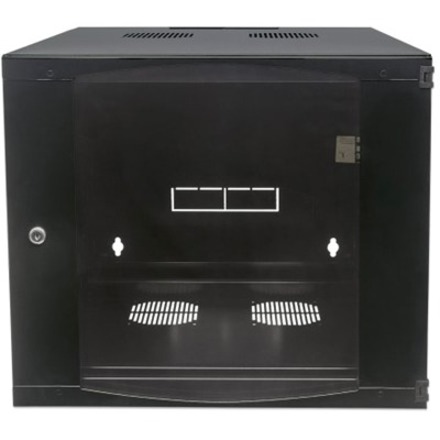

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 12U, 600mm Deep, Black, Flatpack, Max 30kg, Swings out for access to back of cabinet when installed on wall, Rack, Usable Depth 385mm, Parts for wall installation not included

Overview

Tech Specs

Specifications

Manufacturer	IC INTRACOM
Manufacturer Part Number	713863
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Name	19" Double Section Wallmount Cabinet, 12U, 600 mm (23.6 in.) Depth, Black
Marketing Information	Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. Since they ship flat-pack (unassembled), they save you space and money. High quality features include a 4MM toughened glass door and cold-rolled galvanized steel. The rear door access to the back of the cabinet makes cabinet and component exchange a breeze. Completely assembled versions are available in certain countries.
Product Type	Rack Cabinet

Technical Information

Application/Usage	LAN Switch Patch Panel
Features	Reversible Front Door Rear Door

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Cold Rolled Steel SPCC Toughened Glass
Static/Stationary Weight Capacity	66.14 lb
Height	23.3"
Width	21.3"
Depth	23.6"
Weight (Approximate)	57.98 lb
Rack Height	12U
Rack Width	19"

Miscellaneous

Package Contents	2 x Rail frames Top, Bottom, Front, Back & Side Panels Installation Hardware Including 10 x M6 Sets and 4 x Keys
Assembly Required	Yes

Warranty

Limited Warranty

3 Year
