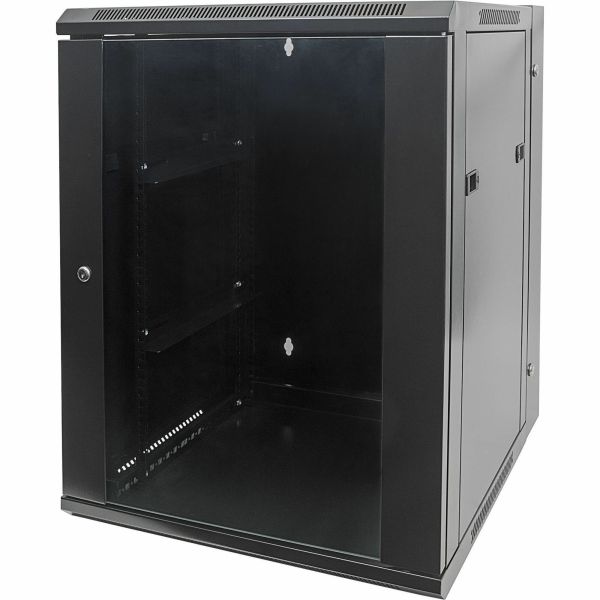

15U WALL MOUNT CABINET

Name: 15U WALL MOUNT CABINET
Brand: INTELLINET
SKU: 7082AD
Price: 341.55 USD
Availability: InStock

INTELLINET

PCN#

7082AD

MFG#

712019

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$341.55

Extended & Accidental Damage Protection Plans Available Details

2-Year $40.99

3-Year $53.99

Estimated Shipment:

Product Highlights:

? Ideal for 19" rackmount applications ? Maximum static load of 30 kg ? Usable depth: 62 mm (2.44 in.) to 369 mm (14.53 in.) ? Tempered
glass door can be opened more than 180° ? Cable entry via top panel ? Rear door for easy access to back of cabinet ? Cold
rolled, galvanized SPCC steel with up to 1.2 mm thickness ? Reversible Front door ? Easily removable side panels ? Ships assembled ? Three
Year Warranty

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 70 lbs.

19" Network Cabinet - Wall Mount (Double Section Hinged Swing Out), 15U, 550mm Deep, Black, Assembled, Max 30kg, Swings out for access to back of cabinet when installed on wall, 19" ,Usable Depth 425mm, Parts for wall installation not included

Overview

Tech Specs

Specifications

Manufacturer	IC INTRACOM
Manufacturer Part Number	712019
Manufacturer Website Address	http://www.icintracom.com
Brand Name	Intellinet
Product Name	19" Double Section Wallmount Cabinet, 15U, 550 mm (21.7 in.) Depth, Black
Marketing Information	Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.
Product Type	Rack Cabinet

Technical Information

Application/Usage	LAN Switch Patch Panel
Features	Reversible Front Door Rear Door Removable Side Panel

Physical Characteristics

Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Tempered Glass Cold Rolled Steel SPCC
Static/Stationary Weight Capacity	66.14 lb
Height	30.3"
Width	23.6"
Depth	21.7"
Weight (Approximate)	68.34 lb
Rack Height	15U
Rack Width	19"
Rack Depth	16.73"

Miscellaneous

Package Contents	19" Double Section Wallmount Cabinet, 15U, 550 mm (21.7 in.) Depth, Black Installation Hardware Including Tool, 20 x M6 Sets and 6 x Keys
Assembly Required	No

Warranty

Limited Warranty

3 Year
