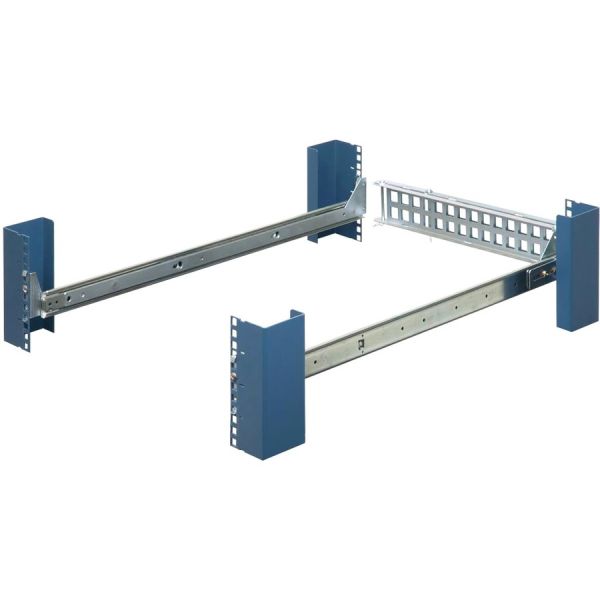

Rack Solutions 2U 100-J Ball Bearing Rail for Dell with Cable Management Arm

This kit reduces the overall mounting depth of the PE2950 from 36" (914 mm) down to 30.8" (782 mm). This QUICKRAIL-2950 kit replaces the original Dell OEM Ready Rails. This kit is designed to quickly snap into square hole racks without tools. This QUICKRAIL-2950 kit resolves some of the common issues associated with the Dell OEM Ready Rail kit such as obstructions with the frame of the rack as well as problems with the installation depth range. This QUICKRAIL-2950 kit comes with complete cable management. This cable management arm reduces the installation depth required by the PE2950 by a full 5.2" (132 mm).

Sliding Quick Rail Kit Includes:

• 1 x Cable Management Arm Assembly
• 2 x Rail Assembly
• 7 x (10-32 x .375) Truss Head Screws
• 2 x (8-32 x .188) Phil Pan Head
• 2 x (8-32 x .375) Phil Pan Head
• 1 x Long CMA Bracket

• Ball Bearing slide rails
• Complete Cable Management
• Works with Square Hole Rack
• Installation Depth: 29.6" or 30.8"
• Rack Width: Standard 19" racks
• Rack Type: 4 Post 19" Rack with Square Hole mounting surface
• Square Hole Racks: Compatible with industry standard 3/8" square hole racks
• Rack Flange Type: Standard "L" Shaped Uprights or Non-Standard "C" , "Z" , and "?" Shapes

Dell PowerEdge 2950 Server

EIA-310
