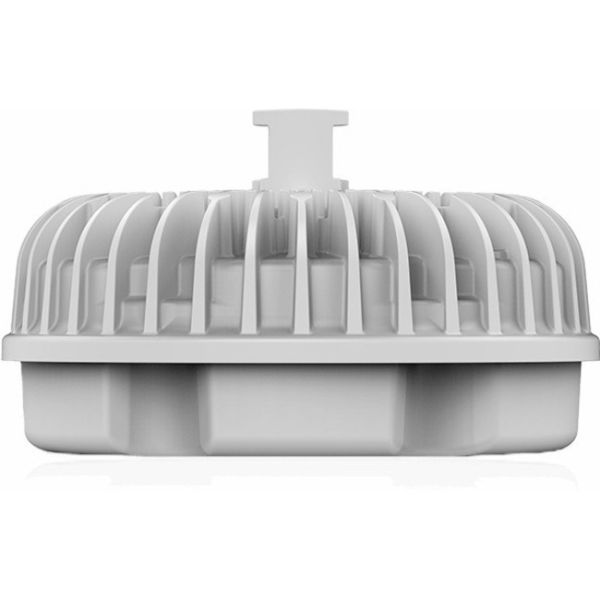

Aruba AP-577 Dual Band 802.11ax 4.80 Gbit/s Wireless Access Point - Outdoor

Name: Aruba AP-577 Dual Band 802.11ax 4.80 Gbit/s Wireless Access Point - Outdoor
Brand: HPE - ARUBA HARDWARE
SKU: 9ZR754
Price: 2219.18 USD
Availability: InStock

HPE - ARUBA HARDWARE

PCN#

9ZR754

MFG#

R4H20A

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$2,219.18

Extended & Accidental Damage Protection Plans Available Details

2-Year $168.99

3-Year $225.99

Free Shipping

Estimated Shipment:

Product Highlights:

2.40 GHz, 5 GHz
Internal
MIMO Technology
2 x Network (RJ
45)
Gigabit Ethernet, 2.5 Gigabit Ethernet
Bluetooth 5
Flush Mount, Pole
mountable, Ceiling Mountable

Product Condition: New and Factory Fresh

Shipping Weight: 6 lbs.

Aruba AP-577 Dual Band 802.11ax 4.80 Gbit/s Wireless Access Point - Outdoor

Overview

Tech Specs

Specifications

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R4H20A
Manufacturer Website Address	http://www.hpe.com
Brand Name	Aruba
Product Series	570
Product Model	AP-577
Product Name	AP-577 Wireless Access Point
Marketing Information	High performance Wi-Fi 6 (802.11ax) for outdoor environments Weatherproof and temperature hardened, Aruba 570 Series access points deliver the highest Wi-Fi 6 performance in outdoor and environmentally challenging locations. The high-performance and high power 570 Series APs deliver maximum capacity and range. It delivers 4x4:4SS MU-MIMO capability, Aruba's advanced ClientMatch and integrated Bluetooth to enable Aruba location services. Purpose-built to survive in the harshest outdoor environments, 570 Series APs withstand exposure to extreme high and low temperatures, persistent moisture and precipitation, and are fully sealed to keep out airborne contaminants. All electrical interfaces include industrial strength surge protection. Aruba Wi-Fi 6 access points provide high-performance connectivity in dense mobile and IoT environments. With maximum aggregate on air data rates of 3 Gbps (HE80/HE40), the 570 Series APs deliver the speed and reliability needed for demanding environments. INCREDIBLE EFFICIENCY The 570 Series APs are designed to optimize user experience by maximizing Wi-Fi efficiency and dramatically reducing airtime contention between clients. Features include Uplink and Downlink Orthogonal Frequency Division Multiple Access (OFDMA), Downlink Multi-User MIMO (MU-MIMO) and cellular co-location. With up to 4 spatial stream and 160 MHz channel capability, the 570 Series provides groundbreaking wireless capabilities for any application. Read the Multi-User 802.11ax white paper for further information. Advantages of OFDMA This capability allows Aruba Wi-Fi 6 APs to handle multiple Wi-Fi 6 enabled clients simultaneously on a single radio. Channel utilization is optimized per transaction by matching allocated bandwidth in a channel to the offered user load. These sub divisions of the channel are referred to as Resource Units (RU). Multi-User MIMO (MU-MIMO) The 570 Series APs support downlink MU-MIMO similar to Wi-Fi 5 (802.11ac Wave 2) APs. With the introduction OFDMA in Wi-Fi 6, the overhead for this capability is reduced and MU-MIMO effectiveness is substantially improved for large client counts. Wi-Fi 6 and MU-MIMO aware client optimization Aruba's patented Al powered ClientMatch technology ensures that all clients are attached to their best serving Access Point. Session metrics, network metrics, applications and client type are used to identify and maintain the best connection. Advanced Cellular Coexistence (ACC) The ACC feature uses built in filtering to automatically minimize the impact of interference of high power cellular base stations, in building distributed antenna systems as well as small cell and femtocell equipment.
Product Type	Wireless Access Point

Technical Information

Wireless LAN Standard	802.11ax
Bluetooth Standard	Bluetooth 5
Network Band	Dual Band
Frequency Band	2.40 GHz 5 GHz
Indoor/Outdoor	Outdoor
Wireless Transmission Speed	4.80 Gbit/s
MIMO Technology	Yes
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA3 WPA2-MPSK

Interfaces/Ports

Ethernet Technology	Gigabit Ethernet 2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports	2
PoE PD Port	Yes
USB	Yes
Management Port	Yes

Physical Characteristics

Form Factor	Flush Mount Pole-mountable Ceiling Mountable
Antenna Form Factor	Internal
Height	5.5"
Width	9.1"
Depth	8.7"
Weight (Approximate)	4.63 lb
