HPE MICROSVR G10+ V2 G6405 16G NHP SVR PL-LA

by
HPE
PCN#
09AL79
MFG#
P54644-001
$840.64
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Intel C252 Chip
  • 1 Processor Support
  • 64 GB RAM Support

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 YearAdditional Warranty InformationServer Warranty includes 1- Year Parts, 1-Year Labor, 1- Year Onsite support with next business day response
Shipping Weight: 40 lbs.

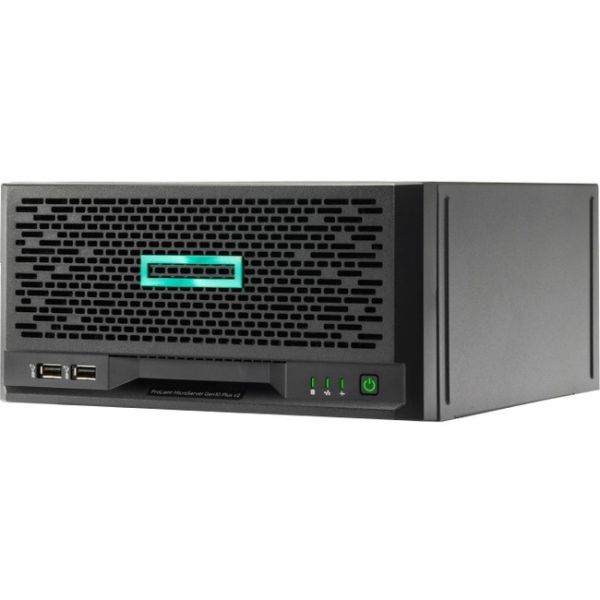

HPE ProLiant MicroServer Gen10 Plus v2 Ultra Micro Tower Server - 1 x Intel Pentium Gold G6405 4.10 GHz - 16 GB RAM - Serial ATA/600 Controller
Tech Specs
Specifications

Manufacturer

Hewlett Packard Enterprise

Manufacturer Part Number

P54644-001

Manufacturer Website Address

http://www.hpe.com

Brand Name

HPE

Product Line

ProLiant

Product Series

MicroServer Gen10 Plus v2

Product Name

ProLiant MicroServer Gen10 Plus V2 Server

Marketing Information

HPE ProLiant MicroServer Gen10 Plus v2

HPE ProLiant MicroServer Gen10 Plus v2 delivers an affordable compact yet powerful entry level server that you can customize for on-premises, hybrid cloud, or even workloads demanding datacenter performance. It has the same design as the previous version and can be placed flat or vertically depending on customer environment. The latest Intel Xeon® E and Pentium® supported processors deliver compute performance as well as security and remote management into the server with HPE iLO silicon root of trust. Along with other enhancements such as 4x 1GbE onboard NICs and USB 3.2 Gen2 Type-A, whether you want a general- purpose server, NAS or even a virtualization server, you will be surprised at how much you can get out of this small and affordable server.

Product Type

Server
Processor

Number of Processors Supported

1

Number of Processors Installed

1

Processor Manufacturer

Intel

Processor Type

Pentium Gold

Processor Model

G6405

Processor Core

Dual-core (2 Core)

Processor Speed

4.10 GHz

Cache

4 MB
Chipset

Chipset Manufacturer

Intel

Chipset Model

C252
Memory

Standard Memory

16 GB

Maximum Memory Supported

64 GB

Memory Technology

DDR4 SDRAM

Memory Clock Speed

3.20 GHz

Error Checking

ECC

Number of Total Memory Slots

2

Number of Occupied Memory Slots

1

Signal Processing

Unregistered (Unbuffered)
Storage

Total Hard Drive Capacity

No

Optical Drive Type

No
Controllers

Controller Type

Serial ATA/600

Controller Model

VROC

RAID Supported

Yes
I/O Expansions

Number of Total Expansion Bays

4

Number of 3.5" Bays

4

Number of LFF Bays

4

Hot Swappable Bays

No

Total Number of Expansion Slots

1.0

PCI Express Details

1 standard (Low Profile) PCIe 4.0
Network & Communication

Ethernet Technology

Gigabit Ethernet
Interfaces/Ports

Total Number of USB Ports

7

Number of USB 2.0 Ports

1

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

4

VGA

Yes

Number of VGA Ports

1

DisplayPort

Yes

Number of DisplayPorts

1
Operating System

Operating System Supported

  • Windows Server 2019 Essentials
  • Windows Server 2019 Standard
  • Windows Server 2019 Datacenter
  • Hyper-V
  • Windows Server 2022 Essentials
  • Windows Server 2022 Standard
  • Windows Server 2022 Datacenter
  • Red Hat Enterprise Linux 8.4

Operating System

No
Power Description

Input Voltage

  • 120 V AC
  • 230 V AC

Number of Power Supplies Supported

1

Number of Power Supplies Installed

1

Plug/Connector Type

C5

Maximum Power Supply Wattage

180 W

Redundant Power Supply

No
Physical Characteristics

Form Factor

Ultra Micro Tower

Height

4.7"

Width

9.7"

Depth

9.7"

Weight (Approximate)

15.87 lb
Miscellaneous

Package Contents

  • ProLiant MicroServer Gen10 Plus V2 Server
  • 6 ft/1.83m C5 Power Cord
  • 1 x 180W External Power Adapter

Security Features

  • UEFI Secure Boot and Secure Start support
  • Immutable Silicon Root of Trust
  • FIPS 140-2 validation
  • Common Criteria certification
  • Configurable for PCI DSS compliance
  • Ability to rollback firmware
  • Secure erase of NAND/User data
  • TPM (Trusted Platform Module) 2.0 option
  • Front bezel lock feature, standard
  • Padlock slot, standard
  • Kensington Lock slot, standard
  • Power cord clip, standard

Environmentally Friendly

Yes

Environmental Compliance

Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty

Limited Warranty

1 Year

Additional Warranty Information

Server Warranty includes 1- Year Parts, 1-Year Labor, 1- Year Onsite support with next business day response
