ARUBA EC-10104-NFR SD-WAN GATEWAY US EN PL-RZ

Name: ARUBA EC-10104-NFR SD-WAN GATEWAY US EN PL-RZ
Brand: HPE - ARUBA EDGE CONNECT
SKU: NQ5092
Price: 1524.62 USD
Availability: InStock

HPE - ARUBA EDGE CONNECT

PCN#

NQ5092

MFG#

R9Y07A#ABA

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$1,524.62

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

4 Ports
2 RJ
45 Port(s)
2 WAN Port(s)
Management Port
Gigabit Ethernet
IEEE 802.1Q, IEEE 802.3i, IEEE 802.3u, IEEE 802.1ab
1U
Rack
mountable, Desktop

Product Condition: New and Factory Fresh

Shipping Weight: 2 lbs.

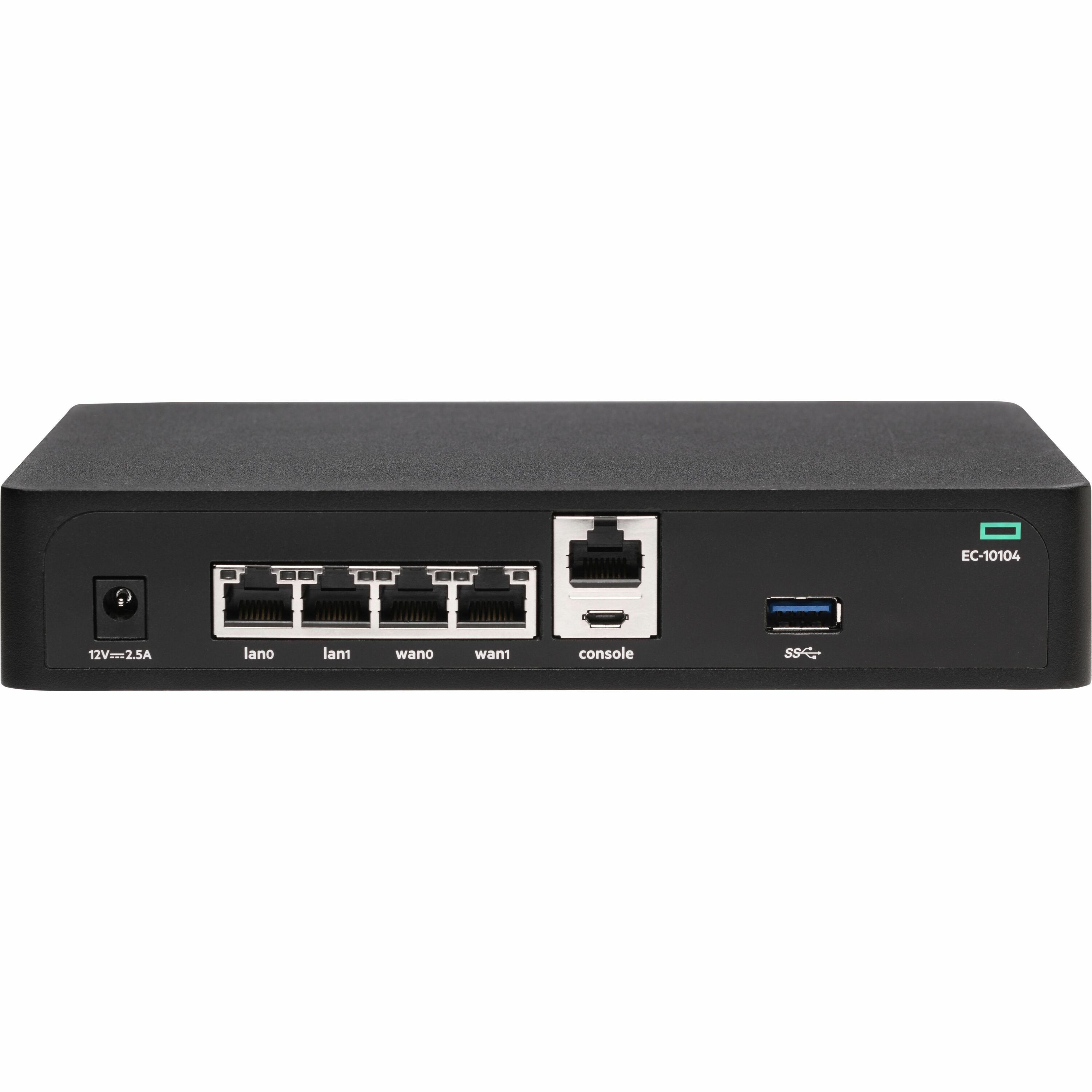

Aruba EdgeConnect EC-10104-NFR Router

Overview

Tech Specs

Specifications

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R9Y07A#ABA
Manufacturer Website Address	http://www.hpe.com
Brand Name	Aruba
Product Line	EdgeConnect
Product Model	EC-10104-NFR
Product Name	EdgeConnect EC-10104-NFR Router
Marketing Information	The HPE Aruba Networking EdgeConnect 10104 is a small form factor, thin edge SD-WAN gateway appliance that serves to build an SD-WAN fabric using zero touch provisioning. It supports MPLS, 4G/5G/LTE and internet-based hybrid WAN transport services and a control plane that is automated and secured by the HPE Aruba Networking WAN Orchestrator centralized management software, providing policy-based virtual network segmentation and acceleration of on-premises and SaaS cloud applications. A key feature of EC-10104 is silent, fanless operation, making it an ideal platform for small branch and home office environments with typical WAN bandwidth from 1 to 500 Mbps (bidirectional).
Product Type	Router

Interfaces/Ports

Total Number of Ports	4
USB Standard	USB 3.0
Management Port	Yes
Number of Network (RJ-45) Ports	2
Number of WAN Ports	2

Network & Communication

Ethernet Technology	Gigabit Ethernet
Networking Standards	IEEE 802.1Q IEEE 802.3i IEEE 802.3u IEEE 802.1ab

Power Description

Power Consumption	48 W
Power Source	Power Supply

Physical Characteristics

Compatible Rack Unit	1U
Form Factor	Rack-mountable Desktop
Height	1.5"
Width	7.8"
Depth	6"
Weight (Approximate)	2.51 lb

Miscellaneous

Certifications & Standards

47 CFR FCC Part15B/ICES-003 Issue 7 Class B
EN 55032 Class B
EN55035
IEC/N61000-3-2/3-3
VCCI Class B
CISPR 32 Class B
CISPR 35
EN 300 386 V2.1.1
IEC/EN 60950-1:2005 w/all known National Deviations
IEC/EN 62368-1(2nd and 3rd Ed) w/all known National Deviations
UL 62368-1 3rd Ed
CSA C22.2 No. 62368-1:19 3rd Ed
