HPE ANW 8100-40XT8XF4C BF3F2AC BDL PDU PL-L1

Name: HPE ANW 8100-40XT8XF4C BF3F2AC BDL PDU PL-L1
Brand: HPE - ARUBA DCN
SKU: NK4310
Price: 23393.98 USD
Availability: InStock

HPE - ARUBA DCN

PCN#

NK4310

MFG#

R9W93A#B2B

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$23,393.98

Extended & Accidental Damage Protection Plans Available Details

2-Year $2,118.99

3-Year $2,787.99

Free Shipping

Estimated Shipment:

Product Highlights:

40 Ports
Manageable
Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet
10GBase
X, 100GBase
X, 10GBase
T, 5GBase
T, 2.5GBase
T, 40GBase
X
3 Layer Supported
4 SFP Slots
500 W Power Consumption
Optical Fiber
Black
1U
Rack
mountable
Lifetime Limited Warranty

Product Condition: New and Factory Fresh

Limited WarrantyLifetime

Shipping Weight: 12 lbs.

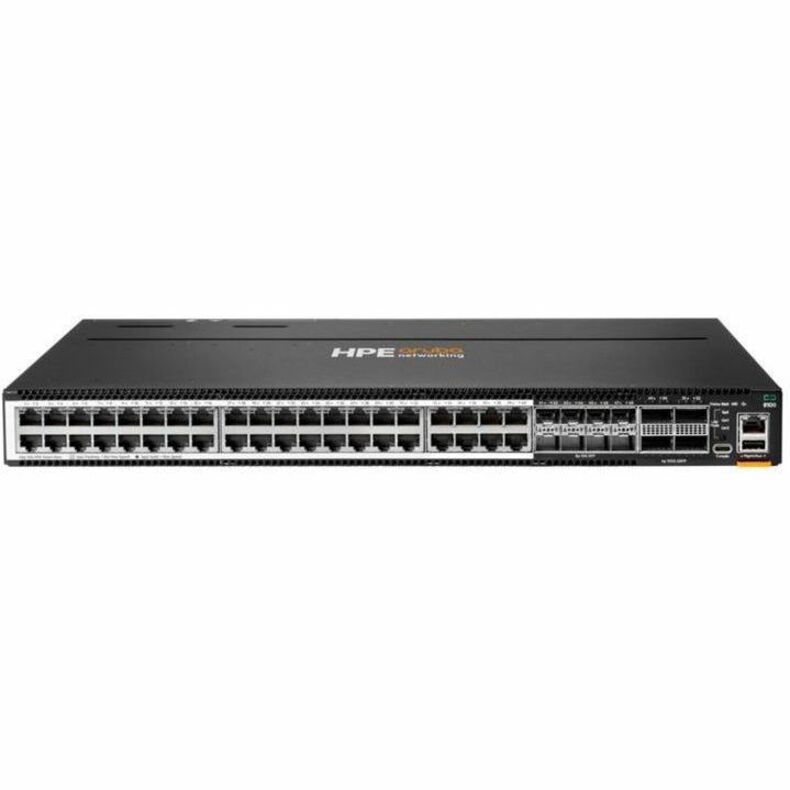

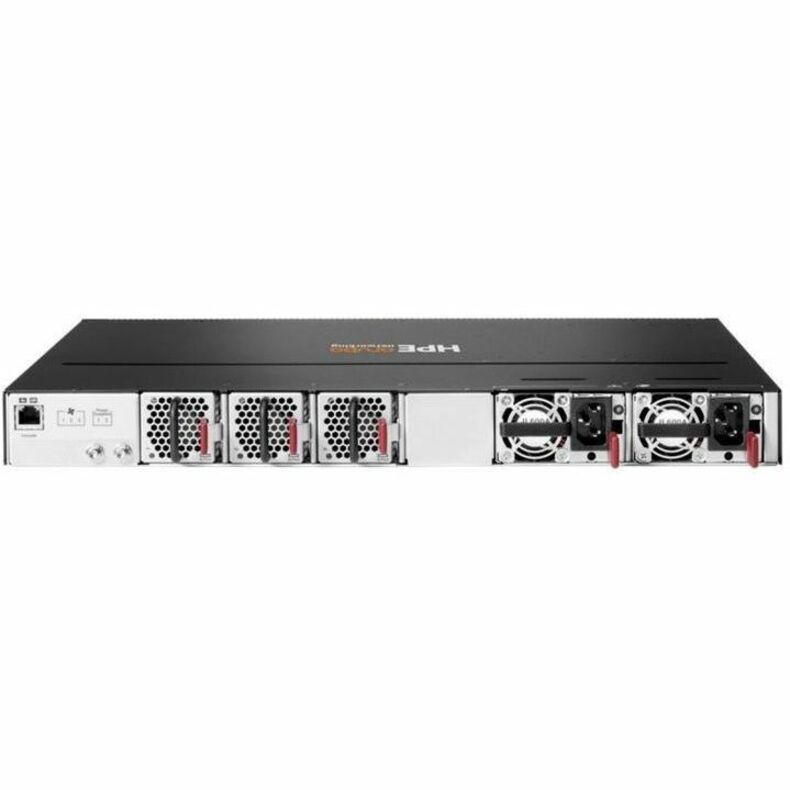

Aruba CX 8100 Ethernet Switch

Overview

Tech Specs

Specifications

Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R9W93A#B2B
Manufacturer Website Address	http://www.hpe.com
Brand Name	Aruba
Product Series	CX 8100
Product Name	CX 8100 Ethernet Switch
Marketing Information	High-performance 1.76Tbps of bi-directional switching and 1,309 Mpps of forwarding designed for aggregation in the campus or top-of-rack in data center environments. Four different base models, each sold in bundles that support two airflow modes (Front to Back, and Back to Front) with Advanced Layer 2/3 feature set that includes BGP, OSPF, VRF, and IPv6. High availability with industry-leading VSX redundancy and redundant power supplies and fans. Aruba AOS-CX automation and programmability using built-in REST APIs and Python scripts with intelligent monitoring and visibility delivered by the Aruba Network Analytics Engine.
Packaged Quantity	1
Product Type	Ethernet Switch

Technical Information

High Availability Supported

Yes

Interfaces/Ports

Total Number of Network Ports	40
Network (RJ-45)	Yes
Port/Expansion Slot Details	40 x 10BASE-T Gigabit Ethernet RJ-45 Network Port 8 x 10 Gigabit Ethernet SFP+ Expansion Slot 4 x 40/100 Gigabit Ethernet QSFP28 Expansion Slot 1 x RJ-45 Serial Port 1 x USB-C Console Port 1 x RJ-45 Ethernet Port 1 x USB-Type A Port

Media & Performance

Media Type Supported	Optical Fiber
Ethernet Technology	Gigabit Ethernet 2.5 Gigabit Ethernet 5 Gigabit Ethernet 10 Gigabit Ethernet 40 Gigabit Ethernet 100 Gigabit Ethernet
Network Technology	10GBase-X 100GBase-X 10GBase-T 5GBase-T 2.5GBase-T 40GBase-X
Maximum Data Transfer Rate	12.50 GB/s

I/O Expansions

Total Number of Expansion Slots	12
Expansion Slot Type	SFP+ QSFP28 QSFP+
Number of SFP Slots	4
Number of SFP+ Slots	4

Network & Communication

Layer Supported	3
Networking Standards	IEEE 802.3z IEEE 802.1Q IEEE 802.3ab IEEE 802.1p IEEE 802.3x IEEE 802.3ad IEEE 802.1w IEEE 802.3ae IEEE 802.1s IEEE 802.1t IEEE 802.1v IEEE 802.1ab IEEE 802.1ak IEEE 802.3an IEEE 802.3ba IEEE 802.1AX IEEE 802.3by

Management & Protocols

Manageable

Yes

Power Description

Input Voltage	120 V AC 230 V AC
Frequency	50 Hz 60 Hz
Power Source	AC Power Supply
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Power Consumption	500 W

Physical Characteristics

Color Family	Black
Product Color	Black
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.4"
Depth	16"
Weight (Approximate)	18.89 lb

Miscellaneous

Package Contents	CX 8100 Ethernet Switch 2 x Power Supplies with No open PS slots 3 x Fan Tray with No open FT Slots 1 x 2-Post Rack Kit
Application/Usage	Campus Data Center Network
Certifications & Standards	IEC 61000-4-11 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 EN 61000-4-4 EN 61000-4-2 EN 61000-4-3 EN 61000-4-6, ICES-003 Class A EN 61000-4-5 EN 61000-4-11 Laser Class 1 EN 61000-4-8 VCCI Class A EN 61000-3-3:2013 IEC 61000-3-3:2013 EMC 2014/30/EU CNS 13438 Class A Directive 2014/35/EU KN32 Class A EN 55032:2015 CISPR 35 EN 60825-1:2014 EN 55035:2017 IEC 62368-1: 2014 EN 62368-1:2014 Second Edition EN 61000-3-2:2019 IEC 60825-1:2014 Class 1 IEC 61000-3-2:2019 IEC 62368-1:2018 EN 63000:2018 UL62368-1/CAN/CSA C22.2 No.62368-1 FCC CFR 47 Part 15: 2018 Class AS/NZS CISPR 32:2015 Class A CISPR-32 Class A EN 62368-1:2020 3rd Edition

Warranty

Limited Warranty

Lifetime
