TAA ROW VER INK-IN/OUT 3IN.CORE 203 USPC

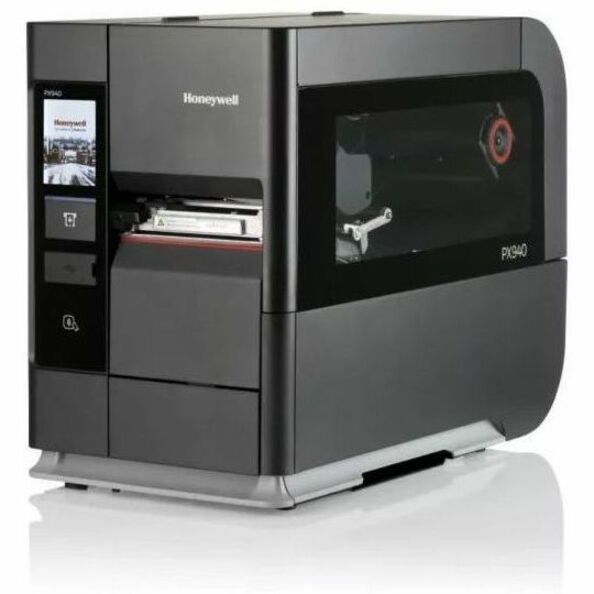

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.

The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.

• 2D
• 1D
• Code 128
• Code 39
• EAN-128
• EAN-13
• EAN-8
• GS1 DataBar Expanded
• GS1-128
• HIBC Code 128
• HIBC Code 39
• ISBT-128
• ITF-14
• Interleaved 2 of 5
• RSS14E
• SCC-14
• UPC-A
• UPC-E
• ISBT Data Matrix
• QR Code
• Data Matrix

• Industrial
• Healthcare
• Manufacturing
• Warehouse
• Automotive

• LCD Display
• Self Strip
• Label Verification
• Touch Display

• Gap
• Black Mark
• Tag
• Notch
• Label
• Continuous Label

• DPL
• Fingerprint
• ZSim2
• ZPL II
• WMSDirect Protocol (DP)
• Intermec Printer Language (IPL)
• XML-enabled for SAP AII & Oracle WMS
• PDF

• 50 Hz
• 60 Hz
