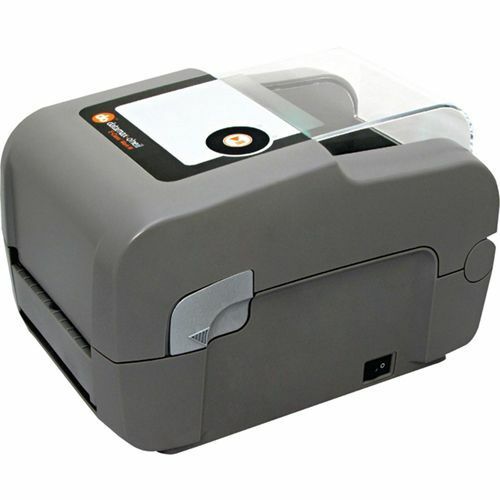

Datamax-O'Neil E-Class E-4205A Desktop Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - Serial - Parallel - Warm Gray

by
HONEYWELL
PCN#
PD2027
MFG#
EA2-00-0J005A01
$364.27
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • 4.25" Print Width
  • 5 in/s Mono
  • 203 dpi

Show more

Product Condition: New and Factory Fresh
Limited Warranty1 Year
Shipping Weight: 9 lbs.
Datamax-O'Neil E-Class E-4205A Desktop Direct Thermal Printer - Monochrome - Label Print - Fast Ethernet - USB - Serial - Parallel - Warm Gray
Tech Specs
Specifications

Manufacturer

Honeywell International, Inc

Manufacturer Part Number

EA2-00-0J005A01

Manufacturer Website Address

http://www.honeywell.com

Brand Name

Datamax-O'Neil

Product Line

E-Class

Product Model

E-4205A

Product Name

E-Class Mark III E-4205A Label Printer

Marketing Information

3 Dimensions of Value

The E-Class Mark III is a family of compact desktop thermal printers that are designed for a wide variety of industries and applications that require a reliable and cost effective barcode printer. Datamax-O'Neil applied its industrial printer expertise to provide customers with an entry level printer that has the features and reliability normally found in more expensive printers. The E-Class Mark III is affordable to own, easy to use and economical to operate.

We've made the E-Class Mark III thermal barcode printer easy to use with quick loading media and an interactive LCD screen. Users will also notice a substantial reduction in their daily operational costs thanks to the E-Class Mark III's larger media and ribbon roll capacity. The E-Class Mark III is one of the best values on the market. It is competitively priced with a proven design and reliable performance that will continue to operate long after other barcode printers have failed.

Product Type

Direct Thermal Printer
Technical Information

Recommended Use

Label Print

Print Color Capability

Monochrome

Maximum Mono Print Speed

5 in/s

Maximum Print Resolution (dpi)

203

Maximum Print Width

4.25"

Barcode Symbology Supported

  • Code 3 of 9
  • UPC-A
  • UPC-E
  • Interleaved 2 of 5
  • Code 128
  • EAN-13
  • EAN-8
  • HIBC
  • Codabar
  • Plessey
  • UPC 2 and 5 Digit Addendums
  • Code 93
  • POSTNET
  • UCC/EAN 128
  • K-Mart NON EDI
  • Telepen
  • UPS Maxi Code
  • FIM
  • PDF-417
  • Data Matrix
  • QR Code
  • Aztec Code
  • GS1 DataBar
  • TCIF
  • Micro PDF-417
  • HIBCC
  • EAN/JAN-13
  • EAN/JAN-8
  • TLC 39

Application/Usage

Desktop

Features

  • Mirror Printing
  • Rotate Printing
Memory

Standard Memory

16 MB

Memory Technology

DRAM

Flash Memory

64 MB
Interfaces/Ports

Parallel Port

Yes

Serial Port

Yes

USB

Yes
Network & Communication

Ethernet

Yes

Ethernet Technology

Fast Ethernet
Media Types & Handling

Media Type

  • Label
  • Tag
  • Gap
  • Notch
  • Black Bar
  • Fanfold
  • Continuous Form
  • Perforated Label

Media Sensor

  • Reflective Media Sensor
  • Transmissive Media Sensor
  • Label Taken Sensor

Media Thickness

10 mil

Maximum Roll Diameter

5"

Maximum Label Width

4.40"

Label Core Size

1.50"
Fonts & Emulation

Language Emulation

  • DPL
  • PLB
  • PLE
  • PLI
  • PLZ
  • EPL
  • ZPL
Power Description

Power Source

  • Battery
  • Power Adapter
Physical Characteristics

Product Color

Warm Gray

Height

7.4"

Width

8"

Depth

11.1"

Weight (Approximate)

5.25 lb
Miscellaneous

Platform Supported

PC

Country of Origin

United States
Warranty

Limited Warranty

1 Year
