HighPoint SSD7749M PCIe 4.0 x16 / 8x 22110 M.2 Ports

HighPoint's SSD7749M PCIe 4.0 x16 8-Channel M.2 NVMe RAID controller was designed for Industrial and Edge Server applications that demand a compact, easily integrated high-density RAID storage solution with blistering PCIe Gen4 x16 performance and enterprise class 24/7 reliability.

The SSD7749M is a simple, cost-efficient PCIe Gen4 RAID storage upgrade solution for Intel and AMD x86, and ARM server platforms. The controller can directly host up to eight 22110 form-factor M.2 SSDs at speeds up to 28,000MB/s, yet is no larger than a modern dual-width PCIe graphics adapter, and can be easily integrated into systems with a free PCIe 4.0 x16 slot.

Key features:

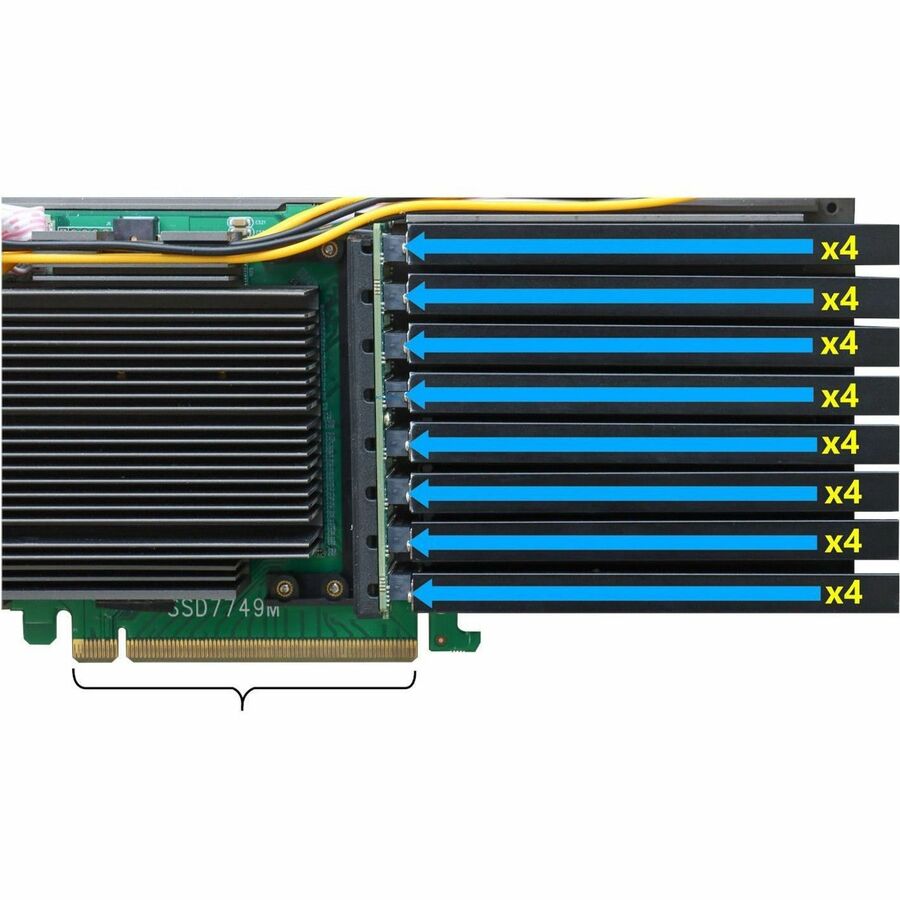

• Up to 8x 22110 Form factor M.2 SSDs
• Directly Hosts over 32TB of Datacenter class NVMe storage
• Dedicated PCIe Gen4 x16 Host Bandwidth delivers up to 28,000MB/s
• Cross-Sync Technology: Scale Up to x32 Lanes of Gen4 Transfer Bandwidth
• RAID 0, 1, 10 & Singe Disk
• Advanced Cooling Solution Prevents Thermal Throttling
• Toolless SSD Installation
• For Linux, macOS & Windows

• 0
• 1
• 10

• Linux
• Mac OS
• Windows

• SSD7749M PCIe 4.0 x16 / 8x 22110 M.2 Ports
• Quick Installation Guide
