AMX MCP-106L-BL MASSIO 6BTN ETHERNET CONTROLPAD

by
HARMAN PRO
PCN#
6VB127
MFG#
FG2102-06L-BL
$931.00
cps

Extended & Accidental Damage Protection Plans Available Details

  Free Shipping
Estimated Shipment:

Calculating Shipping

Product Highlights:
  • Wired
Product Condition: New and Factory Fresh
Shipping Weight: 1 lbs.

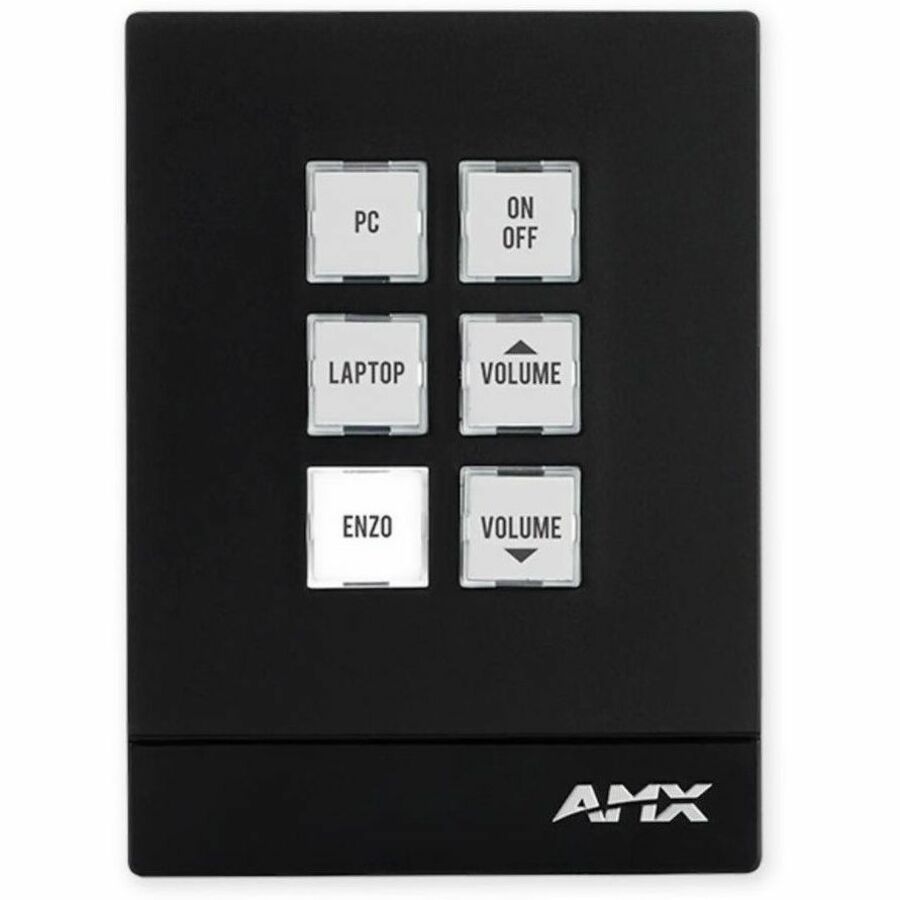

AMX Massio MCP-106 A/V Control Panel

The MCP-106 / 6-Button Massio™ ControlPad is a high performance ControlPad that combines AMX control and a stylish keypad into a single unit that can be mounted in a standard 1 gang US, UK or EU back box to provide dedicated room control. Massio ControlPads provide high performance, intuitive usability and modern styling, and are simple to configure using AMX's Rapid Project Maker or custom programmed using NetLinx Studio software. The MCP-106 shares its controller technology with AMX's flagship NX-series, enabling it to provide the latest networking and security features, along with outstanding processing power.

Common ApplicationsNX Master Security firmware is ideal for enterprise, education, and government policies requiring secure communication over a computer network in line with security standards expected by the IT industry of any equipment running on an enterprise.Massio ControlPads are a perfect solution for huddle spaces and small conference rooms, where Massio's combination of controller, user interface and configuration with RPM provides an inexpensive way to add AV control to small spacesThe MCP-106's security features and secure wall-mount options make it ideal for Higher Education breakout rooms and small classrooms.The MCP-106's rugged design and attractive price point also make it perfect for K-12 (Primary Education) classrooms.Product TypeA/V Control PanelTechnical InformationConnectivity TechnologyWiredMaximum Number of Buttons6Physical CharacteristicsColor FamilyBlackProduct ColorBlackForm FactorGang Box MountWall MountableHeight3.4"Width4.7"Depth0.5"Weight (Approximate)4 ozMiscellaneousAdditional InformationProduct TypeA/V Control PanelTechnical InformationConnectivity TechnologyWiredMaximum Number of Buttons6Physical CharacteristicsColor FamilyBlackProduct ColorBlackForm FactorGang Box MountWall MountableHeight3.4"Width4.7"Depth0.5"Weight (Approximate)4 ozMiscellaneousAdditional Information
Mounting Mount onto standard 1 gang US, UK, or EU back boxes
  • Power Consumption Typical
    4.5 Watts, Voltage, DC (Typical)
    PoE (37V-57V), Voltage DC Range
    37 V-57 V per 802.3af spec, Power Connector
    (1) RJ-45 Ethernet
  • Memory Flash
    4 GB, Memory Card
    4 GB SD, DDRAM
    256 MB

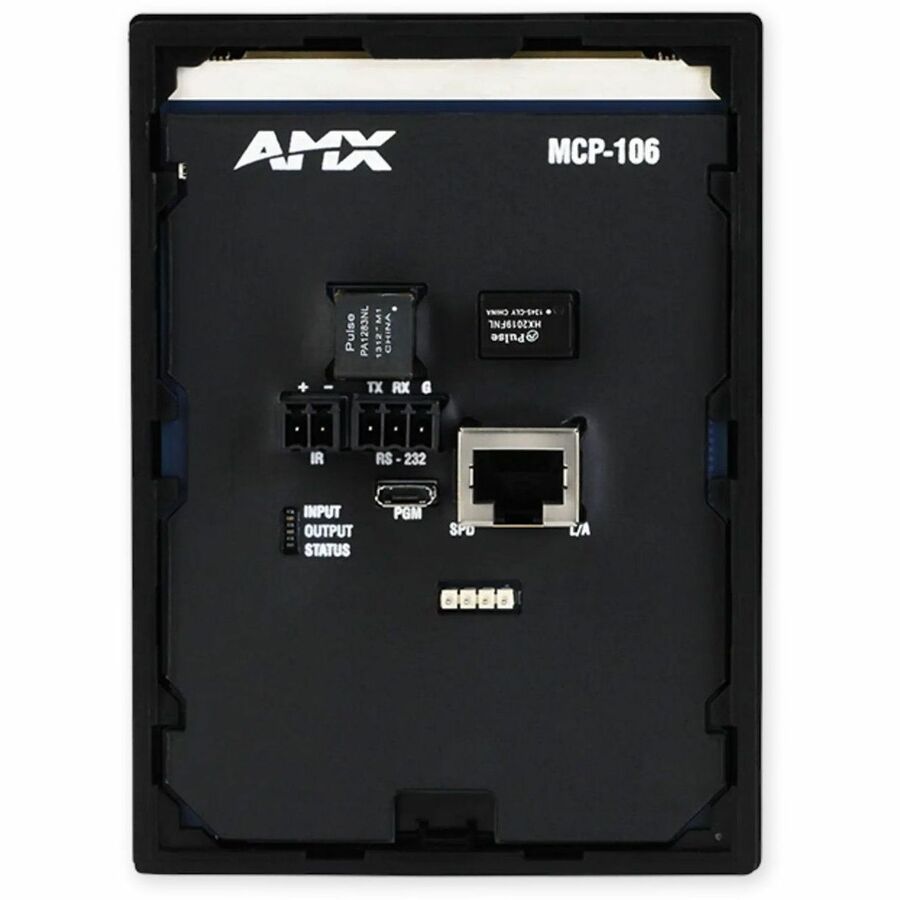

  • RS-232 Port (1), 3-position 3.5mm Screw Terminal; 300 - 115,200 baud
  • IR/Serial (1), 2-position 3.5mm Screw Terminal; IR Transmit / 1-way Serial ports, Support high-frequency carriers up to 1.142 MHz
  • Program Port (1) USB Mini-B, USB
  • ID Pushbutton Reset factory settings, reset factory image, toggle between DHCP or static IP addressing mode
  • Application/Usage
    • Conference Room
    • Classroom
