AMX 4x2 4K60 HDMI Switcher

Name: AMX 4x2 4K60 HDMI Switcher
Brand: HARMAN PRO
SKU: 9HB913
Price: 931 USD
Availability: InStock

HARMAN PRO

PCN#

9HB913

MFG#

AMX-PR-0402

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Authorized Dealer

$931.00

Extended & Accidental Damage Protection Plans Available Details

2-Year $89.99

3-Year $120.99

Free Shipping

Estimated Shipment:

Product Highlights:

4096 x 2160
4K
Twisted Pair
4 x 2
Display
2 x HDMI Out

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

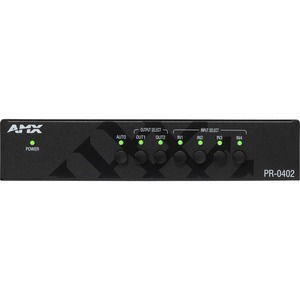

AMX 4x2 4K60 HDMI Switcher

Overview

Tech Specs

Specifications

Manufacturer	Harman International Industries, Inc
Manufacturer Part Number	AMX-PR-0402
Manufacturer Website Address	http://www.harman.com
Brand Name	AMX
Product Model	PR-0402
Product Name	4x2 4K60 HDMI Switcher
Marketing Information	The AMX Precis 4x2 4K60 HDMI Switcher is an extremely affordable yet fully featured HDMI video routing solution for small to medium installations. Featuring 4 HDMI inputs and 2 HDMI outputs, it includes best-in-class capabilities like pixel-for-pixel video reproduction, comprehensive EDID management, automatic or manual switching modes, and extreme control flexibility with an open control API and a simple-tomanage web interface. The PR-0402 supports high quality HDMI 2.0, HDCP 2.2, High Dynamic Range (HDR), and 36-bit per pixel Deep Color. Automatic and manual switching modes plus onboard dynamic audio de-embedding offer maximum configuration flexibility. Combining a robust matrix switcher and a highly affordable price point backed by over 30 years of industry-leading matrix switching experience, the AMX Precis PR-0402 can be trusted to deliver an exceptional switching solution. Common Applications The Precis PR-0402 4K60 HDMI Switcher is the ideal choice for beautiful, cost effective 4K60 4:4:4 matrix switching in meeting spaces, classrooms, lecture halls, houses of worship and more. Features Perfect 4K60 4:4:4 Video - Ideal for users that can benefit from processing the full fidelity of their displays HDMI 2.0 & HDCP 2.2 - Supports the latest video standards to realize the full capabilities of HDMI interfaces High Dynamic Range (HDR) and Deep Color Support - Support HDR10, HDR10+, Dolby Vision and 36-bit per pixel deep color. Automatic and Manual Switching Modes - Automatic switching can be leveraged to create a touch-free experience EDID Management - Provides comprehensive management of EDID to ensure that every source is displayed at the optimal resolution and format Audio De-Embedding - Includes the convenience of analog audio de-embedding from each HDMI output separately Multiple Audio Format Support - PCM 2-Channel, PCM Multi-Channel, Dolby Digital, Dolby Digital Plus, Dolby Atmos, Dolby TrueHD, DTS, DTS HD MA H-Control Upgradable - Ready to support H-control in the future by firmware re-writing via USB. Multiple Control Options - Multiple control options are available including: Open API Control over IP and Serial, full Web GUI console, and front panel buttons
Product Type	Audio/Video Switchbox

Technical Information

Connectivity Technology	Cable
Number of Input Devices Supported	4
Device Supported	Display
Number of Displays Supported	2

Video

Graphics Modes	4K
Maximum Video Resolution	4096 x 2160

Interfaces/Ports

HDMI In	Yes
HDMI Out	Yes
USB	Yes
Connectivity (RJ-45)	Yes
Number of Connectivity (RJ-45) Ports	1
Number of USB Ports	1
Number of HDMI Inputs	4
Number of HDMI Outputs	2

Media & Performance

Media Type Supported

Twisted Pair

Physical Characteristics

Form Factor	Desktop
Height	1.7"
Width	8.4"
Depth	8.1"
Weight (Approximate)	2.87 lb

Miscellaneous

Package Contents

6x2 4K60 HDMI Switcher
1 x US Pins
1 x 12V/3A DC Power Adapter
3 x 3-Pin Terminal Blocks
4 x Shockproof Feet
