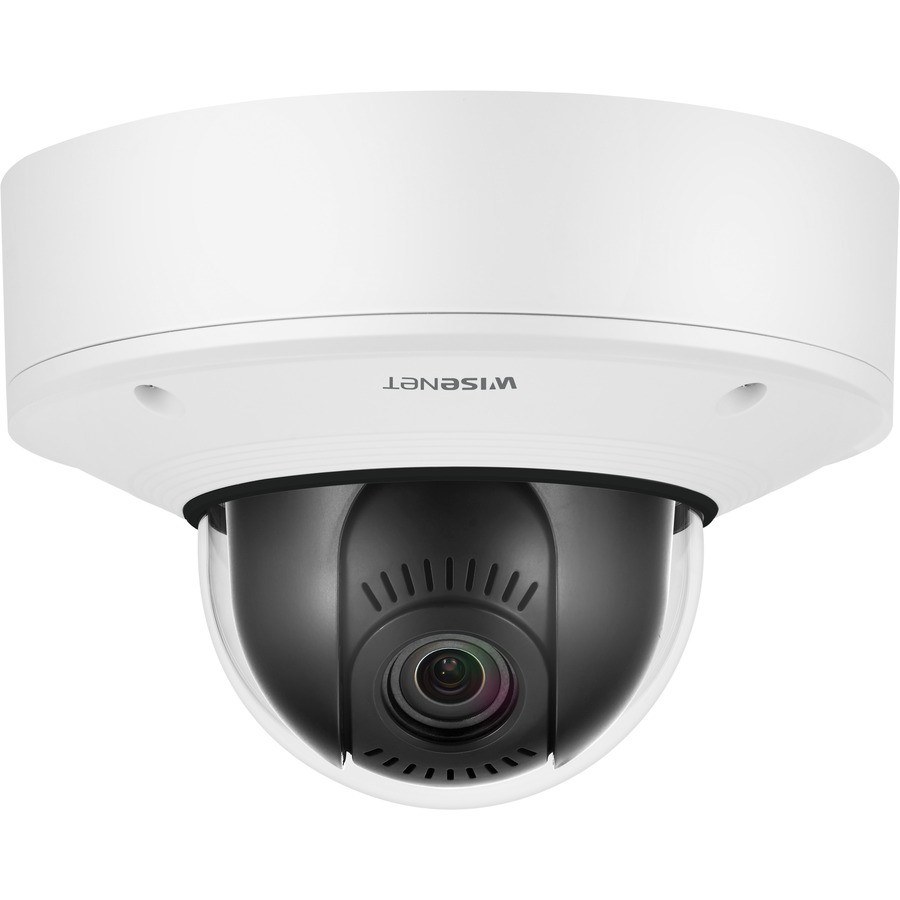

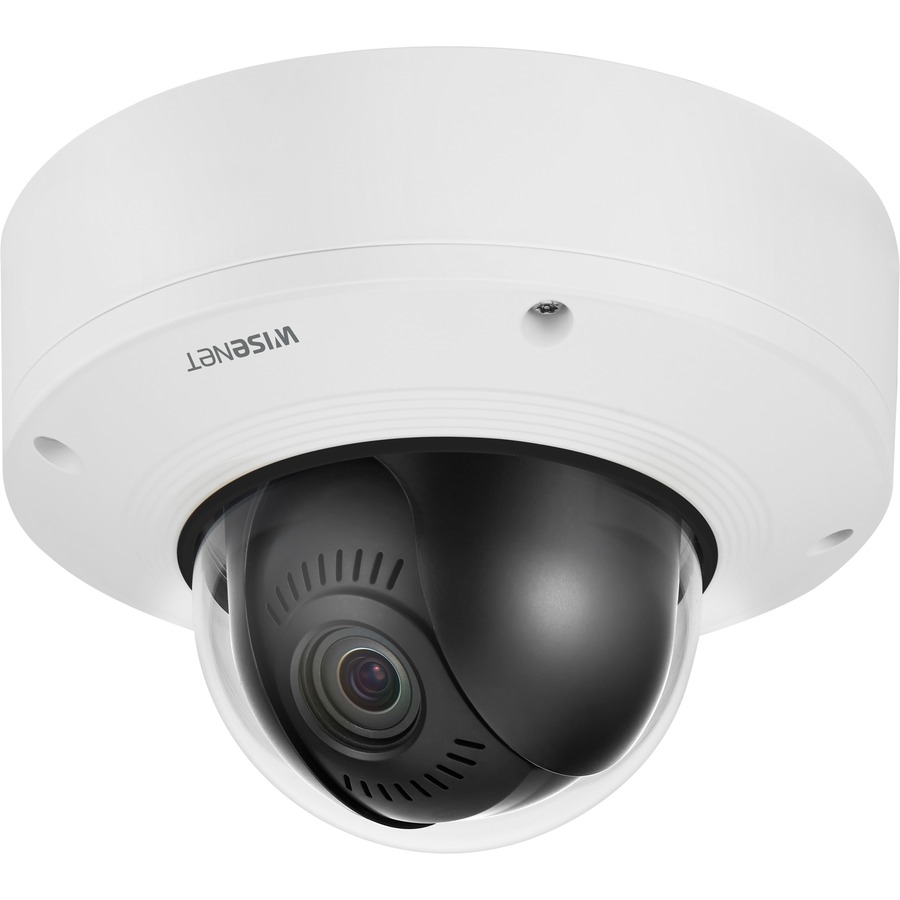

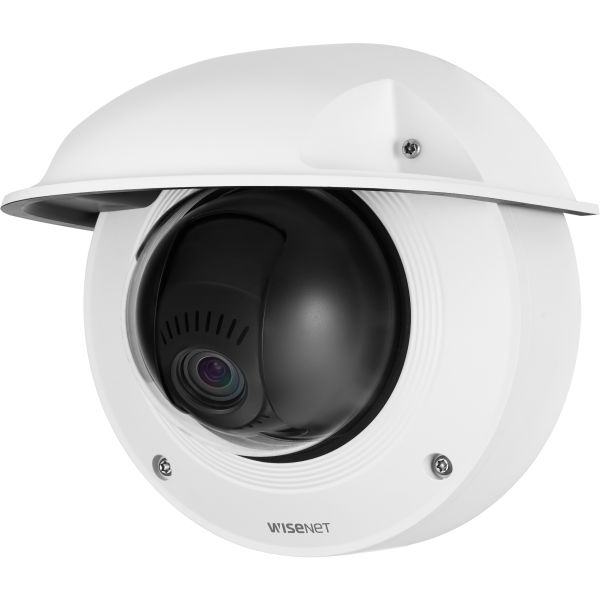

Wisenet XNV-8081Z 5 Megapixel Outdoor Network Camera - Color, Monochrome - Dome - White

Name: Wisenet XNV-8081Z 5 Megapixel Outdoor Network Camera - Color, Monochrome - Dome - White
Brand: HANWHA TECHWIN AMERICA
SKU: 9BL129
Price: 1114.72 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

9BL129

MFG#

XNV-8081Z

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,114.72

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

MJPEG, H.264, H.265
2560 x 1920
3.60 mm
9.40 mm Zoom Lens
2.6x Optical
30 fps
CMOS
Ceiling Mount, Roof Mount, Parapet Mount, Wall Mount, Pole Mount, Box Mount
IK10+
IP67, IP66, IP6K9K
Vandal Resistant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 1 lbs.

Wisenet XNV-8081Z 5 Megapixel Outdoor Network Camera - Color, Monochrome - Dome - White

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	XNV8081Z
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Wisenet
Product Series	X
Product Model	XNV-8081Z
Product Name	5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera

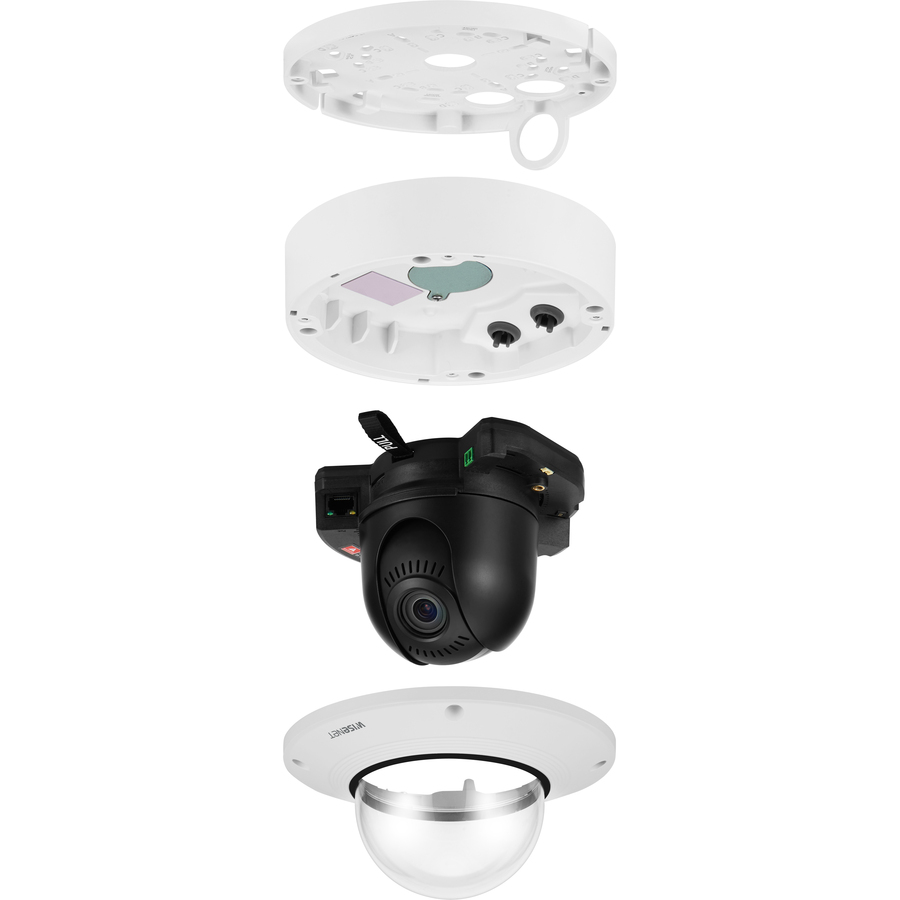

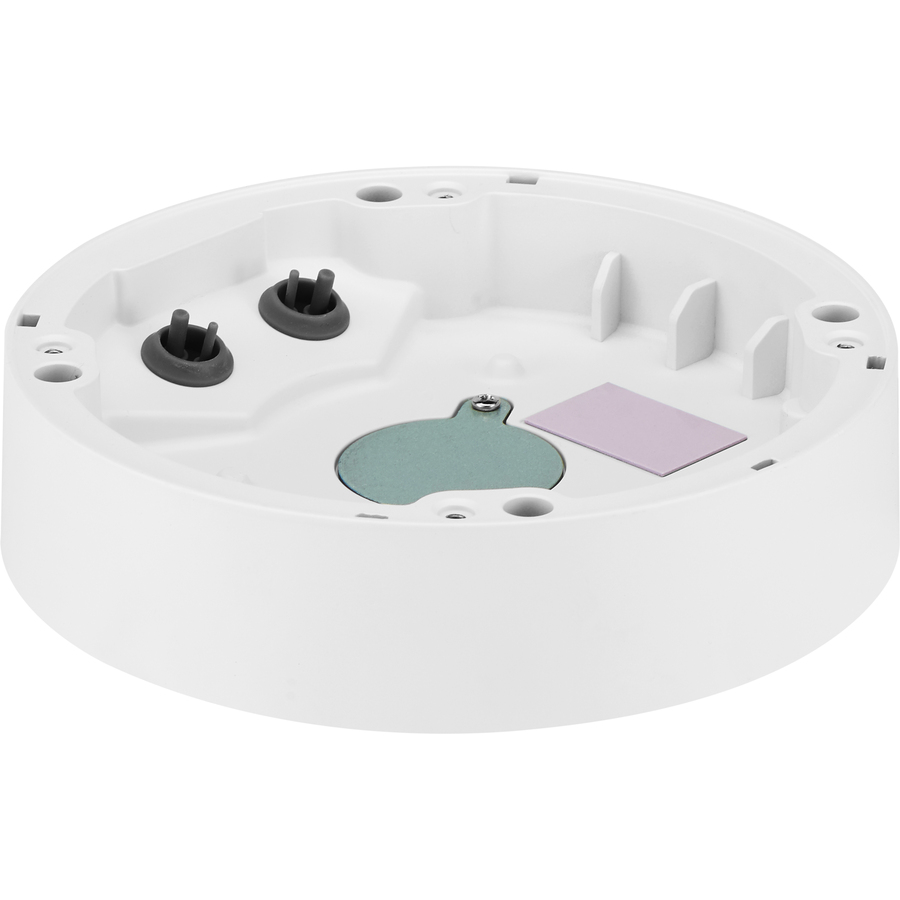

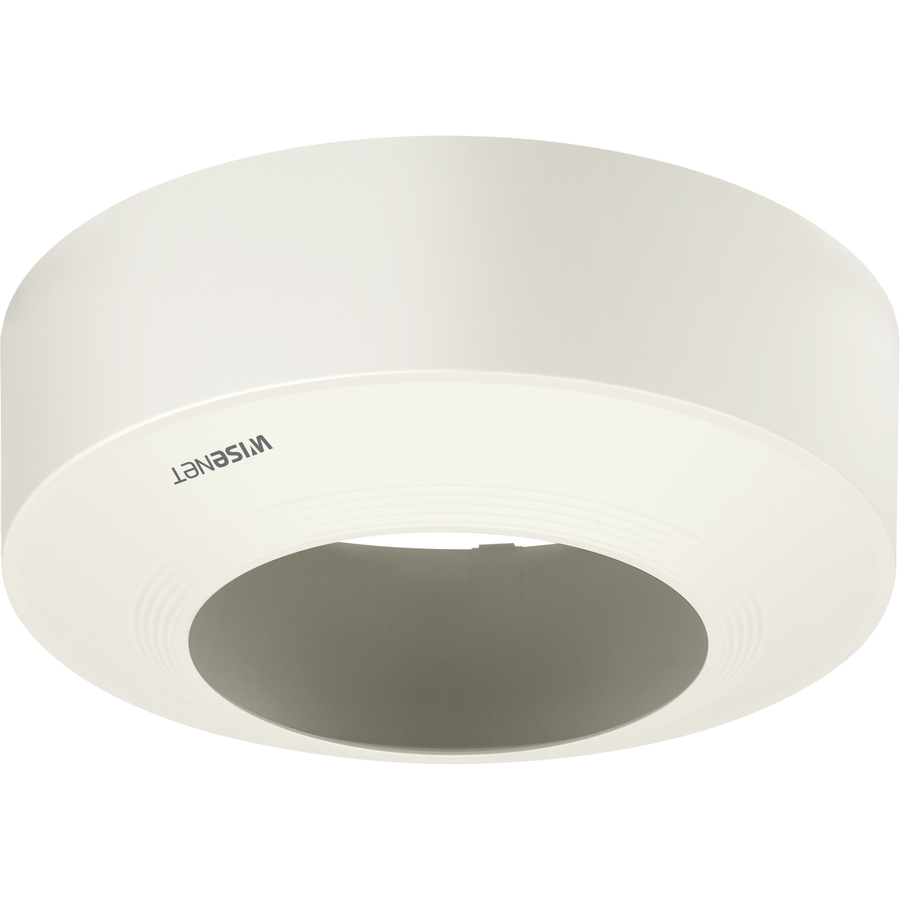

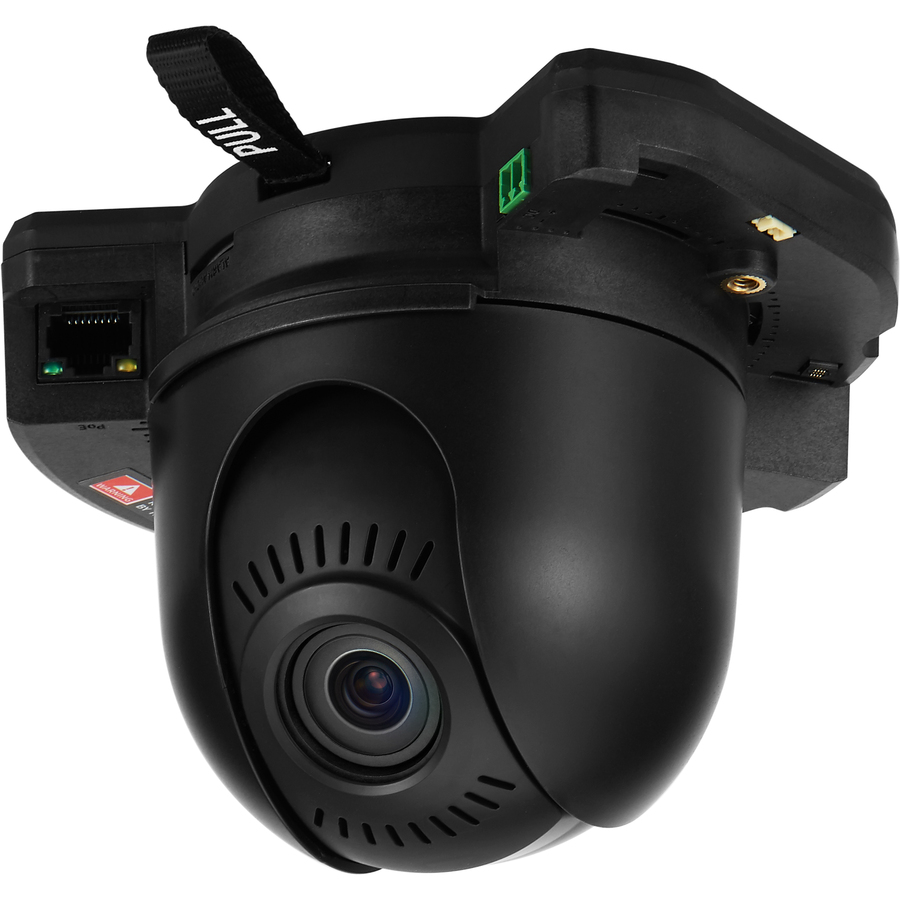

Marketing Information	The Wisenet X Plus powered by Wisenet 5 network outdoor vandal dome camera features a modular structure, 5MP @ 30fps, motorized vari-focal lens 2.6x (3.6~9.4mm) (102.5°~38.7°), and PTRZ capability for easy installation. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements. Additioanl features include 120dB WDR, USB port for easy installation, advanced video analytics, sound classification and business analytics, shock detection, audio playback, true D/N, dual SD card, hallway view, HLC, defog detection, DIS (Gyro), 12VDC/PoE, optional 24VAC, IP67/IP66/IP6K9K, IK10+, NEMA 4X, -50°C ~ +60°C (-58°F ~ +140°F), white color, ivory skin included, optional black skin cover. The modular design allows for easy installation of the camera case separately from the camera module. In addition, the camera module box includes a cutout for easy configuration without disassembling the camera/case.
Product Type	Network Camera

Technical Information

HD Recording

Yes

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color Monochrome
Field of View	H : 102.5°(Wide)~38.7°(Tele) V : 74.2°(Wide)~29.0°(Tele) D : 135.5°(Wide)~48.6°(Tele)
Effective Camera Resolution	5 Megapixel

Video

Video Formats	MJPEG H.264 H.265
Maximum Video Resolution	2560 x 1920
Maximum Frame Rate	30 fps

Lens

Lens Type	Zoom
Minimum Focal Length	3.60 mm
Maximum Focal Length	9.40 mm
Lens Included	Yes
Minimum Aperture	f/1.2
Maximum Aperture	f/2.4
Optical Zoom	2.6x

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage

24 V AC

Physical Characteristics

Mount Type	Ceiling Mount Roof Mount Parapet Mount Wall Mount Pole Mount Box Mount
Form Factor	Dome
Durability	Vandal Resistant
Color Family	White
Product Color	White
Height	4.9"
Width	7.1"
Diameter	7.1"
Weight (Approximate)	3.86 lb

Environmental Conditions

Minimum Operating Temperature	-58°F (-50°C)
Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	SD Card Local Storage Defog Gain Control White Balance Wide Dynamic Range Day/Night Motion Detection Audio Compression Privacy Masking Digital Noise Reduction
Indoor/Outdoor	Outdoor
Package Contents	5MP Vandal-Resistant Outdoor Network Dome PTRZ Camera Weathercap Ivory Skin
Impact Protection Rating	IK10+
Ingress Protection Rating	IP67 IP66 IP6K9K
NDAA Compliant	Yes

Warranty

Limited Warranty

3 Year
