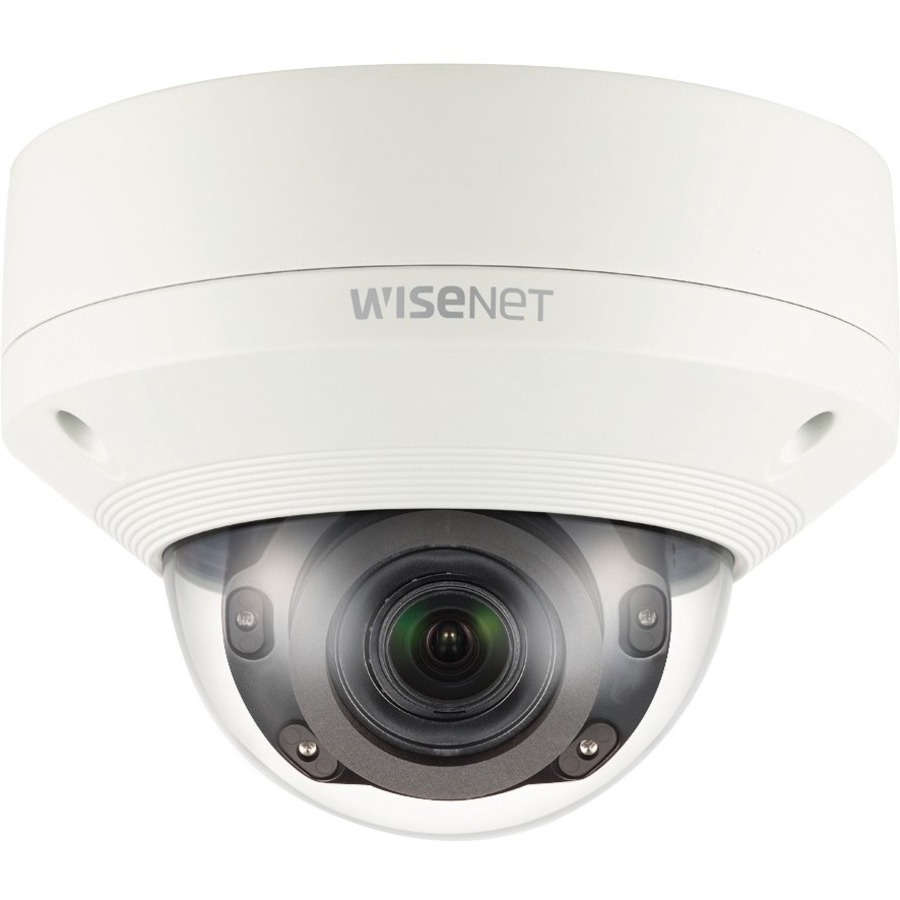

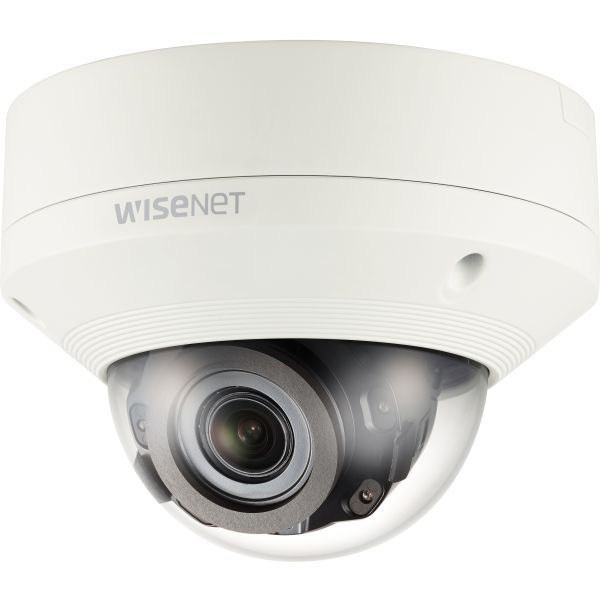

Wisenet XNV-8080R 5 Megapixel Outdoor Network Camera - Color - Dome

Name: Wisenet XNV-8080R 5 Megapixel Outdoor Network Camera - Color - Dome
Brand: HANWHA TECHWIN AMERICA
SKU: 9BL137
Price: 1032.7 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

9BL137

MFG#

XNV-8080R

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,032.70

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

164.04 ft Infrared Night Vision
MPEG
4 AVC, MJPEG, H.264, H.265
2560 x 1920
3.90 mm
9.40 mm Varifocal Lens
2.4x Optical
30 fps
CMOS
Flush Mount, Ceiling Mount, Wall Mount, Parapet Mount, Pole Mount, Corner Mount
IP67, IP66

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 4 lbs.

Wisenet XNV-8080R 5 Megapixel Outdoor Network Camera - Color - Dome

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	XNV-8080R
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Wisenet
Product Series	X
Product Model	XNV-8080R
Product Name	5MP Vandal IR Dome Camera
Marketing Information	Wisenet X powered by Wisenet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, Motorized Vari-Focal Lens 2.4x (3.9~9.4mm) (92.1°~38.7°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, Advanced video analytics and sound classification, High powered IR LEDs range of 164', True D/N, Dual SD card, Hallway view, HLC, Defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, NEMA 4X, Built-in -40°F Heater
Product Type	Network Camera

Technical Information

HD Recording	Yes
Night Vision	Yes
Night Vision Distance	164.04 ft
Night Vision Type	Infrared

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color
Field of View	H : 92.1° ~ 38.7°/ V : 67.2° ~ 29.0°/ D : 119.9° ~ 48.6°
Effective Camera Resolution	5 Megapixel

Video

Video Formats	MPEG-4 AVC MJPEG H.264 H.265
Maximum Video Resolution	2560 x 1920
Maximum Frame Rate	30 fps

Lens

Lens Type	Varifocal
Minimum Focal Length	3.90 mm
Maximum Focal Length	9.40 mm
Lens Included	Yes
Lens Mount Type	Board Mount
Maximum Aperture	f/1.3
Optical Zoom	2.4x

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage	12 V DC 24 V AC
Power Source Type	DC AC PoE

Physical Characteristics

Mount Type	Flush Mount Ceiling Mount Wall Mount Parapet Mount Pole Mount Corner Mount
Form Factor	Dome
Color Family	White
Product Color	Ivory
Height	4.7"
Width	6.3"
Diameter	6.3"
Weight (Approximate)	2.23 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	131°F (55°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	SD Card Local Storage Day/Night Wide Dynamic Range Back Light Compensation (BLC) Defog Gain Control White Balance Privacy Masking Motion Detection Digital Noise Reduction
Indoor/Outdoor	Outdoor
Ingress Protection Rating	IP67 IP66
NDAA Compliant	Yes

Warranty

Limited Warranty

3 Year
