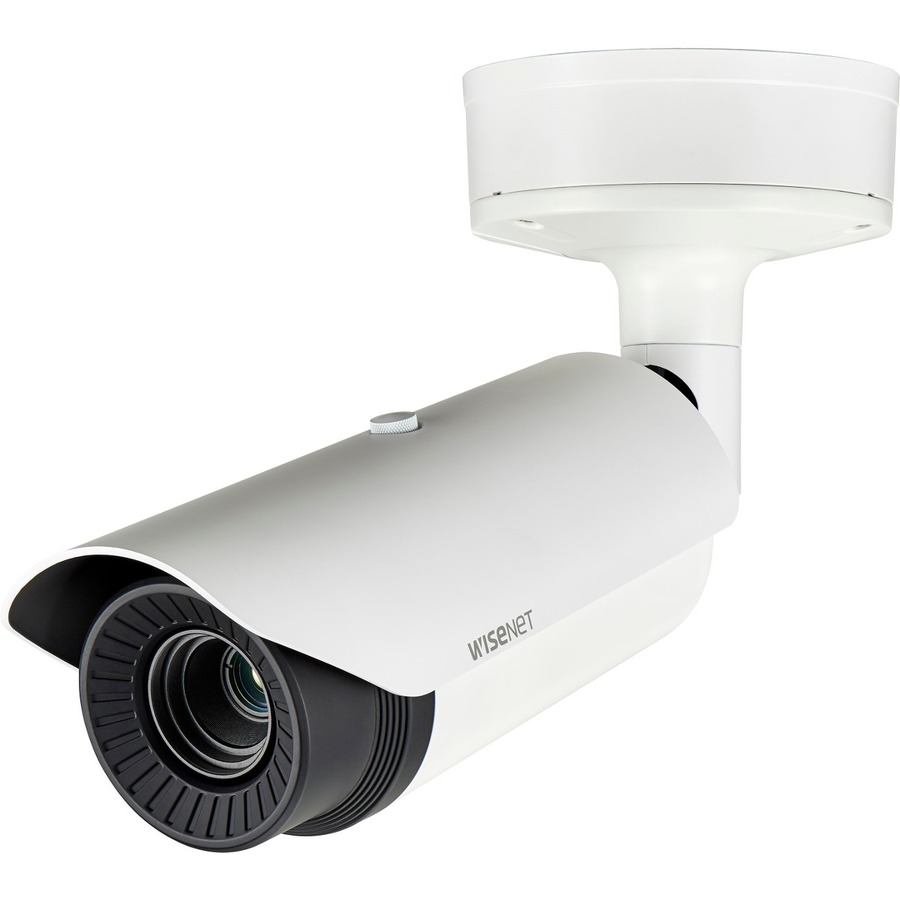

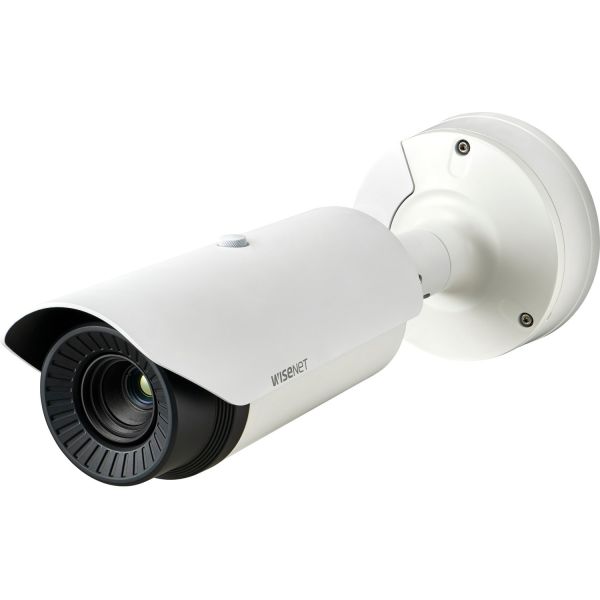

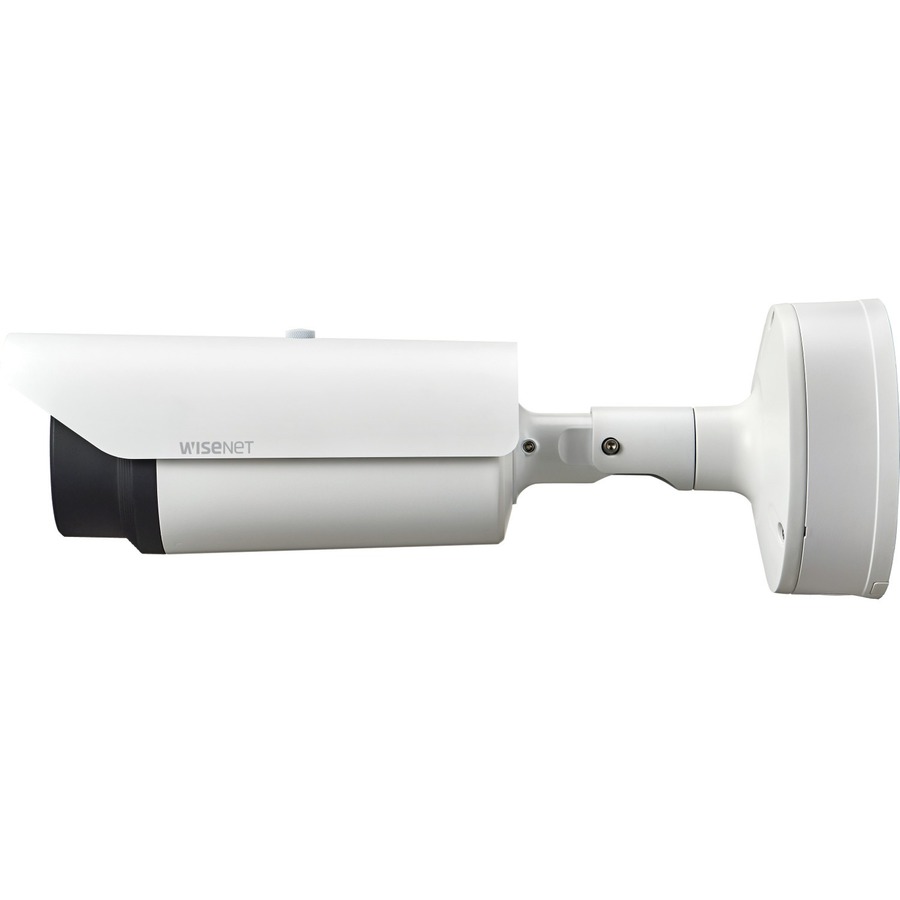

Wisenet TNO-4040TR HD Network Camera - Color - Signal White

Name: Wisenet TNO-4040TR HD Network Camera - Color - Signal White
Brand: HANWHA TECHWIN AMERICA
SKU: 9BL282
Price: 5694.3 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

9BL282

MFG#

TNO-4040TR

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$5,694.30

Extended & Accidental Damage Protection Plans Available Details

3-Year $471.99

2-Year $354.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.265, H.264, MJPEG Fixed Lens
30 fps
Pole Mount
IK10
IP66

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Wisenet TNO-4040TR HD Network Camera - Color - Signal White

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	TNO4040TR
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Wisenet
Product Series	T
Product Model	TNO-4040TR
Product Name	VGA Radiometric Thermal Bullet Camera

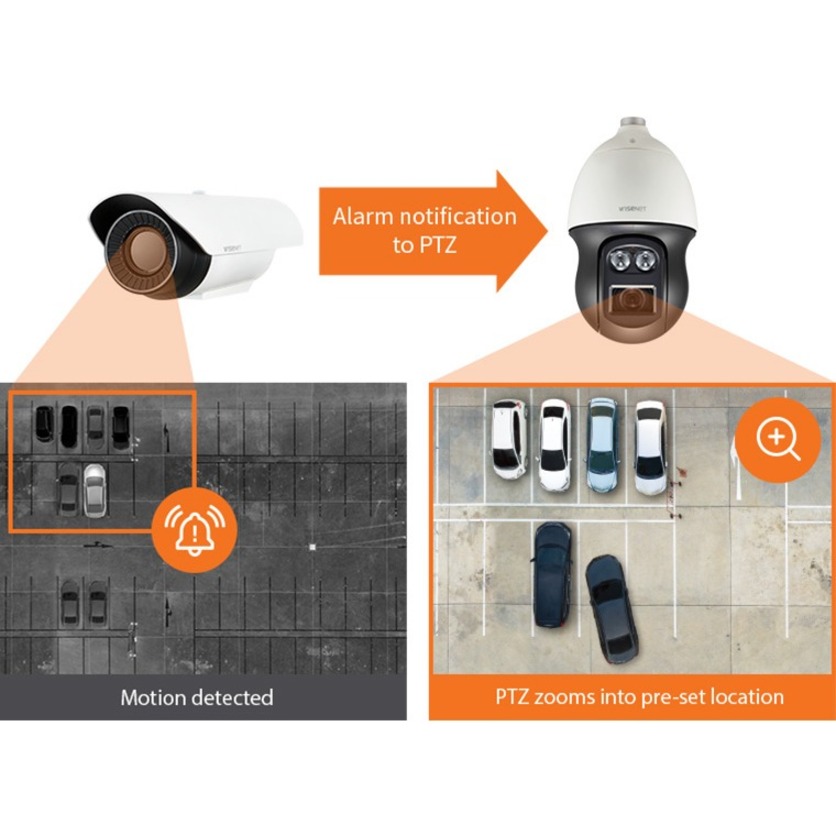

Marketing Information	In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting. The TNO-4040TR is a VGA radiometric thermal bullet network camera with a built-in 19mm lens providing human detection at up to 674m, and detection of vehicles at up to 1,714m. Additional specifications include H.265/H.264, WiseStream II, Intelligent Analytics, bi-directional audio, SDXC edge storage, PoE, 24VAC, 12DC, IP66, NEMA4X, IK10, and a wide operating temperature range. The Wisenet thermal radiometric camera can detect temperatures within the range of -20°C to +130°C. Alarms are generated and sent to users in case the temperature of three user-defined areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement. Spot temperature readings can also be performed. Using a hybrid color palette, the selected temperature range can be displayed in vivid colors, helping users observe monitoring areas with greater ease. Temperatures out of the defined range is expressed as a white hot color, ensuring the camera covers the entire monitoring areas.
Product Type	Network Camera

Technical Information

Recording Formats	HD
HD Recording	Yes

Display & Graphics

Thermal Image Sensor Type	Uncooled Microbolometer
Color Supported	Color
Field of View	H: 32° / V: 24.3° / D: 39.2°

Video

Video Formats	H.265 H.264 MJPEG
Thermal Video Resolution	640 x 480
Maximum Frame Rate	30 fps
Video Signal Format	NTSC PAL
Analog Video Signal Format	CVBS

Lens

Lens Type	Fixed
Lens Included	Yes
Maximum Aperture	f/1
Maximum Thermal Focal Length	0.75"

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage

12 V DC
24 V AC

Physical Characteristics

Mount Type	Pole Mount
Color Family	White
Product Color	Signal White
Diameter	4"
Weight (Approximate)	6.89 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	90%

Miscellaneous

Features	Motion Detection Audio Detection Shock Detection Privacy Masking Alarm Triggering Audio Compression HTTPS Encryption
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
