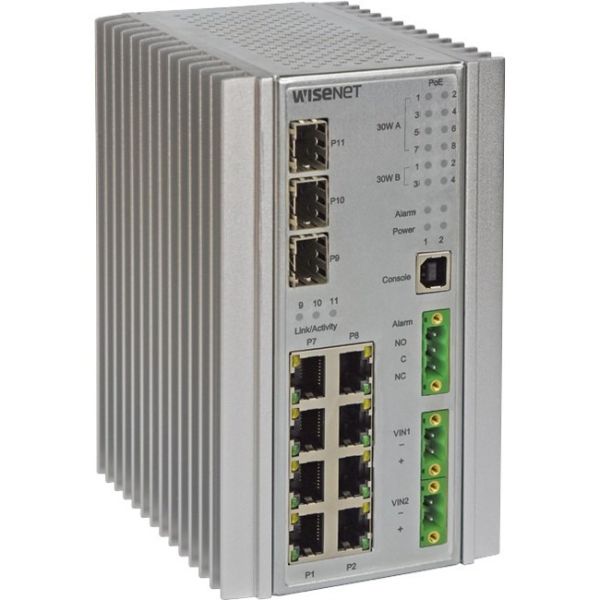

Wisenet SWT-G11MGHP Layer 3 Switch

The SWT-G11MGHP has three 100/1000/2500Base-FX SFP ports and eight 10/100/1000Base-TX ports. The 2.5 Gbps SFPs ports support high-speed communications in bandwidth-intensive applications. All SFP ports utilize SFP modules for fiber and connector type and distance selection. The intrusion event is reported back to the operator using SNMP. The switch offers multiple Ethernet redundancy protocols which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The Port Guardian feature provides additional cybersecurity protection by enabling physical port lockout in the event that an existing cable is disconnected and prevents a potential network incursion using common spoofing techniques. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. Four of the eight PoE ports can support up to sixty watts of PoE++ power, while the remaining support up to 30 watts of PoE+ power. All PoE ports are IEEE802.3af/IEEE802.3at compliant.

FEATURES

• 3× 100/1000/2500Base-FX SFP
  8 × 10/100/1000Base-TX RJ45
• 2 × SFP ports support 2.5 Gbps SFP modules for high speed communication
• 8 × IEEE802.3at compliant 30 W 802.3at PoE+ ports, with 4 × ports supporting 60 W PoE++ Total PoE budget 240 W
• Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS G.8032
• Layer 3 static routing
• Supports IPV6 new internet protocol version
• Provided HTTPS/SSH protocol enhances network security
• Supports Device Binding security function
• Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management Supports 802.1x User Authentication for security
• Supports 9.6K Bytes Jumbo Frame
• Web-based, Telnet and Console (CLI) configuration
• Designed for wall or DIN rail mount installations

SOFTWARE FEATURES

• Port Guardian prevents network intrusion through intelligent physical port lockout
• STP/RSTP/MSTP (IEEE 802.1D/w/s)
• Ethernet Ring Protection Switching (ERPS) (G.8032)
• Quality of Service (802.1p) for real-time traffic
• VLAN (802.1Q) with VLAN tagging and GVRP supported
• IGMP v2/v3 (IGMP snooping support) and MLD v1/v2 for filtering multicast traffic
• Supports IP-based bandwidth management
• Supports application-based QoS management
• Port configuration, status, statistics, monitoring, security
• DHCP Client/Server, DHCP Snooping, DHCP Relay
• Custom User Access Rights (15 Levels)
• Static and LACP Link Aggregation
• Supports Loop Protection function
• Multicast VLAN Registration (MVR)
• Supports IP Multicast Profile (IPMC)
• Link Layer Discovery Protocol (LLDP)
• Voice VLAN support
• UPNP (universal plug and play)

• 8 x Fast Ethernet PoE++
• 1 x Gigabit Ethernet Expansion Slot
• 2 x 2.5 Gigabit Ethernet Expansion Slot

• Twisted Pair
• Optical Fiber

• Gigabit Ethernet
• Fast Ethernet
• 2.5 Gigabit Ethernet

• 10/100Base-TX
• 100/1000/2500Base-FX
• 100/1000Base-FX

• IEEE 802.2af
• IEEE 802.3at
• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3z
• IEEE 802.3x
• IEEE 802.3ad
• IEEE 802.1p
• IEEE 802.1Q
• IEEE 802.1D
• IEEE 802.1w
• IEEE 802.1s
• IEEE 802.1x
• IEEE 802.1ab
• IEEE 802.3az

• DIN Rail Mountable
• Wall Mountable

• SWT-G11MGHP Layer 3 Switch
• 480 W DIN Rail Power Supply

• Restriction of Hazardous Substances (RoHS)
• Waste Electrical and Electronic Equipment Directive (WEEE)
