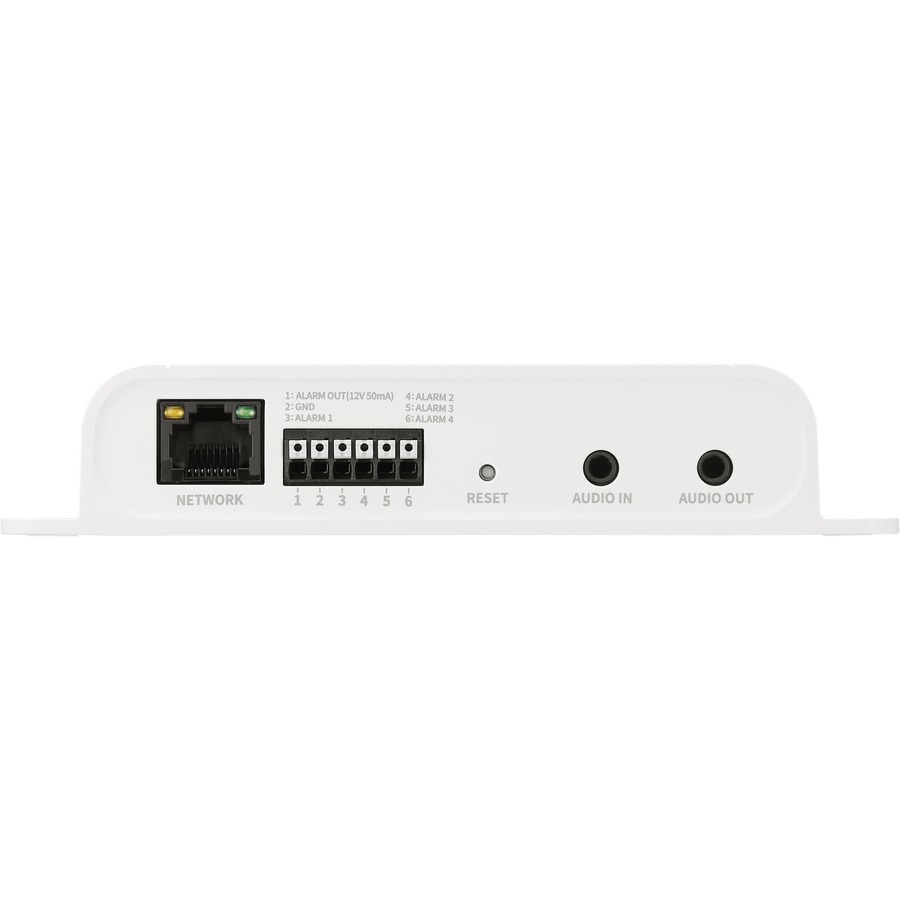

Hanwha Techwin SPM-4210 Network I/O Box

The SPM-4210 is an accessory for Wisenet PTZ Plus cameras. The Network I/O Box provides 4-configurable I/O ports & Audio I/O. It conveniently installs without requiring a direct connection to the camera. Powered by PoE. Compatible with:
XNP-9300RW / XNP-9250R / XNP-9250
XNP-8300RW / XNP-8250R / XNP-8250
XNP-6400RW / XNP-6400R / XNP-6400

• PTZ Camera
• Fire Alarm

• Plug-in Installation
• Microphone
• PoE

• Audio In: Selectable(microphone in/line in)
• Audio Out: Line out, Maximum output level: 1Vrms
• Ethernet: RJ-45 (10/100BASE-T)
• Application Programming Interface: SUNAPI (HTTP API)
• Webpage Language: Web Viewer English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek
• Web Viewer: Support, Plugin-free
• Memory: 4GB RAM, Flash 256MB
• Operating Temperature / Humidity: -40°C~+60°C(-40°F ~ +140°F) / Less than 95% RH(Non-condensing) Start up should be done at above -30°C
• Storage Temperature / Humidity: -50°C~+60°C (-58°F~+140°F) / Less than 95% RH(Non-condensing)
• Input Voltage: PoE(IEEE802.3af, Class3)
• Power Consumption: Maximum 4.5W
• RAL Code: RAL9003
• Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, ICMP, ARP, DNS, LLDP

• Configurable 4 Ports
• 12 V DC output, maximum load 50 mA

• G.711 u-law /G.726 Selectable
• G.726(ADPCM) 8KHz, G.711 8KHz
• G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
• AAC-LC: 48Kbps at 16KHz

• HTTPS(SSL) Login Authentication
• Digest Login Authentication
• IP Address Filtering
• User access log
• 802.1X Authentication(EAP-TLS, EAP-LEAP)
• Device Certificate(Hanwha Techwin Root CA)

• 4K 30x IR XNP-9300RW
• 4K 25x IR XNP-9250R
• 4K 25x XNP-9250
• 6MP 30x IR Wiper XNP-8300RW
• 6MP 25x IR XNP-8250R
• 6MP 25x XNP-8250
• 2MP 40x XNP-6400RW
• 2MP 40x XNP-6400R
• 2MP 40x XNP-6400
