Hanwha Techwin SBP-UDR Din Rail Mount for Electronic Equipment

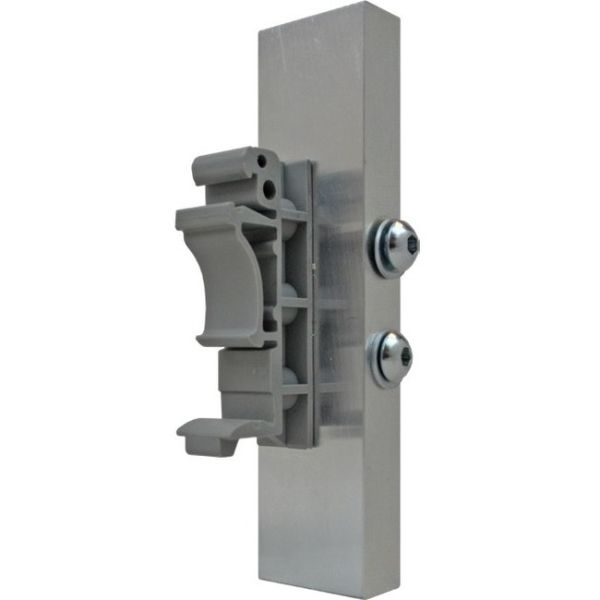

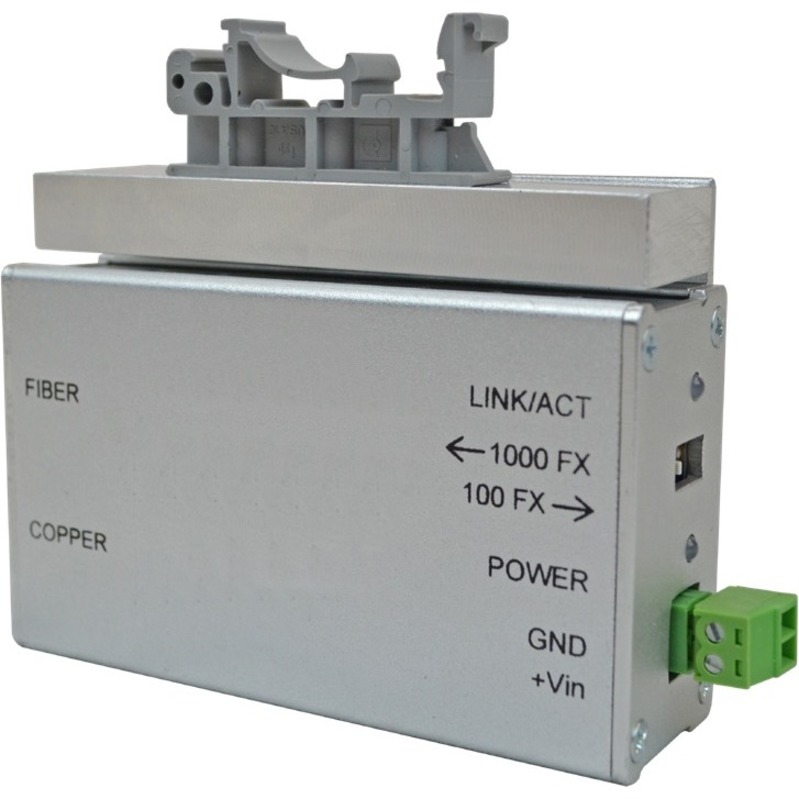

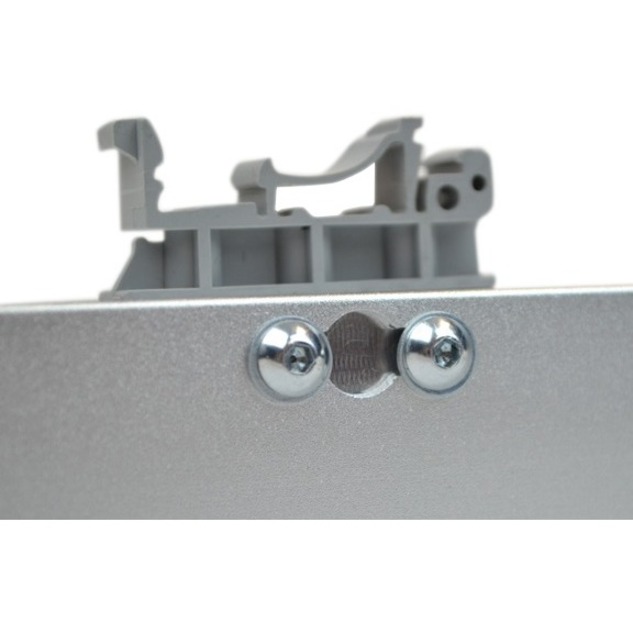

The SBP-UDR is a universal DIN-Rail mount adapter kit, ideal for mounting a wide range of modules to a standard 35mm DIN-Rail mounting channel. DIN-Rail mounting is widely used within the industrial control and ITS markets for mounting electronic and electrical hardware within an equipment cabinet, and it affords significant ease of installation, greater mounting density, and neatness/good housekeeping within spaces having limited area. To mount shelf-mount products on an existing DIN-Rail the SBP-UDR provides a universal solution and requires minimal additional space using its unique mounting system. The module affixes onto the SBP-UDR adapter with the mounting hardware provided. The aluminum block is fabricated with several sets of no. 6-32 drilled and tapped fixing holes that allow the module to be mounted on the adapter in a vertical axis configuration, providing considerable flexibility in module mounting and installation. The complete assembly is then clipped directly onto a standard 35mm DIN-Rail.
