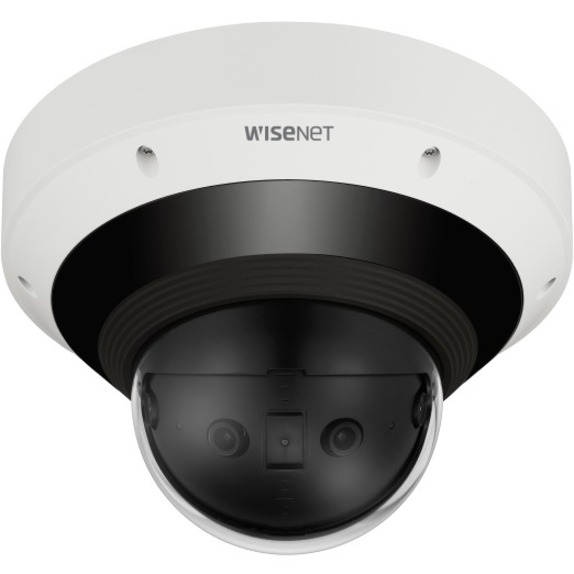

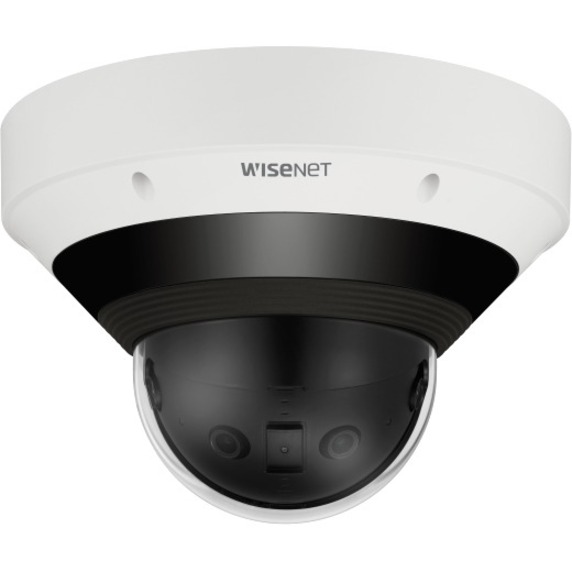

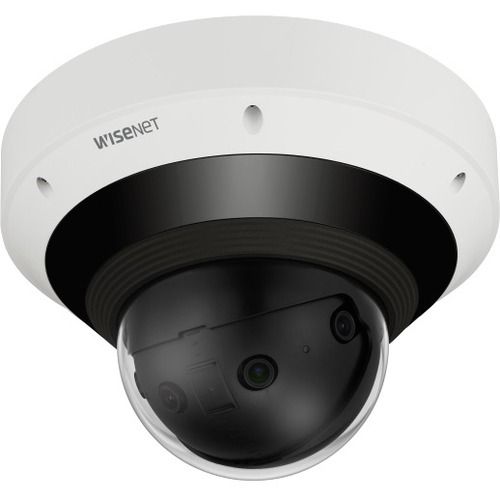

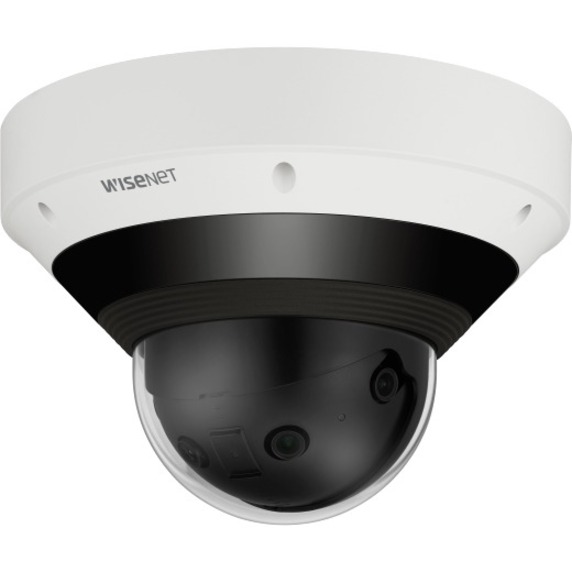

Hanwha Techwin PNM-9031RV 15 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant

Name: Hanwha Techwin PNM-9031RV 15 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant
Brand: HANWHA TECHWIN AMERICA
SKU: 9BP587
Price: 1798.88 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

9BP587

MFG#

PNM-9031RV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,798.88

Extended & Accidental Damage Protection Plans Available Details

2-Year $145.99

3-Year $194.99

Free Shipping

Estimated Shipment:

Product Highlights:

65.62 ft Infrared Night Vision
H.265, H.264, MJPEG, H.264 (MP), H.264 HP
6720 x 2240
4.30 mm Fixed Lens
20 fps
CMOS
Hanging Mount
IK10
IP66
Vandal Resistant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 9 lbs.

Hanwha Techwin PNM-9031RV 15 Megapixel Outdoor Network Camera - Color - Dome - White - TAA Compliant

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	PNM9031RV
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Hanwha Techwin
Product Series	P
Product Model	PNM-9031RV
Product Name	15MP Panoramic Camera
Marketing Information	Network vandal outdoor Multi-sensor dome camera, panoramic view with stitched image, (5MP X 4 sensors) 15MP 20fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, IR viewable length 20m (65.5'), built-in video analytics and sound classification, Heatmap, Bi-directional audio support, Micro SD 2 slots, IP66/IK10/NEMA4X, TPM 2.0 (FIPS 140-2 level 2) for enhanced cybersecurity, PoE+/12VDC powered.
Product Type	Network Camera

Technical Information

HD Recording	Yes
Night Vision	Yes
Night Vision Distance	65.62 ft
Night Vision Type	Infrared

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color
Field of View	192°(H) x 65°(V)
Effective Camera Resolution	15 Megapixel
Number of Sensors	4

Video

Video Formats	H.265 H.264 MJPEG H.264 (MP) H.264 HP
Maximum Video Resolution	6720 x 2240
Maximum Frame Rate	20 fps

Lens

Lens Type	Fixed
Maximum Focal Length	4.30 mm
Lens Included	Yes
Maximum Aperture	f/1.6

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage

12 V DC

Physical Characteristics

Mount Type	Hanging Mount
Form Factor	Dome
Durability	Vandal Resistant
Color Family	White
Product Color	White
Height	6.7"
Width	10"
Diameter	10"
Weight (Approximate)	5.73 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	131°F (55°C)
Maximum Operating Humidity	95%

Miscellaneous

Features	Audio Detection Motion Detection Day/Night Back Light Compensation (BLC) Wide Dynamic Range Digital Noise Reduction Privacy Masking Gain Control White Balance Alarm Triggering SD Card Local Storage Audio Compression
Indoor/Outdoor	Outdoor
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
TAA Compliant	Yes

Warranty

Limited Warranty

3 Year
