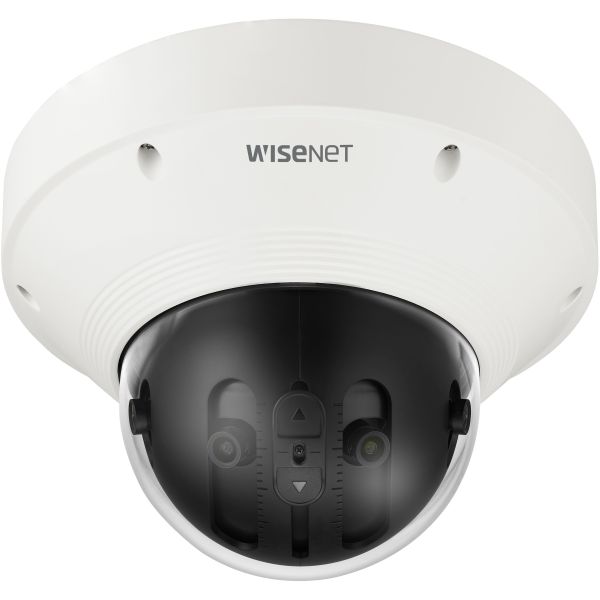

Hanwha Techwin Panoramic PNM-9022V 2 Megapixel Outdoor Network Camera - Color - Dome - White

Name: Hanwha Techwin Panoramic PNM-9022V 2 Megapixel Outdoor Network Camera - Color - Dome - White
Brand: HANWHA TECHWIN AMERICA
SKU: 9BL100
Price: 1199.25 USD
Availability: InStock

HANWHA TECHWIN AMERICA

PCN#

9BL100

MFG#

PNM-9022V

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$1,199.25

Extended & Accidental Damage Protection Plans Available Details

3-Year $143.99

2-Year $107.99

Free Shipping

Estimated Shipment:

Product Highlights:

H.265, H.264, MJPEG
4608 x 1800
2.80 mm Fixed Lens
30 fps
CMOS
Box Mount, Pipe Mount, Wall Mount
IK10
IP66
Vandal Resistant

Product Condition: New and Factory Fresh

Limited Warranty3 Year

Shipping Weight: 9 lbs.

Hanwha Techwin Panoramic PNM-9022V 2 Megapixel Outdoor Network Camera - Color - Dome - White

Overview

Tech Specs

Specifications

Manufacturer	Hanwha Group
Manufacturer Part Number	PNM9022V
Manufacturer Website Address	http://www.hanwha.com
Brand Name	Hanwha Techwin
Product Line	Panoramic
Product Series	P
Product Model	PNM-9022V
Product Name	8MP Panoramic Camera
Product Type	Network Camera

Technical Information

HD Recording

Yes

Display & Graphics

Image Sensor Type	CMOS
Color Supported	Color
Field of View	H: 209°, V: 83.3°
Effective Camera Resolution	2 Megapixel
Number of Sensors	4

Video

Video Formats	H.265 H.264 MJPEG
Maximum Video Resolution	4608 x 1800
Maximum Frame Rate	30 fps

Lens

Lens Type	Fixed
Maximum Focal Length	2.80 mm
Lens Included	Yes
Maximum Aperture	f/1.6

Exposure

Shortest Shutter Speed	1/12000 Second
Longest Shutter Speed	2 Second

Network & Communication

Connectivity Technology	Wired
Remote Management	Yes

Storage

Storage Type

Memory Card

Interfaces/Ports

Network (RJ-45)

Yes

Power Description

Input Voltage	12 V DC
Power Source Type	DC

Physical Characteristics

Mount Type	Box Mount Pipe Mount Wall Mount
Form Factor	Dome
Durability	Vandal Resistant
Color Family	White
Product Color	White
Diameter	10"
Weight (Approximate)	7.05 lb

Environmental Conditions

Minimum Operating Temperature	-40°F (-40°C)
Maximum Operating Temperature	140°F (60°C)
Maximum Operating Humidity	95%

Miscellaneous

Features	PTZ Day/Night Back Light Compensation (BLC) Highlight Compensation (HLC) Digital Noise Reduction Defog Motion Detection Privacy Masking Auto Gain Control Audio Detection Alarm Triggering Audio Compression HTTPS Encryption SD Card Local Storage
Indoor/Outdoor	Outdoor
Impact Protection Rating	IK10
Ingress Protection Rating	IP66
NDAA Compliant	Yes

Warranty

Limited Warranty

3 Year
