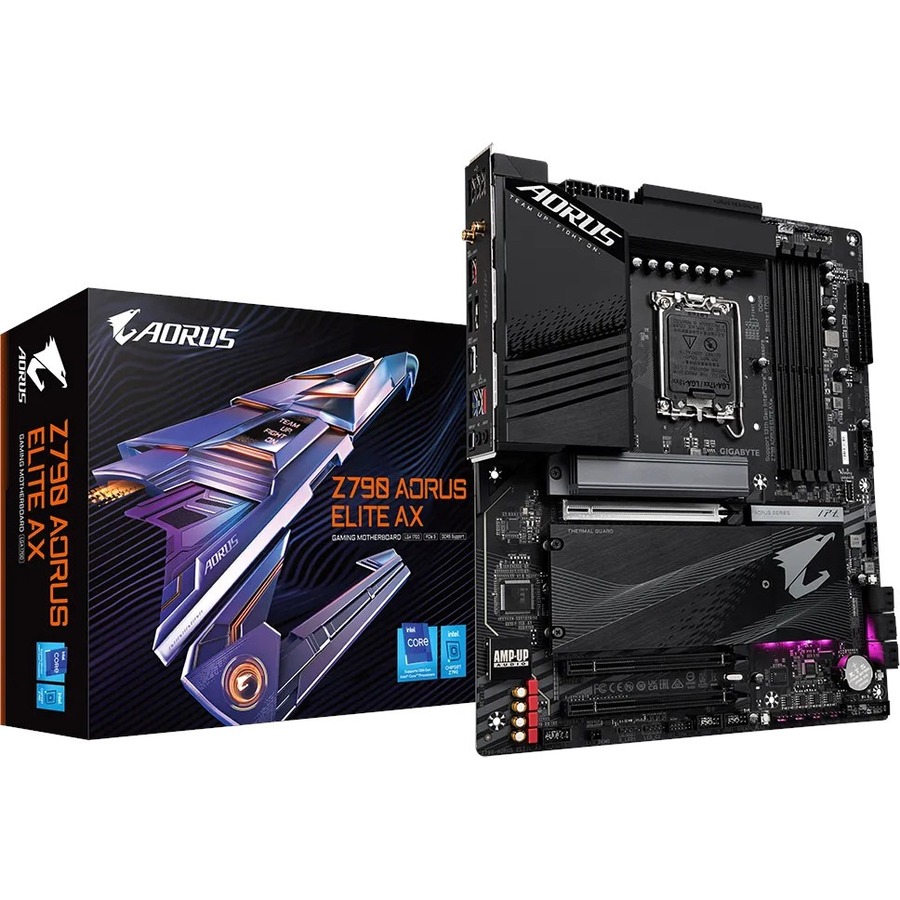

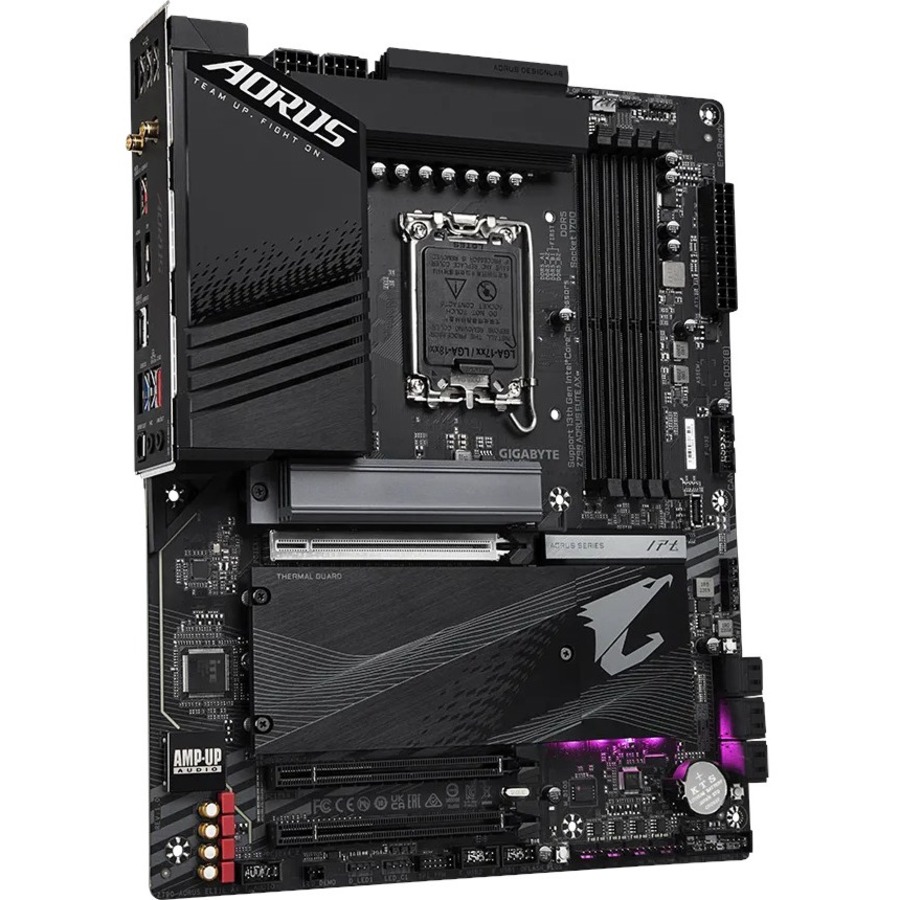

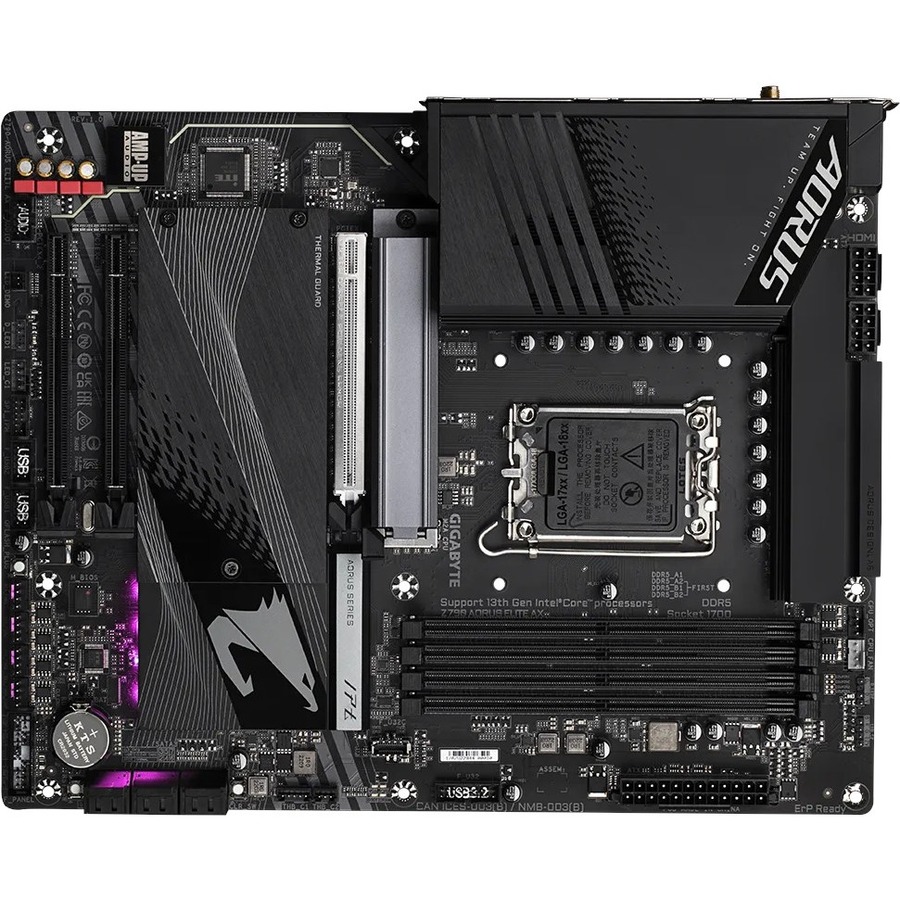

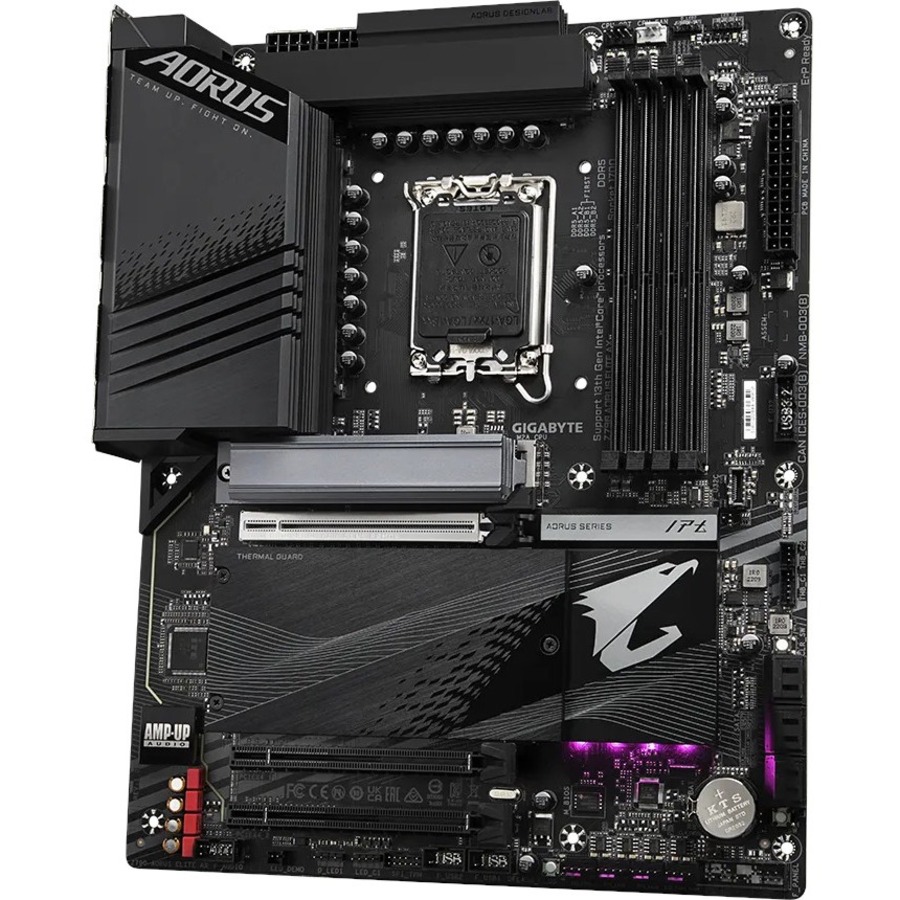

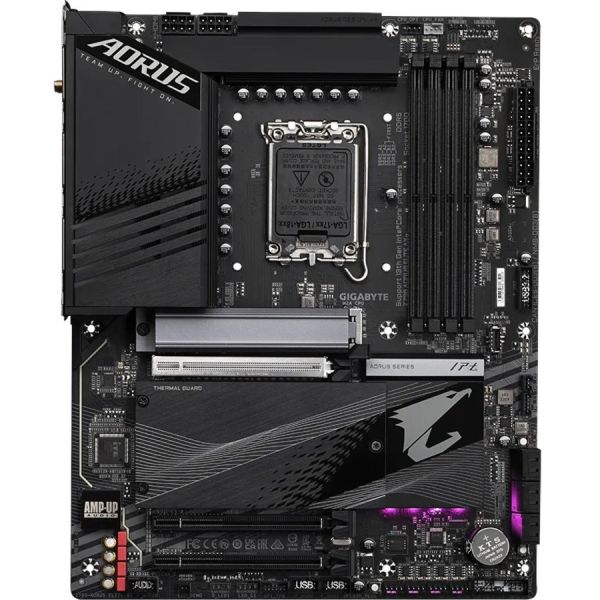

Aorus Z790 ELITE AX Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

Name: Aorus Z790 ELITE AX Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX
Brand: GIGABYTE
SKU: 08HM09
Price: 243.94 USD
Availability: InStock

GIGABYTE

PCN#

08HM09

MFG#

Z790 AORUS ELITE AX

Skip to the end of the images gallery

Skip to the beginning of the images gallery

$243.94

Extended & Accidental Damage Protection Plans Available Details

2-Year $25.99

3-Year $36.99

Free Shipping

Estimated Shipment:

Product Highlights:

Core, Pentium Gold, Celeron Processor Supported
128 GB DDR5 SDRAM Maximum RAM
DIMM, UDIMM
4 x Memory Slots
Gigabit Ethernet
IEEE 802.11 a/b/g/n/ac/ax
HDMI
DisplayPort
6 x SATA Interfaces

Product Condition: New and Factory Fresh

Shipping Weight: 1 lbs.

Aorus Z790 ELITE AX Desktop Motherboard - Intel Z790 Chipset - Socket LGA-1700 - ATX

Overview

Tech Specs

Specifications

Manufacturer	GIGABYTE Technology, Inc
Manufacturer Part Number	Z790AORUSELITEAX
Manufacturer Website Address	http://www.gigabyte.us
Brand Name	Aorus
Product Model	Z790 ELITE AX
Product Name	Z790 ELITE AX DDR4 Desktop Motherboard
Product Type	Desktop Motherboard

Processor & Chipset

Chipset Manufacturer	Intel
Chipset Model	Z790
Total Processor Supported	1
Processor Socket	Socket LGA-1700
Processor Generation Supported	12th Gen 13th Gen
Processor Supported	Core Pentium Gold Celeron
Multi GPU Supported	CrossFire

Memory

Number of Memory Slots	4
Memory Form Factor	DIMM UDIMM
Maximum Memory Supported	128 GB
Memory Technology	DDR5 SDRAM
Memory Speed Supported	7600 MHz 7400 MHz 7200 MHz 7000 MHz 6800 MHz 6600 MHz 6400 MHz 6200 MHz 6000 MHz 5800 MHz 5600 MHz 5400 MHz 5200 MHz 4800 MHz 4000 MHz

I/O Controller

Controller Type	Serial ATA/600
RAID Supported	Yes
RAID Levels	0 10 1 5

Video

Onboard Video

CPU Dependent Video

Audio

Audio Channels

7.1

Network & Communication

Bluetooth	Yes
Bluetooth Standard	Bluetooth 5.3
Gigabit Ethernet	Yes
2.5Gigabit Ethernet	Yes
Wireless LAN	Yes
Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots	3
PCI Express Standard	PCI Express 5.0 PCI Express 4.0
Total Number of PCI Express Slots	3
Number of PCI Express x16 Slots	3

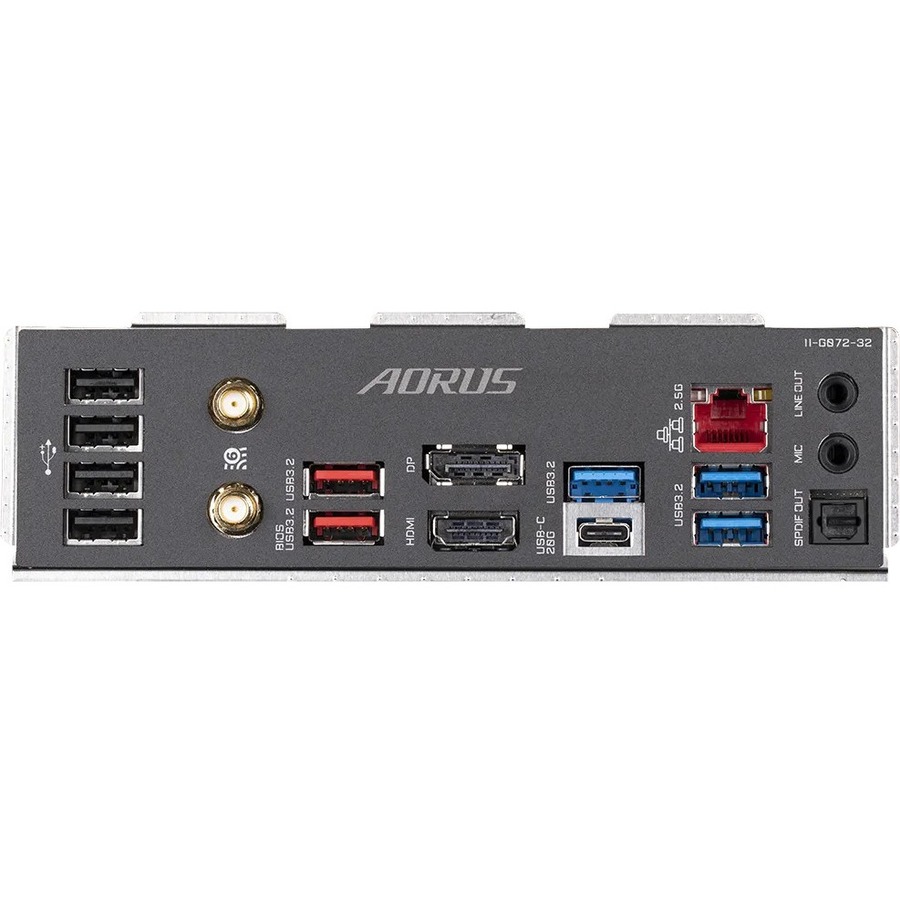

Interfaces/Ports

Total Number of USB Ports	10
Number of USB 2.0 Ports	4
Number of USB 3.2 Gen 1 Ports	3
Number of USB 3.2 Gen 2 Type-A Ports	2
S/PDIF	Yes
HDMI	Yes
HDMI Version	2.0
DisplayPort	Yes
Number of Network (RJ-45) Ports	1

Onboard Interfaces

Number of SATA Interfaces	6
Number of M.2 Interfaces	4
Total Number of Onboard USB Ports	7
Number of Onboard USB 2.0 Ports	4

Physical Characteristics

Form Factor	ATX
Width	12"
Depth	9.6"

Miscellaneous

Brand Compatibility

Intel
